Part Types

Click on a part to learn more about options and usage.

Part Types

Part Types

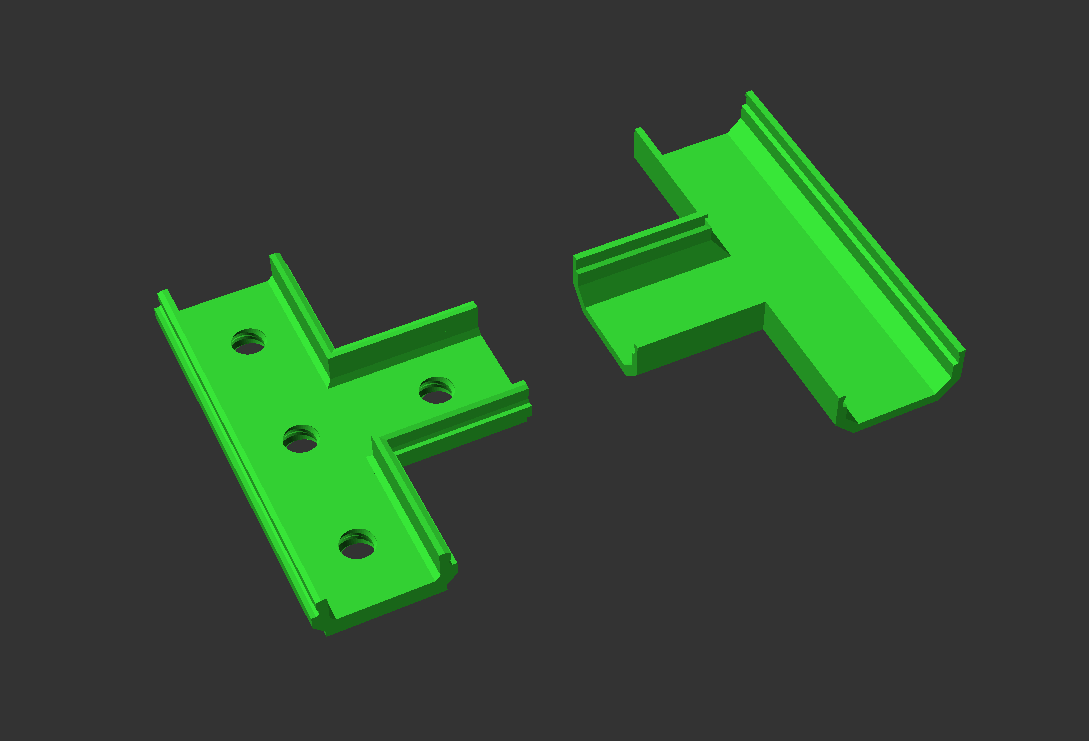

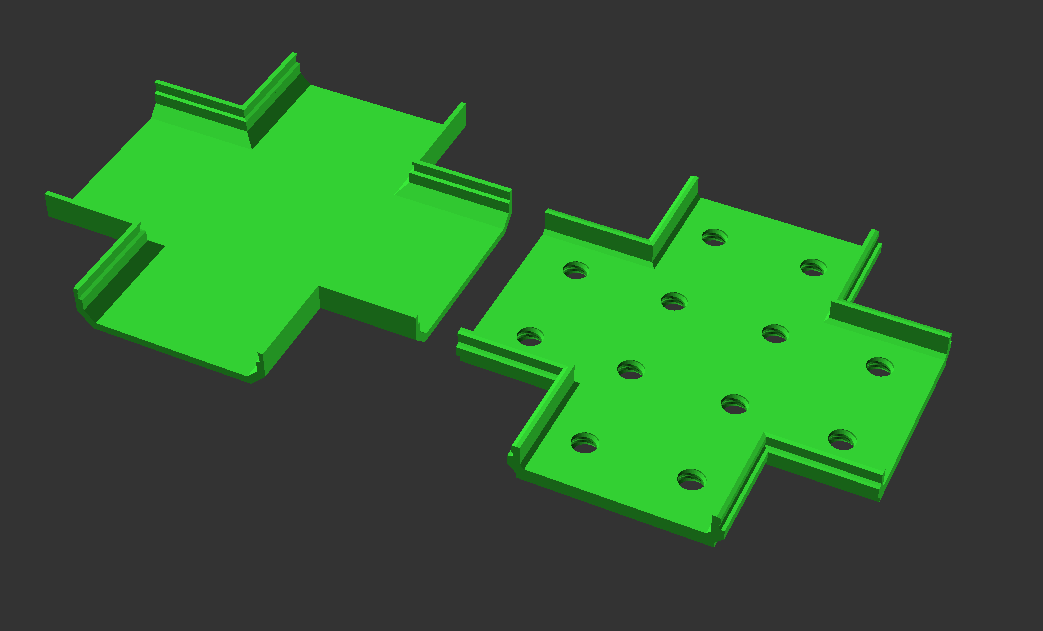

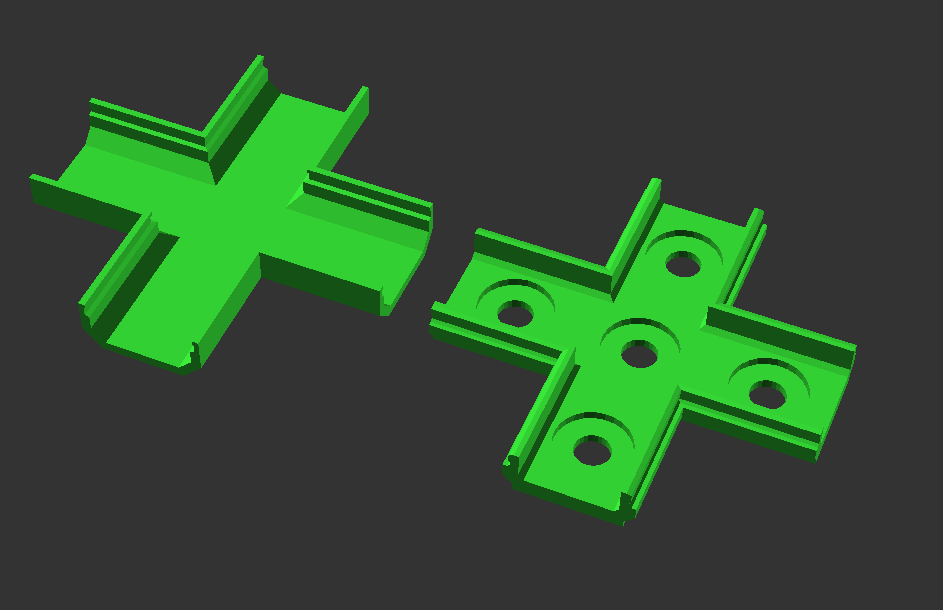

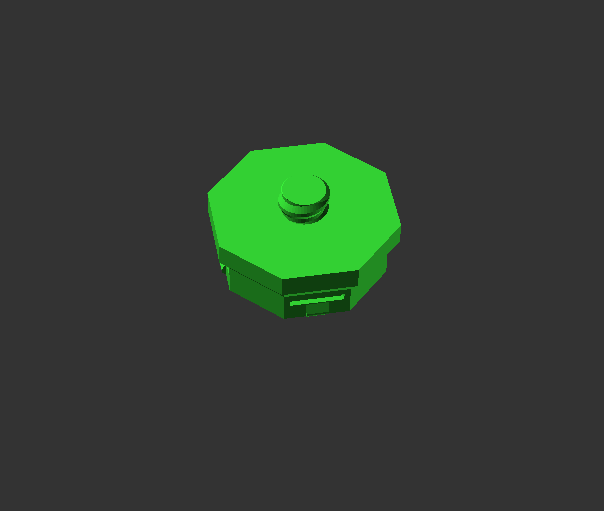

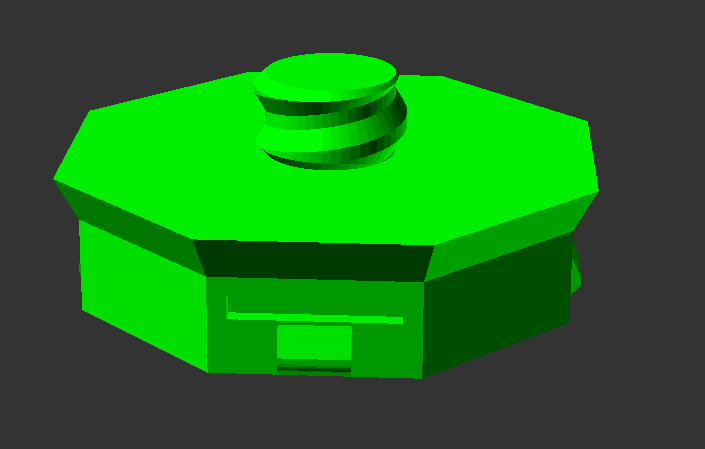

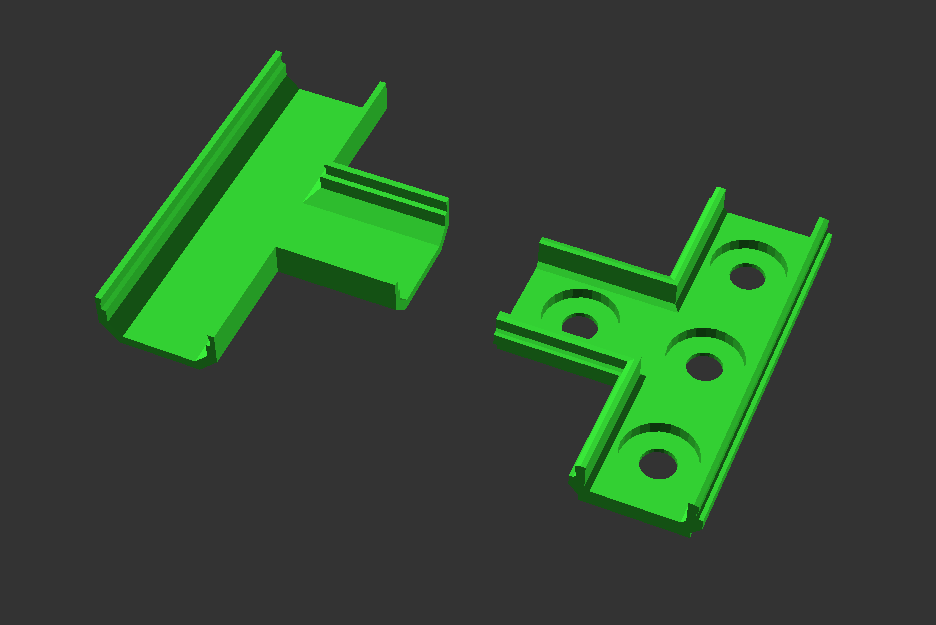

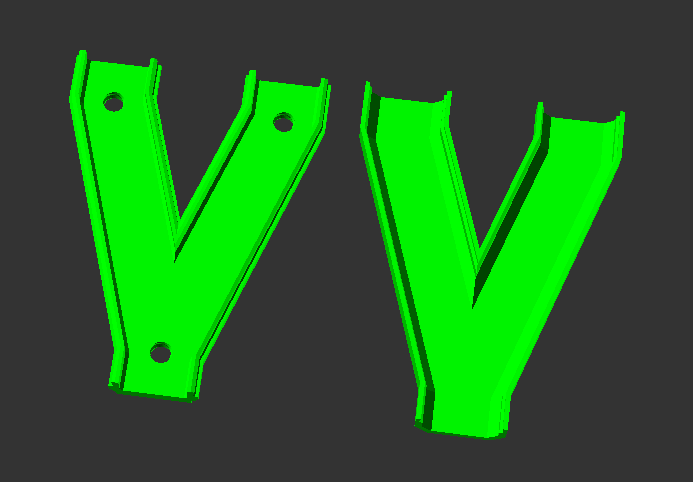

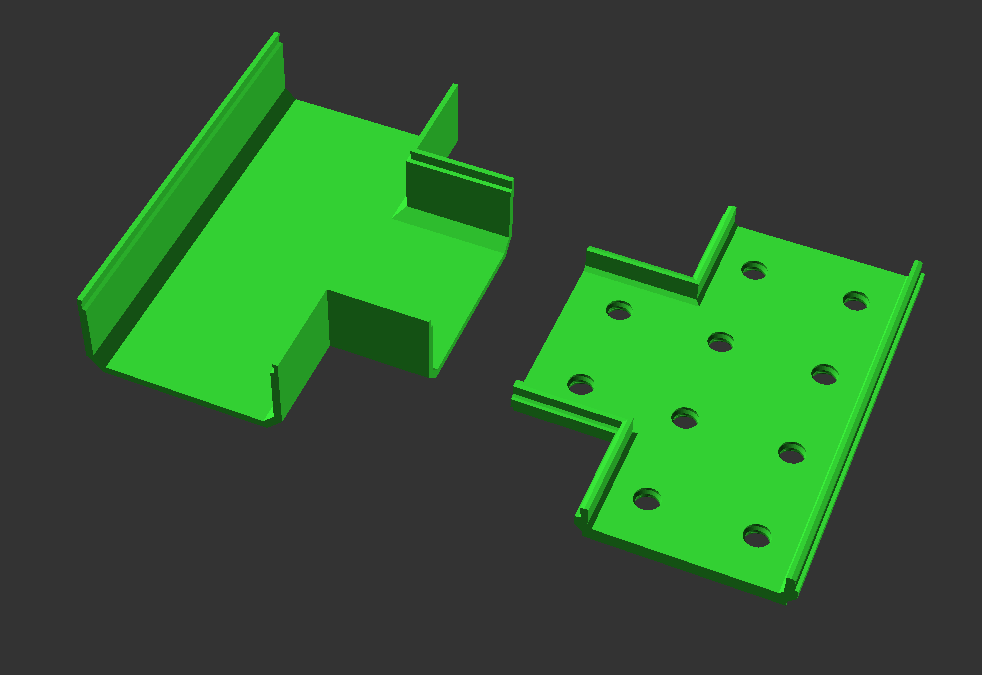

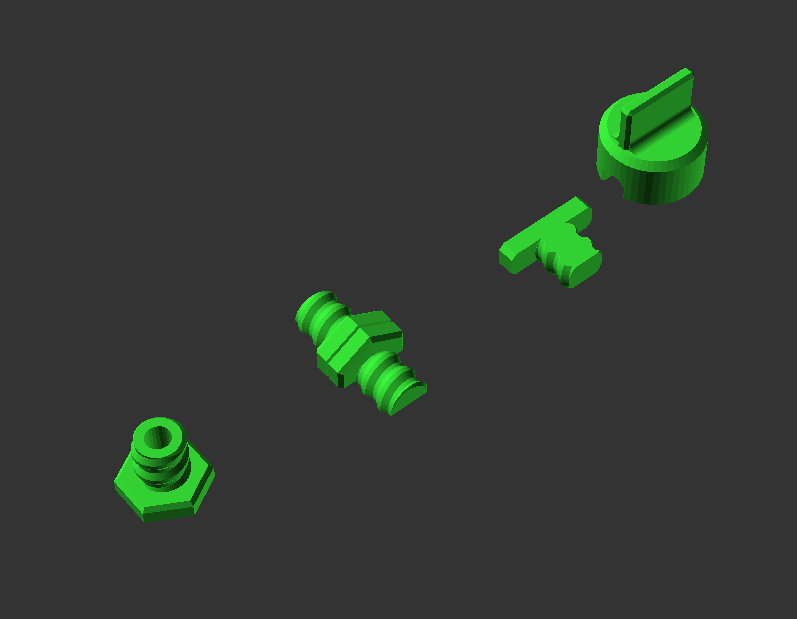

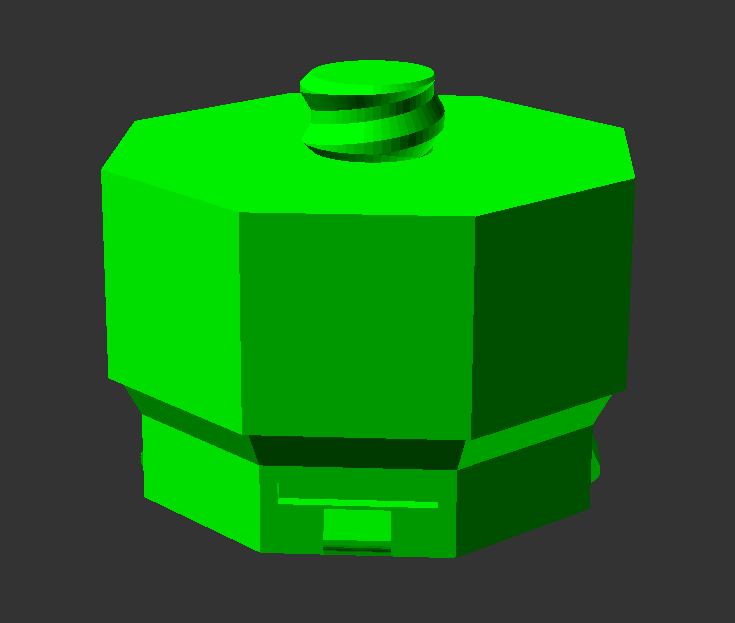

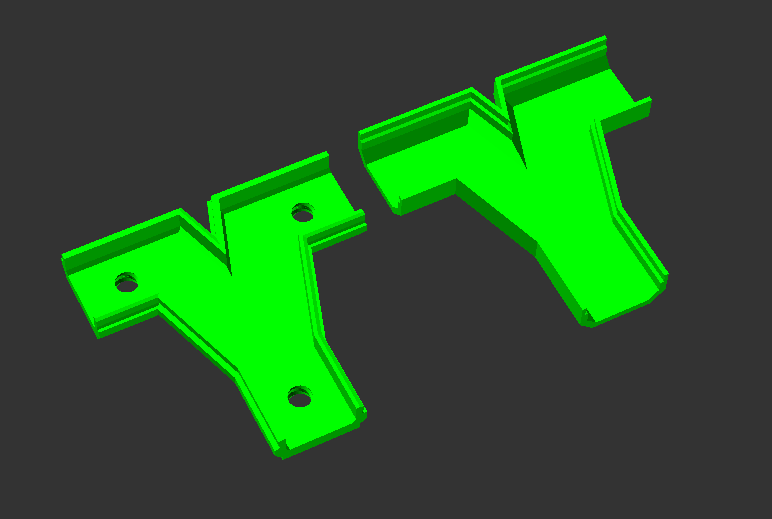

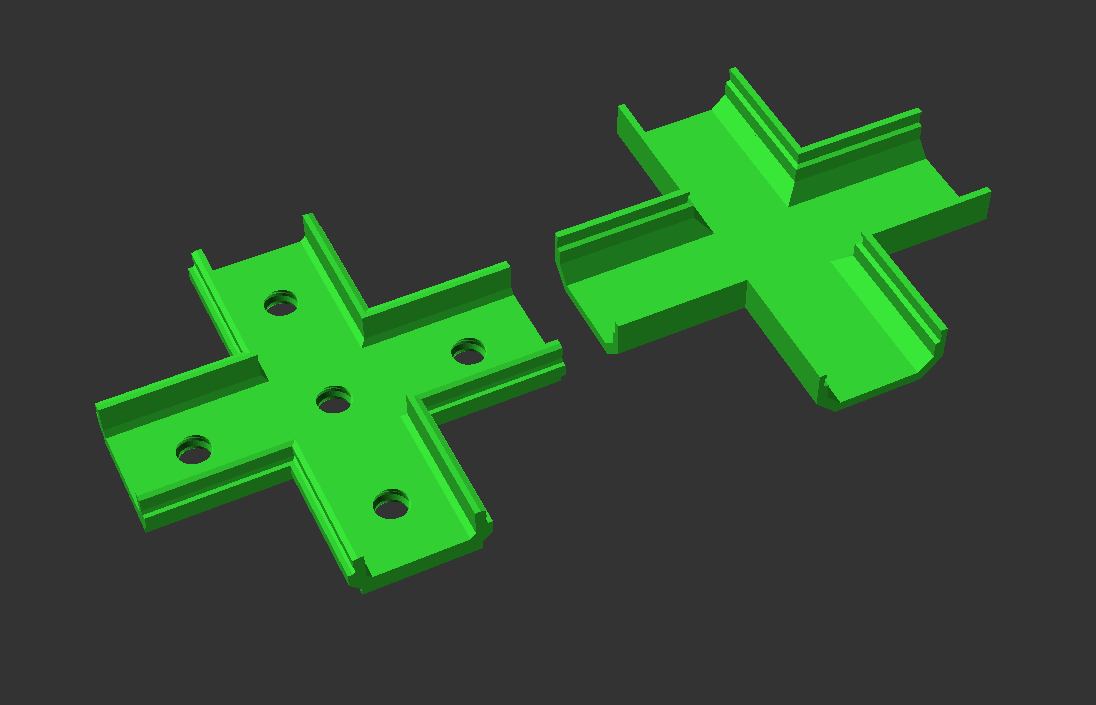

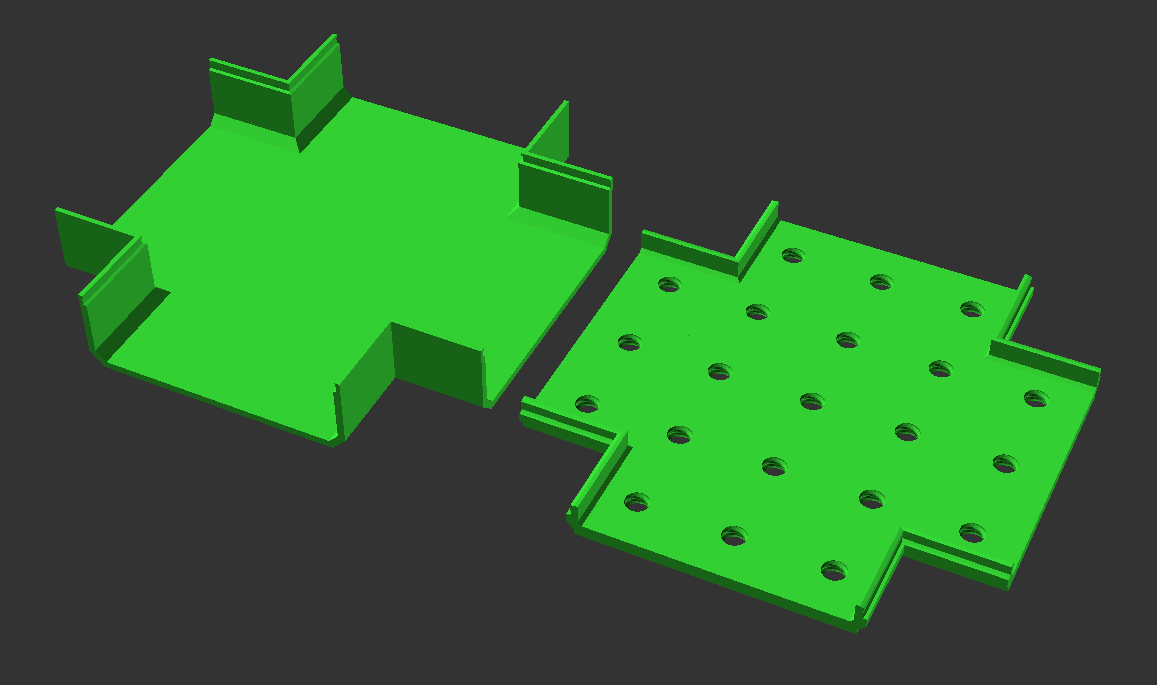

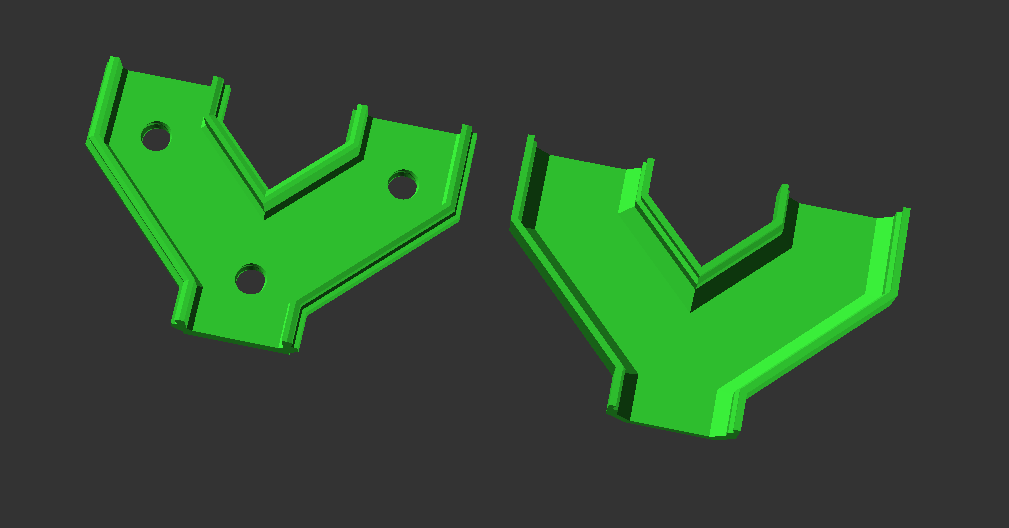

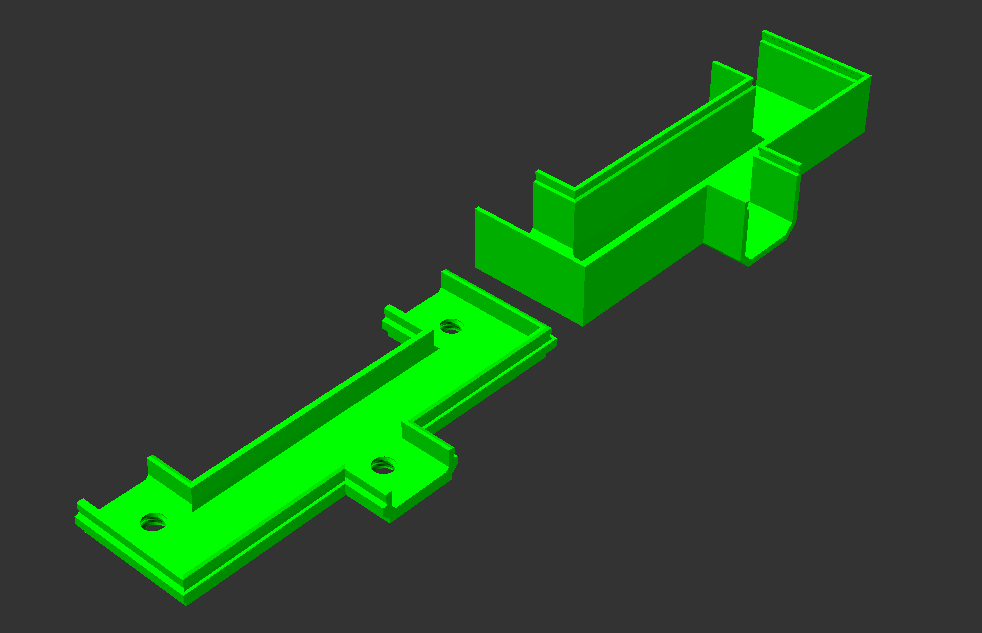

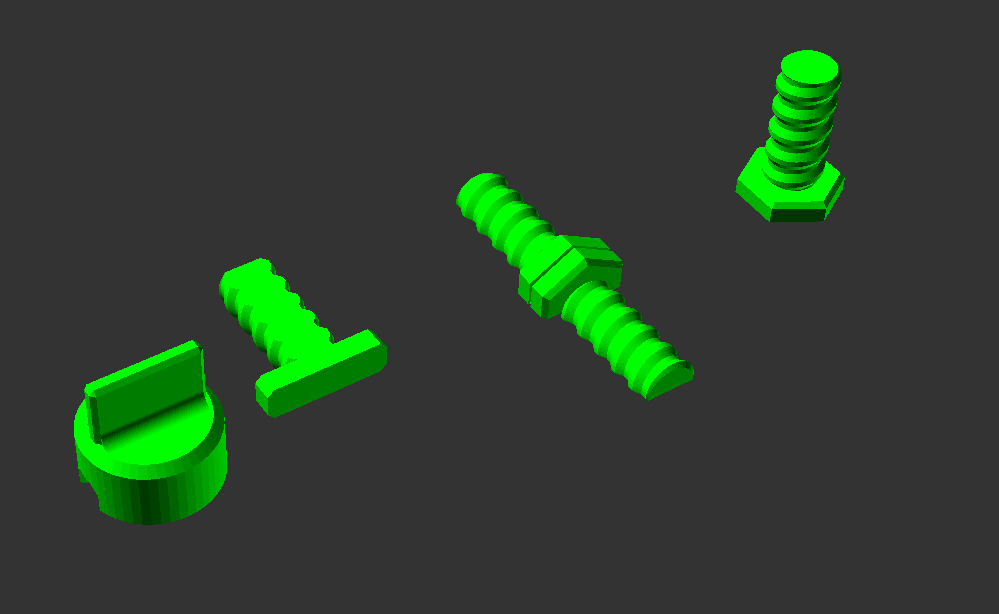

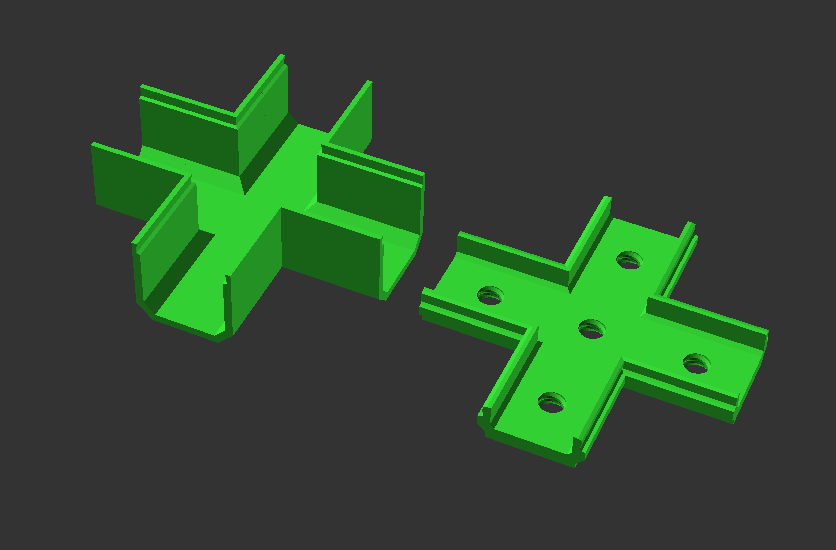

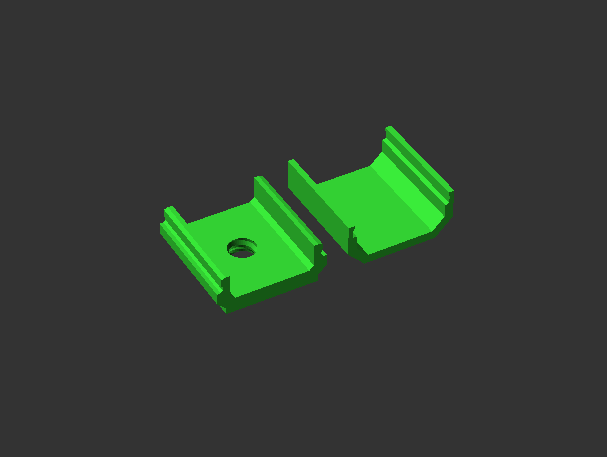

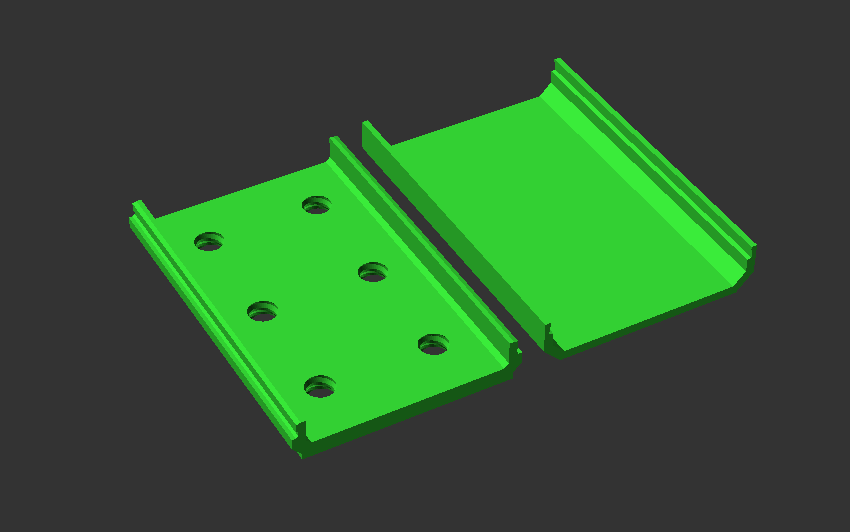

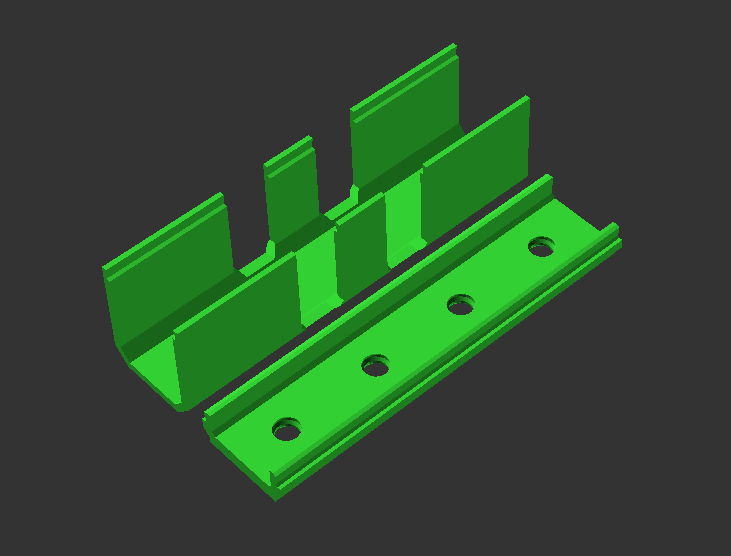

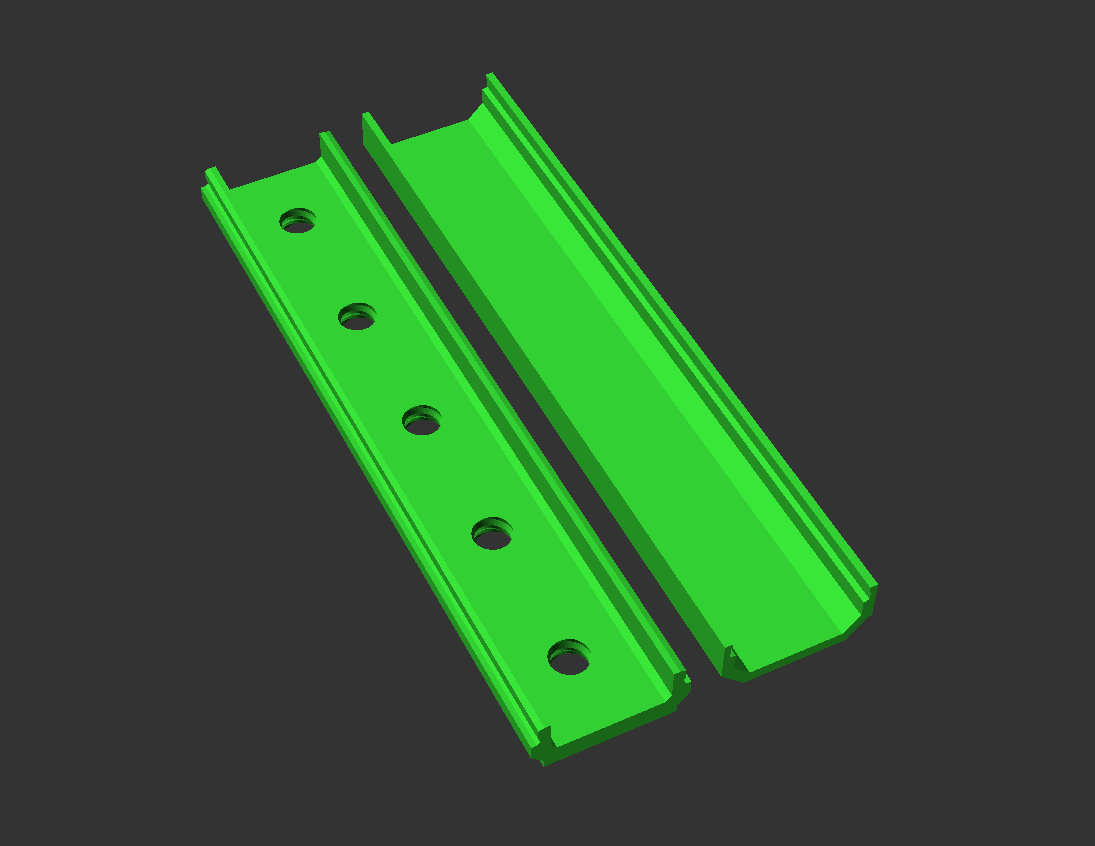

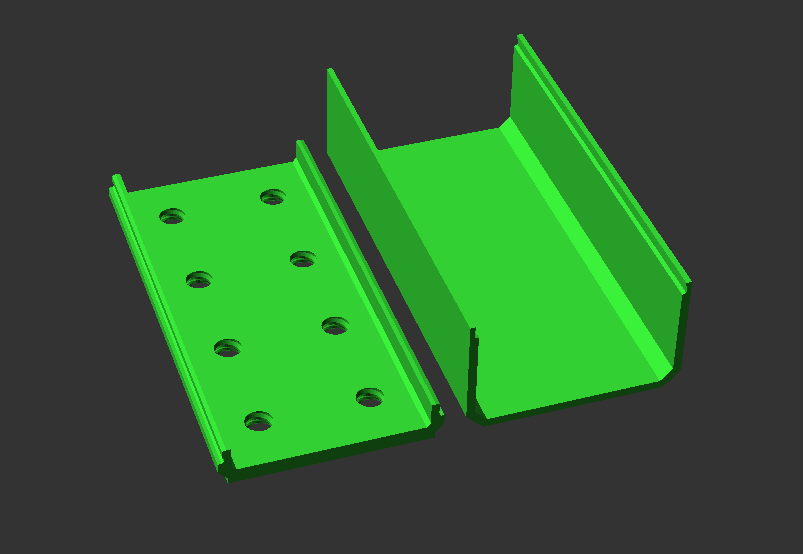

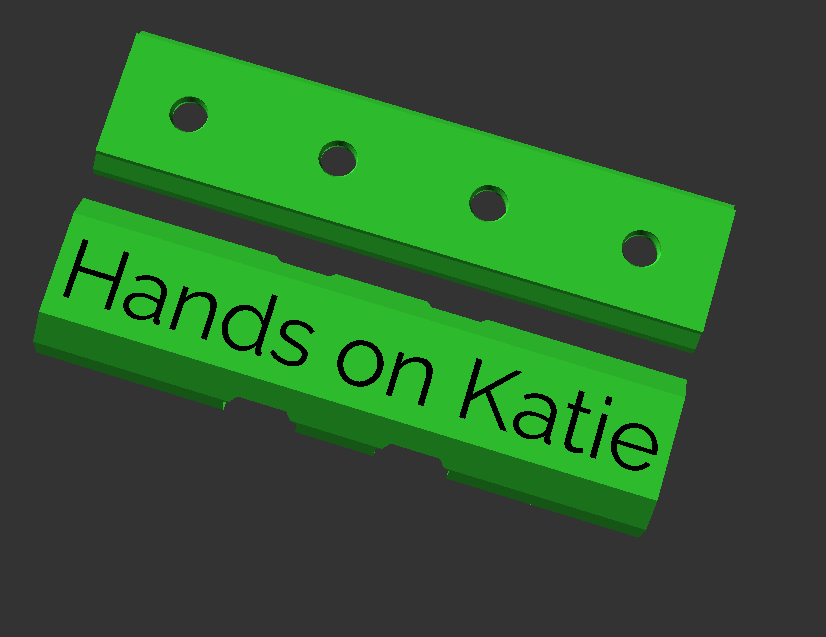

Straight Channel

Example Variants

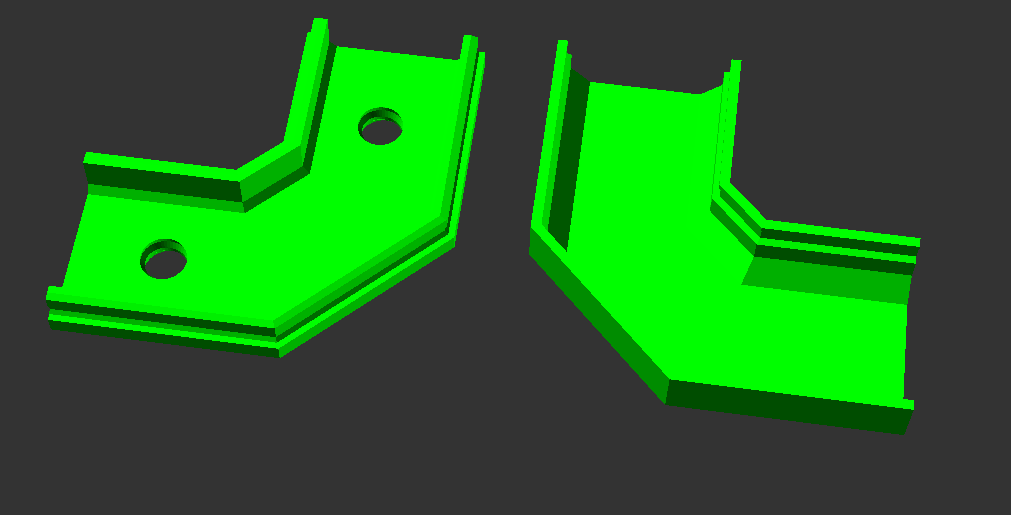

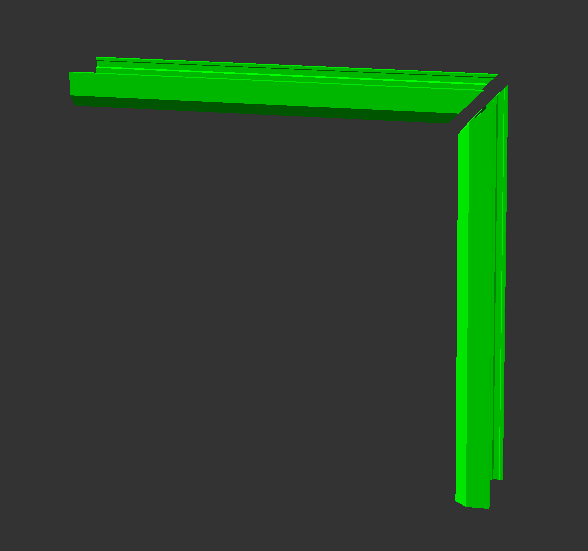

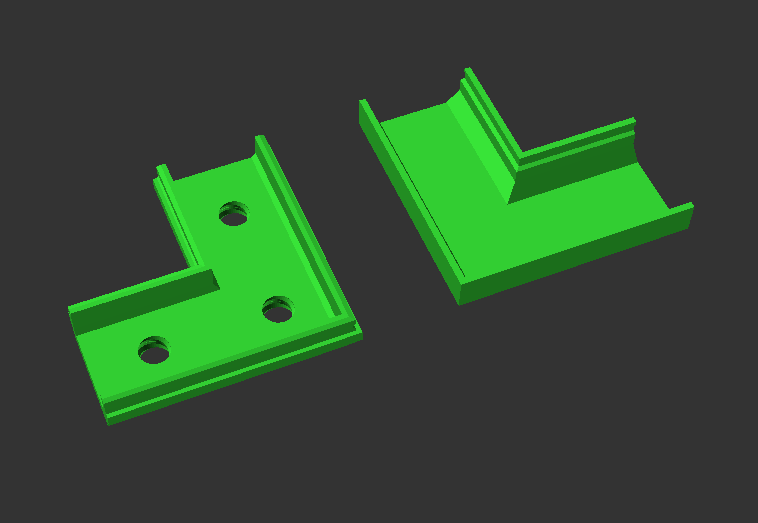

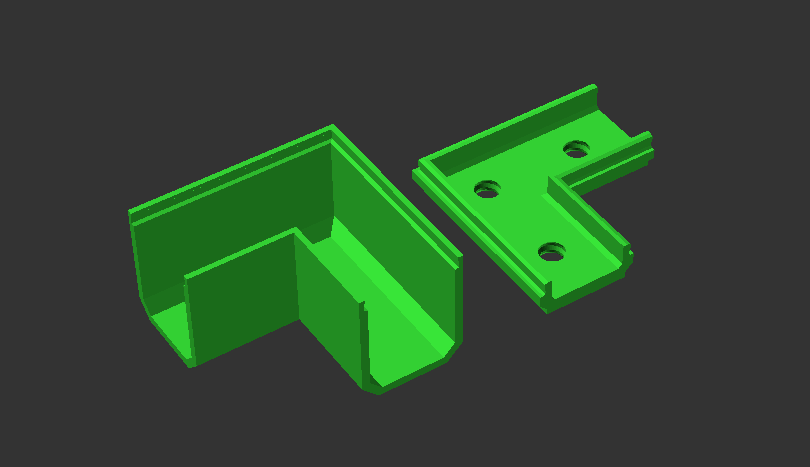

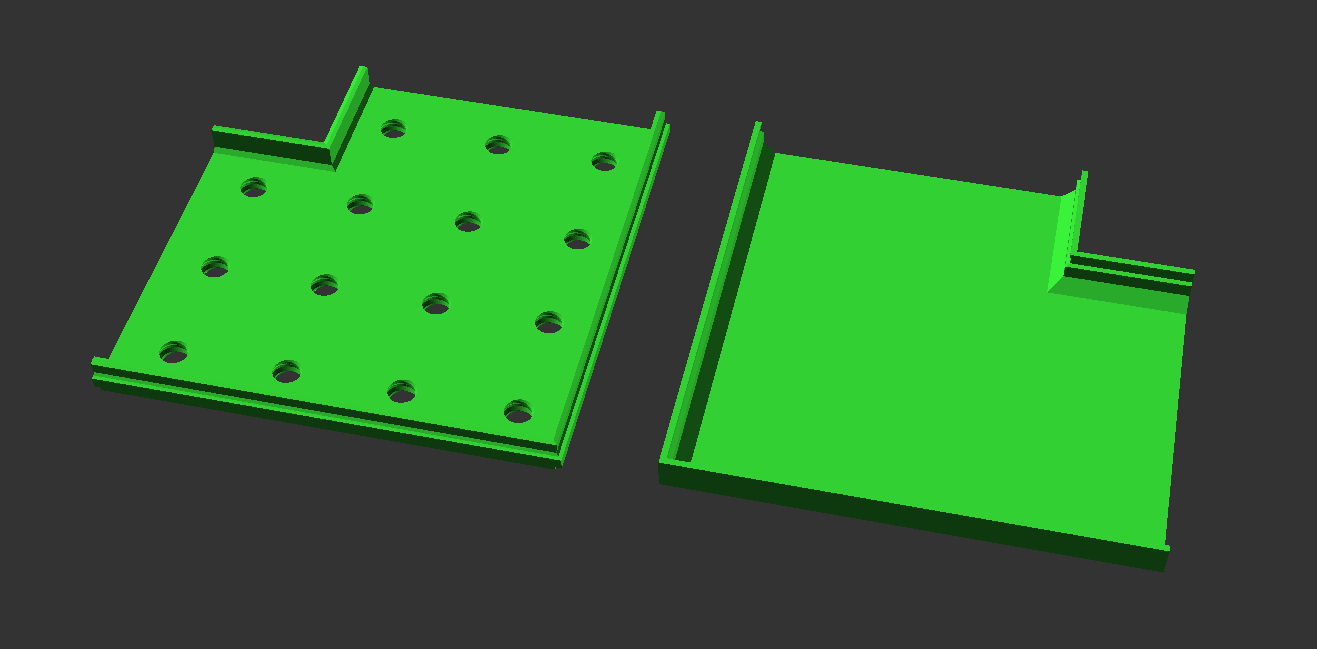

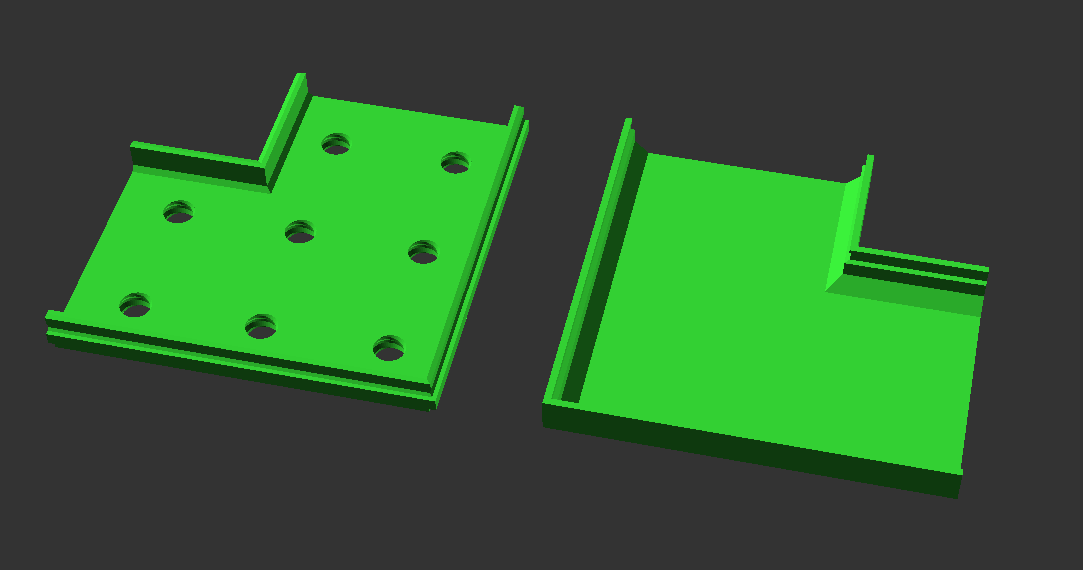

L Channel

Example Variants

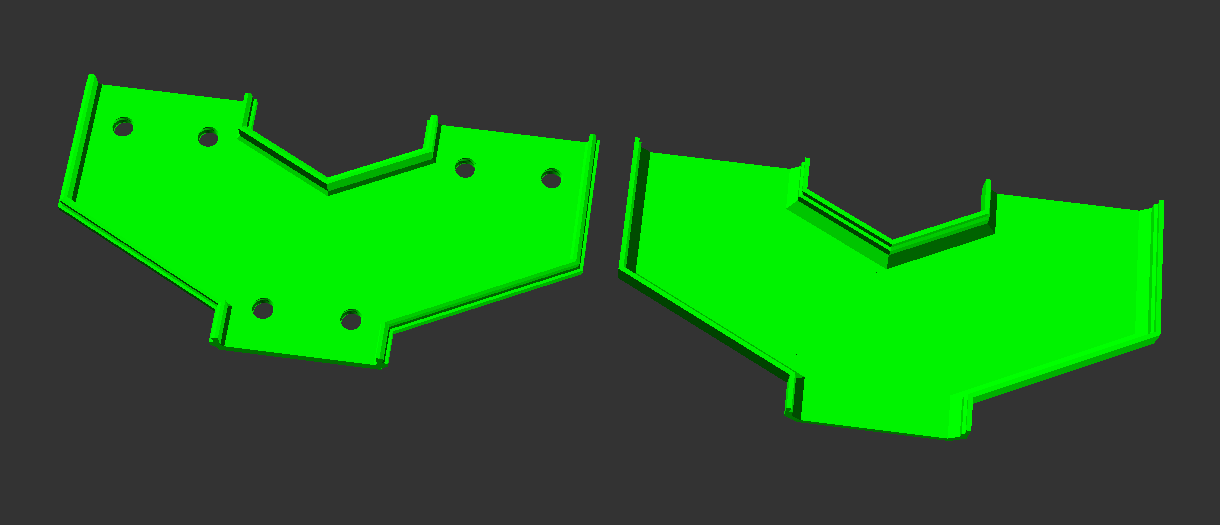

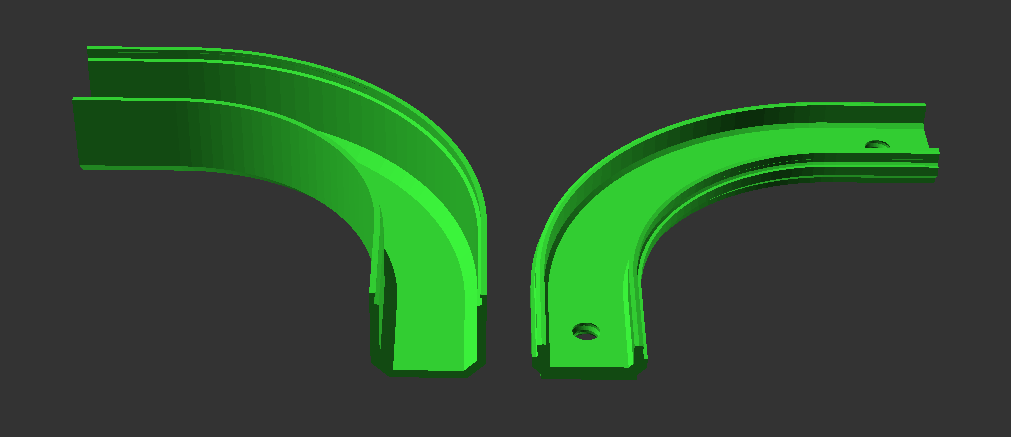

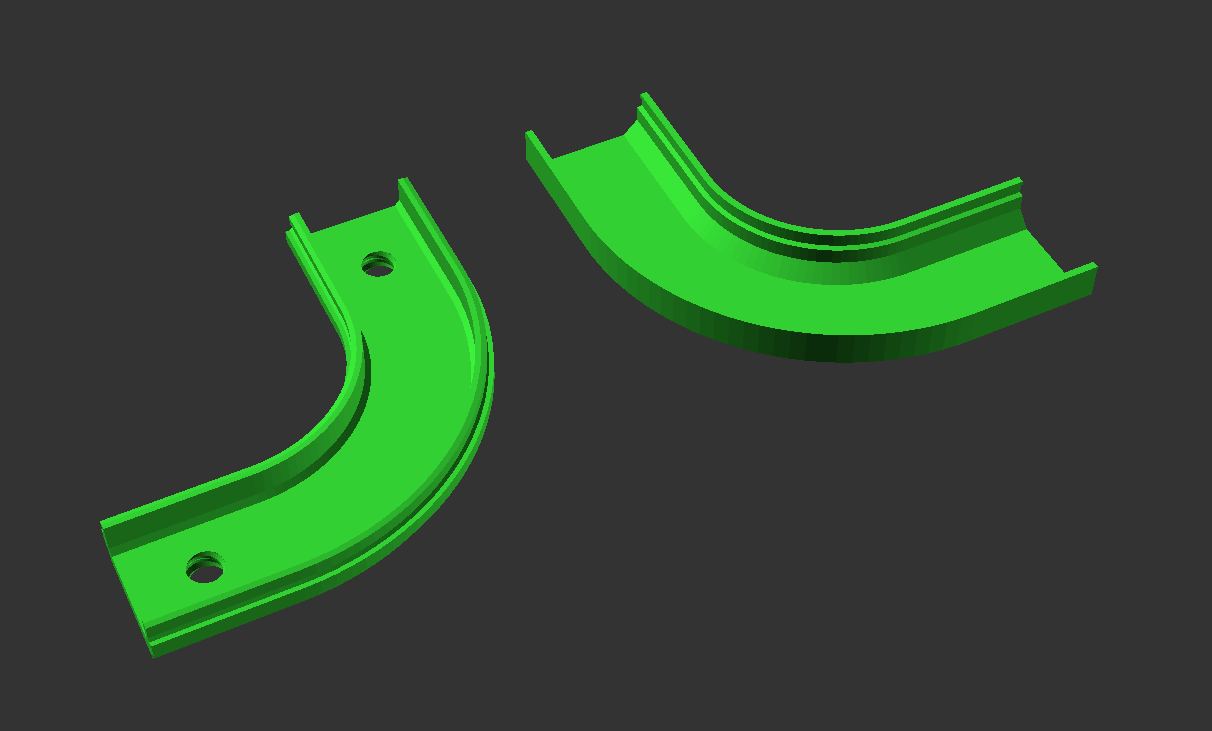

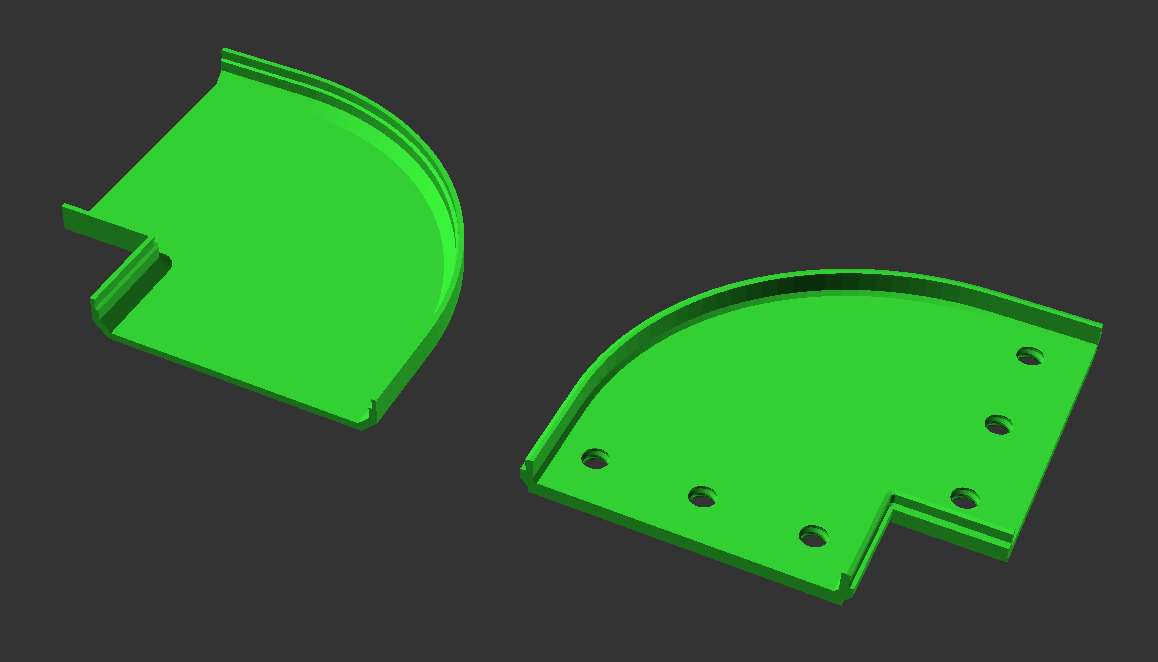

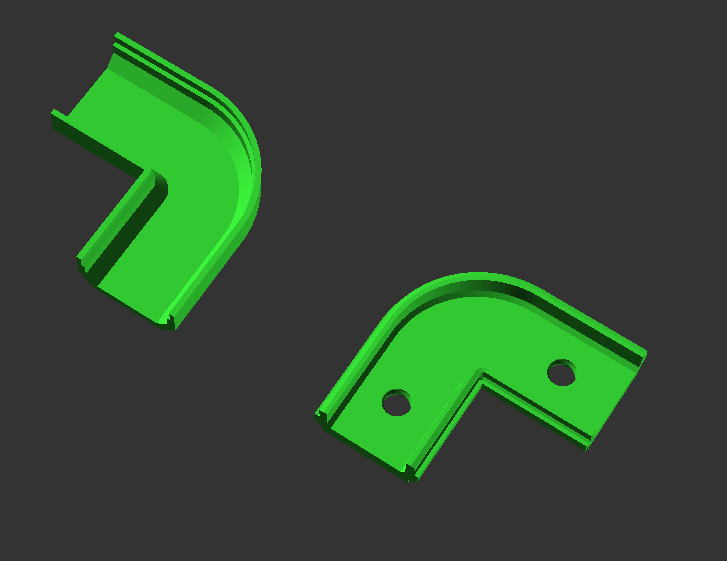

C Curve Channel

Example Variants

⁠

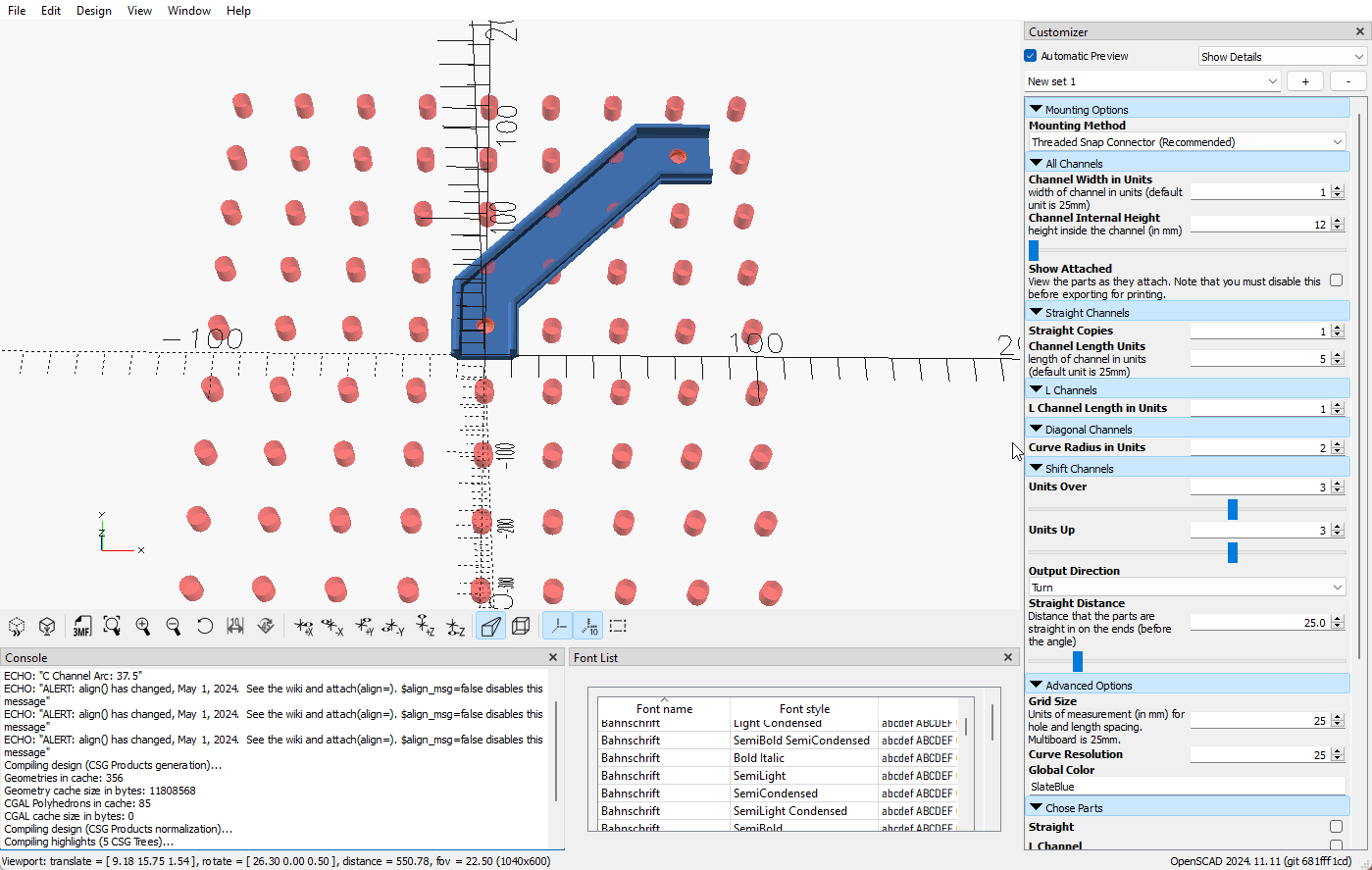

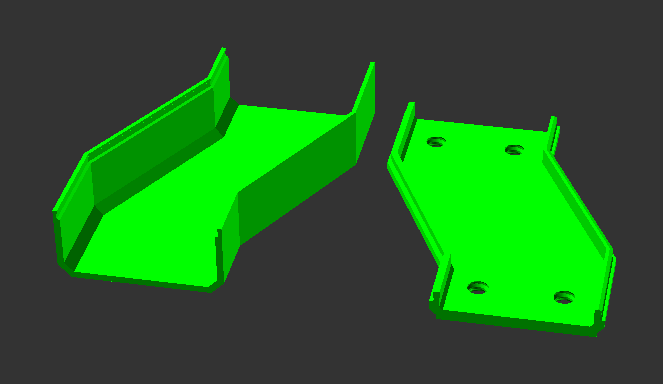

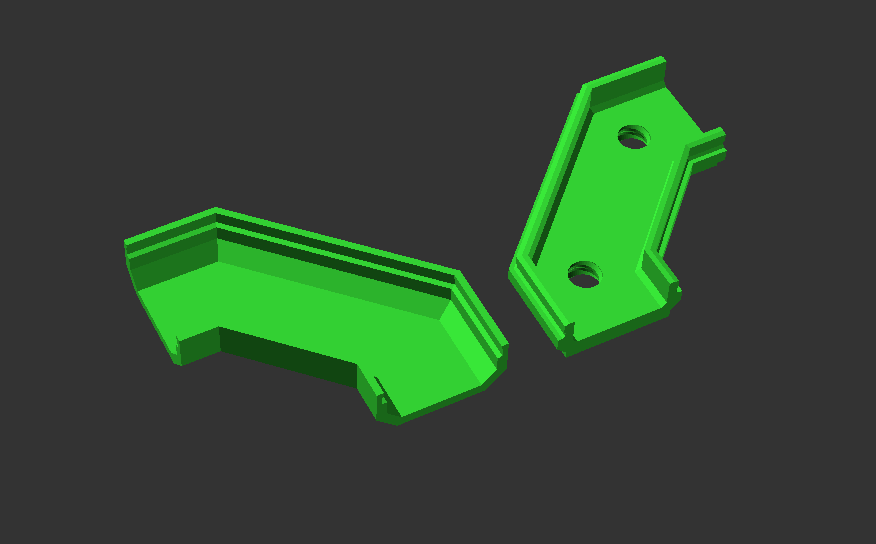

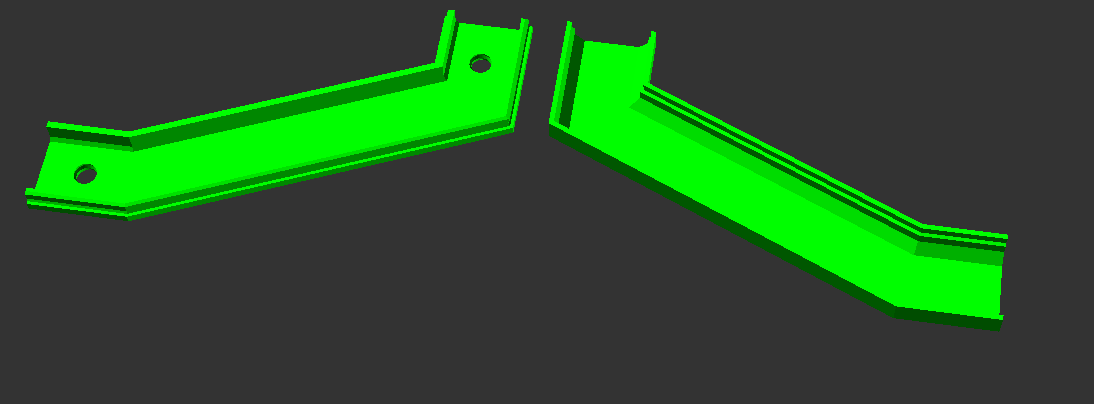

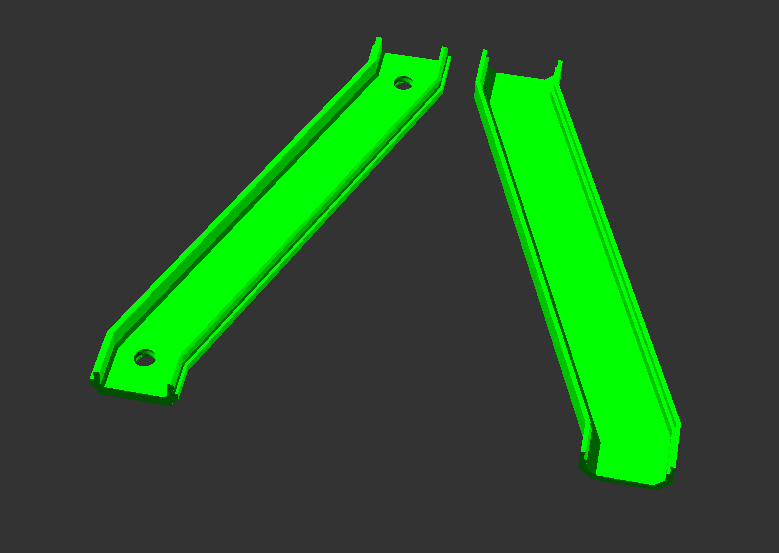

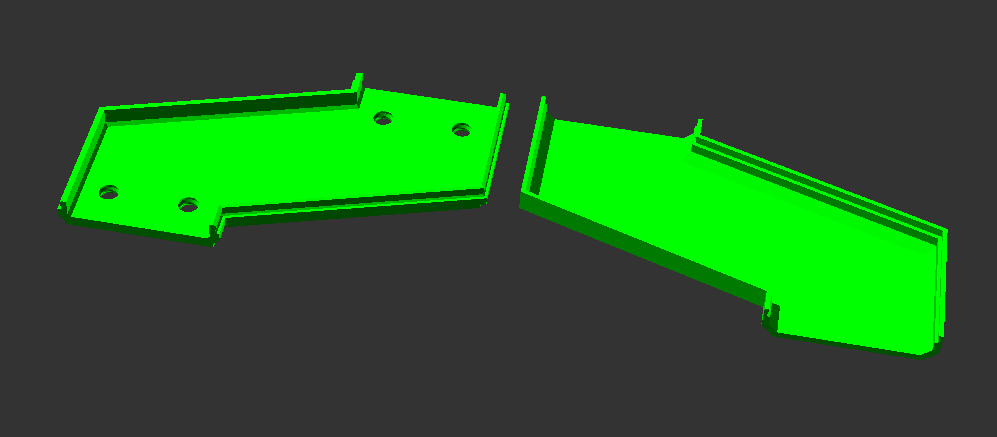

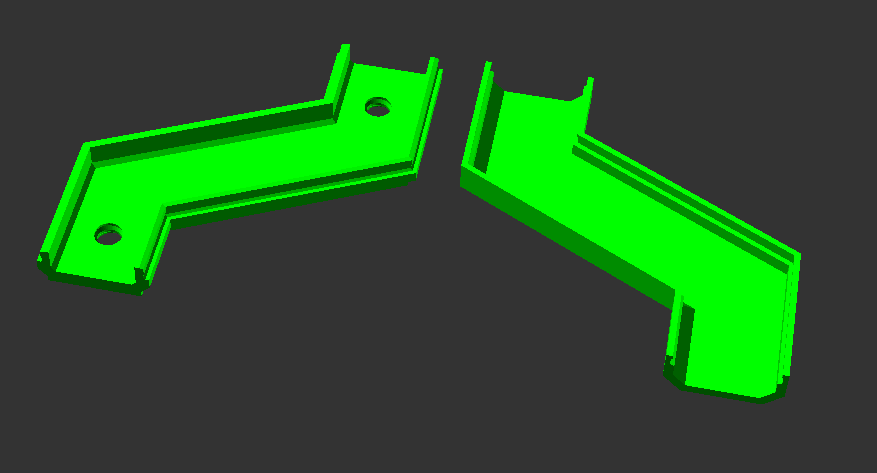

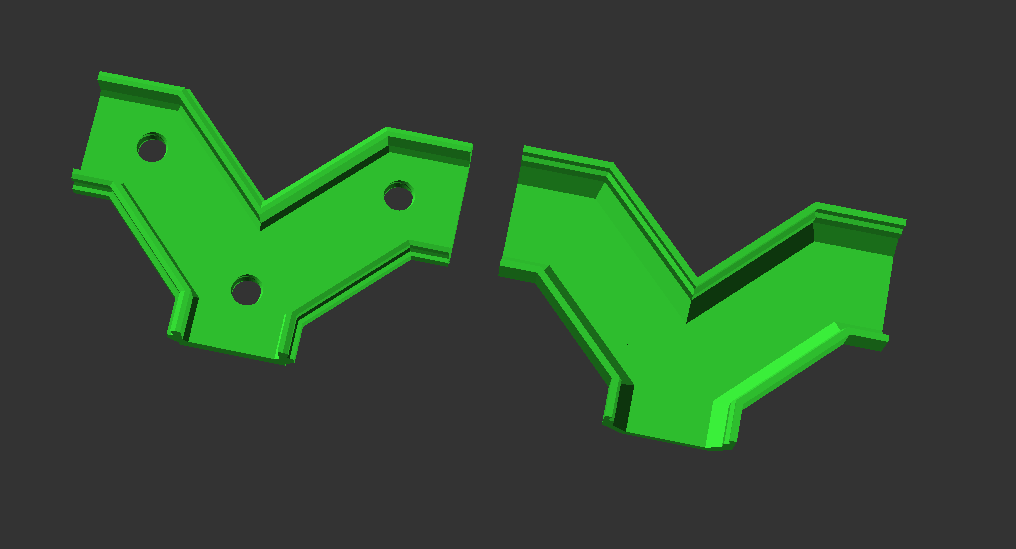

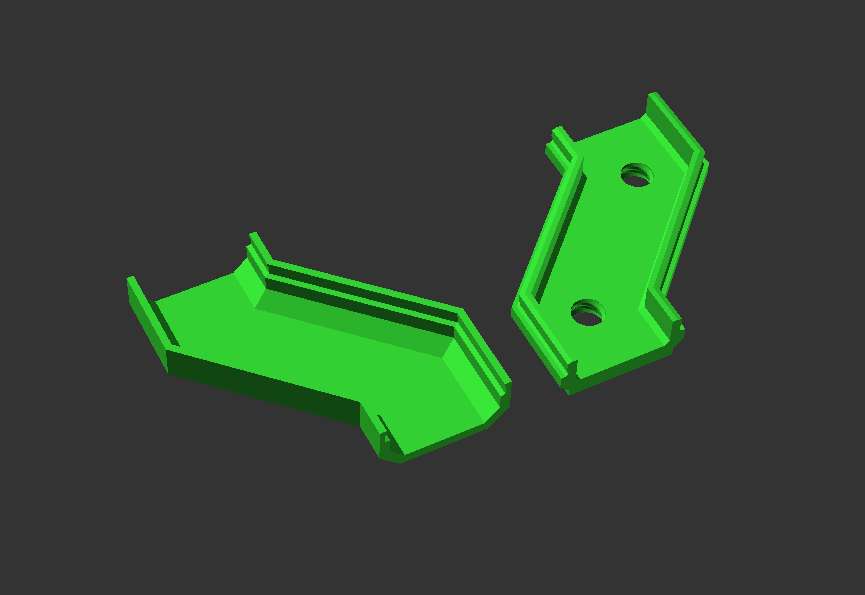

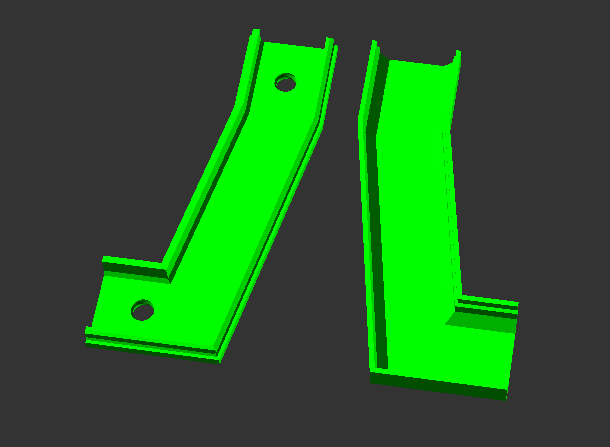

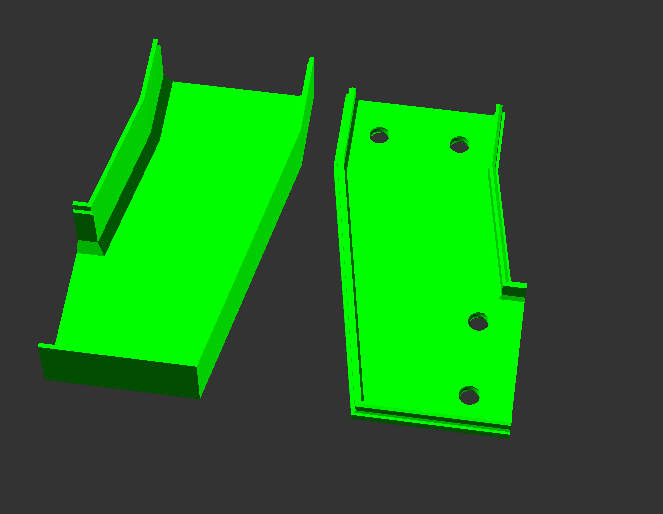

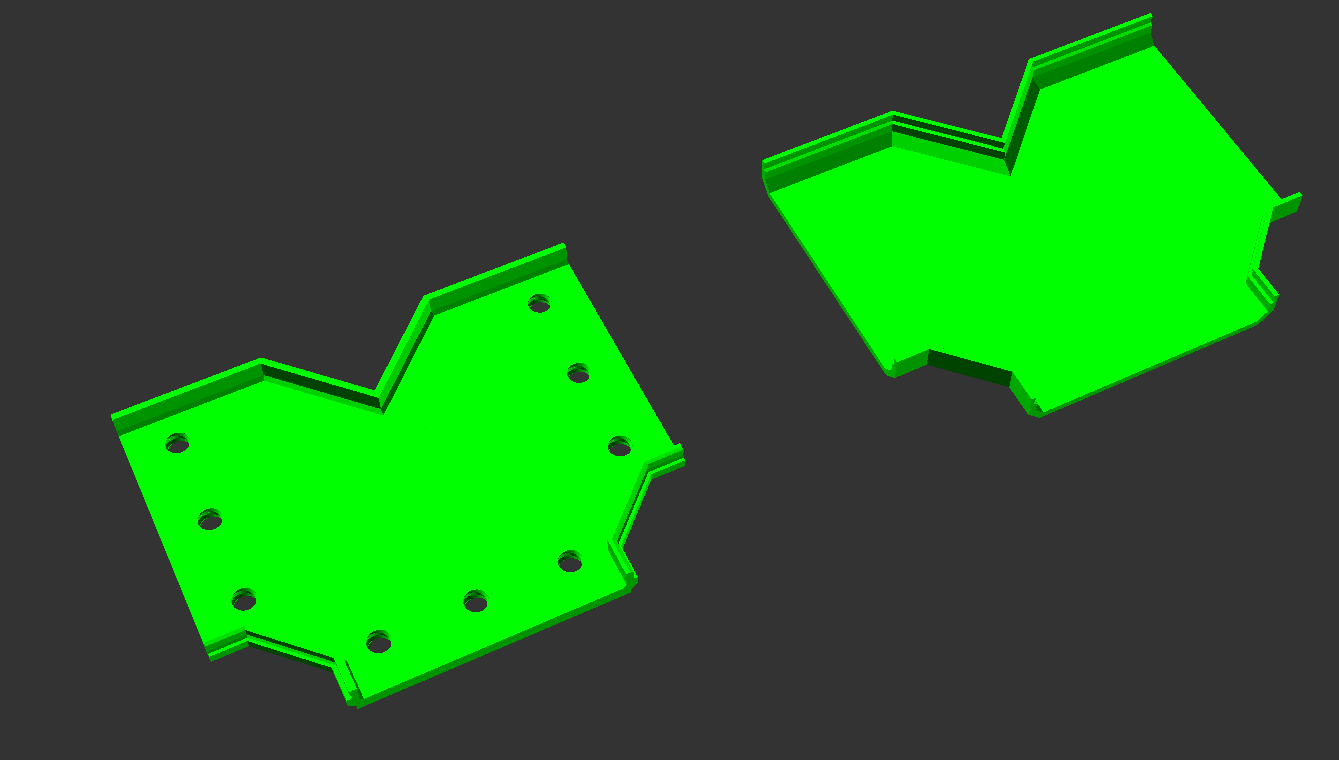

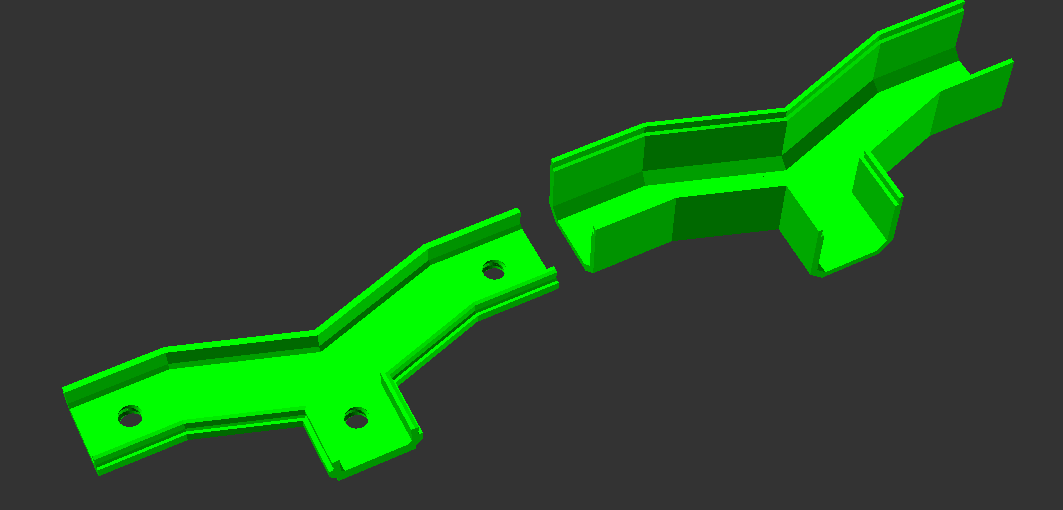

Diagonal Pieces

Diagonal pieces allow a user to “shift” the channel in many orientations by entering the units up and over that they wish to travel. A path then calculates the connection of those points.

To facilitate flush alignment with other channels, both ends must be in one of the four 90 degree orientations. Therefore, a straight distance is generated prior to the diagonal.

Inputs:

Channel Width

Units Up

Units Over

Straight Distance

Notes

It is possible to ‘break’ this channel by entering invalid inputs. You may be able to resolve this by modifying the straight distance.

Wider channels must travel further away in order to be valid.

⁠
