Mounting Styles


Underware Mounting Styles
Threaded Snap Connector
Description

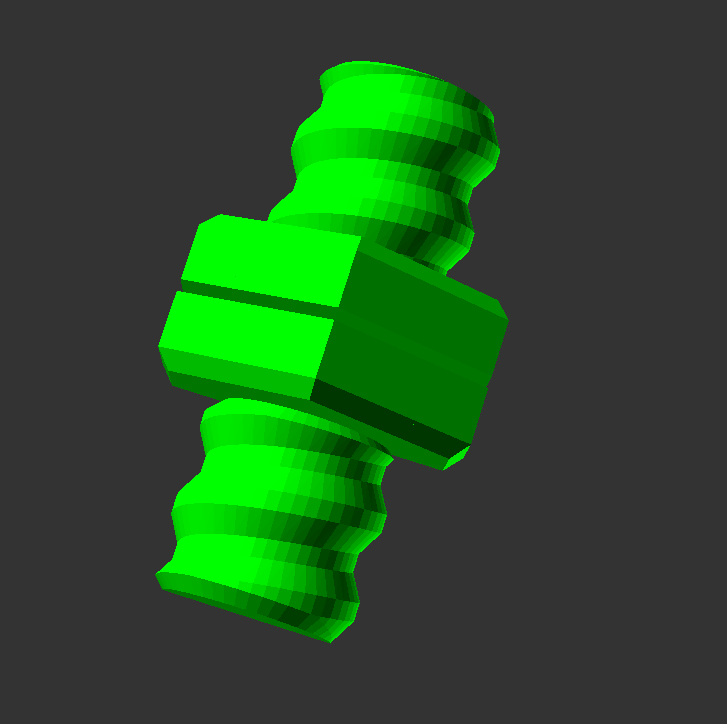

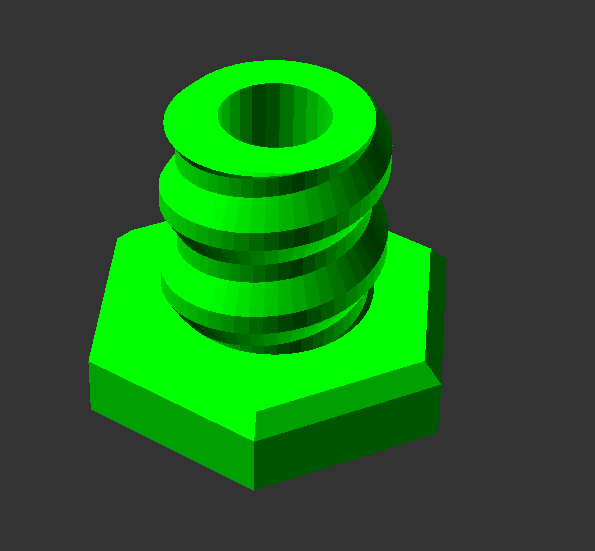

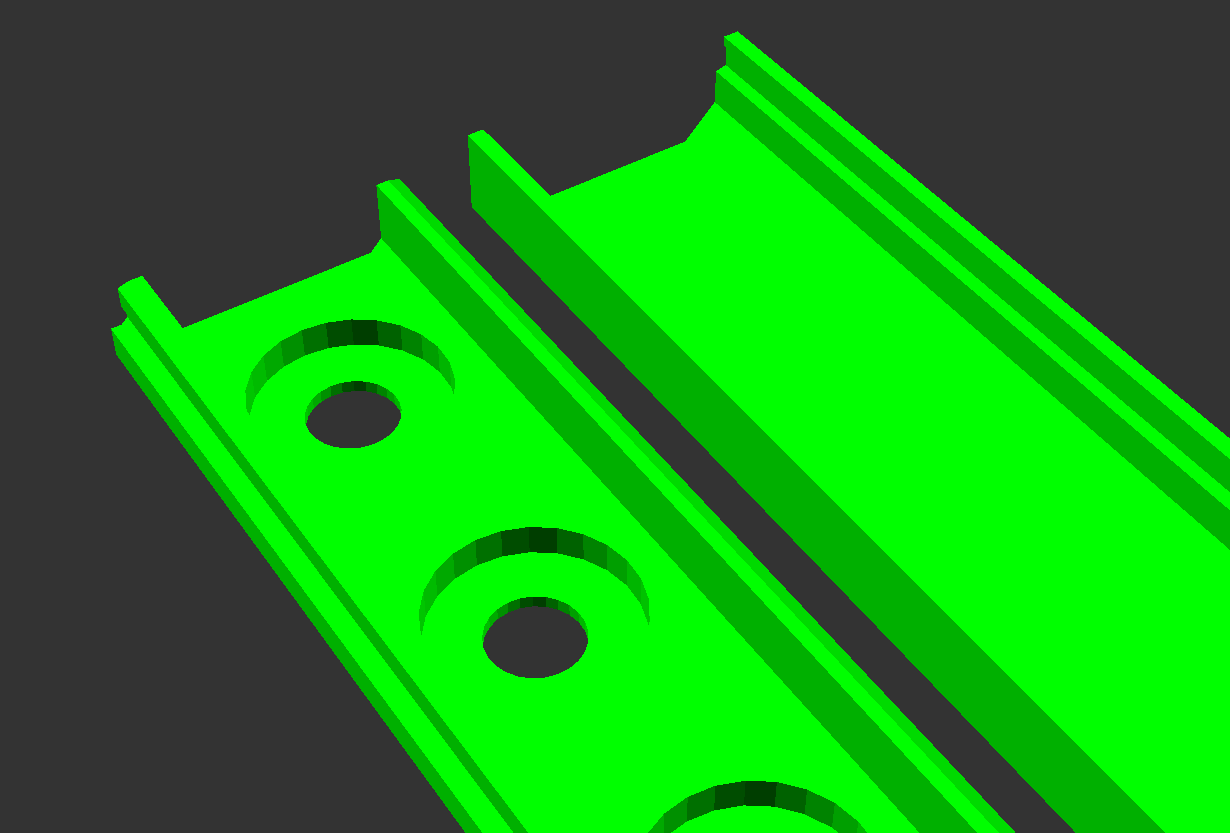

Channel plus Threaded Snap Connector. This is the standard method of connecting and allows for offset from the Multiboard to clear dual snaps. Instructions - Thread the snap connector into the channel and then snap the channel to the Multiboard.
Additional Images
Multiboard Small Bolt
Description

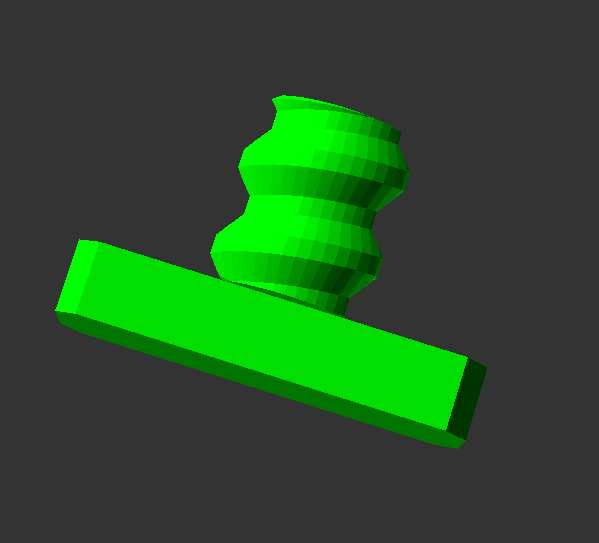

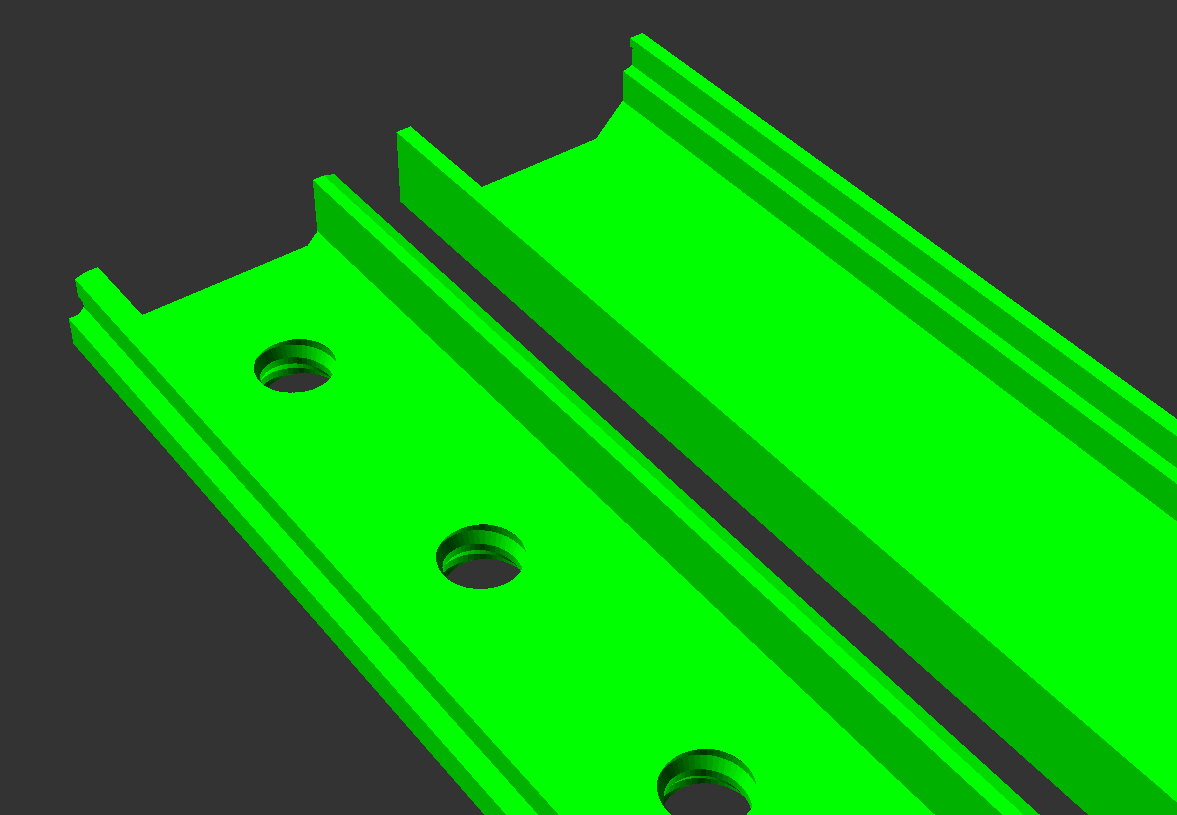

A small screw for Multiboard’s space between the larger hexagons and a recess in the channel base for a flush fit. A tool is included to help screw in the t-style bolt. Note that this creates a flush mount meaning that if you use dual snaps to connect your multiboard tiles, channels will not be able to traverse over them.
Additional Images
⁠
