Lab 8
In this lab we worked on getting the comms for the believer working and practicing sending messages back and forth between two different laptops.
These are the settings we used to communicate between ourselves and each group had they're own settings.
RFD900 Settings
Group Number
Setting Name
Default
Set Value
Purpose
1
2
SERIAL_SPEED
57
115
Open
NETID
25
25
Open
2
2
SERIAL_SPEED
57
115
Open
NETID
25
50
Open
3
2
SERIAL_SPEED
57
115
Open
NETID
25
75
Open
4
2
SERIAL_SPEED
57
115
Open
NETID
25
100
Open
5
2
SERIAL_SPEED
57
115
Open
NETID
25
125
Open
6
2
SERIAL_SPEED
57
115
Open
NETID
25
150
Open

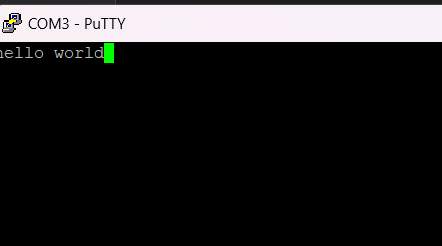

Testing Communication
This is what looks like when the computers send messages to each other.

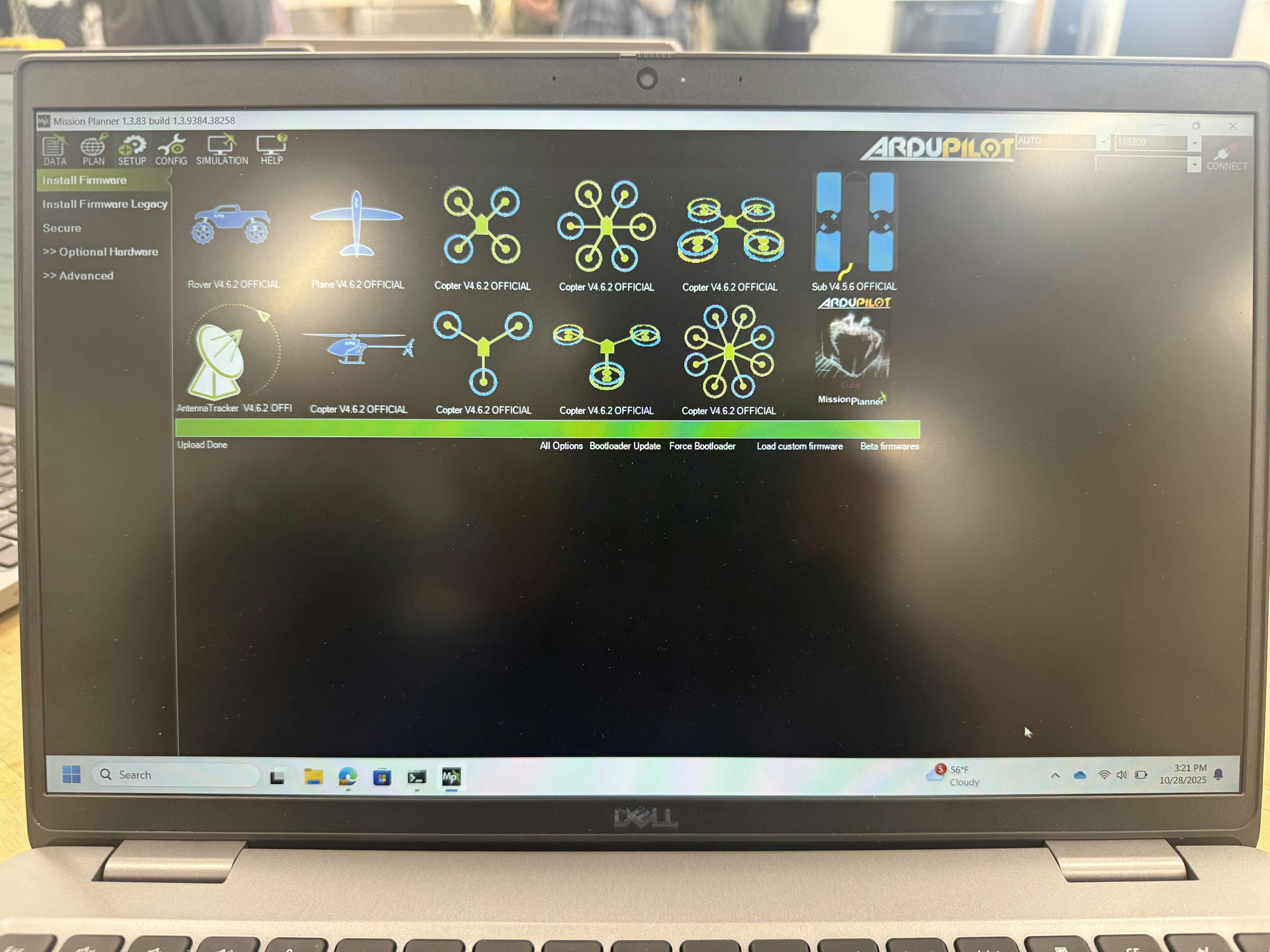

Activity 2: Installing Firmware
In the second part of the lab we install firmware which allows us to setup a flight plan.

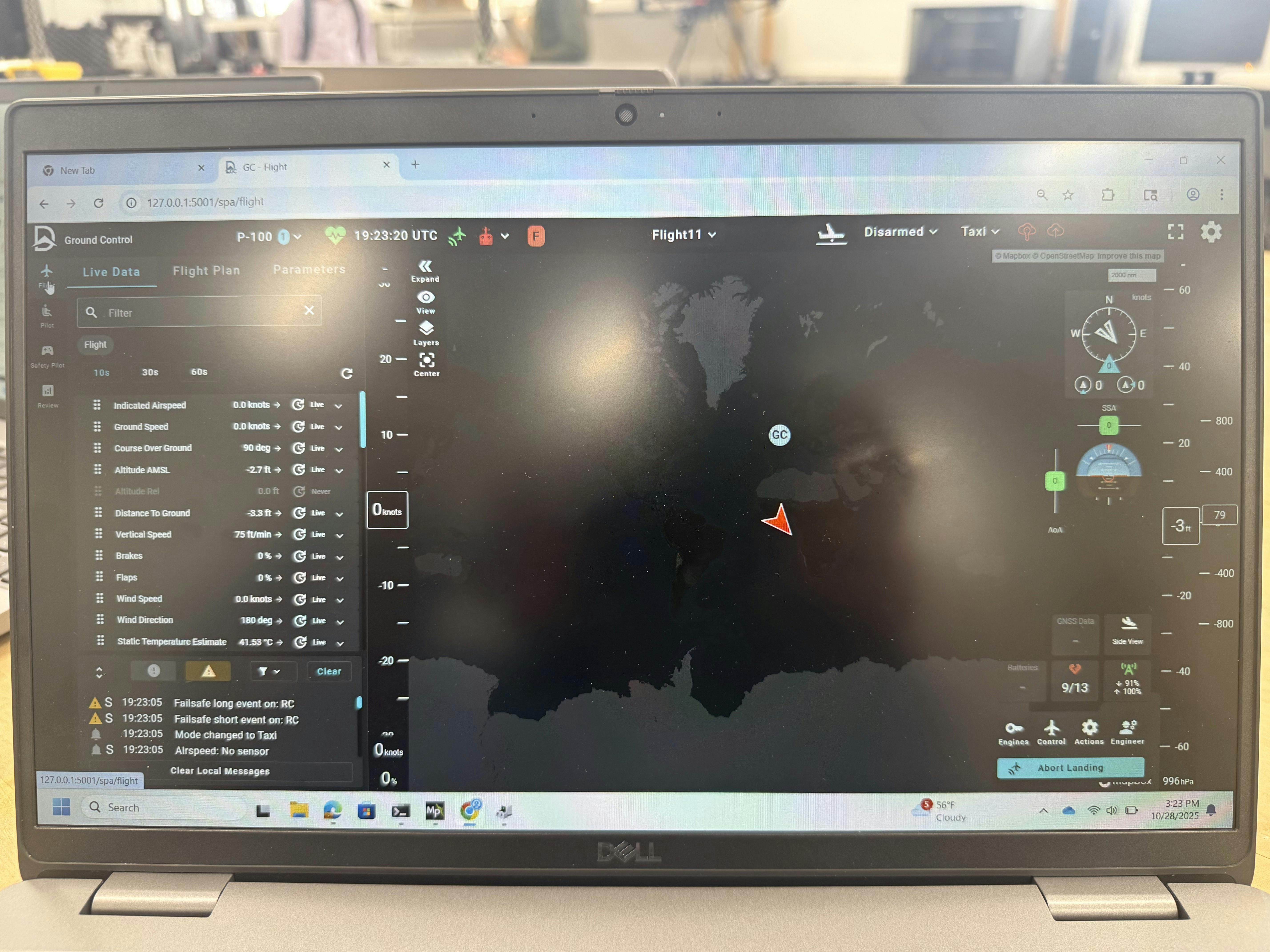

Testing
Here we tested the connection between the computer, and the Windracers ground control station below is what you see when connected.
