Lab 05 - Believer familiarization

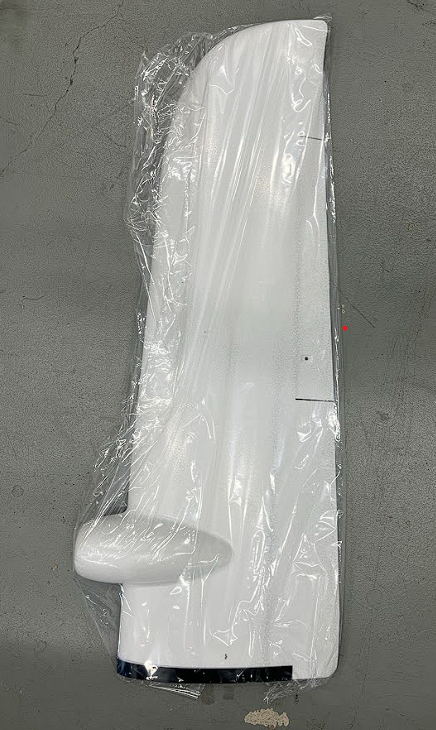

Left & Right Wing

N/A

Not Installed

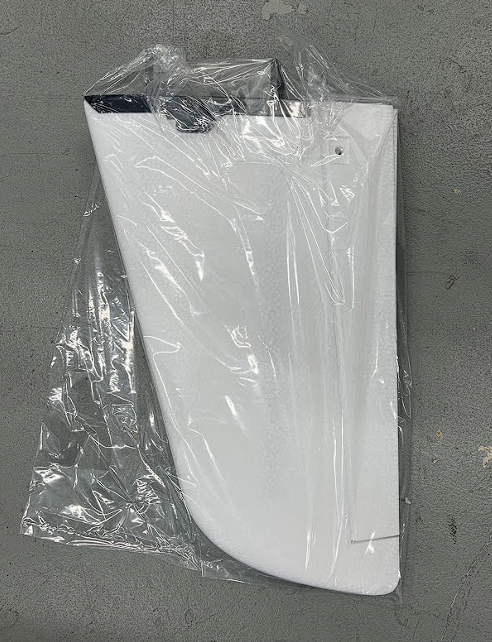

Left & Right Empennage

N/A

Not Installed

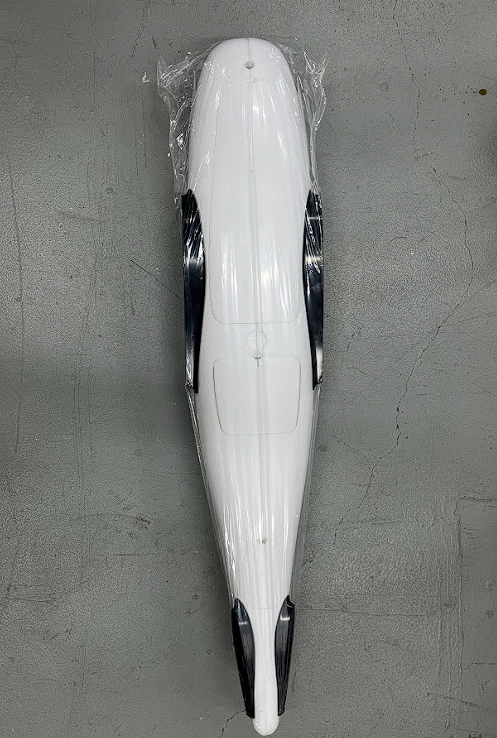

Left & Right Fuselage

N/A

Not Installed

Set Of Wing Covering Plates

N/A

Installed

Set Of Cabin Covers

N/A

Not Installed

Parachute Cabin Covers

N/A

Installed

Set Of Fuselage Supporting Carbon Tubes

14*12*206mm Tube

12*10*206mm Tube (Installed)

Installed

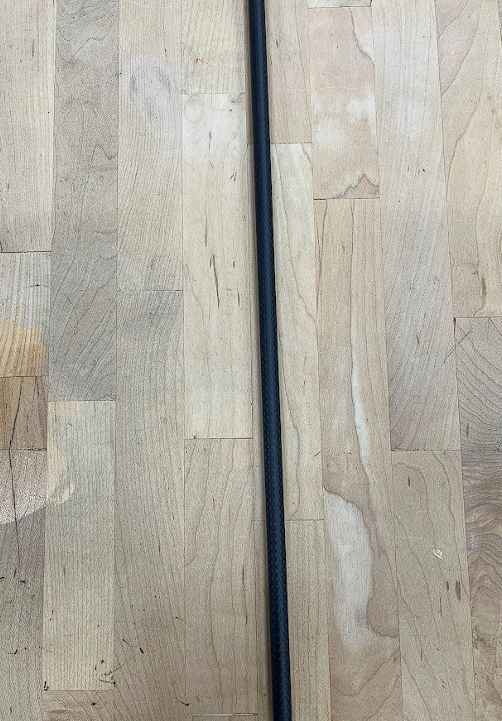

Set Of Wings Inserting Carbon Tubes

12*10*700mm Tube

10*8*600mm Tube

Not Installed

Set Of Wings Connecting Parts

N/A

Installed

Set Of Empennage Connecting Parts

N/A

Installed

Set Of Servo Fixing Parts

Servo Installing Base

Servo Presser

Servor Covering Plate

Missing

Helmangle

N/A

Not Installed

Battery Fixing Board

N/A

Not Installed

Antenna Fixing Board

N/A

Not Installed

Cabin Cover Fixing Board

N/A

Not Installed

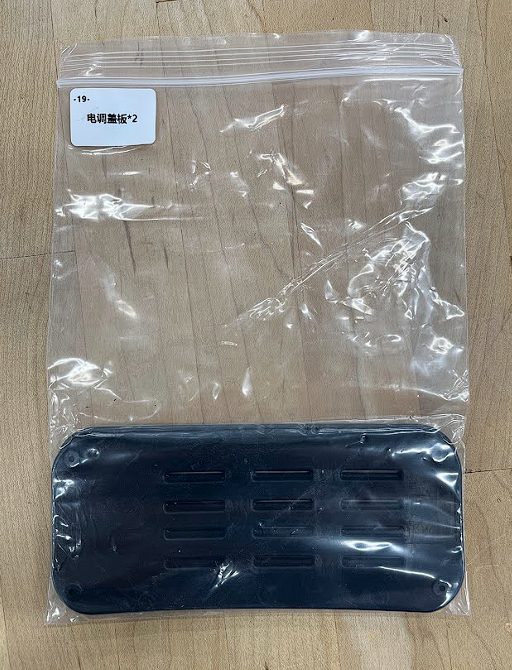

Electric Regulating Cover

N/A

Not Installed

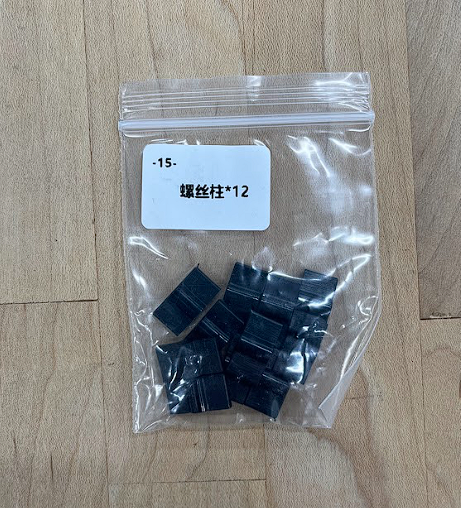

Stud

N/A

Not Installed

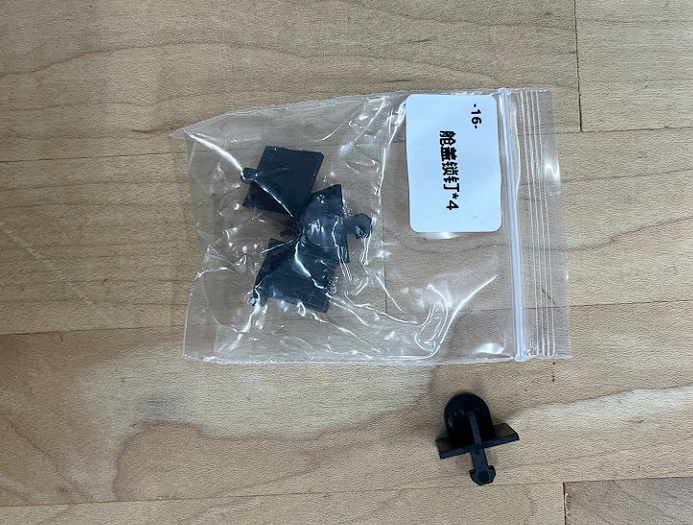

Cabin Cover Locking Nail

N/A

Not Installed

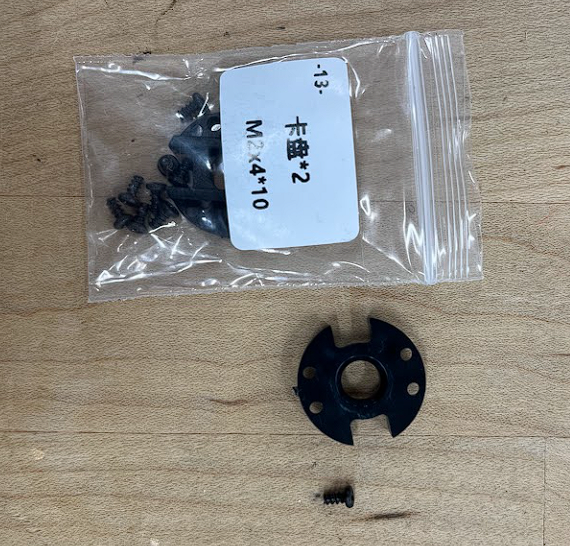

Chuck

N/A

Not Installed

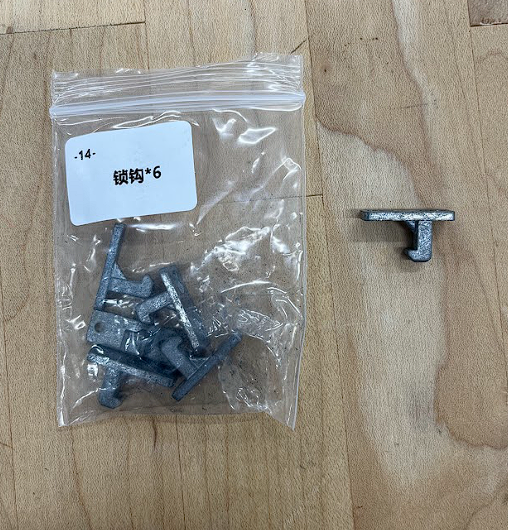

Latching Hook

N/A

Not Installed

Fuselage Reinforcing Plate

N/A

Missing

Tail Reinforcing Plate

N/A

Missing

Autopilot Locating Board

N/A

Missing

Basement Of Parachute Servo

N/A

Missing

Wooden Plate Of Parachute Hatch Cover

N/A

Missing

Stiffer Of Parachute Hatch Cover

N/A

Missing

Motor Installing Base

N/A

Missing

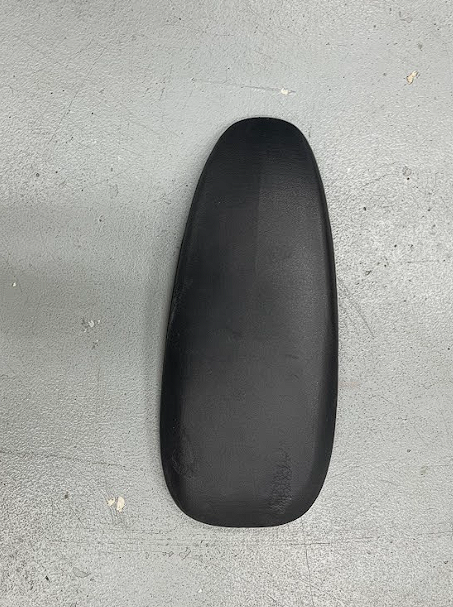

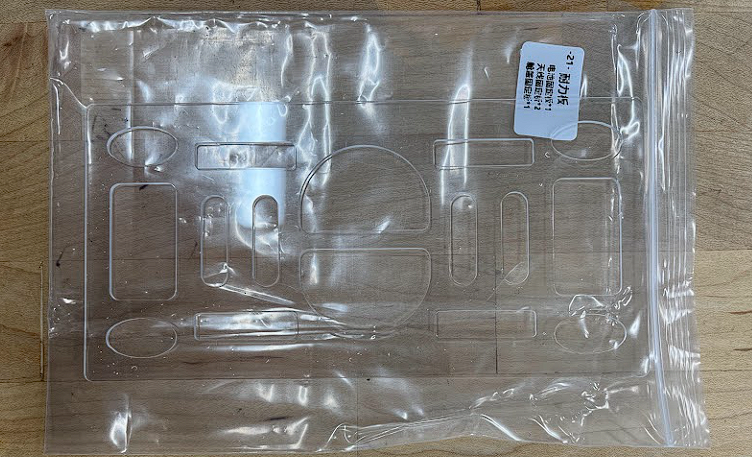

Set Of Battery and Flight Control Area Cushions

N/A

Not Installed

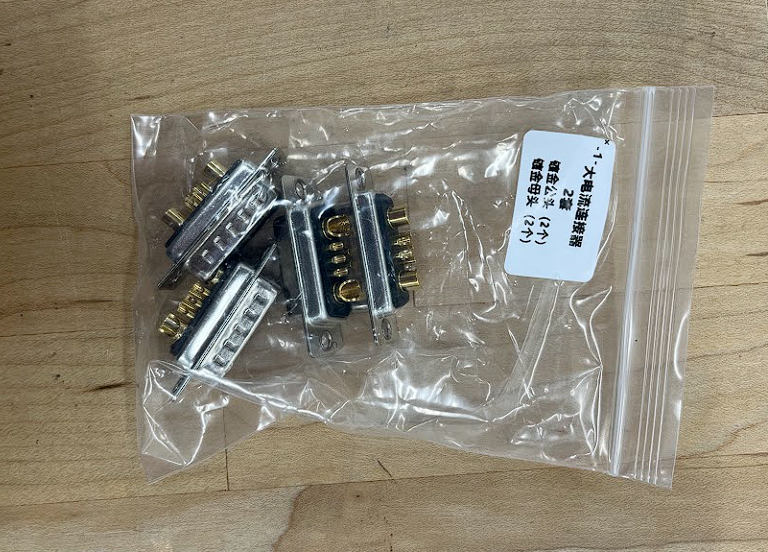

Group Of Large Electronic Current Connector

N/A

Not Installed

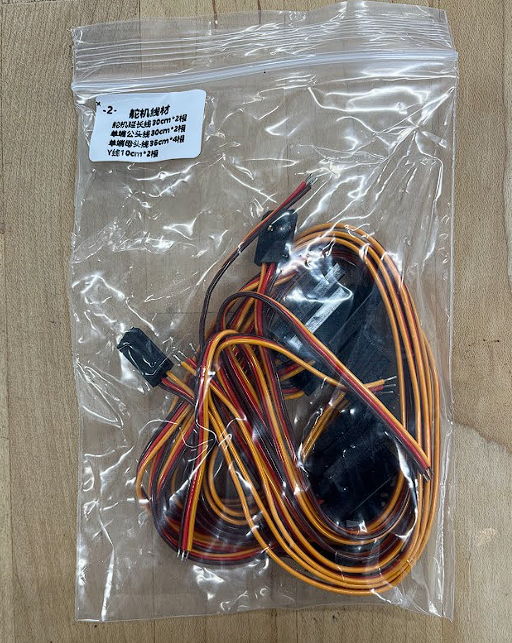

Set Of Empennage Servo Extending Wire

30cm

Not Installed

Set Of Servo Single-head Male Connector Extending Wire

30cm

Not Installed

Set Of Fuselage Fuel Gate Servo Single-head Female Connector Extending Wire

30cm

Not Installed

Set Of Aileron/Fuel Gate Y Wire

10cm

Not Installed

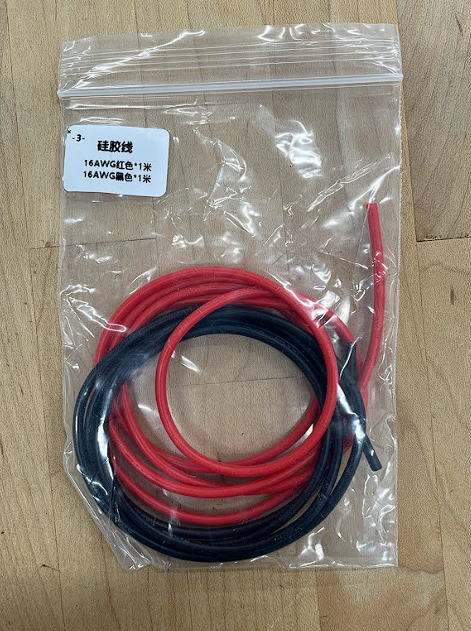

16 AWG Silicone Wire (Black)

1m

Not Installed

16 AWG Silicone Wire (Red)

1m

Not Installed

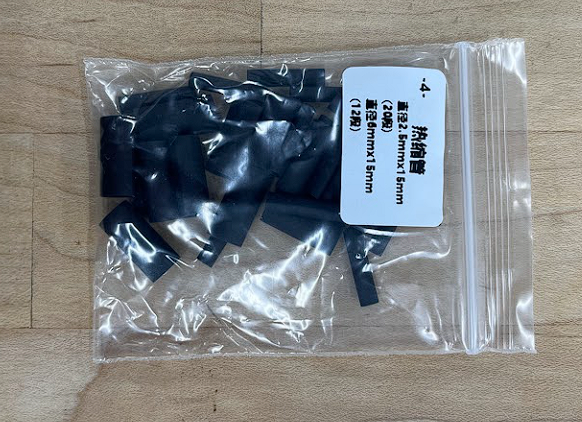

Sections Of 2.5mm*15mm Heat Shrink Tubing

2.5mm*15mm

Not Installed

Sections Of 6mm*15mm Heat Shrink Tubing

6mm*15mm

Not Installed

Wire Harness Tube

N/A

Not Installed

Set Of Magic Tie Straps

N/A

Not Installed

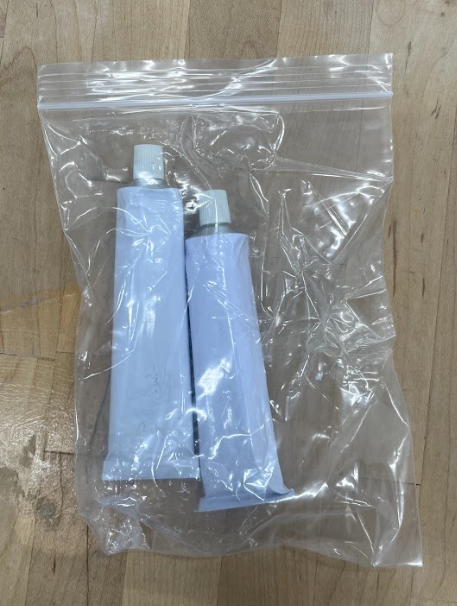

Transparent Foam Glue

N/A

Not Installed

Ball Head

N/A

Not Installed

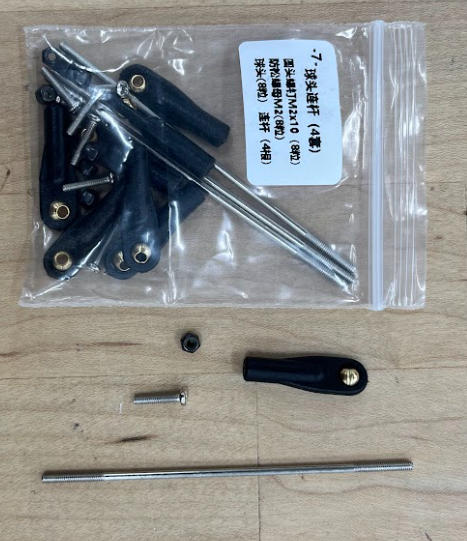

Set Of Link Rod

N/A

Not Installed

Button Head Screw M2X10

N/A

Not Installed

Block Nut M2

N/A

Not Installed

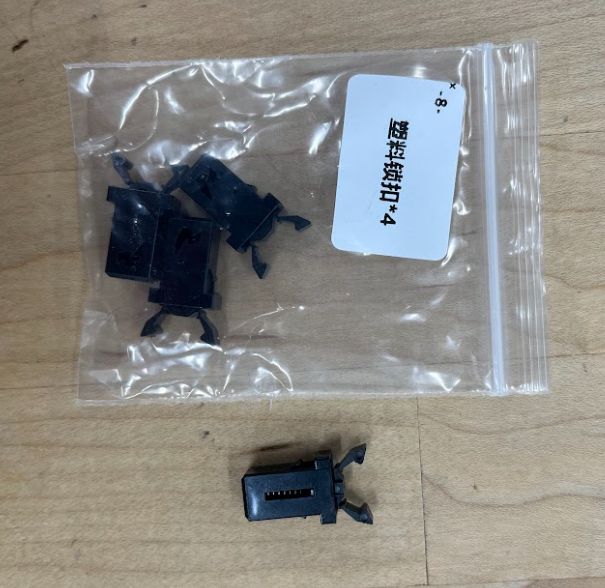

Plastic Latch

N/A

Not Installed

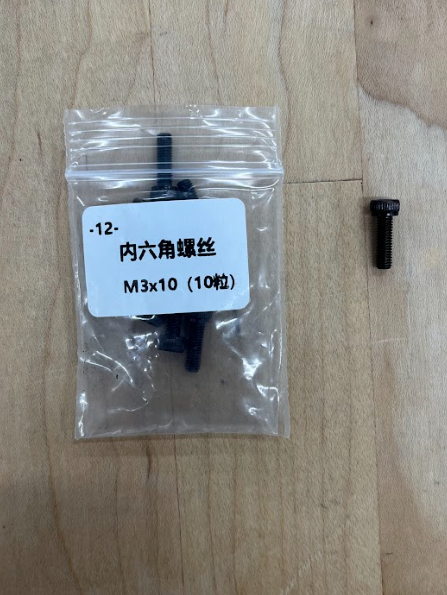

M2.5X8 Tail Button Head Screw

N/A

Not Installed

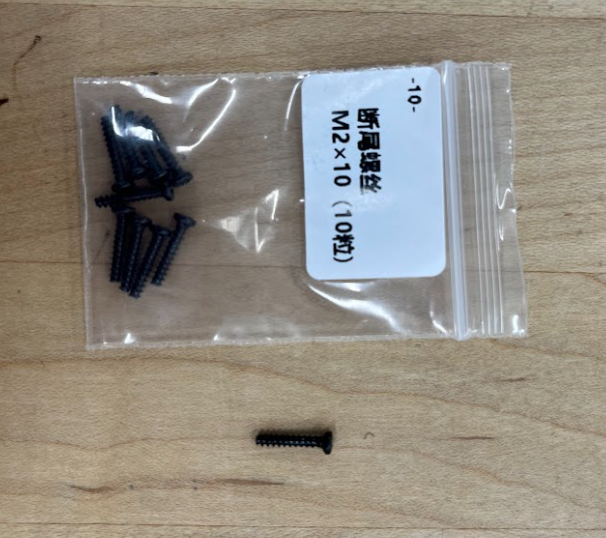

M2X10 Tail Button Head Screw

N/A

Not Installed

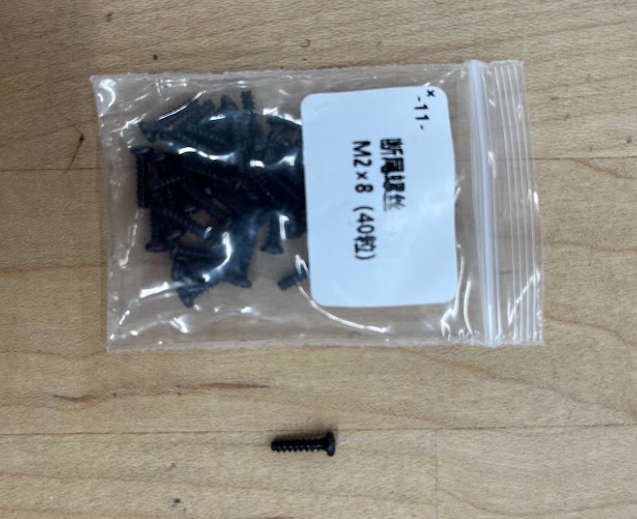

M2X8 Tail Button Head Screw

N/A

Not Installed

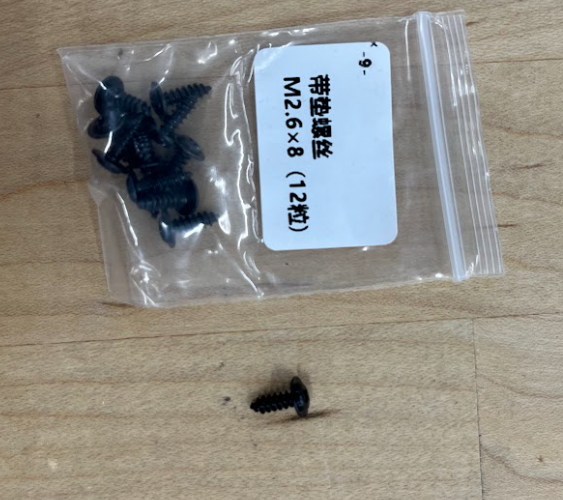

Screws With Pad M3X8

N/A

Not Installed

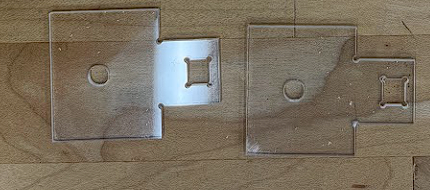

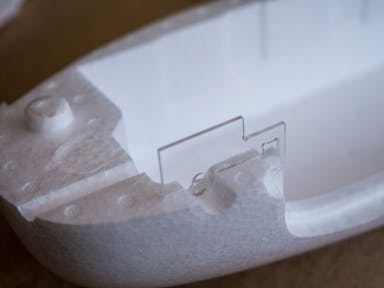

Using the provided glue, glue the lock mounts into the fuselage.

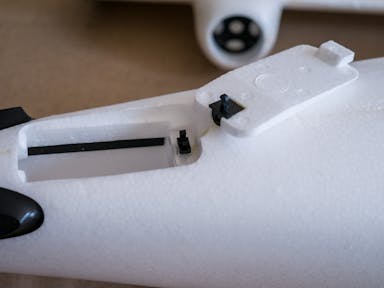

Glue the hatch locks to the hatches.

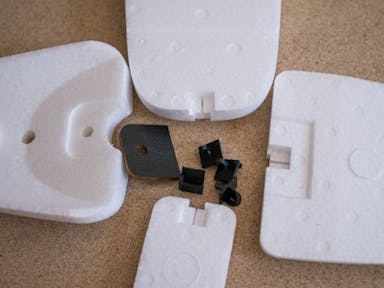

Glue the tail fin adapters to the tail fins.

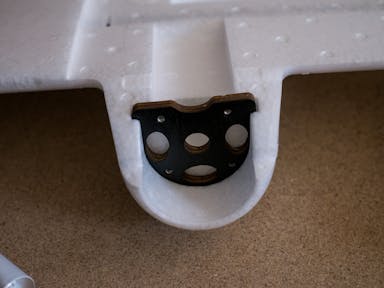

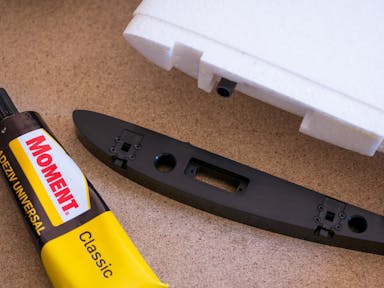

Glue in the motor mounts.

Glue the tail fin adapters to the fuselage.

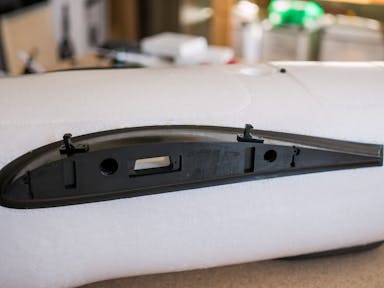

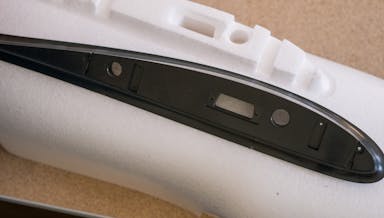

Glue one wing adapter to one side the fuselage. Do not glue on both wing adapters! If you do, you won’t be able to install the carbon connecting tubes later!

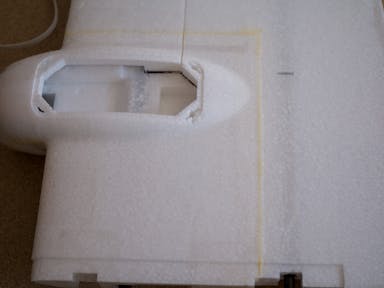

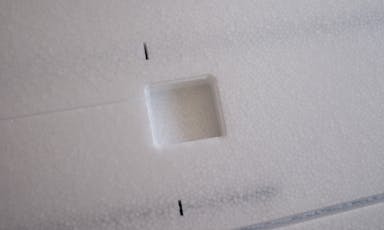

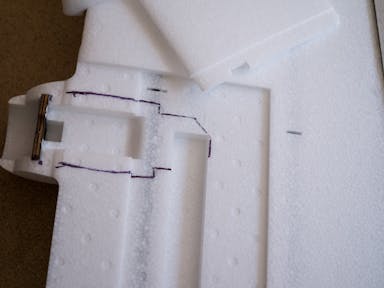

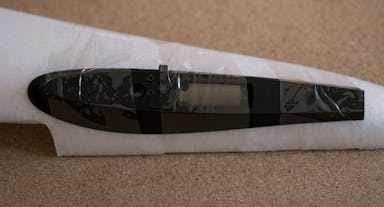

Mark the area where the opening in the nacelle will be, to mark where not to put glue.

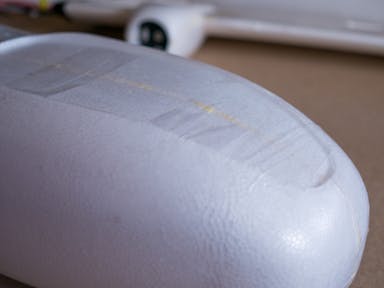

Glue the wing together.

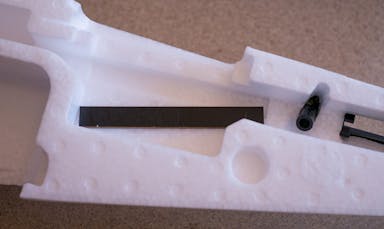

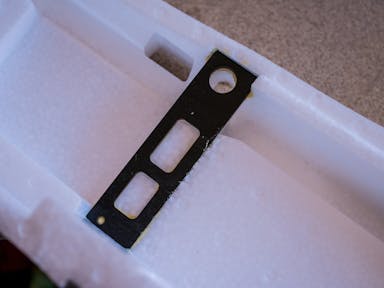

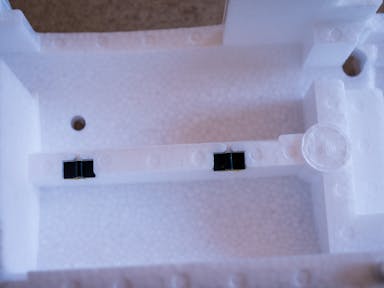

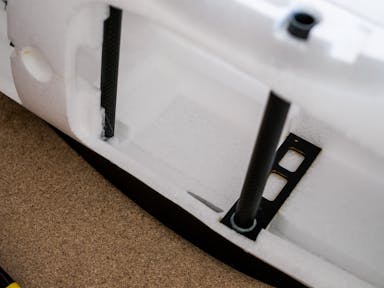

Glue the carbon spar supports to the inside of the fuselage.

Glue the screw bases for the Auto Pilot to the fuselage.

Glue the long pieces of plywood to the back of the fuselage.

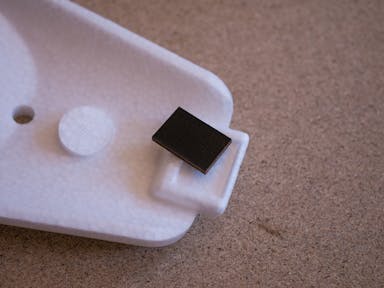

Glue the square piece of plywood to the bottom side of the parachute bay hatch.

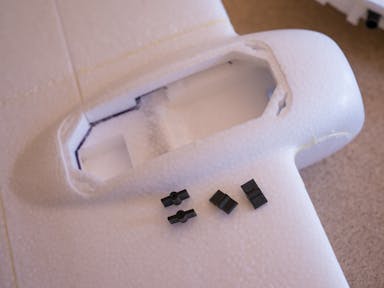

Once the glue on the wings has dried, glue on the screw bases for the nacelle covers.

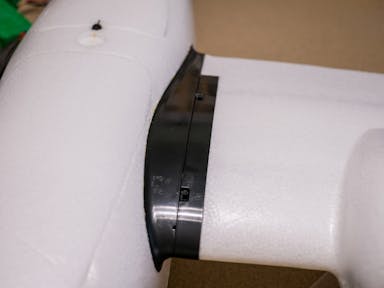

Glue on the wing adapters.

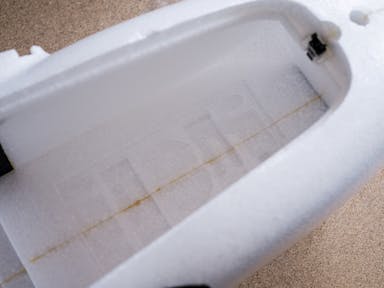

Glue both halves of the fuselage together.

After the glue has dried, insert the hatches into the fuselage.

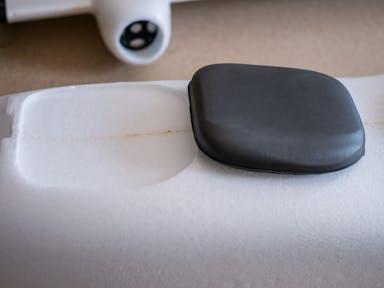

Glue on the landing cushions.

Glue in the plexiglas battery plate.

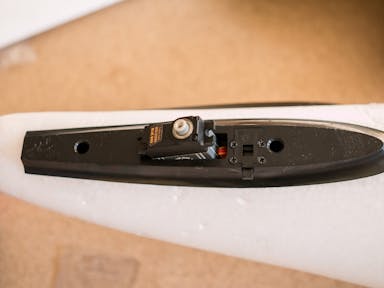

Glue the servo mount to the wing.

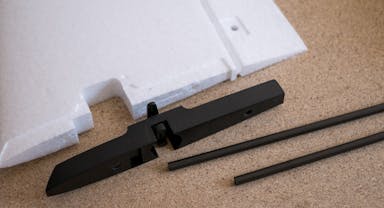

Put glue onto the end of the carbon connecting rod that will go into the already installed wing adapter. Then, insert the carbon connecting tubes into the fuselage, from the side of the fuselage without the wing adapter on.

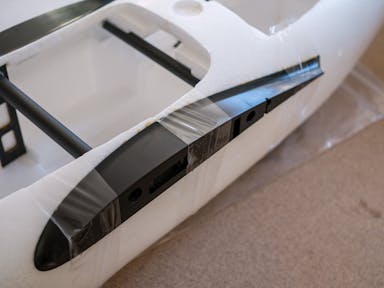

Put glue on the remaining exposed end of the carbon connecting tube, and then glue the second wing adapter to the fuselage.

Once the glue is dry, install the locking hooks to each of the wing adapters, and tail fins.

Connect the wings and tail fins to the fuselage.

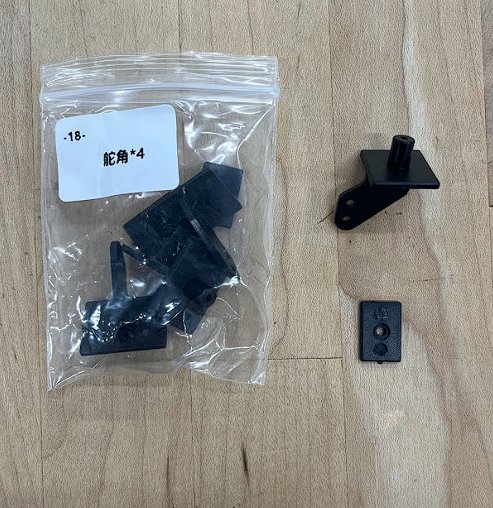

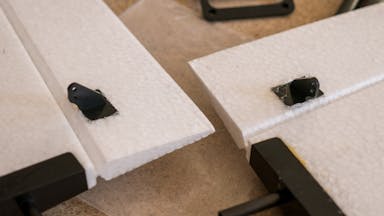

Glue the control horns to all of the control surfaces.

Install tail servos into tail mounts, making sure that the side of the servo with the gear is towards the front of the fuselage.

Install round servo head on servos

Install control surface chuck onto servo heads

(Ruddervators should be able to lock like this with no slop in the controls)

Use plastic inserts to create a proper hinge on all control surfaces

Assemble and install push-pull rods to tail control horns

Install wing servos with double sided tape so that the gear side of the servo is forward. Then install the servo covers.

Assemble and install push-pull rods to aileron control horns

Install brushless motors

Install and secure ESCs and wires inside of the nacelle .

Extend servo cables to reach nacelle

Create male D-sub connectors for the inside of the wings with the following connections: 30A+, 30A-, esc control, servo control. The wires should be able to reach the nacelle from the wing root connection.

Install D-sub connector into the wing root

Connect ESC and Servo connectors to the D-sub and secure wires inside the nacelle

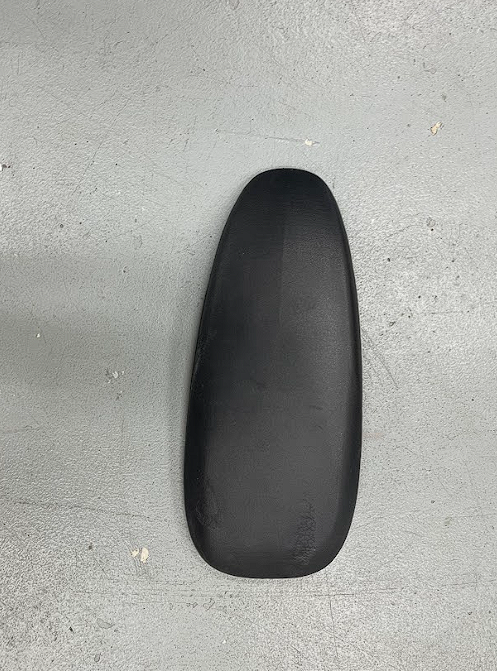

Install nacelle cover

Create female D-sub connectors for the inside of the fuselage with the following connections: 30A+, 30A-, esc control, servo control. The wires should be able to reach the nacelle from the wing root connection.

Install D-sub connector to the fuselage wing root connectors.

Use clamps and double sided tape to secure wires and electronics

Install GPS in the tail of the aircraft so that its signals have the least interference

Create power bus for servos

Install antenna in the parachute compartment because it is ground facing and has ground clearance

Hold antenna in with a rubber band to prevent damage from landings
