3D CAD Modeling vs. BIM: Understanding the Core Differences
In the architecture, engineering, and construction (AEC) industry, the terms "3D CAD" and "BIM" are often used interchangeably, leading to significant confusion. While both involve the creation of three-dimensional digital models, they represent fundamentally different philosophies, processes, and outcomes. Understanding this distinction is crucial for any professional in the modern built environment.
3D CAD is an evolution of the 2D drafting board, while BIM is a paradigm shift in how we manage project information. Let’s break down the key differences.
1. The Fundamental Philosophy: Geometry vs. Information
The most critical distinction lies in the core purpose of the model.

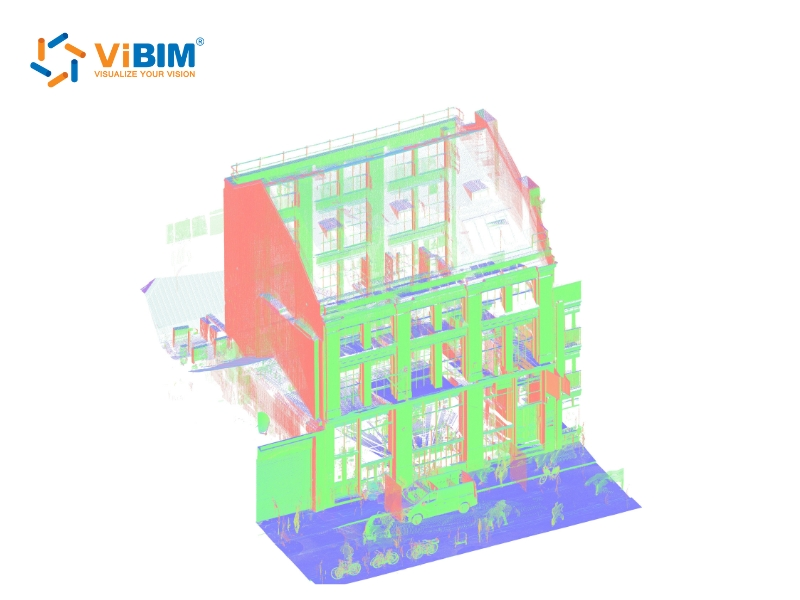

3D CAD Modeling: The primary focus of 3D CAD (Computer-Aided Design) is to represent geometry. It creates a visual, 3D representation of an object's shape, size, and dimensions using basic elements like lines, arcs, and surfaces. Think of it as a detailed, digital sculpture. The model shows you what the building looks like.

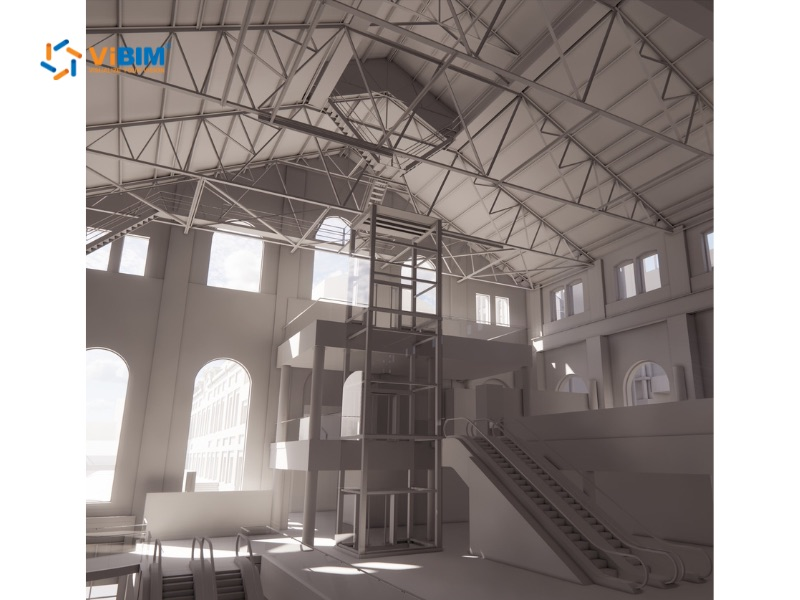

BIM (Building Information Modeling): The primary focus of BIM is information. While it also creates a 3D geometric representation, this geometry is merely a container for a vast database of information. Every element in a BIM model is an intelligent object with data attached to it. The model tells you what the building is. This is the crucial "I" in BIM.
Analogy: A wall in a 3D CAD model is just a collection of surfaces that form a rectangular prism. A wall in a BIM model is an intelligent "wall" object that contains data about its material (e.g., concrete block), its thermal properties (R-value), its fire rating, its cost per square foot, and its structural function.
2. Object Representation: "Dumb" Geometry vs. Intelligent Elements
This difference in philosophy directly impacts how building components are created and managed within the software.
3D CAD Modeling: Objects are composed of "dumb" geometry. A door is represented by a set of lines and surfaces that are manually drawn to look like a door. To get information about it, you must measure its dimensions or refer to separate notes. It has no inherent relationship with the wall it is placed in.
BIM: Objects are parametric, intelligent elements with built-in relationships. You don't "draw" a door; you "place" a door object into a wall (its host). This door object comes pre-loaded with data (parameters) like height, width, material, and manufacturer. If you move the host wall, the door moves with it.
3. Change Management: Manual Updates vs. Automatic Coordination
How each technology handles changes reveals one of BIM's most significant advantages over CAD.
3D CAD Modeling: The workflow is uncoordinated and manual. If a designer moves a wall in the floor plan view, they must remember to manually update that change in all other related views—such as elevations, sections, and details. Forgetting to update even one drawing leads to inconsistencies and costly errors on site.
BIM: The workflow is coordinated and automated. The BIM model is a single, centralized database. A change made in any view is a change to the underlying database, which automatically propagates across the entire project. If you move that same wall in the floor plan, every section, elevation, 3D view, and even the room area schedule will update instantly and accurately. This principle is often called "Change it once, change it everywhere."
4. Collaboration: Siloed Files vs. A Single Source of Truth
The nature of the data dictates how teams collaborate throughout a project.
3D CAD Modeling: Collaboration typically relies on a system of external references (XREFs), where each discipline works in a separate file. Coordination is a manual process of overlaying different 2D or 3D files to visually check for conflicts—a process that is time-consuming and prone to human error.
BIM: Collaboration is centered around a single source of truth. Models from all disciplines (architecture, structure, MEP) are combined, or federated, into a central coordination model. This allows for automated clash detection, where software identifies and reports every instance of interference. This integrated approach ensures all stakeholders are working from the most current, coordinated information.
Conclusion: An Evolution or a Revolution?
While 3D CAD was a revolutionary step up from 2D drafting, BIM is not merely the next evolution. It is a revolutionary shift in process. 3D CAD creates a set of digital drawings; BIM creates a digital twin of the building itself.
CAD still has its place for specific tasks and simple 2D detailing. However, for the comprehensive design, construction, and lifecycle management of modern buildings, BIM is the undisputed standard, offering unparalleled benefits in efficiency, accuracy, and collaboration.
