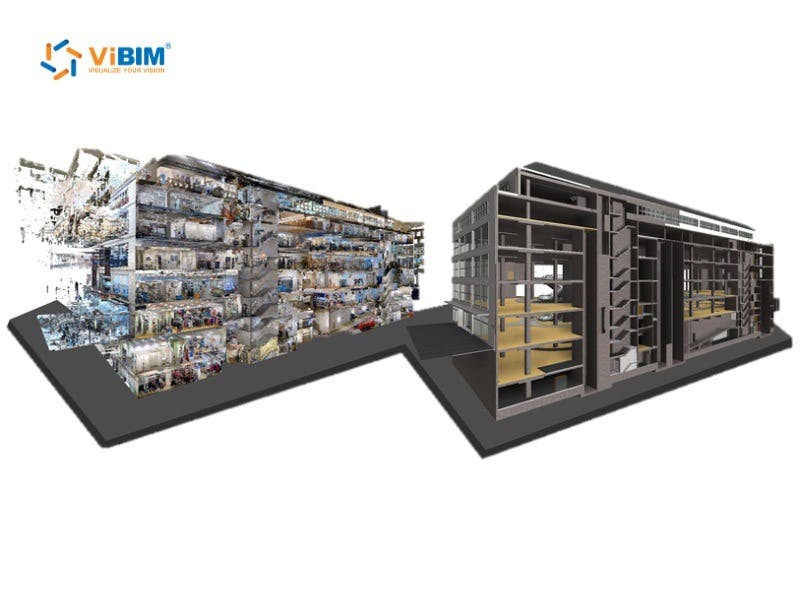

How to Choose the Right LOD for Your Scan to BIM Project
In the complex world of Building Information Modeling (BIM), precision and clarity are paramount. For Scan to BIM projects, a critical decision that directly influences project outcomes, budget, and timeline is the selection of the appropriate Level of Development (LOD). This choice is far more than a technical specification; it's a strategic imperative that shapes the entire project lifecycle. At ViBIM, we understand that an informed LOD decision is the foundation of a successful project, and our expert guidance is designed to ensure seamless execution from point cloud to a high-quality BIM model.
What Is LOD in BIM?
Level of Development (LOD) in BIM serves as a crucial framework for specifying the geometric, spatial, quantitative, and informational content of BIM elements at various stages throughout a project's lifecycle. It provides a standardized method for stakeholders to communicate the reliability of information at different project milestones. Essentially, LOD clarifies what can be expected from a BIM model element, ensuring that all parties have a shared understanding of its characteristics.

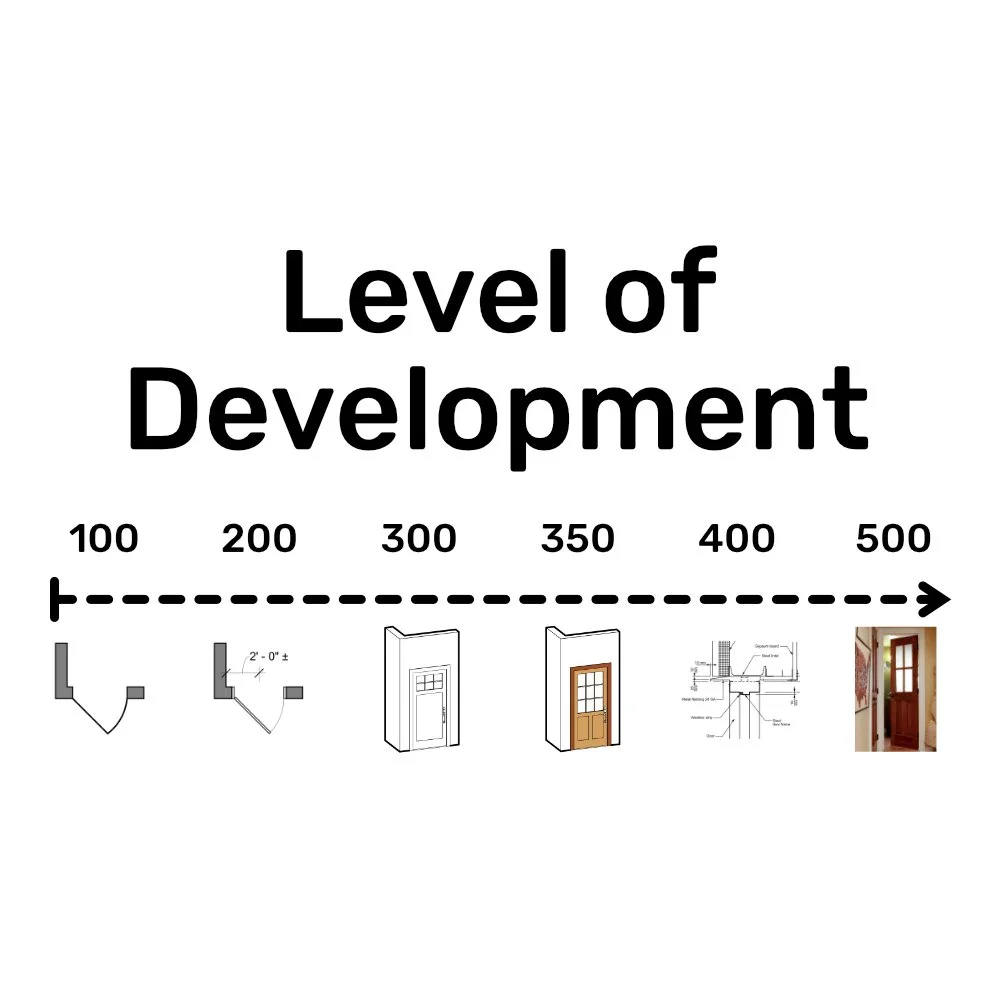

The conventional LOD levels, widely adopted in Scan to BIM workflows, define specific meanings and applications:
LOD 100 (Conceptual): Represents the overall existence of an element. Models at this level are symbolic, not geometric representations, suitable for early conceptualization and massing studies. Think of a simple volumetric block.
LOD 200 (Approximate Geometry): Elements are graphically represented as generic objects with approximate quantities, size, shape, location, and orientation. This level is suitable for schematic design or general coordination, where the exact form and dimensions are not yet finalized.
LOD 300 (Precise Geometry): Elements are graphically represented as specific systems, objects, or assemblies with precise quantities, size, shape, location, and orientation. Non-graphic information may also be attached. This level is often required for detailed design, coordination, and accurate quantity take-offs.
LOD 350 (Construction Documentation): Elements include detailed modeling and object information for coordination with other building systems, addressing conditions for fabrication and assembly. This level supports construction document creation and clash detection.
LOD 400 (Fabrication & Assembly): Elements are modeled with sufficient detail and accuracy for fabrication and assembly. This includes specific information for manufacturing, installation, and procurement.
LOD 500 (As-Built & Operations): Elements are actual and field-verified representations in terms of size, shape, location, quantity, and orientation. This level reflects the as-built condition for facility management and operational purposes.
ViBIM's foundational expertise ensures that we proficiently apply these LOD definitions, translating complex point cloud data into BIM models that precisely meet project requirements at every stage.
Why Choosing the Right LOD Is a Big Deal in Scan to BIM Projects
The selection of the appropriate LOD is a monumental decision with far-reaching implications for any Scan to BIM project. An ill-suited LOD can cascade into significant inefficiencies, compromised project quality, and unforeseen costs. Opting for an LOD that is either too low or excessively high can disrupt various aspects of a project:
Project Costs: A higher LOD demands more detailed modeling, which inherently translates to increased labor, time, and software resources. Conversely, a too-low LOD might lead to costly rework, missed clashes, and design errors later in the project when changes are exponentially more expensive to implement.
Schedules: Achieving a higher LOD requires more time for data processing, modeling, and quality assurance. Over-specifying LOD can needlessly extend project timelines, while under-specifying can lead to delays as insufficient information forces architects, engineers, and contractors to seek clarification or re-model elements.
Model Accuracy: The chosen LOD directly defines the acceptable level of accuracy and geometric detail. A mismatch between the required accuracy for specific project uses and the delivered LOD can render the BIM output unreliable for its intended purpose.
Stakeholder Expectations: Clear communication regarding LOD sets realistic expectations among all project stakeholders—from owners and developers to engineers and facility managers. Misaligned expectations due to an unclear or inappropriate LOD can lead to disputes and dissatisfaction.
Ultimate Usability of the BIM Output: The value of a BIM model lies in its usability for downstream applications like facility management (BIM for FM Support), renovation planning, or quantity take-offs. If the LOD is not tailored to these uses, the model may lack essential information, making it less valuable or even unusable.
At ViBIM, we prioritize "High Accuracy & Reliability" in every BIM model we deliver. We understand that selecting the right LOD is critical to achieving this. Our commitment to "On-Time Delivery" (with a 99% record) means we work with clients to define an LOD that is both suitable for their project's needs and achievable within practical timelines, preventing unnecessary expenditure and delays.
Key Factors to Consider When Choosing the Right LOD
Making an informed LOD decision requires a comprehensive evaluation of several essential project-specific factors. This holistic approach ensures that the BIM model delivers optimal value without incurring superfluous costs or time.
1. What Is the Purpose of the Model?
The ultimate intended use of your BIM model is the primary determinant for the necessary Level of Development. Different applications demand varying degrees of detail and information. For instance:
Visualization: Often requires only LOD 100 or 200, focusing on massing and aesthetics rather than intricate details.
Clash Detection: Typically necessitates LOD 300 to accurately identify interferences between different building systems (architectural, structural, MEP).
Facility Management (BIM for FM Support): Demands LOD 300-400, integrating crucial non-graphic information such as asset tags, maintenance schedules, and warranty details directly into the model elements. ViBIM excels in providing comprehensive BIM for FM Support.
Quantity Take-offs: Requires LOD 300 or 350 for precise extraction of material quantities and cost estimation.
Renovation Planning: Benefits from LOD 300-400 to accurately depict existing conditions and inform new design elements.
2D Drawing Extraction and Documentation: Often needs LOD 300-350 to ensure that detailed plans, sections, and elevations can be accurately generated from the model.
ViBIM's diverse service capabilities, including Architectural, Structural, and MEP BIM Modeling, as well as 2D Drawing Extraction and BIM for Facility Management Support, allow us to tailor the LOD precisely to your model's purpose.
2. What Type of Space or Building Are You Scanning?
The characteristics of the environment being scanned, including its complexity, age, and building type, significantly influence the practical and achievable LOD.
Complexity: Highly intricate environments with numerous MEP systems, complex geometries, or dense historical details naturally demand more intensive scanning and modeling to achieve higher LODs.
Age: Older or historical buildings, often lacking original documentation, typically require more effort to accurately capture and model existing conditions, potentially impacting achievable LOD for certain elements.
Building Type:
Modern Residential: May require moderate LODs for architectural and structural elements.
Industrial Buildings (Factories & Manufacturing Plants, Oil and Gas Facilities): Often demand high LODs (350-400) for complex machinery, piping, and specialized equipment.
Healthcare Facilities (Hospitals, Clinics, Medical Centers): Frequently need high LODs due to the intricate network of MEP systems and critical spatial requirements.
Heritage & Cultural Buildings (Historical Residential Buildings, Museums): Can require very high LODs to preserve intricate details for restoration or documentation purposes.
Transportation Infrastructure (Precast and Cross Bridges, Tunnels): May also necessitate high LODs for structural analysis and maintenance planning.
ViBIM's extensive experience across a wide range of building typologies ensures that we can effectively manage the unique challenges posed by each environment, delivering accurate Scan to BIM models regardless of complexity.
3. Who Will Use the BIM Model Later?
Understanding the various project stakeholders and their specific information requirements is crucial for aligning the LOD. The BIM model serves different disciplines, and its utility is maximized when it caters to the needs of all end-users, fostering collaborative workflows.
Architects: Primarily concerned with spatial relationships, aesthetics, and building envelope details.
Structural Engineers: Require accurate geometry for load-bearing elements, connections, and material properties.
MEP Engineers: Need precise routing, sizing, and equipment information for mechanical, electrical, and plumbing systems.
Facility Managers: Demand comprehensive non-graphic data for asset management, maintenance, and operational planning.
Aligning the LOD with these diverse needs ensures that the model is truly a collaborative asset. ViBIM specializes in BIM Collaboration using Autodesk Construction Cloud (ACC), facilitating seamless information exchange and ensuring that the model's LOD is meticulously tailored to support every stakeholder's objectives. This collaborative approach enhances project efficiency and reduces potential communication gaps.
4. What Is the Available Budget and Timeline?
Practical constraints, particularly budget and project timeline, are critical factors in LOD selection. It's a fundamental truth that higher Levels of Development inherently demand more resources and time.
Budget: More detail means more modeling hours, which directly impacts the financial outlay. A realistic budget assessment is essential to prevent scope creep and ensure that the chosen LOD is financially viable.
Timeline: Similarly, increasing the LOD will extend the project schedule. Rushing a high LOD can compromise quality and lead to costly errors.
ViBIM helps clients strike the perfect balance between quality and cost-efficiency. Our commitment to "Fast Turnaround Time" (up to 30% shorter than industry standards) and a proven "On-Time Delivery" record (99% of projects completed as scheduled) allows us to deliver high-quality BIM models efficiently. We also provide transparent hourly rates and lump-sum quoting models, ensuring clients have a clear understanding of costs upfront, enabling informed decisions that align with both project quality and financial goals.
Why Rely on ViBIM for Seamless Point Cloud to BIM Services?
Choosing the right Level of Development is a nuanced decision that demands expertise, precision, and a deep understanding of BIM workflows. At ViBIM, we bring all these elements to the forefront, offering seamless Point Cloud to BIM services that stand apart in the industry.
Our value proposition is built on pillars designed to ensure your project's success:
Exceptional Reliability: With a remarkable 99% on-time delivery record, you can trust ViBIM to meet your deadlines without compromise. We understand that reliability is paramount in fast-paced construction and design projects.
Efficiency: Our optimized workflows and cutting-edge technology translate into Fast Turnaround Times, up to 30% shorter than industry standards. This efficiency saves you time, reduces stress, and allows your project to progress with confidence.
High Accuracy & Reliability: Quality is at the core of everything we do. We meticulously check every stage of the modeling process, guaranteeing that each BIM model meets the highest standards of accuracy and reliability, directly contributing to superior project outcomes.
Responsive Communication: We value your time. Our commitment to Responsive Communication means your emails are addressed promptly, often in under an hour, ensuring you're always informed and connected.
Don't let the complexities of LOD selection hinder your project's potential. Contact us today to discuss your specific project needs and discover how ViBIM can deliver precise, efficient, and reliable Scan to BIM solutions tailored for your success.
