AT 309 - Week 12 - Catographics

Part 1:

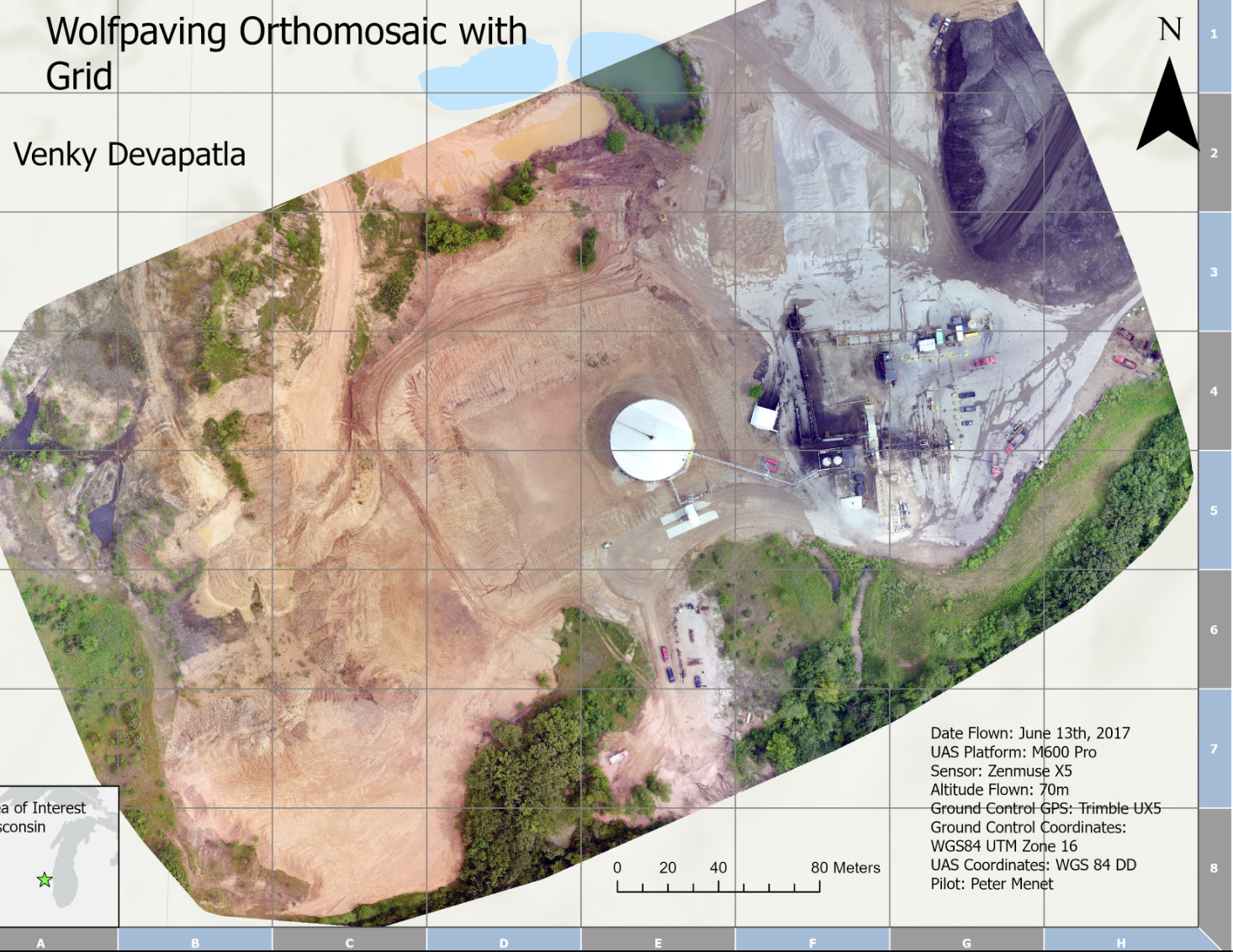

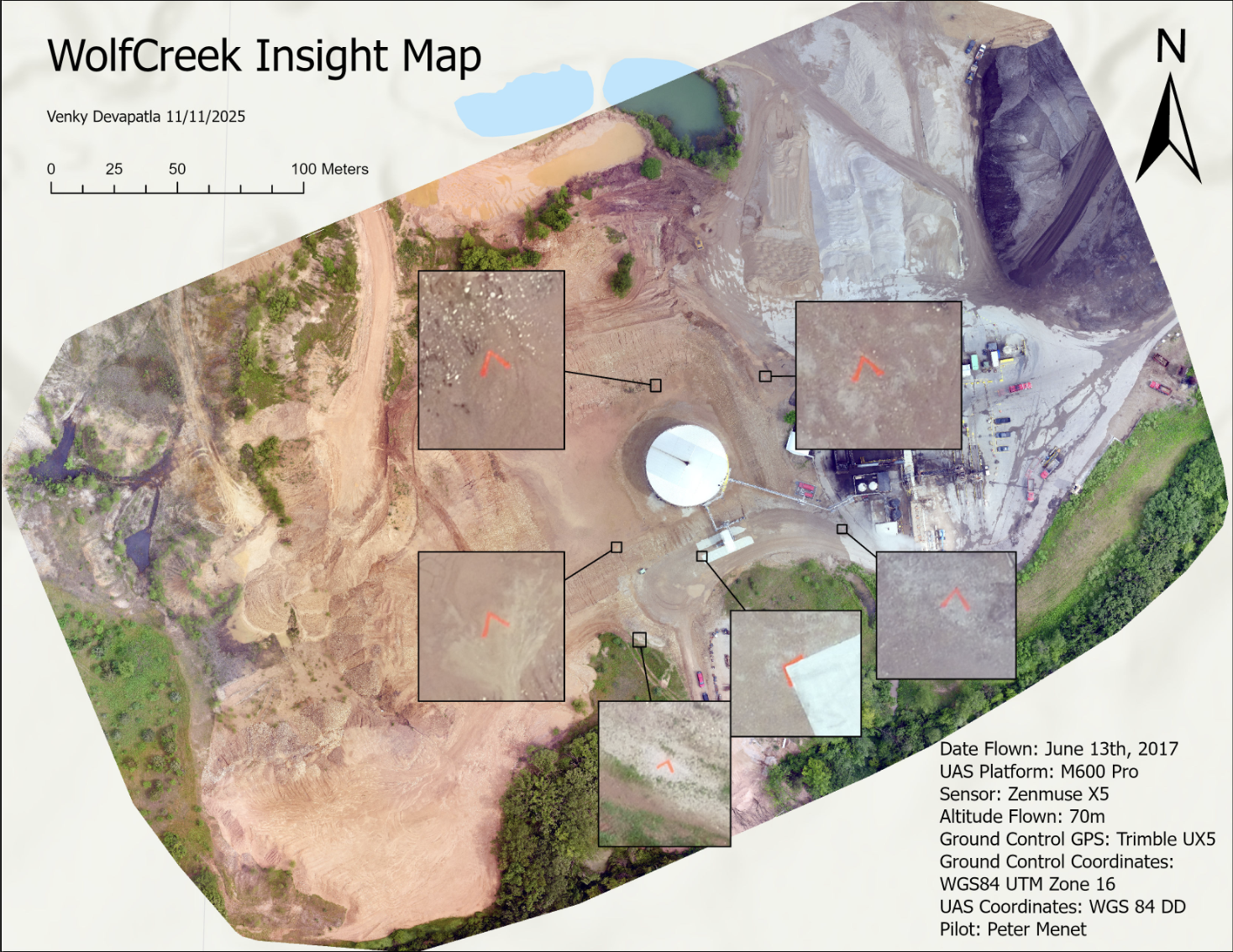

Proper cartographic skills are crucial when working with UAS data, as they enable the transformation of raw data into accurate, readable maps that provide meaningful context for interpretation. The fundamentals of creating a map from a drawing or aerial image include applying correct projection, incorporating metadata, ensuring appropriate scale, and adding essential elements such as a north arrow and legend for clarity. Spatial patterns in UAS data offer valuable insights, revealing important information across various fields. For instance, farmers can use NDVI and other multispectral data to identify unhealthy areas in crops, such as areas affected by stress, nutrient deficiencies, or pests. Inspectors can utilize thermal maps to spot cold areas in infrastructure, potentially indicating water damage. Additionally, spatial patterns are invaluable for disaster response, where UAS maps can help assess the severity of wildfires by visualizing burn patterns, providing key data to understand the fire’s behavior and impact.

Part 2:

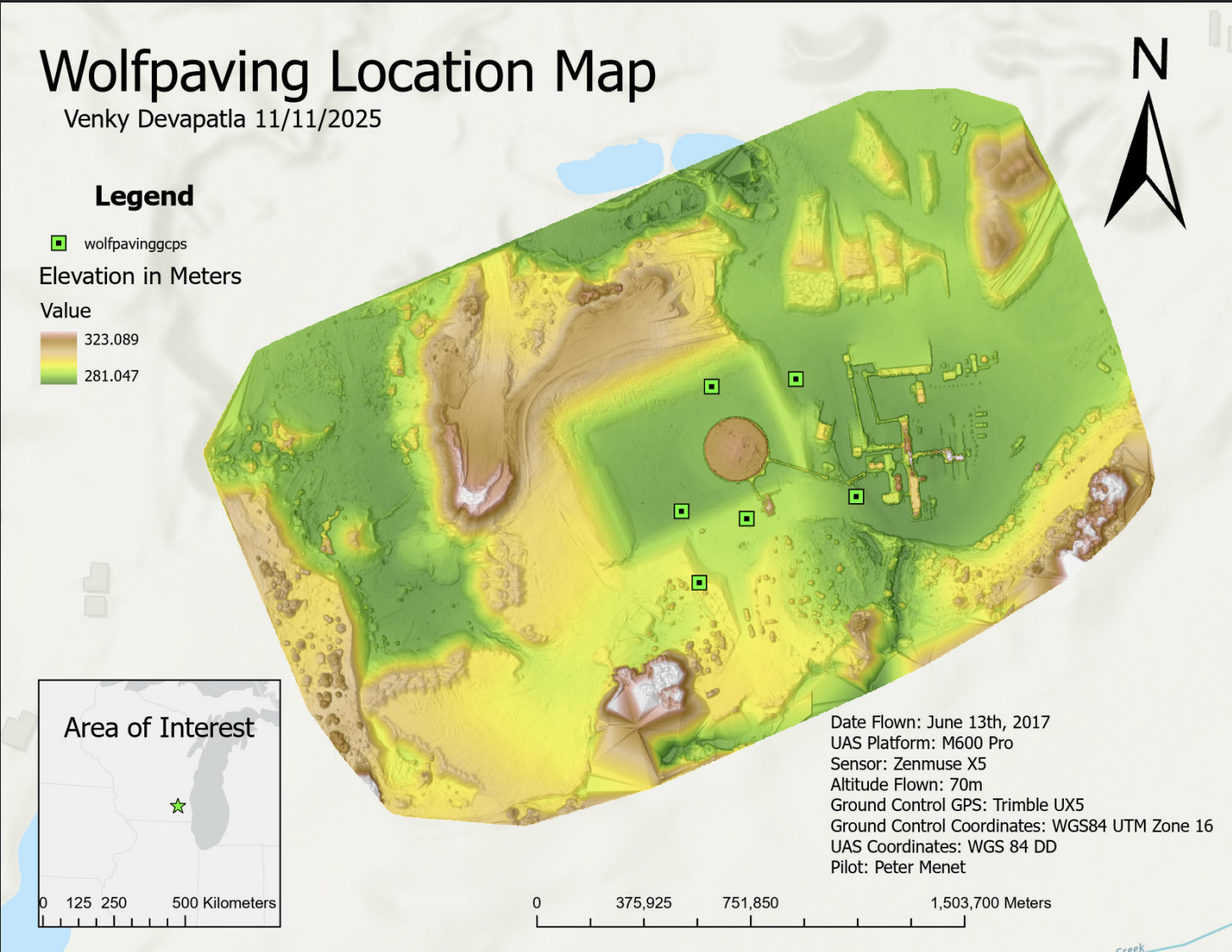

Effective file and folder naming conventions are essential for organizing UAS data, with a focus on consistency, descriptiveness, and brevity. Key characteristics such as dates, project names, and version numbers should be included to ensure data is easy to locate and understand. File management plays a crucial role in UAS projects, especially since these projects often produce large and complex datasets. Proper organization enables accurate processing and enhances data reusability, with metadata providing critical context by detailing the who, what, why, when, and how of the data. In terms of visualization, the choice of basemaps is also important: for instance, using a topography basemap offers foundational geographic context, while a light gray canvas basemap works well for locator maps, helping to focus on the data itself. Regarding UAS mission metadata, key information includes the tools used, GPS units, drone types, sensor details, flight altitude, sensor angle, coordinate systems, project specifics, and the date and time of data collection. For DSM datasets, understanding statistics like cell size, units, projection, and elevation ranges is crucial, as these parameters influence the map's detail, consistency, and alignment. The difference between a DSM and a DEM is also significant, with DSM capturing surface features such as buildings and trees, while DEM focuses on the ground itself. Hillshading further enhances the visualization of terrain, creating a 3D effect to highlight features like ridges and depressions, with multidirectional hillshading providing better clarity of such features. Finally, the orthomosaic complements the DSM's shaded relief by offering a georeferenced photo map that reveals real-world colors and objects, allowing for a better understanding of the terrain and its characteristics.

Part 3:

⁠

⁠

⁠

⁠
