2023 Big Fish

Share

Explore

Designers

Set Designer

⁠

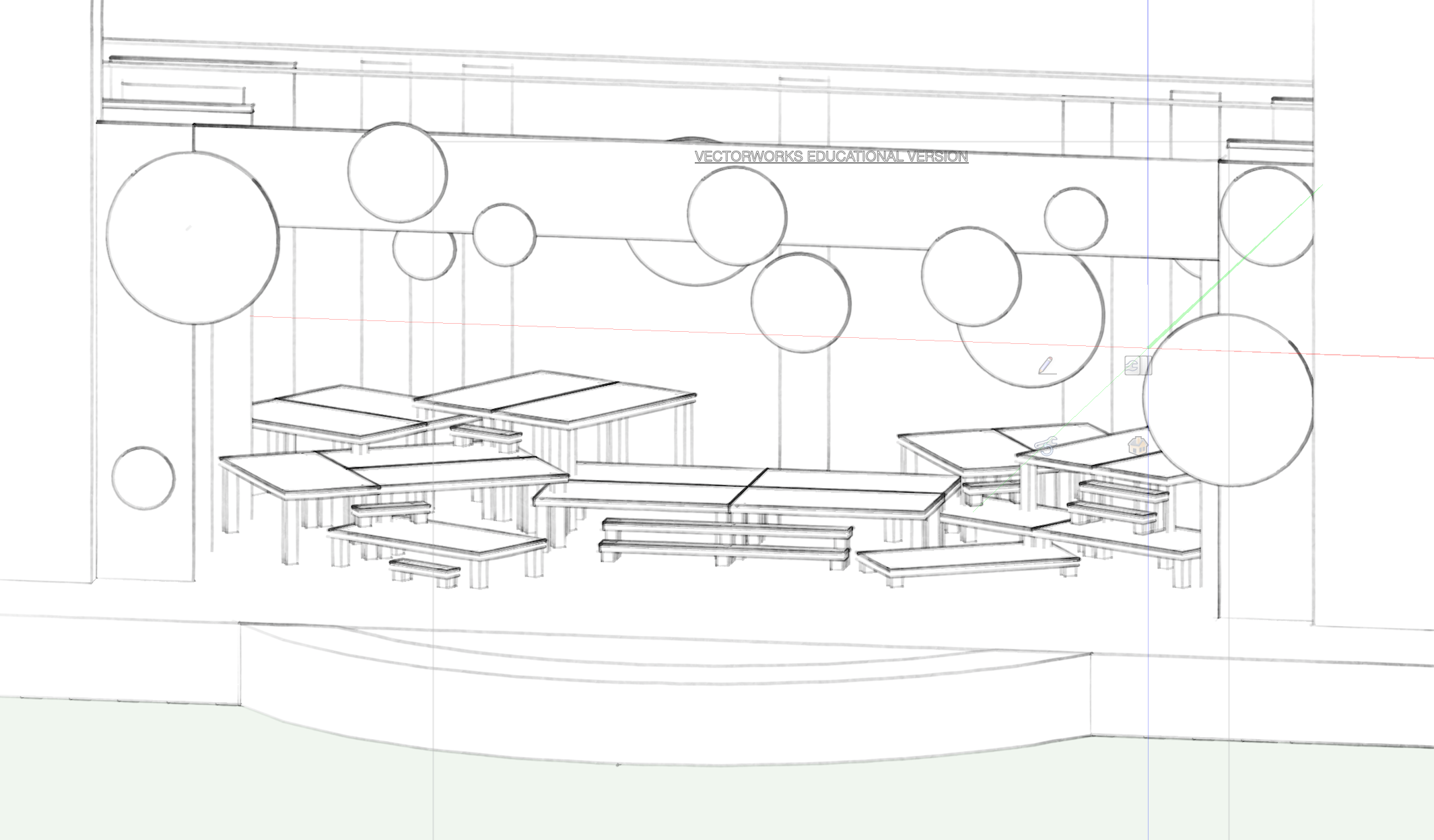

Screen Shot 2023-01-16 at 4.34.26 PM.png

⁠

⁠

⁠

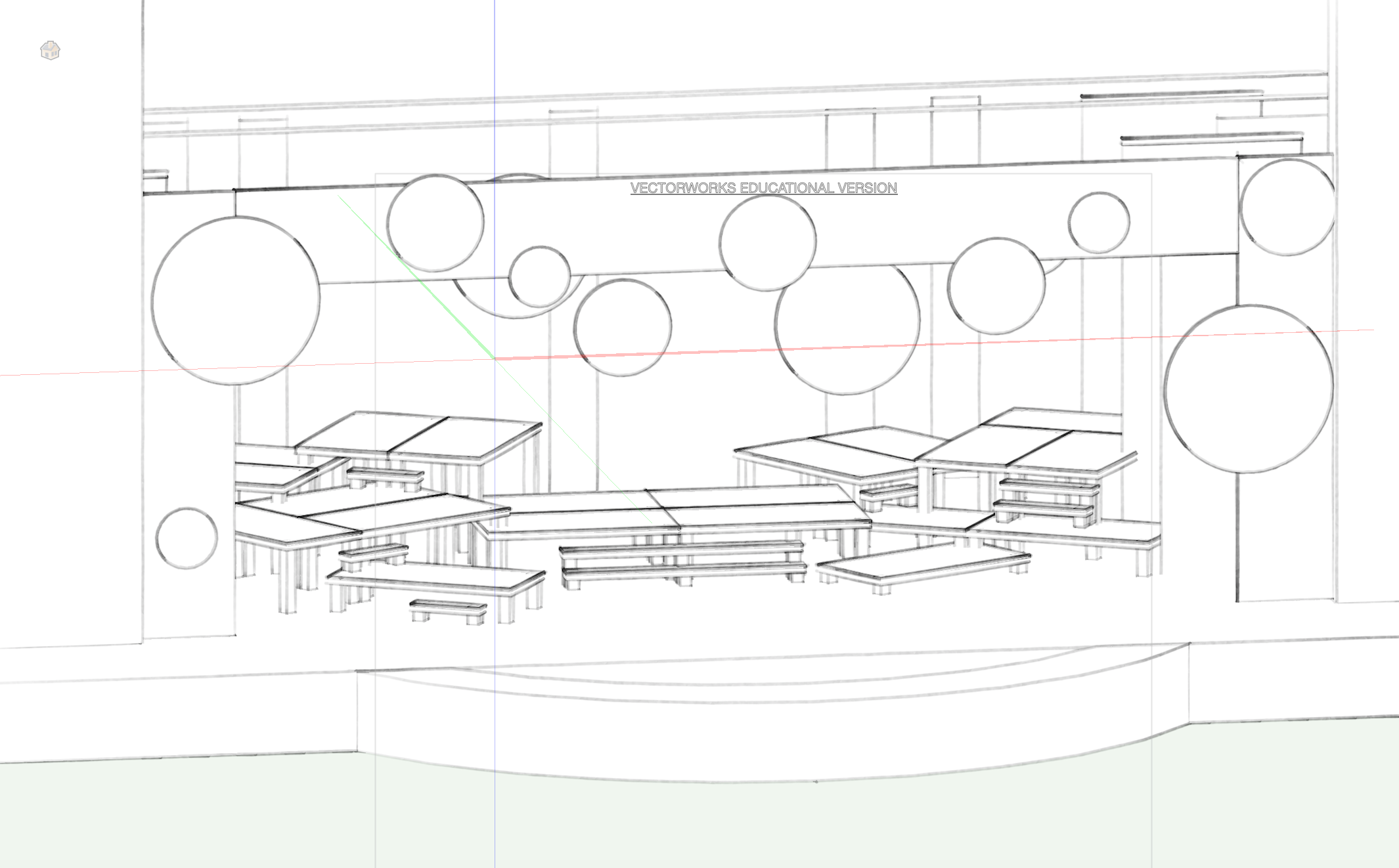

Screen Shot 2023-01-16 at 4.35.11 PM.png

⁠

⁠

⁠

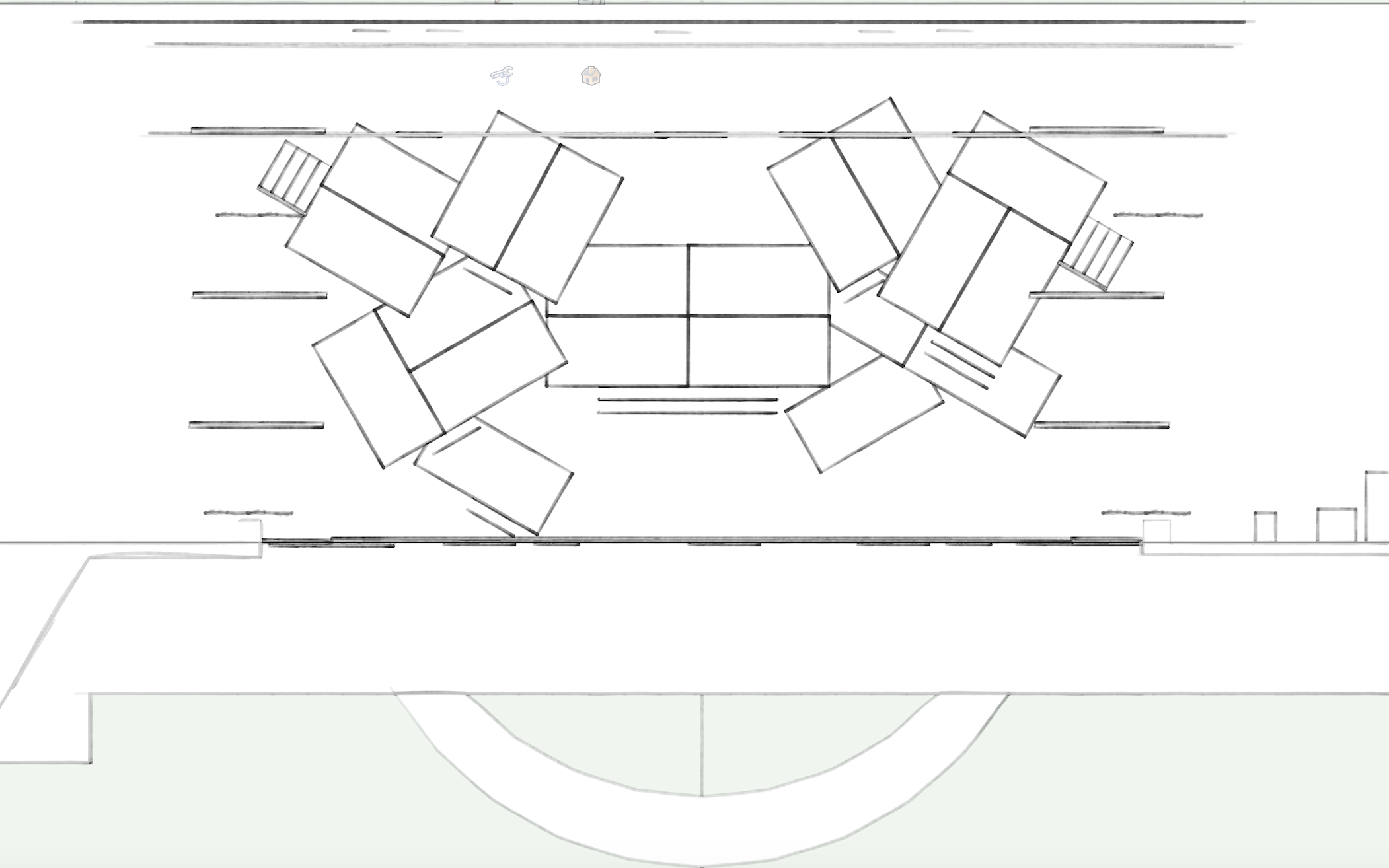

Screen Shot 2023-01-16 at 4.36.36 PM.png

⁠

⁠

⁠

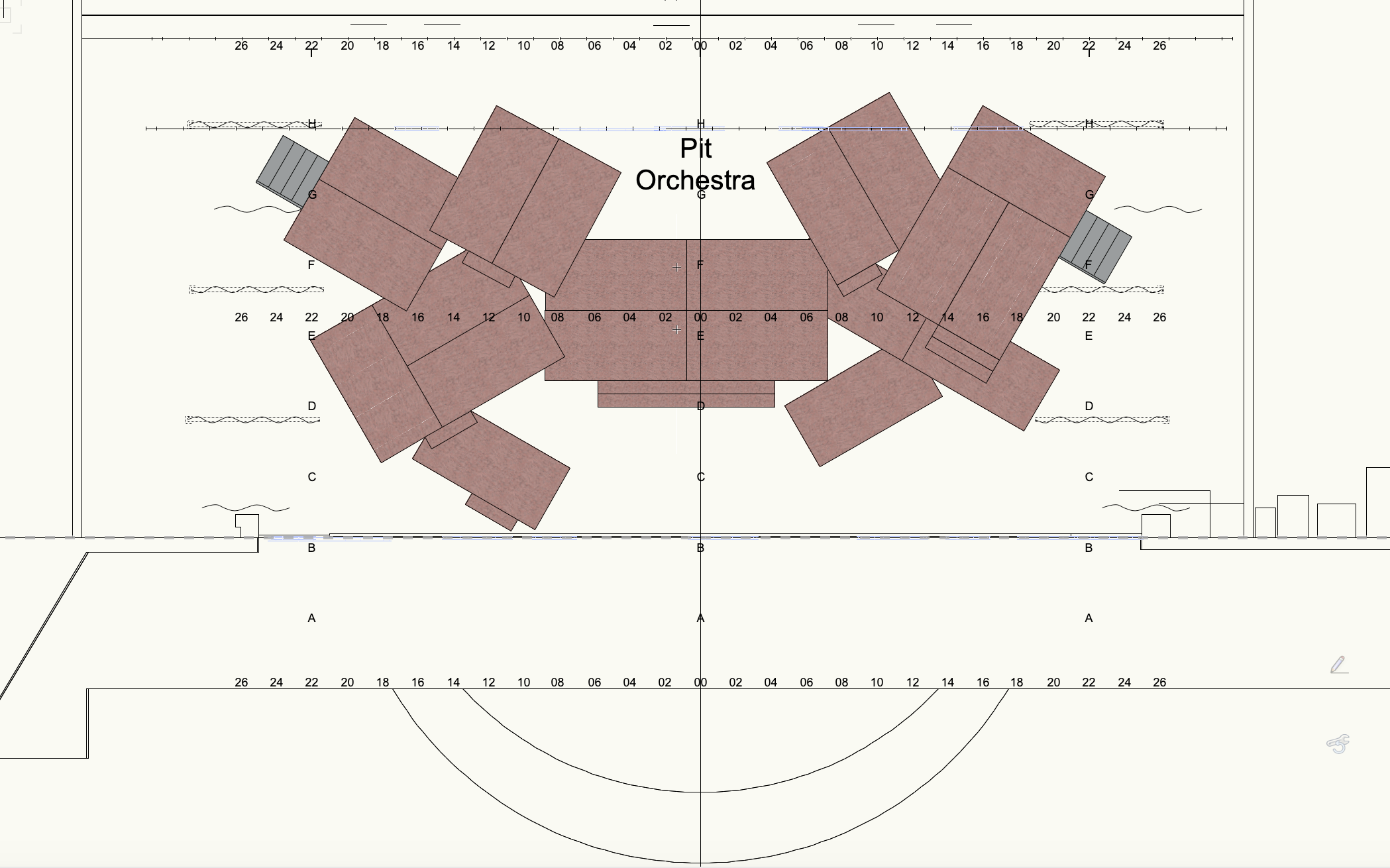

Screen Shot 2023-01-16 at 4.38.01 PM.png

⁠

⁠

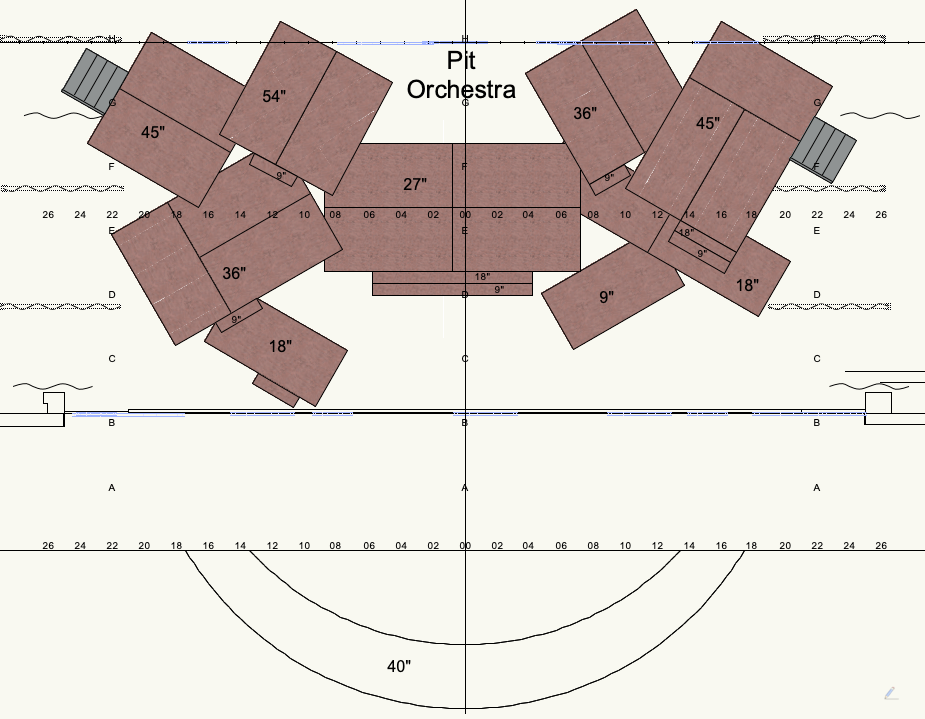

HEIGHTS:

⁠

Screen Shot 2023-01-24 at 10.18.12 AM.png

⁠

⁠

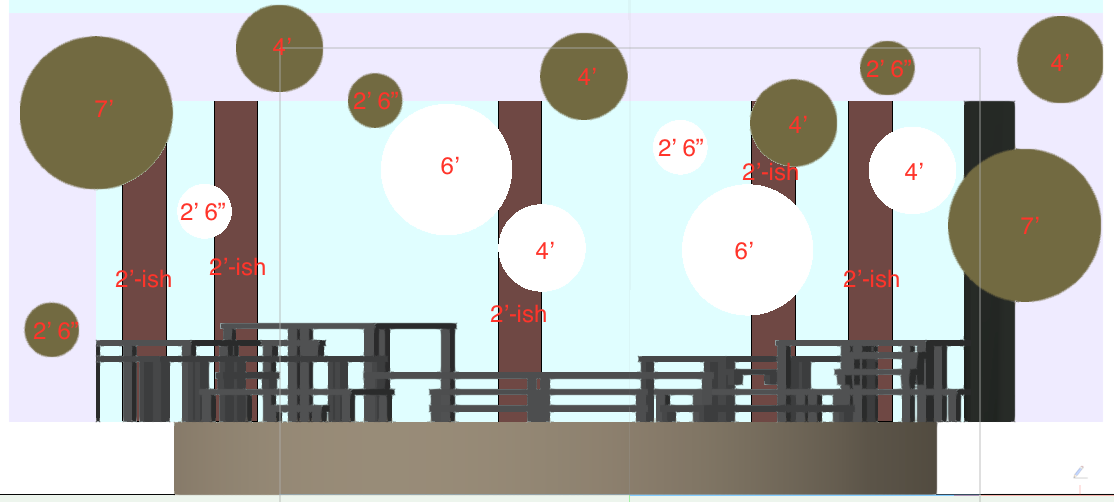

WIDTHS:

⁠

Screen Shot 2023-01-24 at 10.21.48 AM.png

⁠

⁠

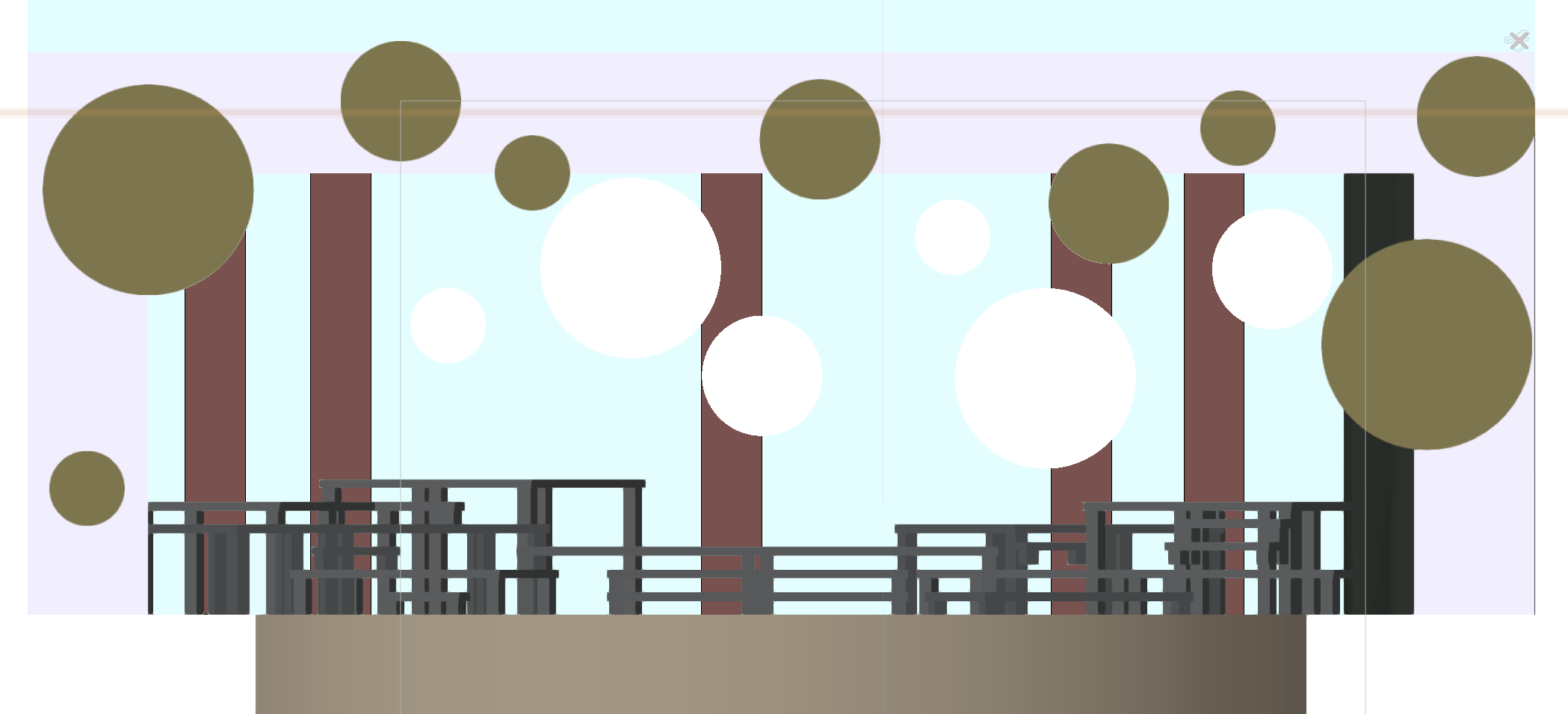

Updated Bubble Locations: (Far SR shifted in)

⁠

Updated US Circle Placement.png

⁠

⁠

List of Materials:

20 4X8 Platforms (Currently have 18, Need to Build 2)

1 Passerelle (Built)

Passerelle Legs (40” high) - (Can be a single 2X4 since it will be covered)

Platform/Stair Legs for: (**ALL LEGS FOR PLATFORMS AND ON-STAGE STEPS SHOULD BE TRICK LEGS TO LOOK BIGGER)

1 - 9” high for 4’ X 8’ platform

3 - 18” high 4’ X 8’ platforms

4 - 27” high 4’ X 8’ platforms

5 - 36” high 4’ X 8’ platforms

4 - 45” high 4’ X 8’ platforms

1 - 54” high 4’ X 8’ platform

3 - 9” high for 36” X 9” high steps

1 - 18” high for 36” X 9” high step

1 - 9” high for 10’ X 9” high step

1 - 18” high for 10’ X 9” high step

3 - 36” X 9” steps

1 - 30” X 9” steps

2 - 48” X 9” steps

2 - 10’ X 9” steps

42’ X 40” Masonite Facing for Passerelle

6 - 20’ H X 2’ W Luan

6 - 1X Framing for 20’ X 2” Pieces

False Pro - I have NO idea what we have and what is salvageable from Guys and Dolls/In Storage, but I basically need a 4’ frame around the entire pro.

2 sets of Escape Stairs (36” or 45” high (a 9” step would be great))

12 sheets of luan for circles/bubbles

⁠

US Grass Options:

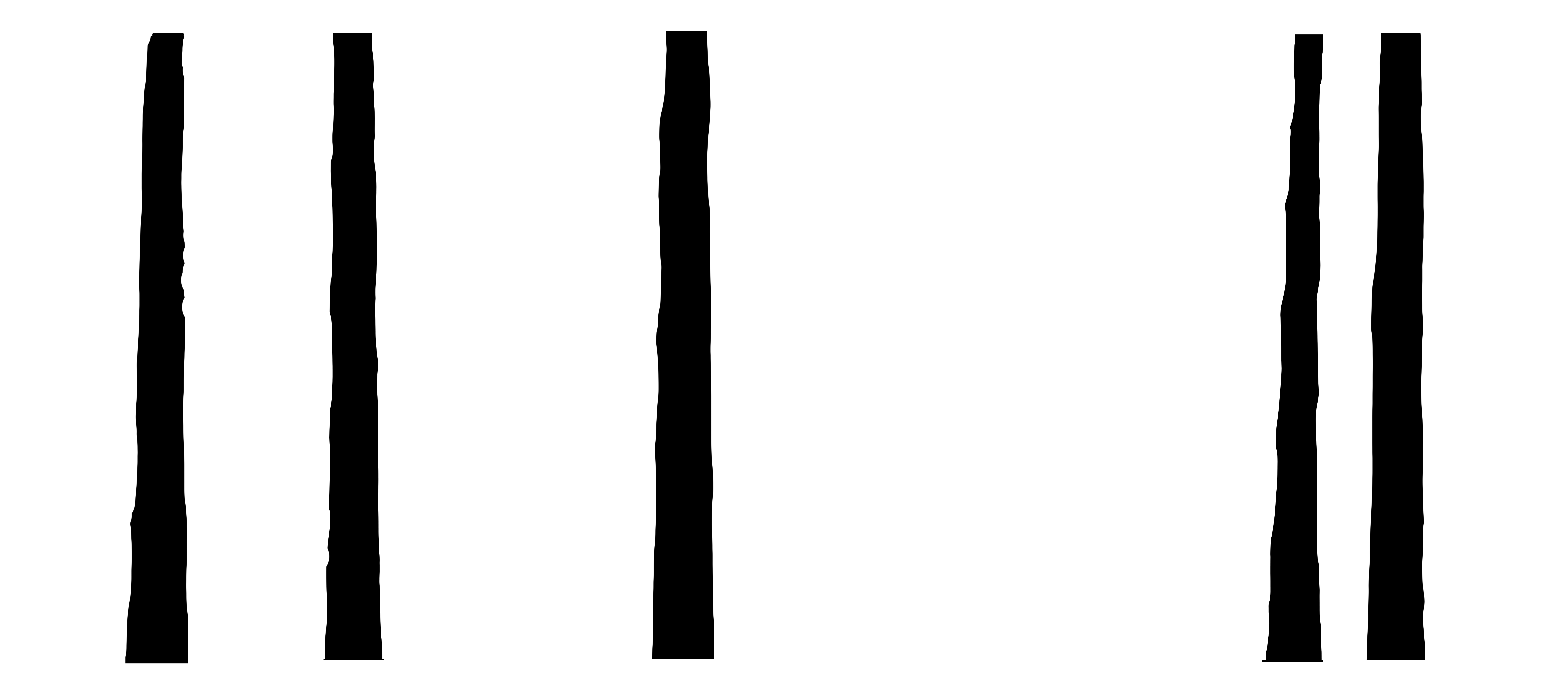

Option 1:

⁠

US Grass 1.png

⁠

⁠

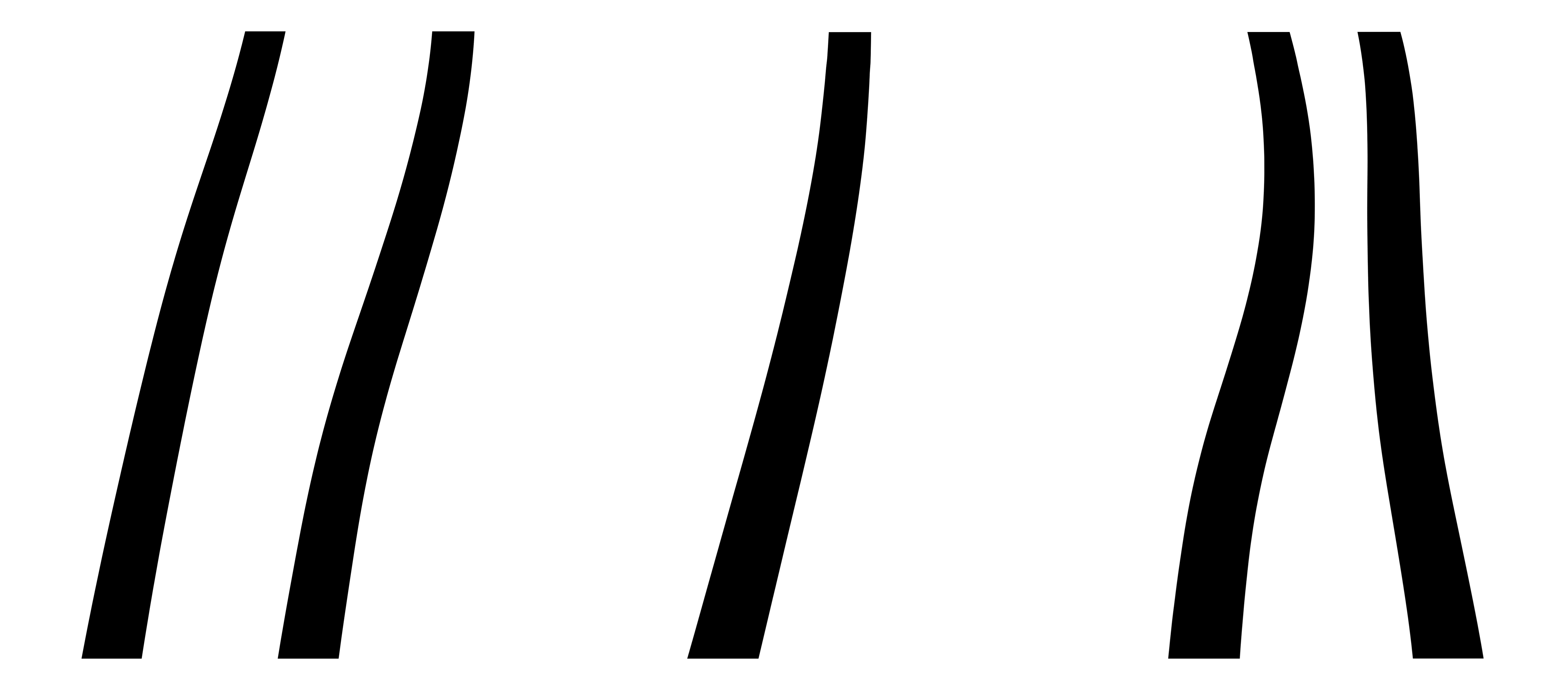

Option 2:

⁠

US Grass 2.png

⁠

⁠

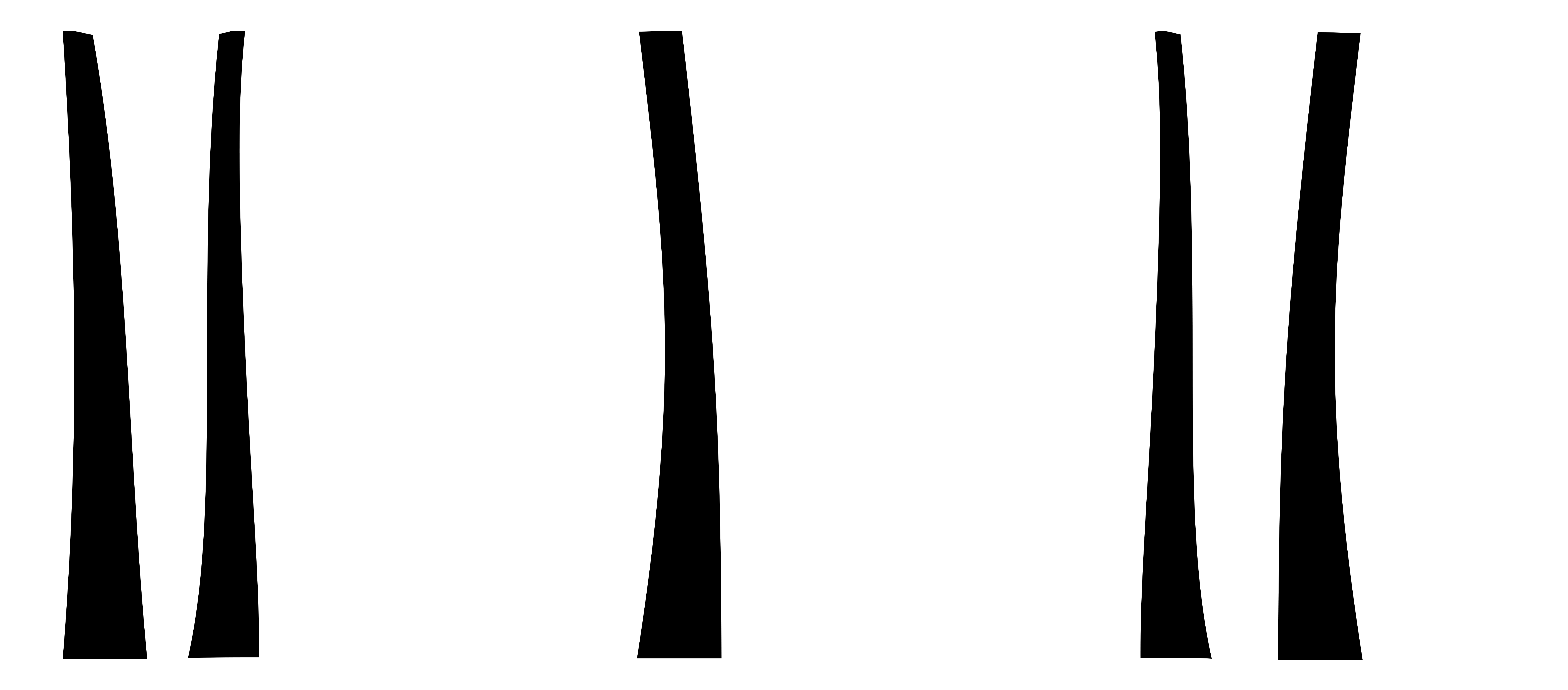

Option 3:

⁠

BF Grass Options 3.png

⁠

⁠
