Lecture 2: BIM and Architectural Workflow

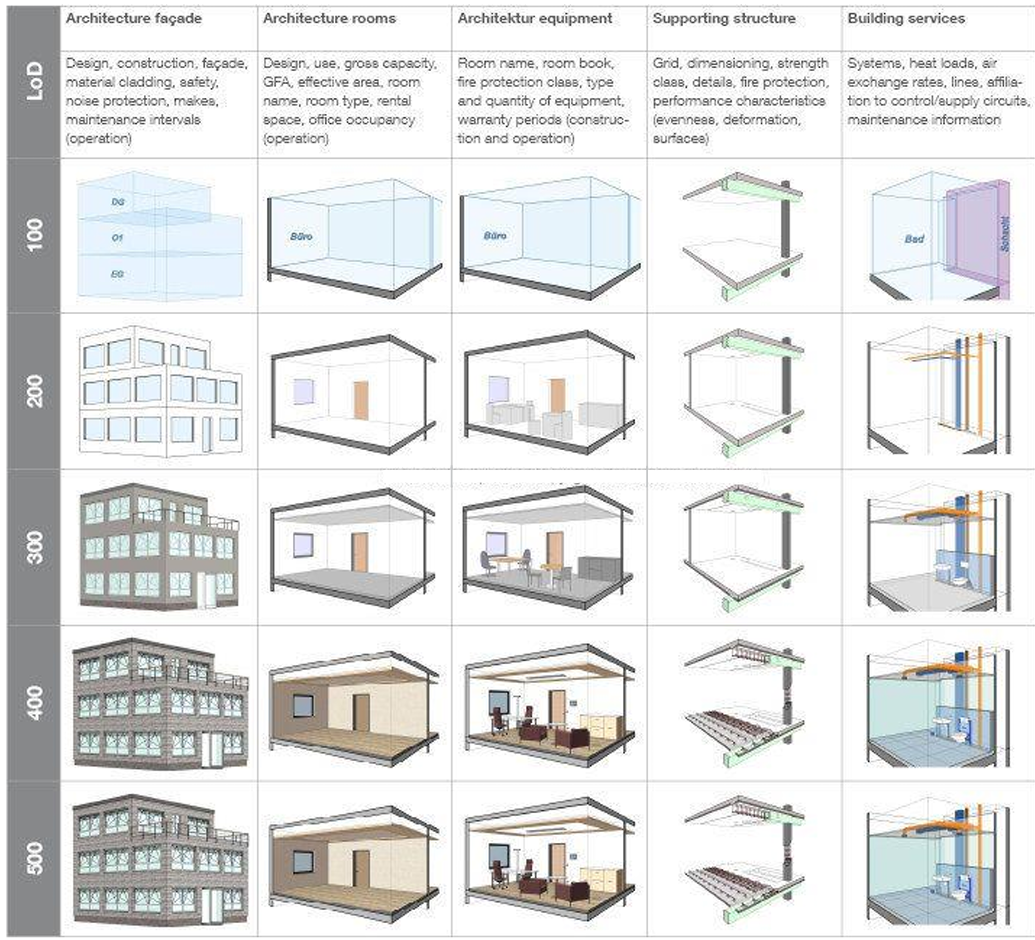

BIM Level of Detail
BIM LOD
BIM LoD
Description
1
LoD 100
Basic, schematic representation with minimal detail.
2
LoD 200
Generic representations with more specific size and shape info.
3
LoD 300
Accurate geometries and precise size, shape, and location data.
4
LoD 400
High detail, including fabrication and construction information.
5
LoD 500
As-built or as-maintained representations with all relevant data.
There are no rows in this table
