Rotate – Hold the left mouse button and move the mouse.Zoom in/out – Use the scroll wheel.Move the model – Hold the right mouse button and move the mouse.
W / A / S / D – Move forward, left, back, and rightSpace – Move upC – Move down
Zoom InZoom OutReturn to the starting view (set during model creation).Experimental feature. Helps you zoom in without flying through the model. Use it when you’re getting closer to a surface — it will stop the camera at the right spot instead of going through.
Close the photo viewerResize the photo panel (make it wider)Next photo – Each point of the model is built from several photos; you can view them allZoom in/out of the photoFullscreen – Expand the photo to full screen

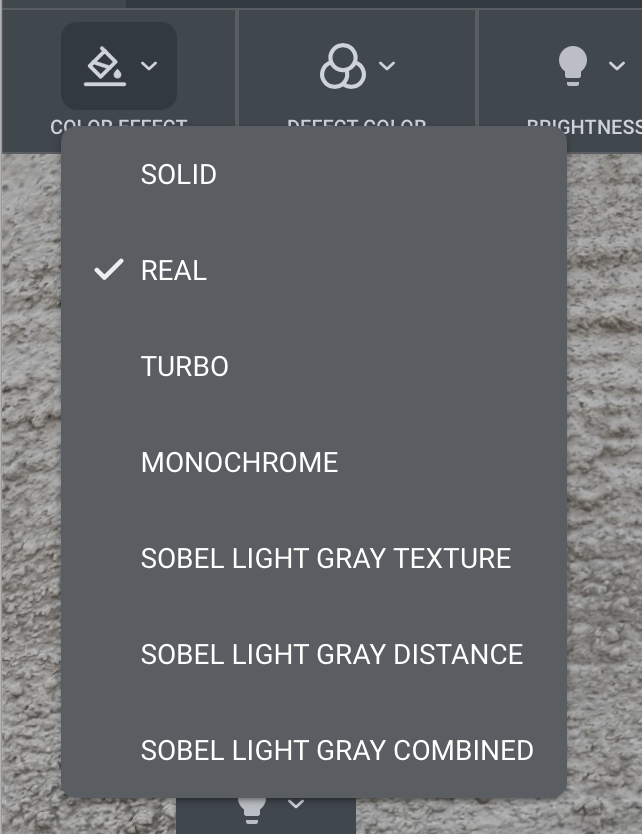

Toggle defects on/off – Useful if you want to see the surface under marked defects.Ruler – Measure defect width (not saved).Color Effect

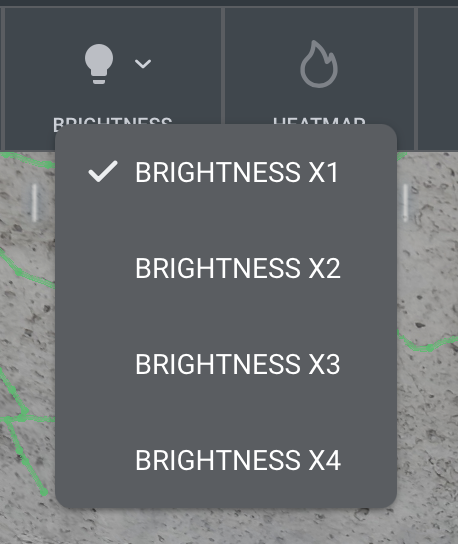

Brightness
Hide model – Only defects are shown.
1. Model Overview

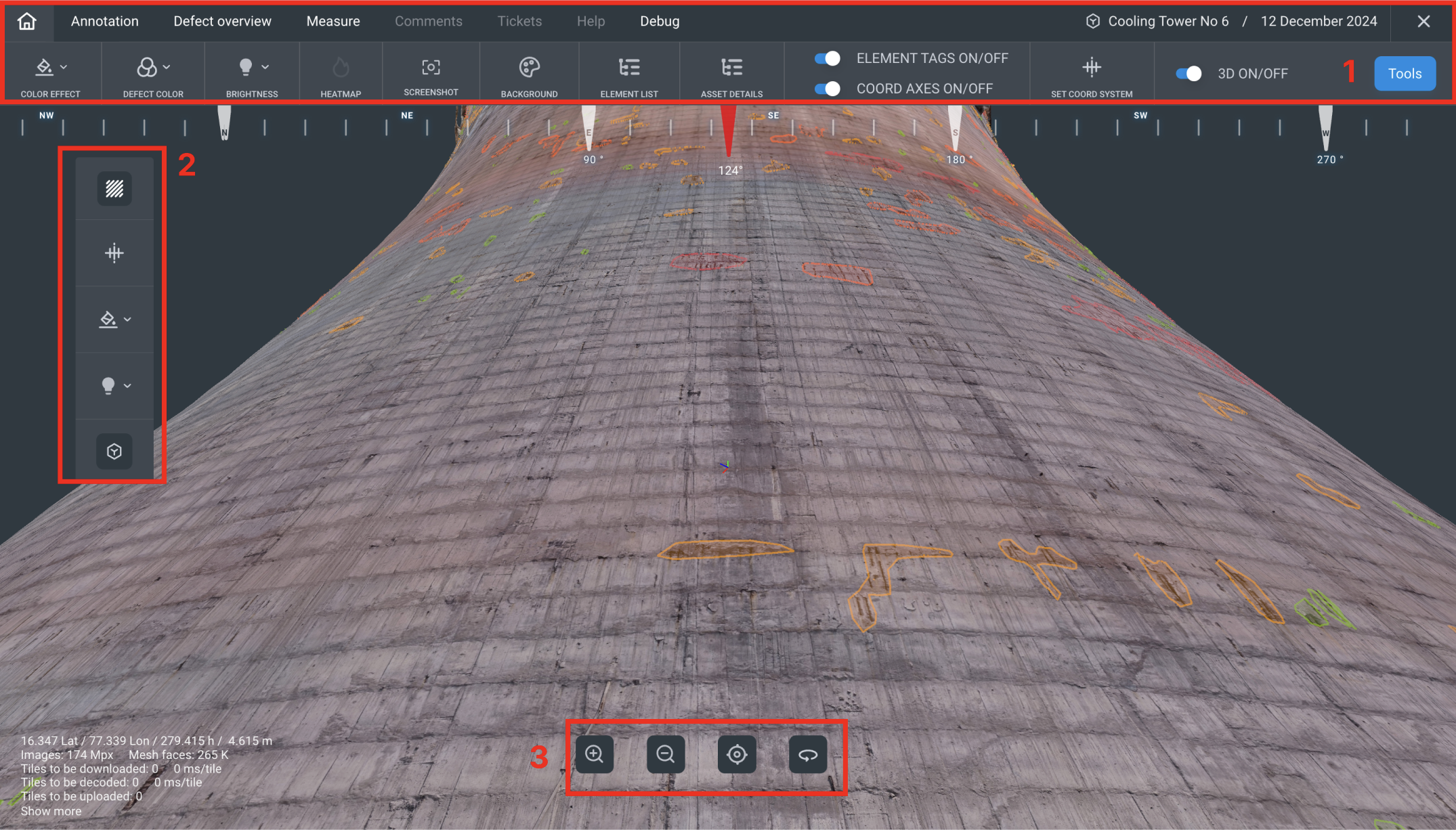

The interface includes a 3D model scene, a Microsoft Office-style ribbon menu (1), and two side panels: one for display settings (2) and one for navigation (3).
Navigation the model
To navigate the model, you can use your mouse, keyboard, or the bottom toolbar.
The mouse is the most convenient for general use, while the keyboard helps with smoother navigation when marking defects one by one.
Mouse
Keyboard

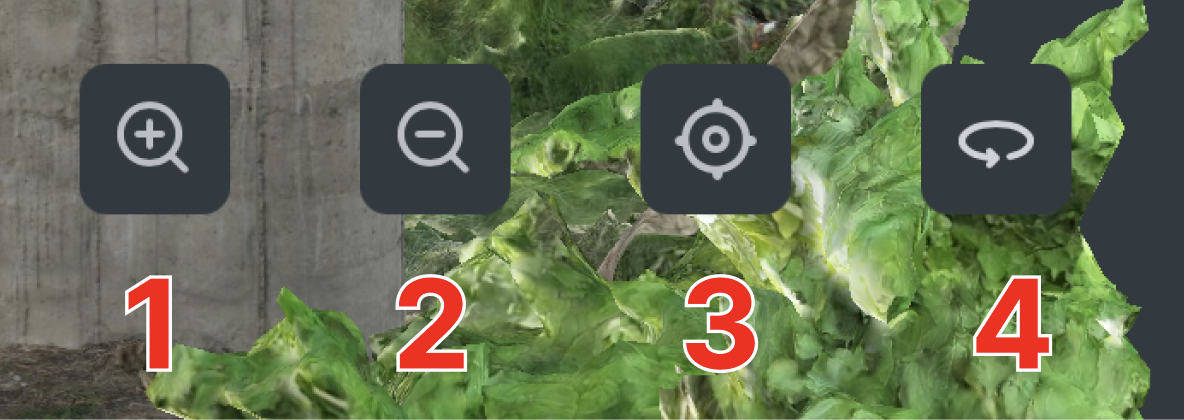

Bottom toolbar

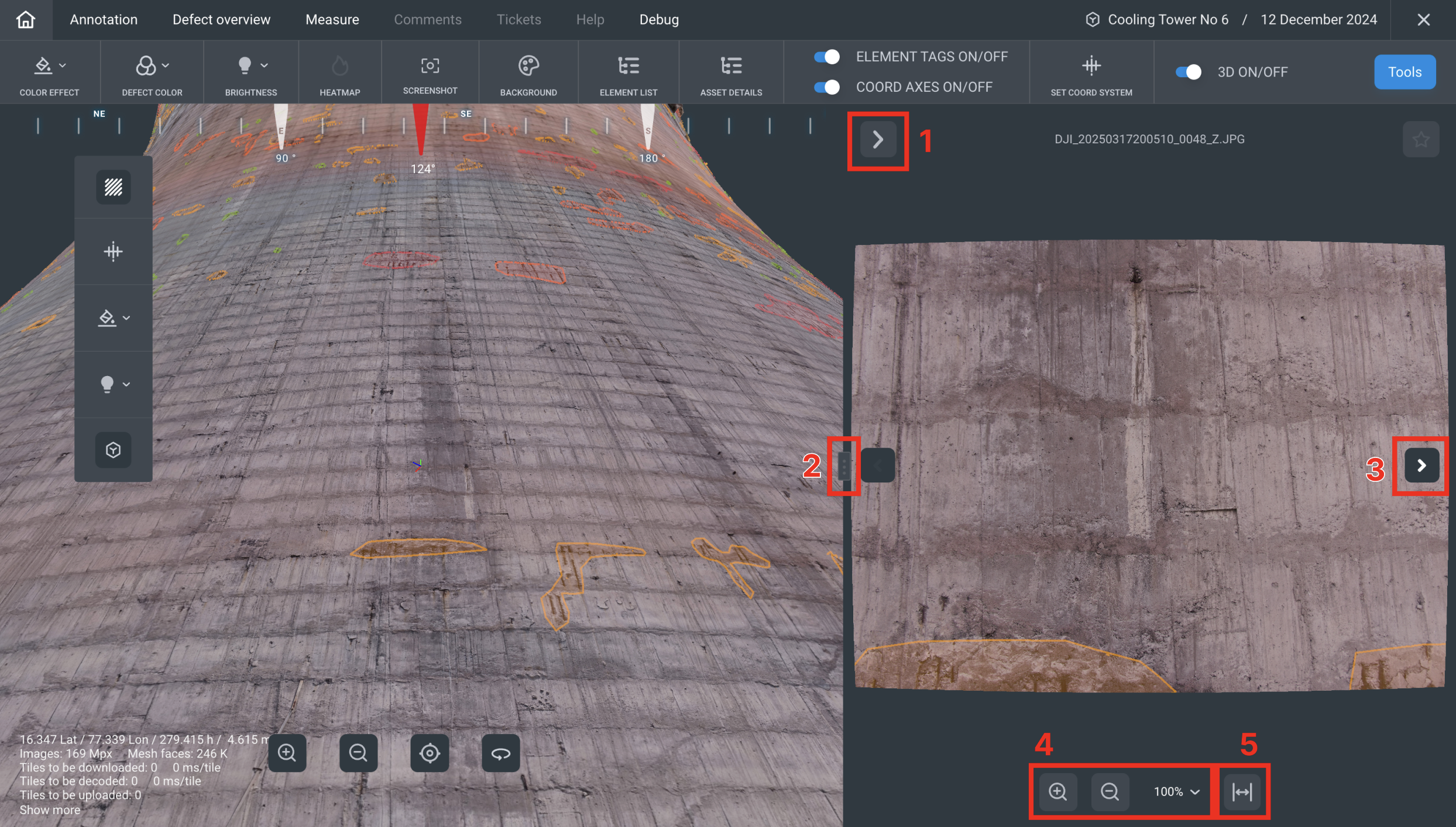

Open real photo
When you click on any point of the model with the left mouse button, a panel opens showing real photos used to build the model.

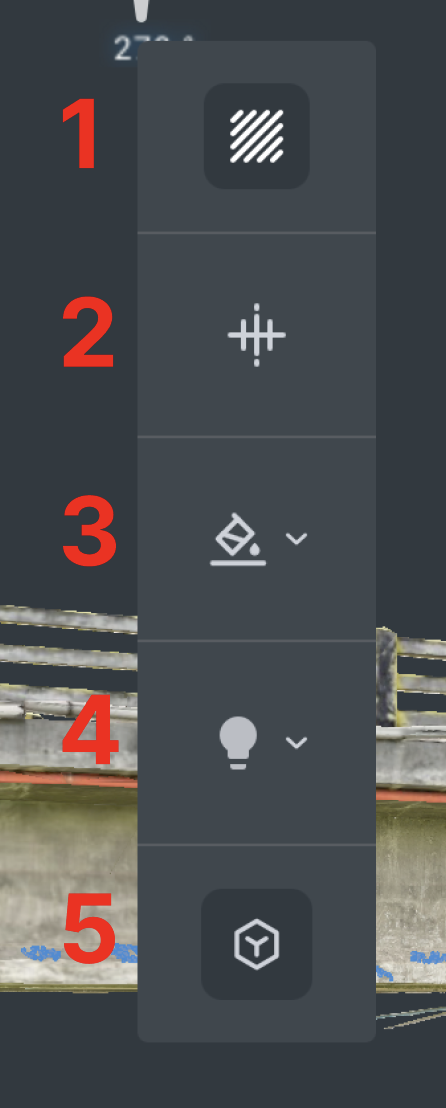

Side toolbar functions
