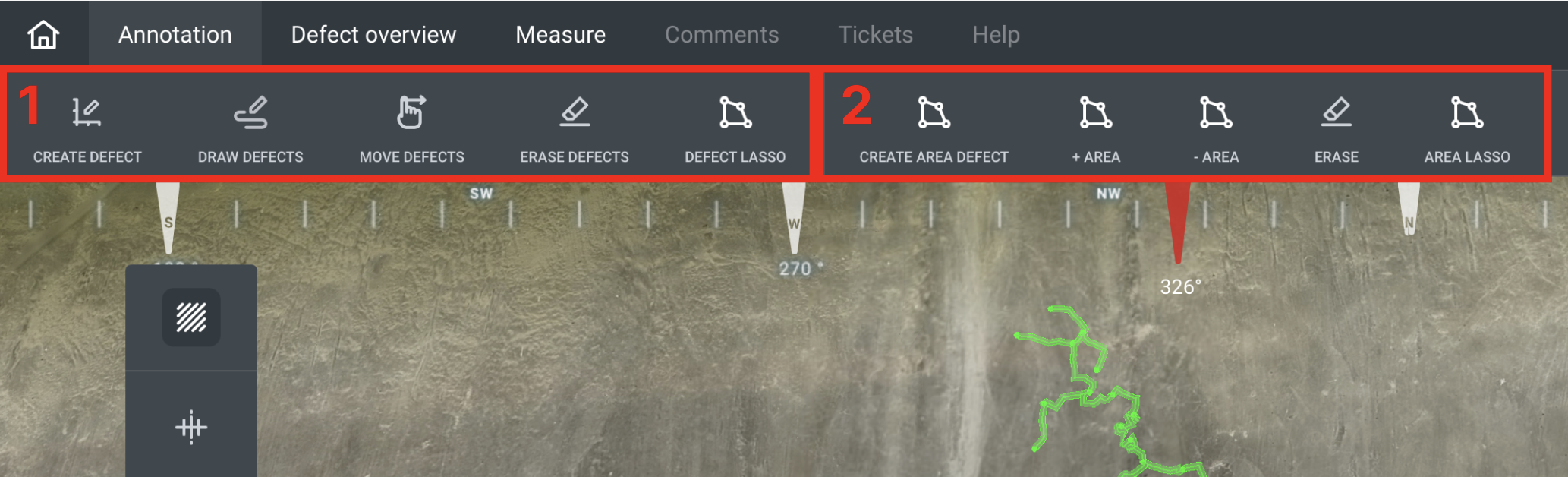

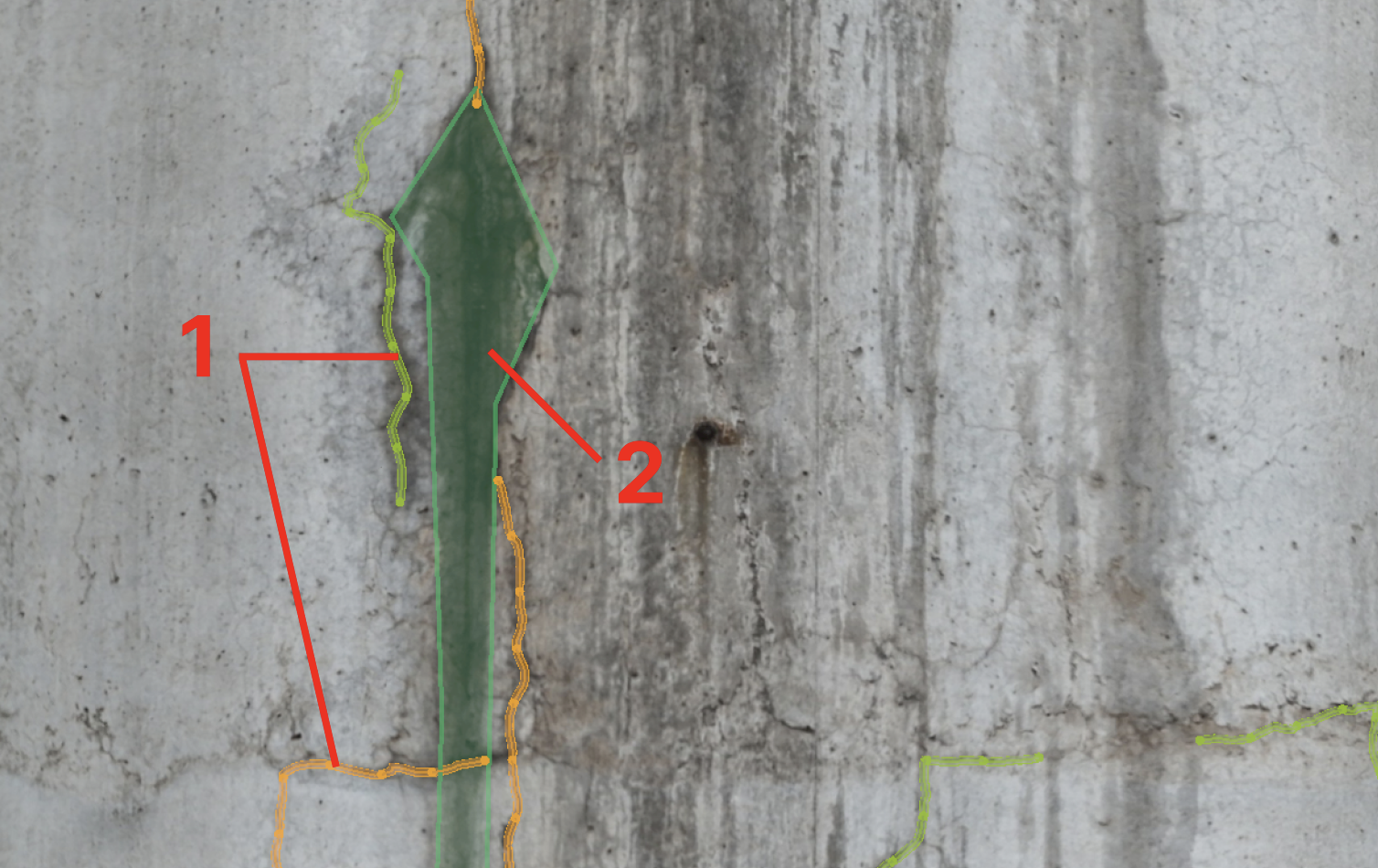

Linear defects are shown as a broken (zigzag) line.Area defects are shown as a polygon.Tools for working with linear defectsTools for working with area defects
Share
Explore
4. Defect Annotation. General
All defects in the system are divided into two types: linear and area defects.
The way you work with them is almost the same.
Drafts

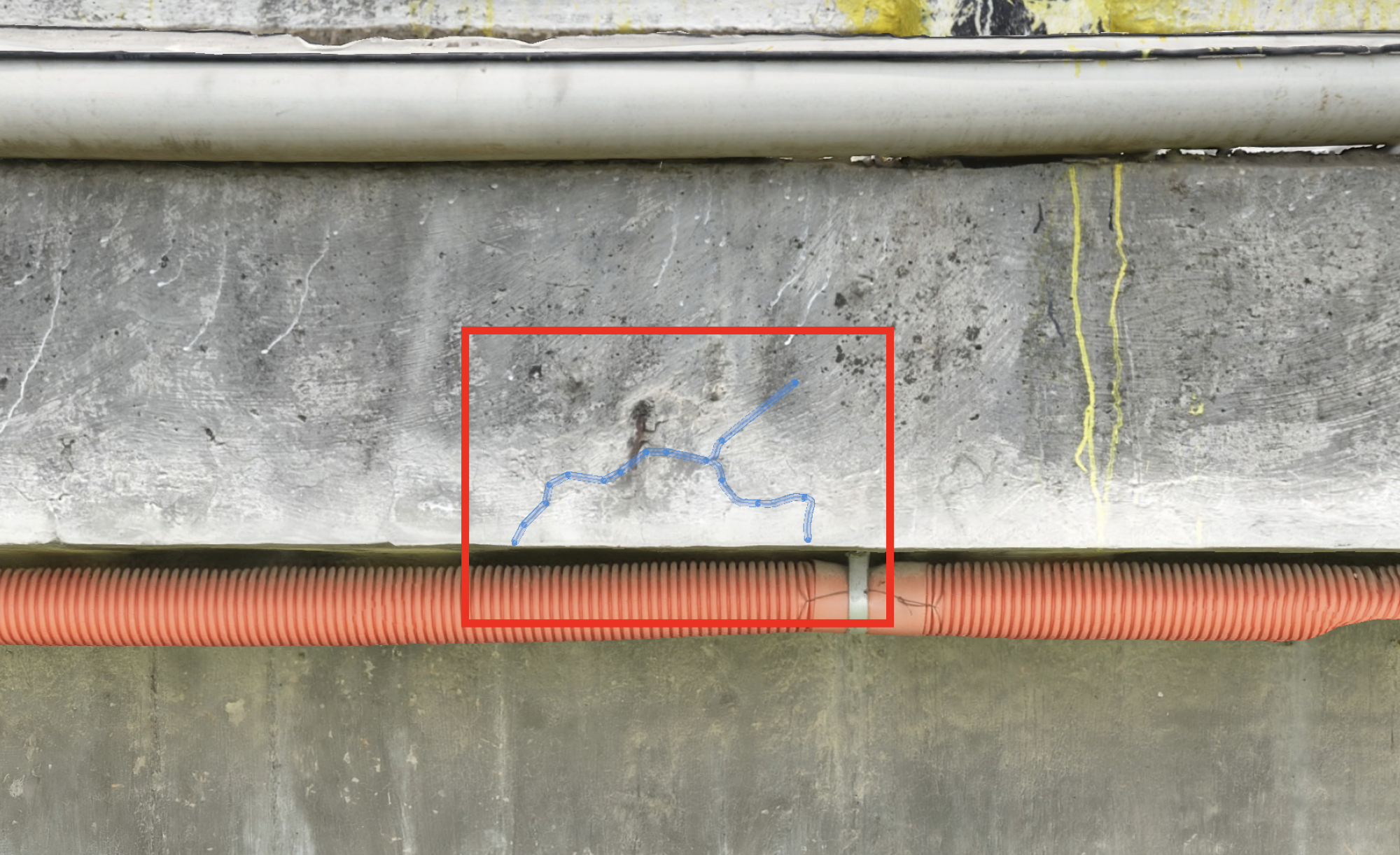

The system also has drafts of linear defects — these are either AI detections or defects that an engineer started to draw but didn’t save. Drafts are shown as blue lines.
