Steps to make a Managed Object Model with XCode

Resources / Additional Learning and Study:
⁠
https://coda.io/@peter-sigurdson/make-table-controllers-and-populate-tables-with-this-data-so-tha
⁠

To create a managed object model in an iOS application using Core Data, you can follow these steps.
⁠
⁠
⁠
megaphone

Learning Activity: Make a data model for a college enrollment system.

Here's an example specification for creating a managed object model for a College Enrollment System with entities for students, classes, and enrollments:

1. Entity: Student - Attributes: - studentID: Integer (Unique identifier for each student) - firstName: String (First name of the student) - lastName: String (Last name of the student) - dateOfBirth: Date (Date of birth of the student) - email: String (Email address of the student) - Relationships: - enrollments (One-to-Many relationship with Enrollment entity; each student can have multiple enrollments in different classes)
2. Entity: Class - Attributes: - classID: Integer (Unique identifier for each class) - className: String (Name/Title of the class) - professor: String (Name of the professor teaching the class) - room: String (Room number where the class takes place) - Relationships: - enrollments (One-to-Many relationship with Enrollment entity; each class can have multiple enrollments)
3. Entity: Enrollment - Attributes: - enrollmentID: Integer (Unique identifier for each enrollment) - Relationships: - student (One-to-One relationship with Student entity; each enrollment is associated with one student) - class (One-to-One relationship with Class entity; each enrollment is associated with one class)
With this managed object model, you can represent the structure and relationships between students, classes, and enrollments in your College Enrollment System. This model allows you to store and retrieve data about students, classes, and the enrollments of students into classes.
The specific attributes and relationships can be customized based on the requirements of your system.
Open your Xcode project: Open Xcode and open your existing project create a new one.
Add a Core Data model file: Right-click on project folder in the Project Navigator, select "New File", and choose "Data Model" under Core Data section. Give it a meaningful name, such as "MyAppModel".

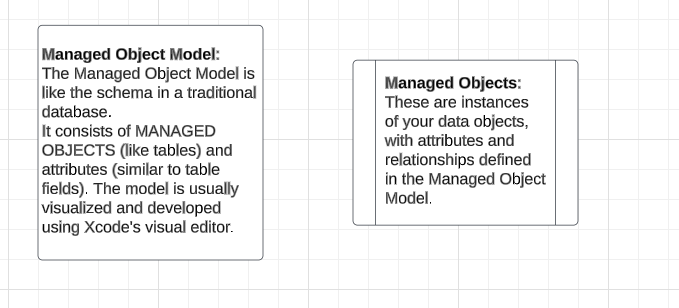

Define entities and attributes: {relate this to your relational database knowledge: Entity is a TABLE; attributes are FIELDS in tables}. Once the Core Data model file is created, you can make your entities and their attributes using Xcode's visual editor. To do this, select the .xcdatamodeld file, and you will see an empty canvas in the main editor area.
To add entities, click on the "+" button at the bottom left corner.
To add attributes to an entity, select the entity and click on the "+" button in the "Attributes" section of the right-hand panel. Define the attribute name, type, and any other necessary properties.
You can also define relationships between entities by clicking on the "+" button in the "Relationships" section of an entity. Specify the destination entity, type, and any additional settings.
Generate managed object subclasses: Once you have defined your entities and attributes, you can generate the corresponding managed object subclasses. Select each entity in the model editor, and in the right-hand pane, go to the "Class" section and choose "Category/extension" from the dropdown. Then, click on the "Create NSManagedObject subclass" button. This will generate the managed object subclasses with properties corresponding to the attributes you defined.
Access the managed object model: To access the managed object model within your code, you can typically use the NSManagedObjectModel class. For instance, you can do:
guard let modelURL = Bundle.main.url(forResource: "MyAppModel", withExtension: "momd") else {
fatalError("Model file not found!")
}
guard let managedObjectModel = NSManagedObjectModel(contentsOf: modelURL) else {
fatalError("Unable to create managed object model!")
}
Replace "MyAppModel" with the name you gave to your managed object model in step 2.
That's it! You have created a managed object model in your iOS application using Core Data. You can now use this model to interact with your data objects and persist them to a persistent store. Data Objects are like ROWSETS in a SQL table.

megaphone

Here's a sample code snippet that demonstrates how to list all the entities in the managed object model and print them to the console: {In upcoming activities, we will make Table Controllers and populate Tables with this data so that the table can display and change data in with the Table interface.}

{Next Step after this one: where we are going}
⁠
https://coda.io/@peter-sigurdson/make-table-controllers-and-populate-tables-with-this-data-so-tha
⁠
⁠
guard let modelURL = Bundle.main.url(forResource: "MyAppModel", withExtension: "momd") else {
fatalError("Model file not found!")
}
guard let managedObjectModel = NSManagedObjectModel(contentsOf: modelURL) else {
fatalError("Unable to create managed object model!")
}

let entities = managedObjectModel.entities
for entity in entities {
print("Entity name: \(entity.name ?? "")")
print("Attributes:")
for attribute in entity.attributesByName {
print("- \(attribute.key): \(attribute.value.attributeType.rawValue)")
}
print("Relationships:")
for relationship in entity.relationshipsByName {
print("- \(relationship.key): \(relationship.value.destinationEntity?.name ?? "")")
}
print("-----")
}
In this code snippet, we first obtain the URL of the managed object model file ("MyAppModel.momd" in this example). Then, we create an instance of NSManagedObjectModel using the contents of that URL.
Next, we retrieve an array of all the entities in the managed object model using the entities property of the NSManagedObjectModel instance. We then loop through each entity and print its name, attributes, and relationships to the console.
For each attribute, we print its name and its attribute type. For each relationship, we print its name and the name of the destination entity it is associated with.
This code will help you list all the entities in your managed object model with their attributes and relationships, providing you with an overview of the model's structure.
Once you get to here: Zip file me your code to
https://www.dropbox.com/request/1Dn1ao8JvPfjiXsvVJrH
⁠
⁠

Here's a step-by-step guide on how to create a Model-View-Controller (MVC) structure to interact with the Core Data model for the College Enrollment System:
Create the Core Data stack:
Open your Xcode project and navigate to the AppDelegate.swift file.
In the AppDelegate class, add the following properties:
lazy var persistentContainer: NSPersistentContainer = {
let container = NSPersistentContainer(name: "MyAppModel")
container.loadPersistentStores(completionHandler: { (storeDescription, error) in
if let error = error as NSError? {
fatalError("Unresolved error \(error), \(error.userInfo)")
}
})
return container
}()
Replace "MyAppModel" with the actual name of your Data Model.
Create a Data Manager:
Create a new file called DataManager.swift.
Define the DataManager class with the following content:
import CoreData

class DataManager {
static let shared = DataManager()

lazy var managedObjectContext: NSManagedObjectContext = {
return persistentContainer.viewContext
}()

private init() {}

func saveContext() {
if managedObjectContext.hasChanges {
do {
try managedObjectContext.save()
} catch {
let nserror = error as NSError
fatalError("Unresolved error \(nserror), \(nserror.userInfo)")
}
}
}
}
The DataManager class sets up a singleton instance and provides a reference to the managed object context from the persistent container.
Create a Table View Controller:
Create a new file called EnrollmentTableViewController.swift.
Set up the basic structure of the table view controller:
import UIKit

class EnrollmentTableViewController: UITableViewController {
var enrollments: [Enrollment] = []

override func viewDidLoad() {
super.viewDidLoad()
tableView.register(UITableViewCell.self, forCellReuseIdentifier: "Cell")
fetchEnrollments()
}

private func fetchEnrollments() {
// Fetch enrollments from Core Data and populate the enrollments array
}

// Implement UITableViewDelegate and UITableViewDataSource methods
}
Make sure to replace "Enrollment" with the appropriate managed object subclass name for your Enrollment entity.
Implement Fetching Enrollments:
Add the following code inside the fetchEnrollments() method:
let managedContext = DataManager.shared.managedObjectContext
let fetchRequest: NSFetchRequest<Enrollment> = Enrollment.fetchRequest()

do {
enrollments = try managedContext.fetch(fetchRequest)
tableView.reloadData()
} catch {
print("Error fetching enrollments: \(error)")
}
This code fetches the enrollments from the Core Data model and stores them in the enrollments array. It then reloads the table view to display the data.
Implement UITableViewDataSource methods:
Add the following code inside the table view controller to implement the data source methods:
override func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
return enrollments.count
}

override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
let cell = tableView.dequeueReusableCell(withIdentifier: "Cell", for: indexPath)
let enrollment = enrollments[indexPath.row]
cell.textLabel?.text = "\(enrollment.student?.firstName ?? "") \(enrollment.student?.lastName ?? "") - \(enrollment.class?.className ?? "")"
return cell
}
This code configures the cells of the table view to display the relevant enrollment data.
Implement UITableViewDelegate methods:
You can implement the necessary delegate methods based on the requirements of your application, such as handling cell selection, editing, or deletion.
Saving Changes:
Whenever you make changes to the Core Data model (e.g., adding, deleting, or updating enrollments), you should save the managed object context to persist the changes. Call DataManager.shared.saveContext() at the appropriate places.
With this complete setup, you should have a table view controller that displays the enrollments from the Core Data model, and you can make changes and save them back to the model. Make sure to replace the entity names and attribute names as per your actual Data Model.
