Project details

Orders 1533 and 1534

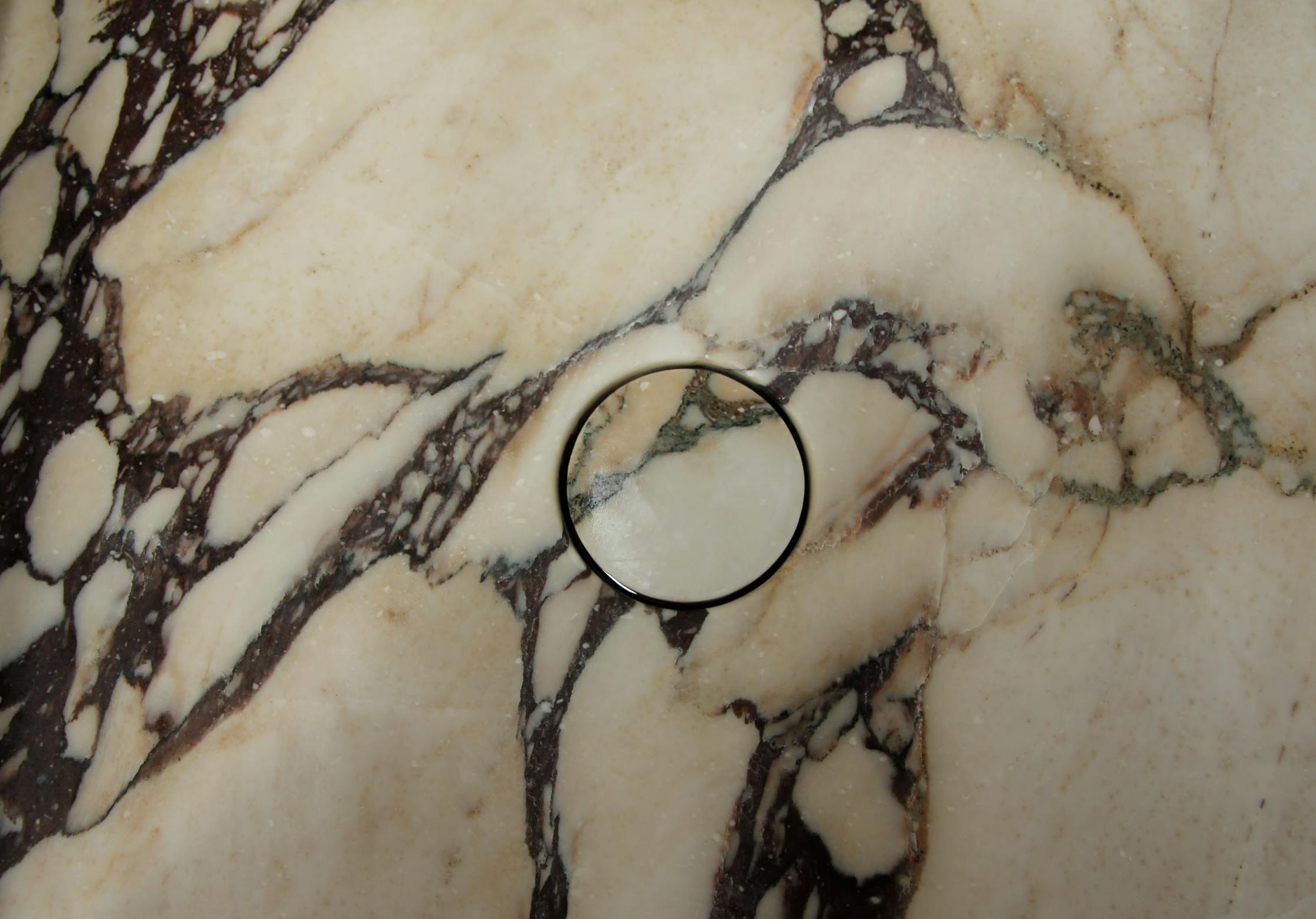

Stone: Pietra grey

⁠

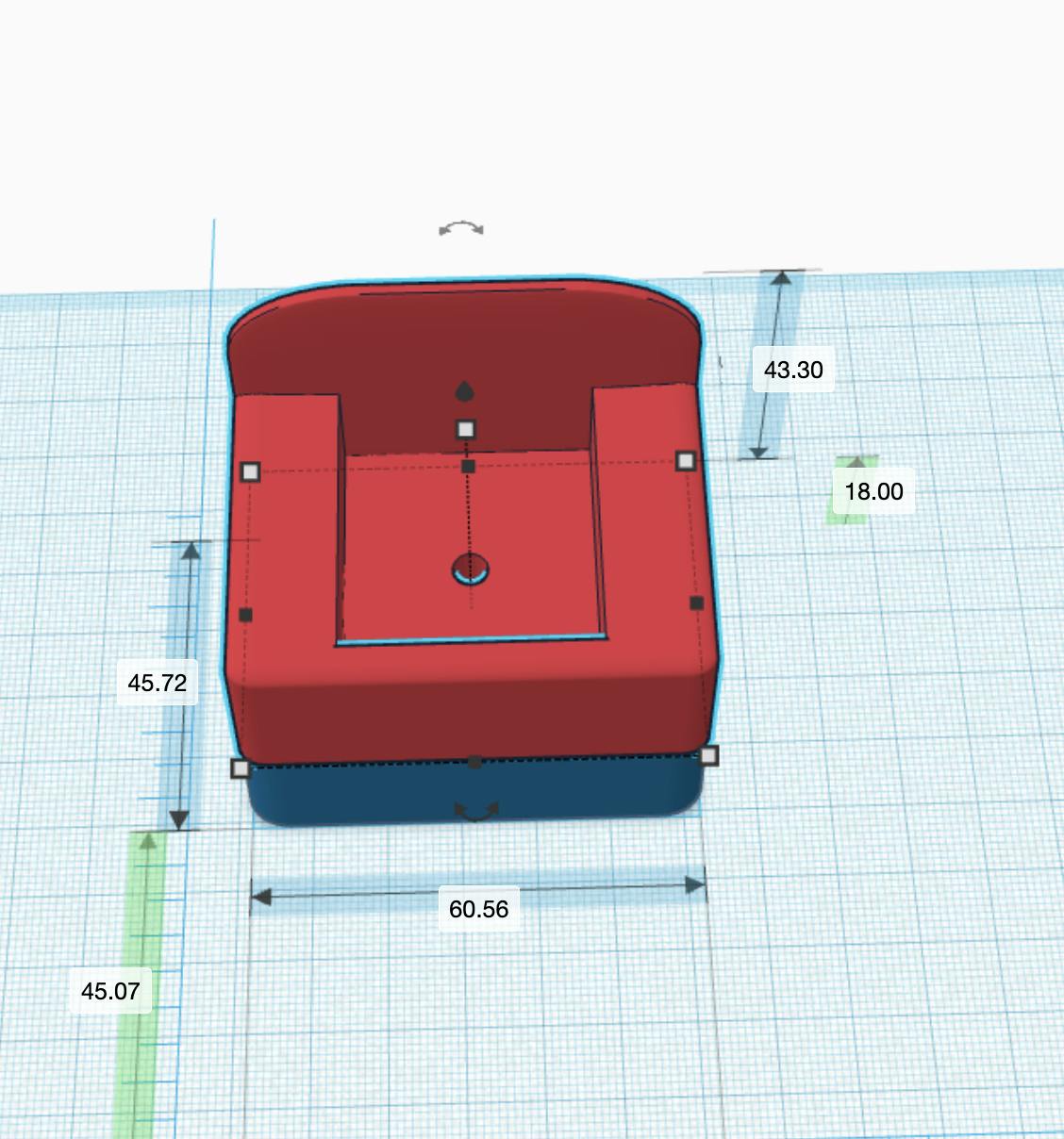

Screenshot 2024-07-03 at 12.45.35 PM.png

⁠

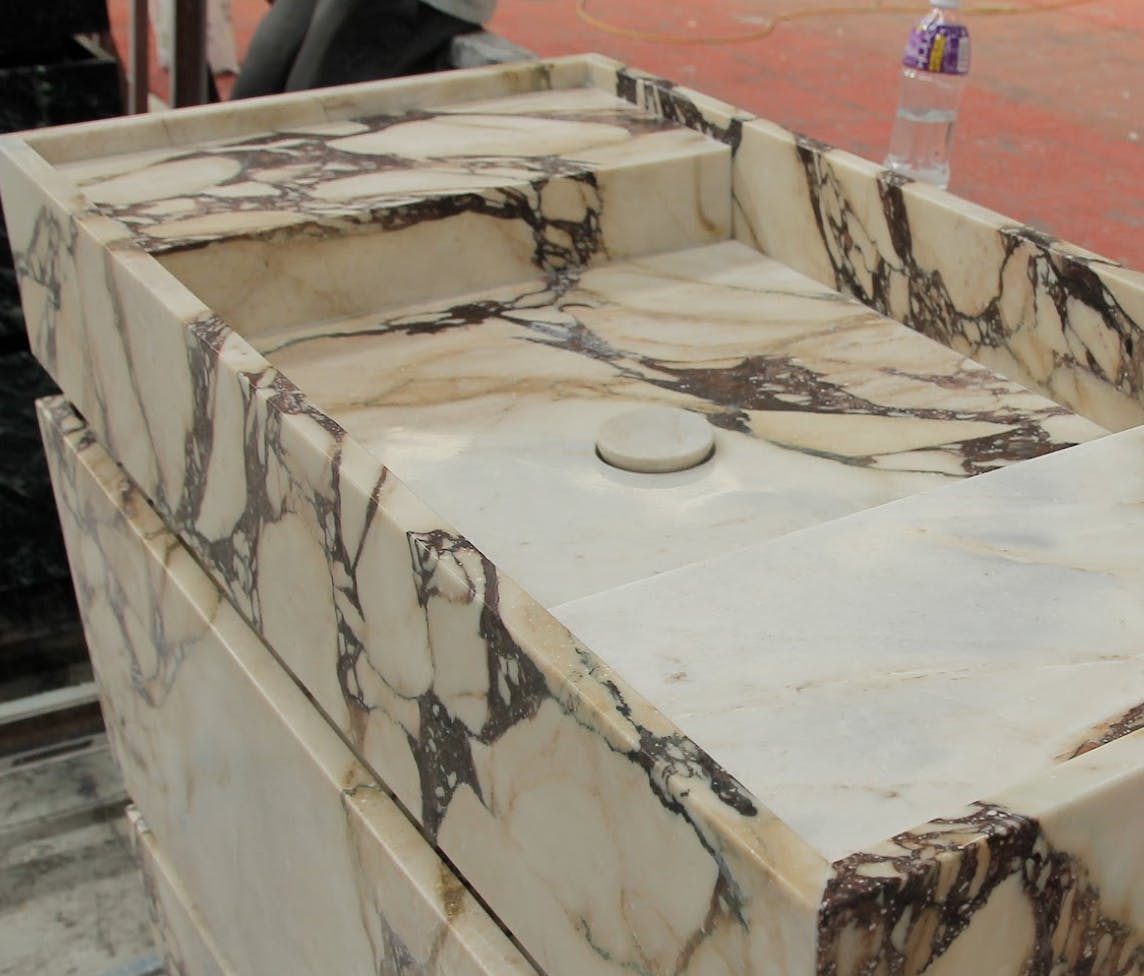

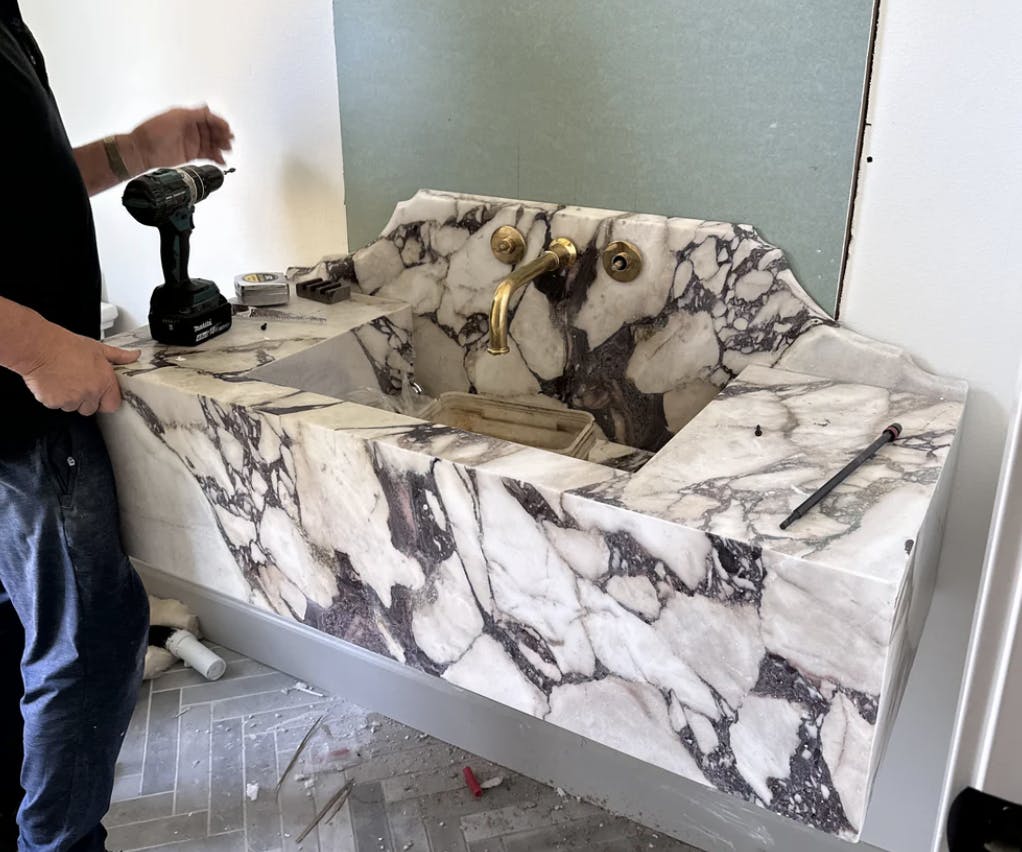

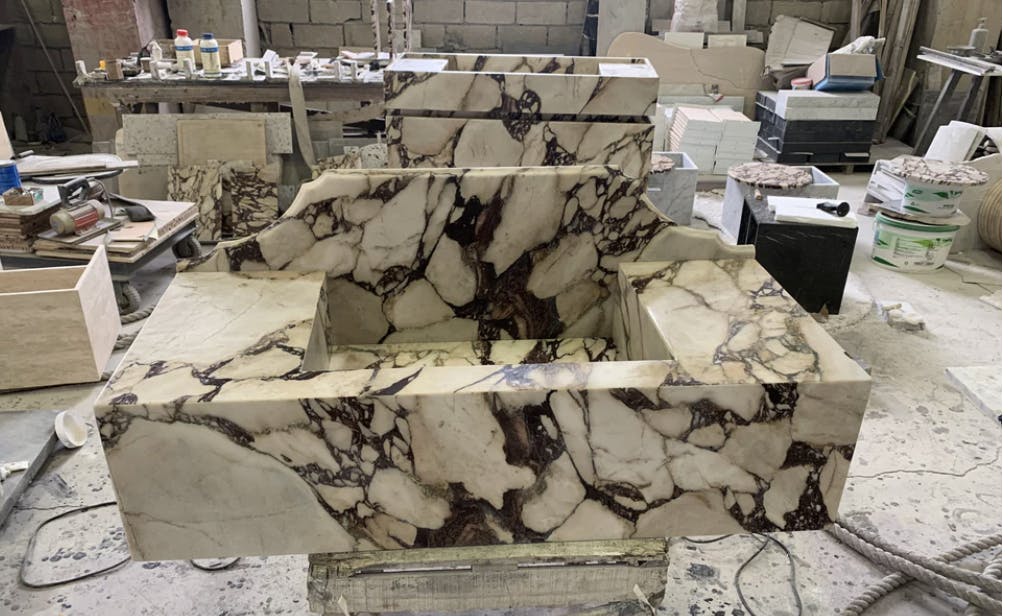

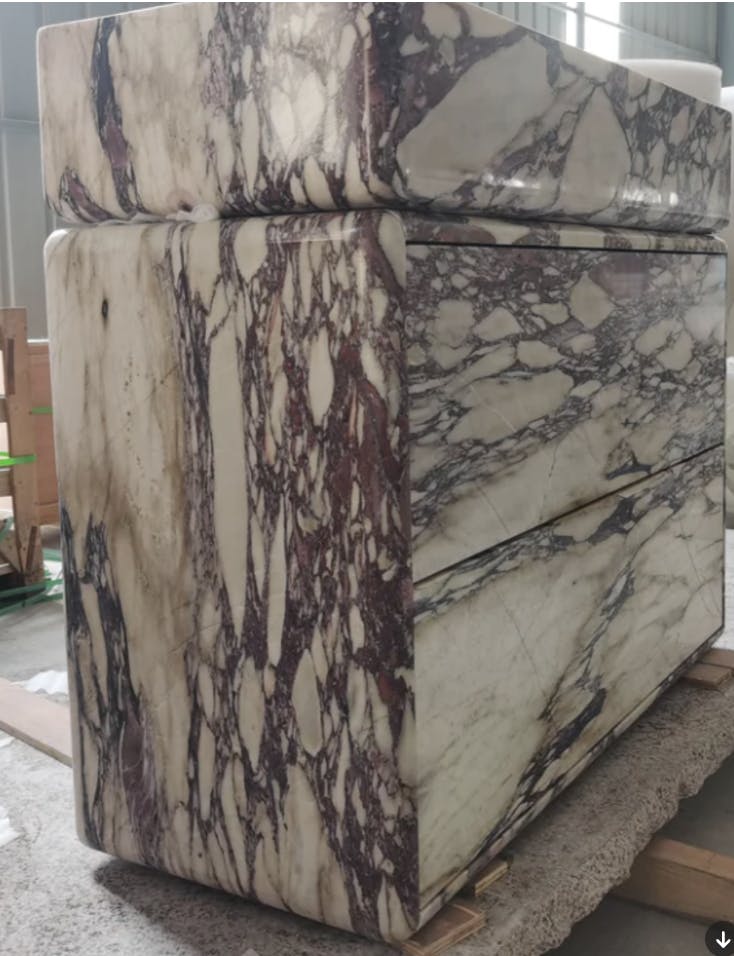

Original Reference

⁠

Screenshot 2024-07-03 at 12.57.11 PM.png

⁠

Screenshot 2024-07-03 at 12.57.21 PM.png

⁠

Screenshot 2024-07-03 at 12.57.14 PM.png

⁠

Pieces

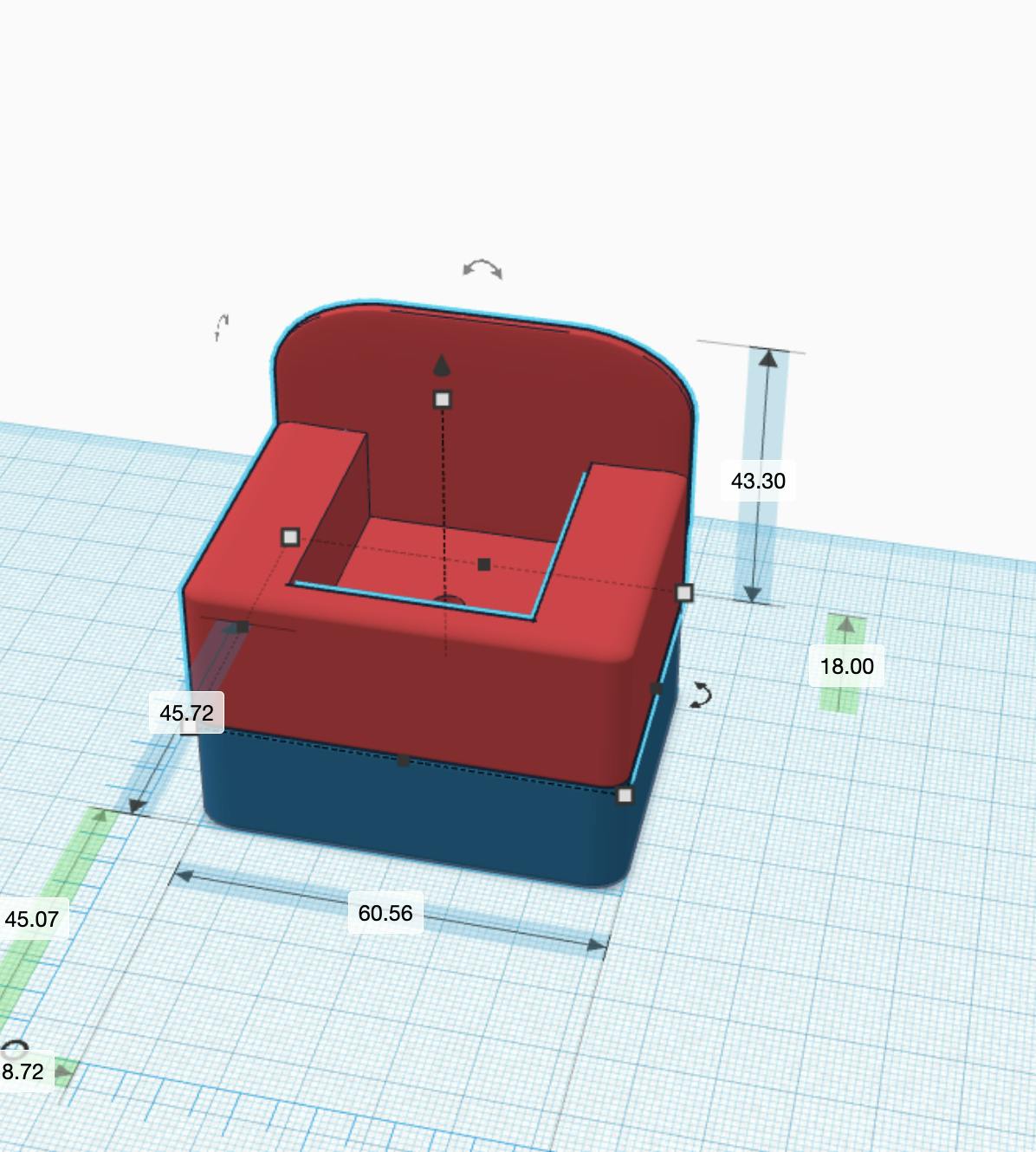

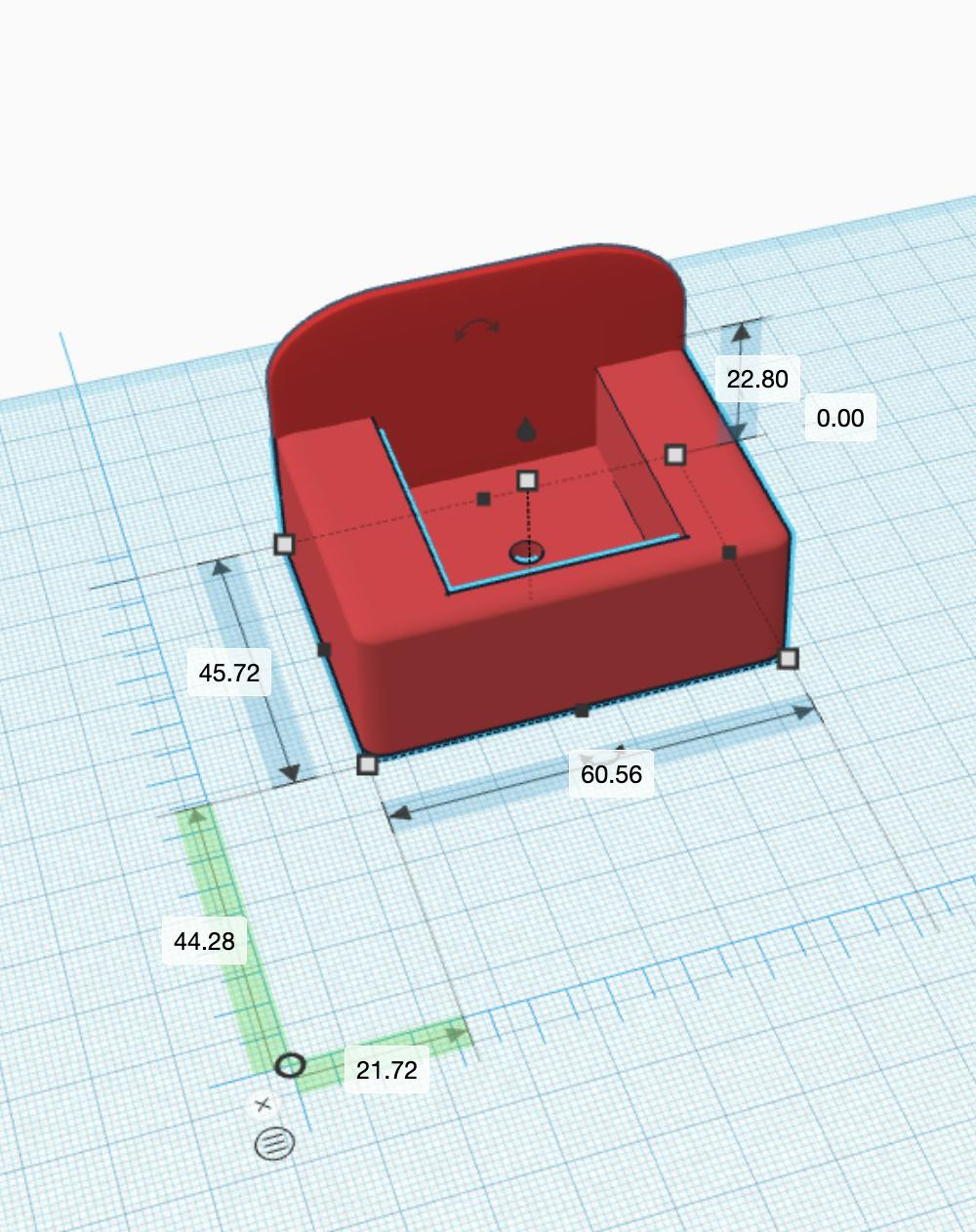

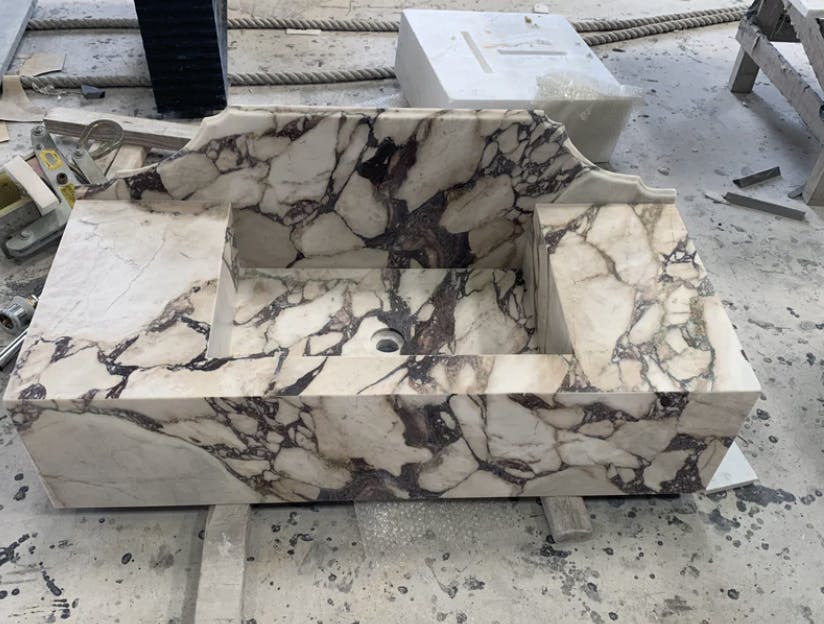

Vanity

Height: 9” / 228.6mm

Rounded corners.

Faucet hole, 6” (152mm) from the top of the vanity. (Depth)

Sink basin: 6” (152mm) deep

16.14” / 410mm total width TO CONFIRM The previous design says 610mm

Drawers: Push or pull / No price difference.

Total height with drawer part: 20.8” (528.6cmm) TO CONFIRM

⁠

⁠

⁠

⁠

The drawer part of the vanity. 11.8” (300mm)

⁠

⁠

⁠

⁠

Backsplash

Backsplash total 8” height (203mm)

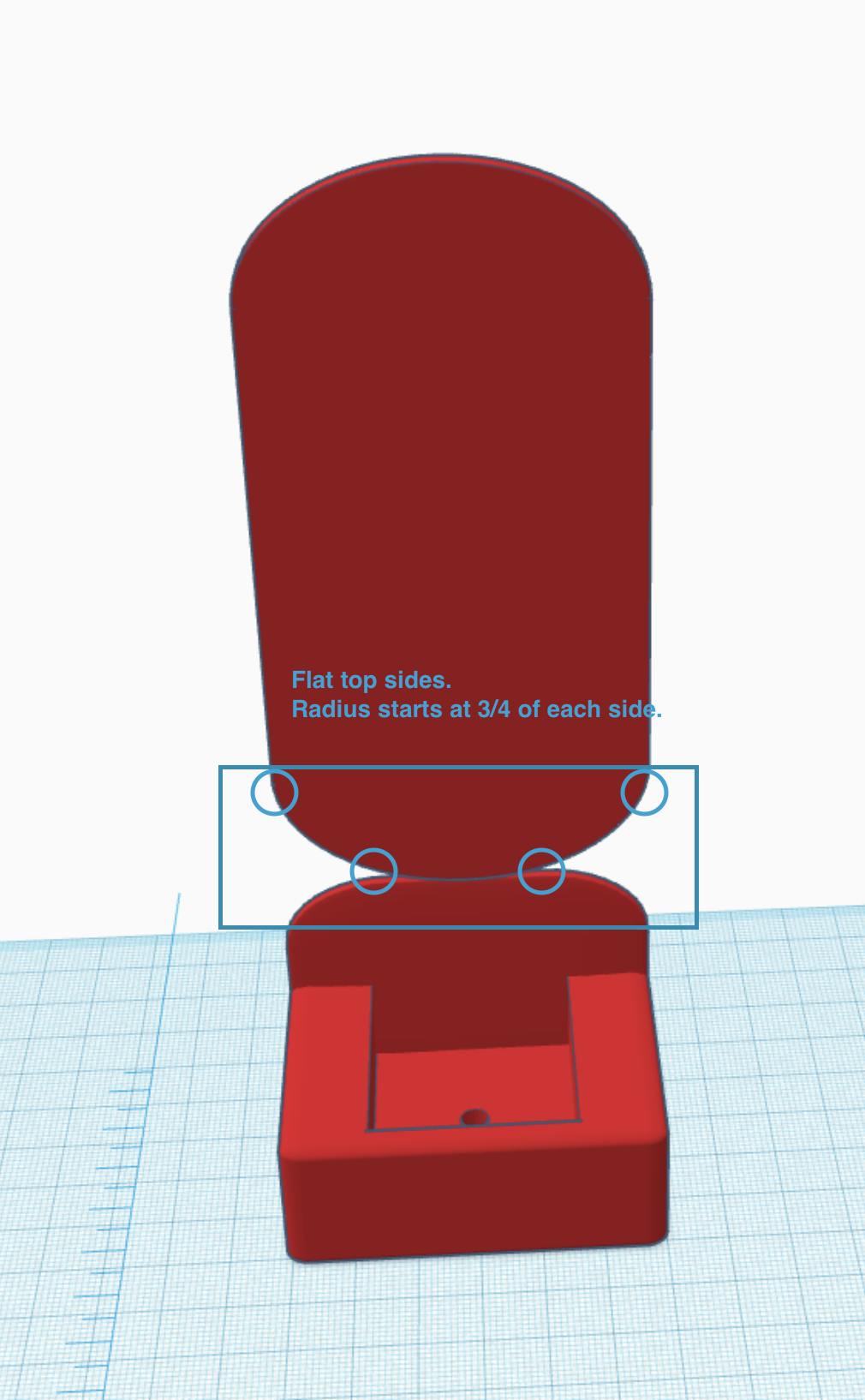

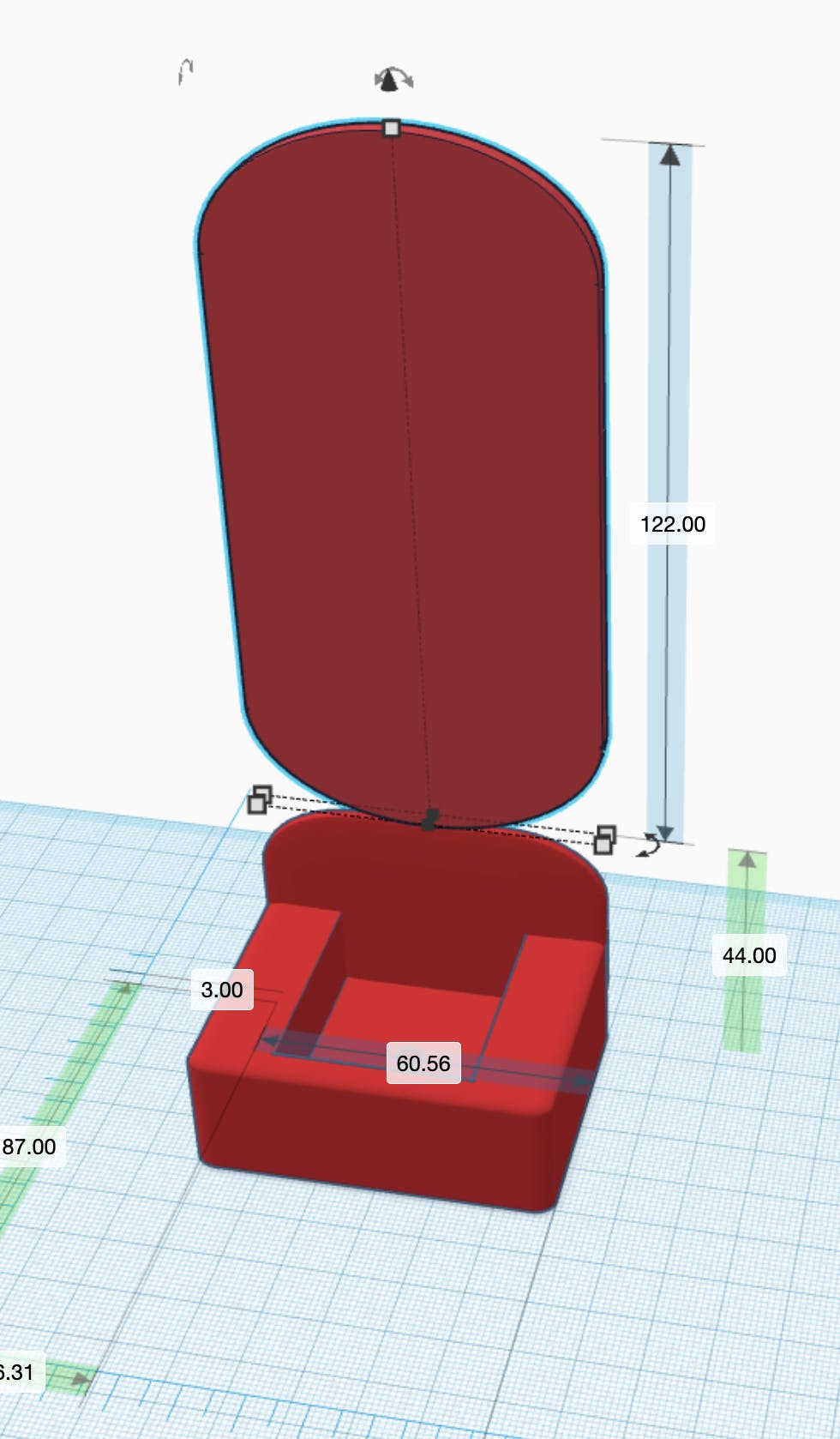

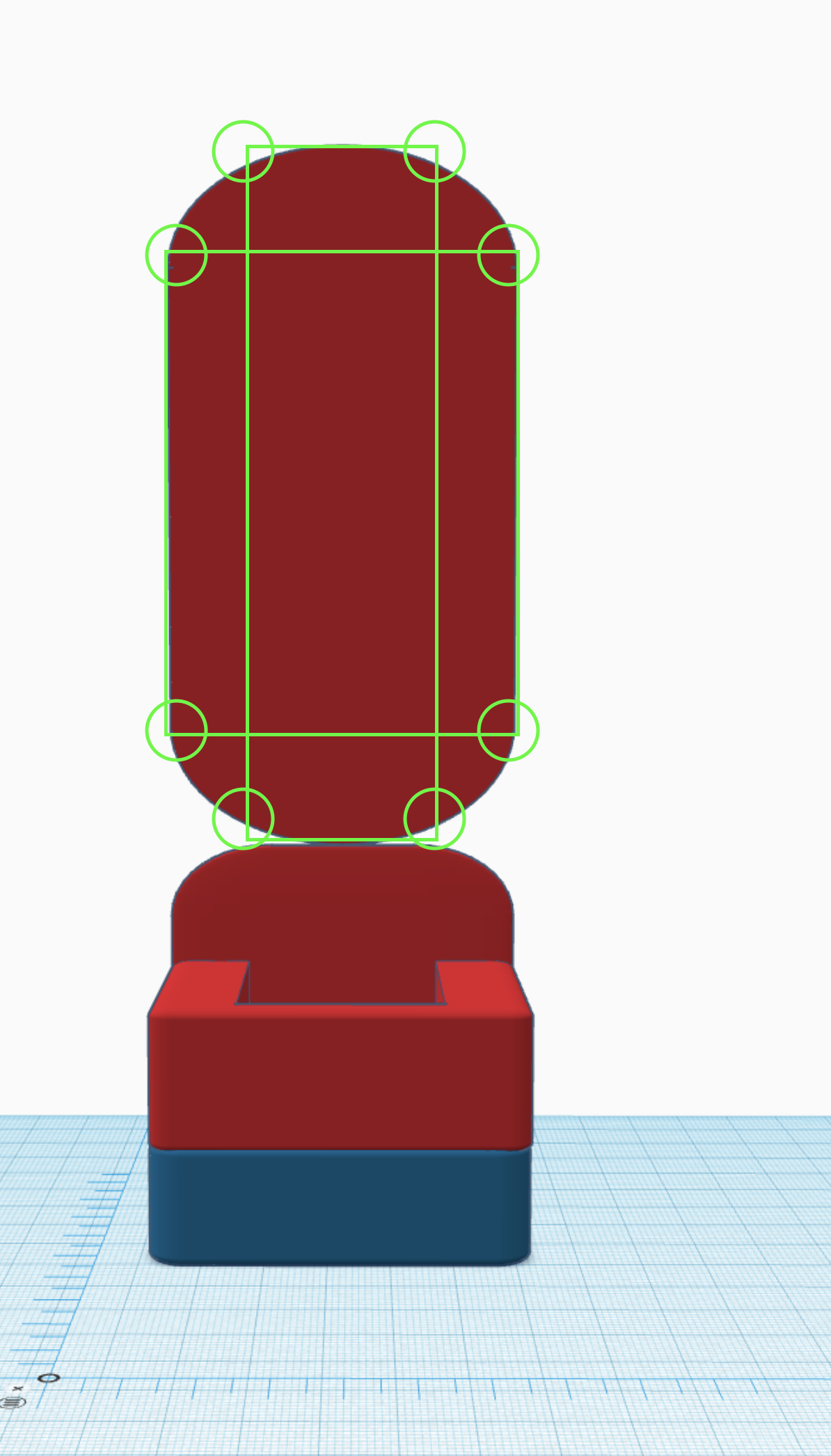

Mirror frame

Borders: 2”

Rectangular with full radius rounded borders. Joining from 3/4 of each side of the mirror.

Same width as the top of the backsplash.

48 “ height (1219cm)

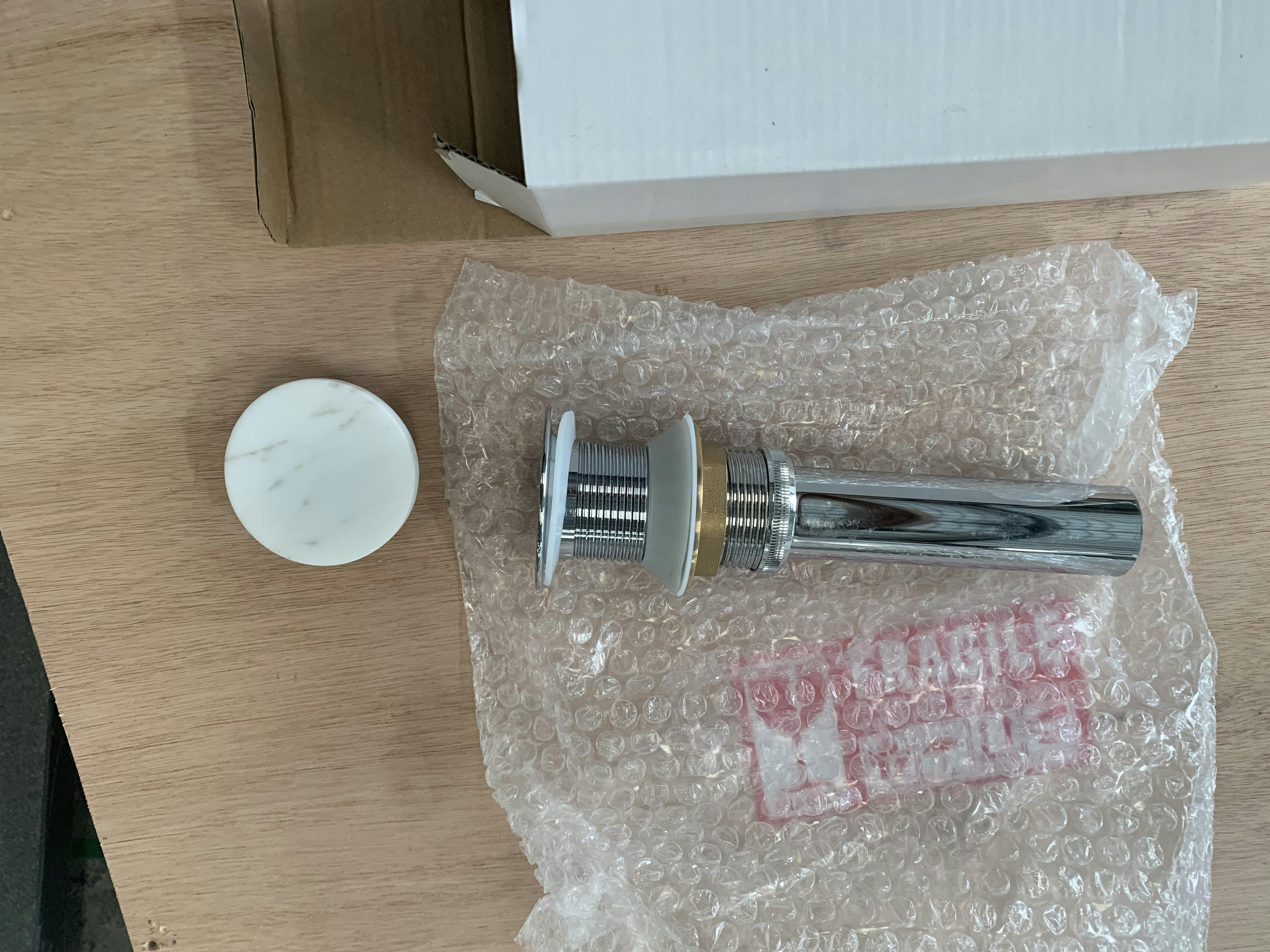

Drain

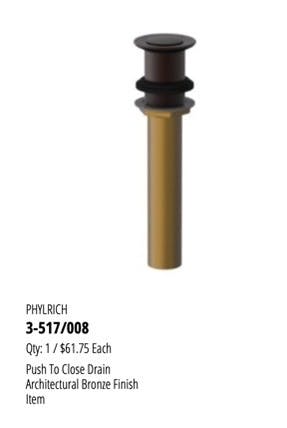

The Image below was provided by Celia.

⁠

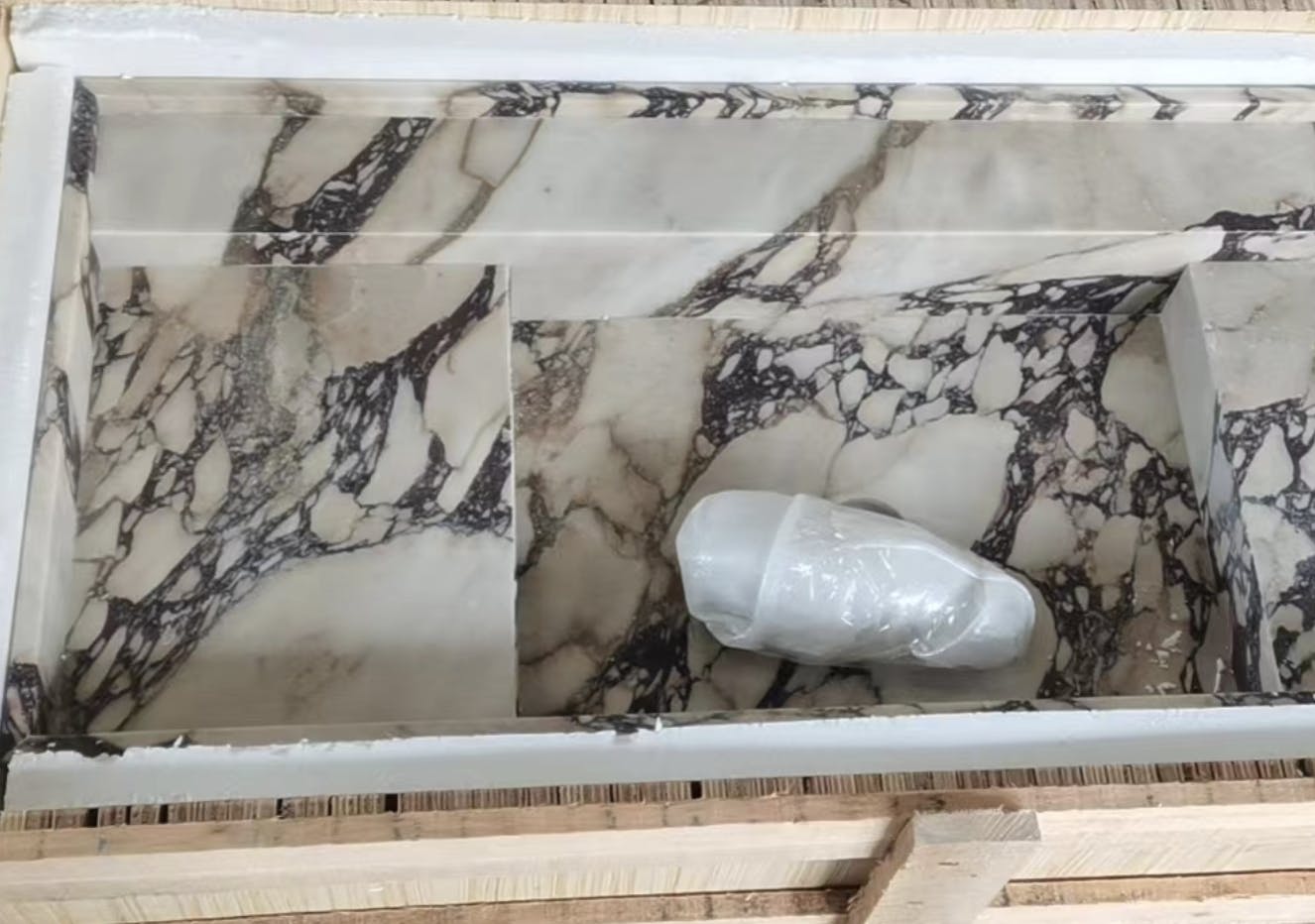

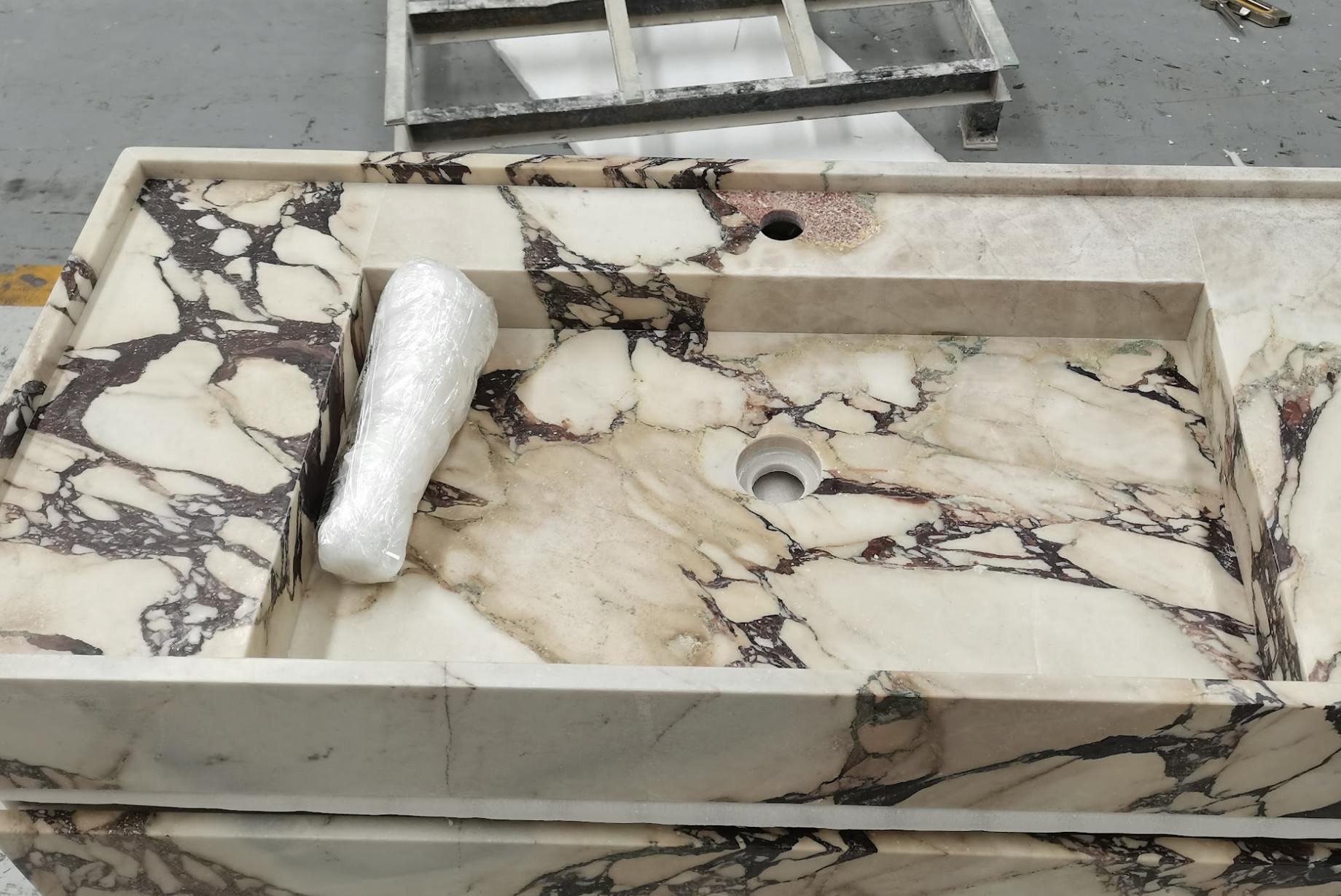

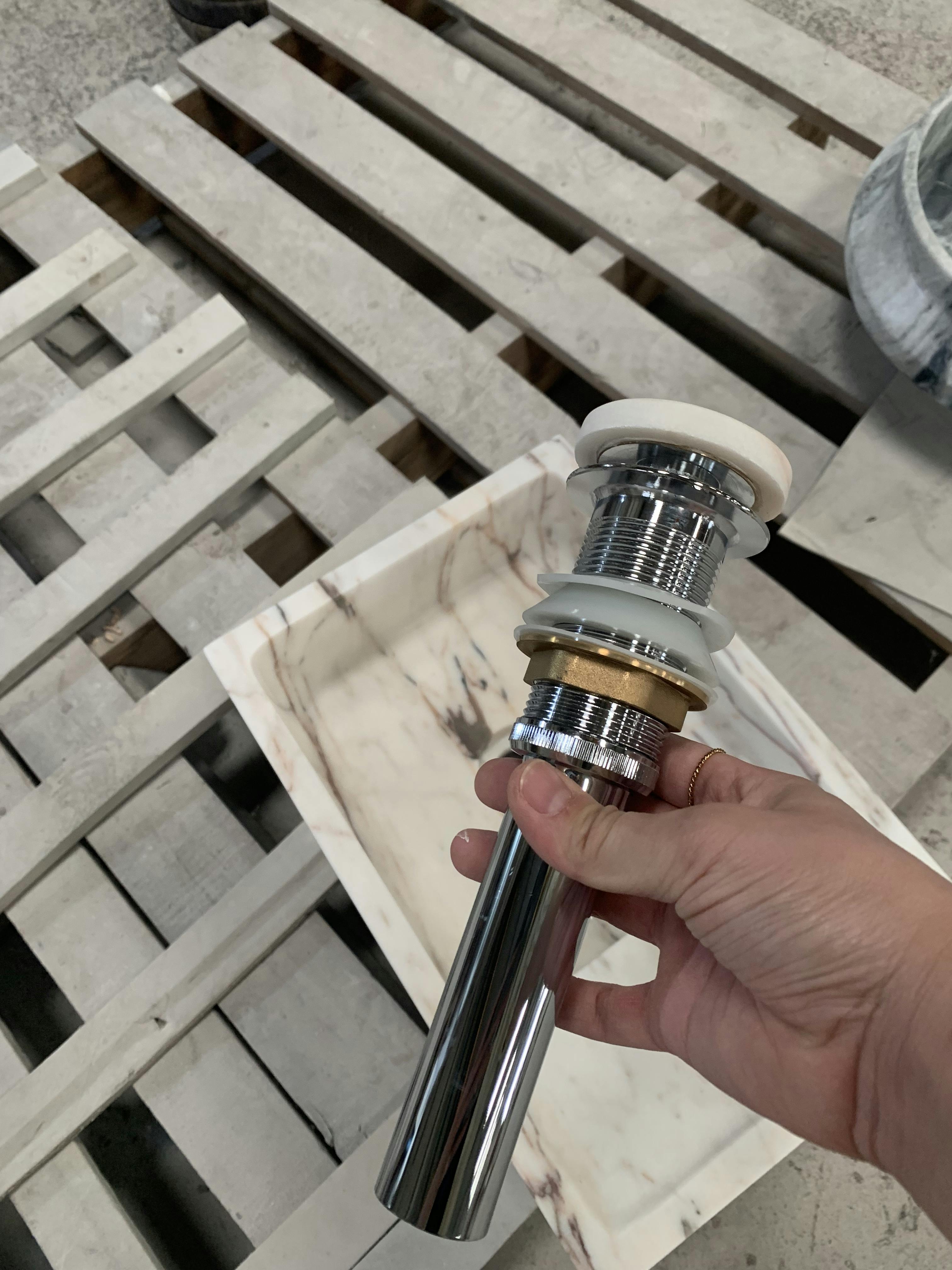

We can design the draining around this specific drain, but we usually provide the drains ourselves; images and videos below.

⁠

⁠

d00d74aa3abe4c3d9b7d360e4053e65 (1) (1).jpg

⁠

⁠

⁠

⁠

e95d6628760323422e84cdfc9151e14 (1) (1).jpg

⁠

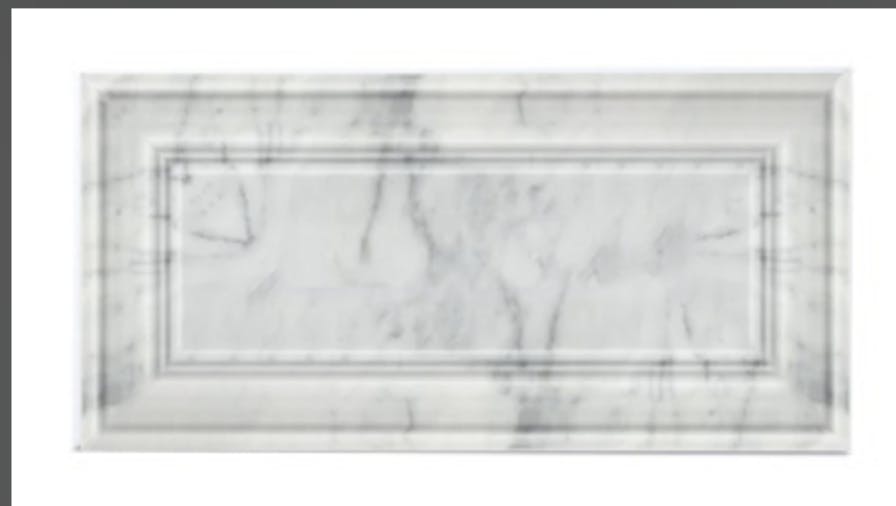

Carving

This carve-work should be added to:

Vanity sides

Mirror edges

⁠

⁠

Corners

Reference for rounded corners.

⁠

⁠
