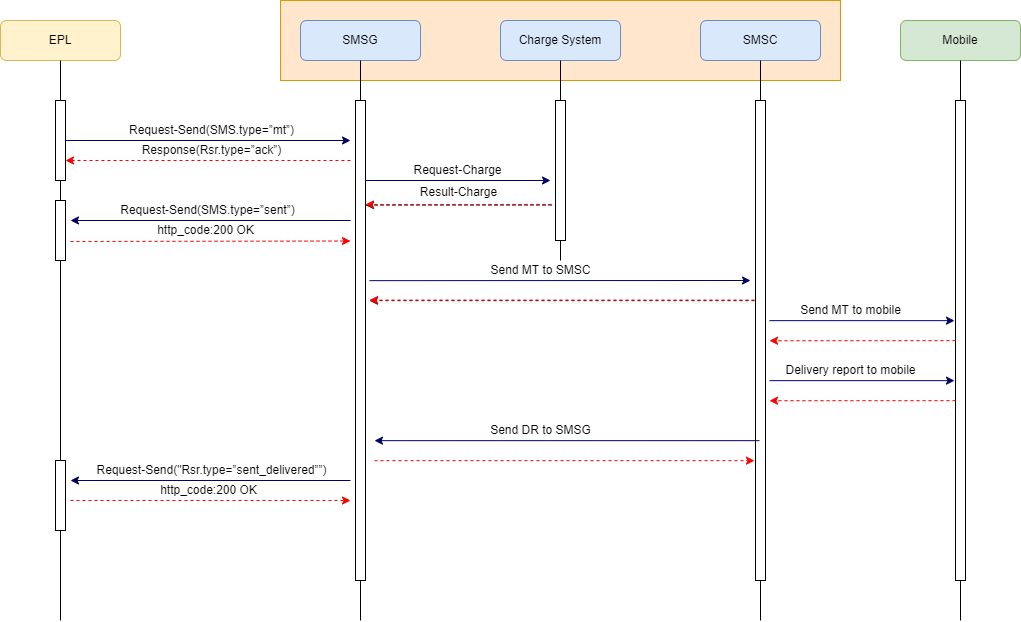

MT Charge Flow

⁠

⁠

Partner Request Send SMS follow by SMS API to SMSG

SMSG return response xml data and message_id to partner

SMSG charge custemer at Charge system.

Charge system return charge result to SMSG.

If result is success, SMSG will send XML sms.type=”sent” to Partner. Partner return http code “200” to SMSG

SMSG send sms to SMSC

SMSC send sms to Mobile

if send sms is success, smsc send delivery report.

SMSC send result for send sms to SMSG.

SMSG send result for send sms to partner. XML is sms.type=”sent_delivered”

Partner return http code “200” to SMSG
