HA VPN supports one of the following recommended topologies:

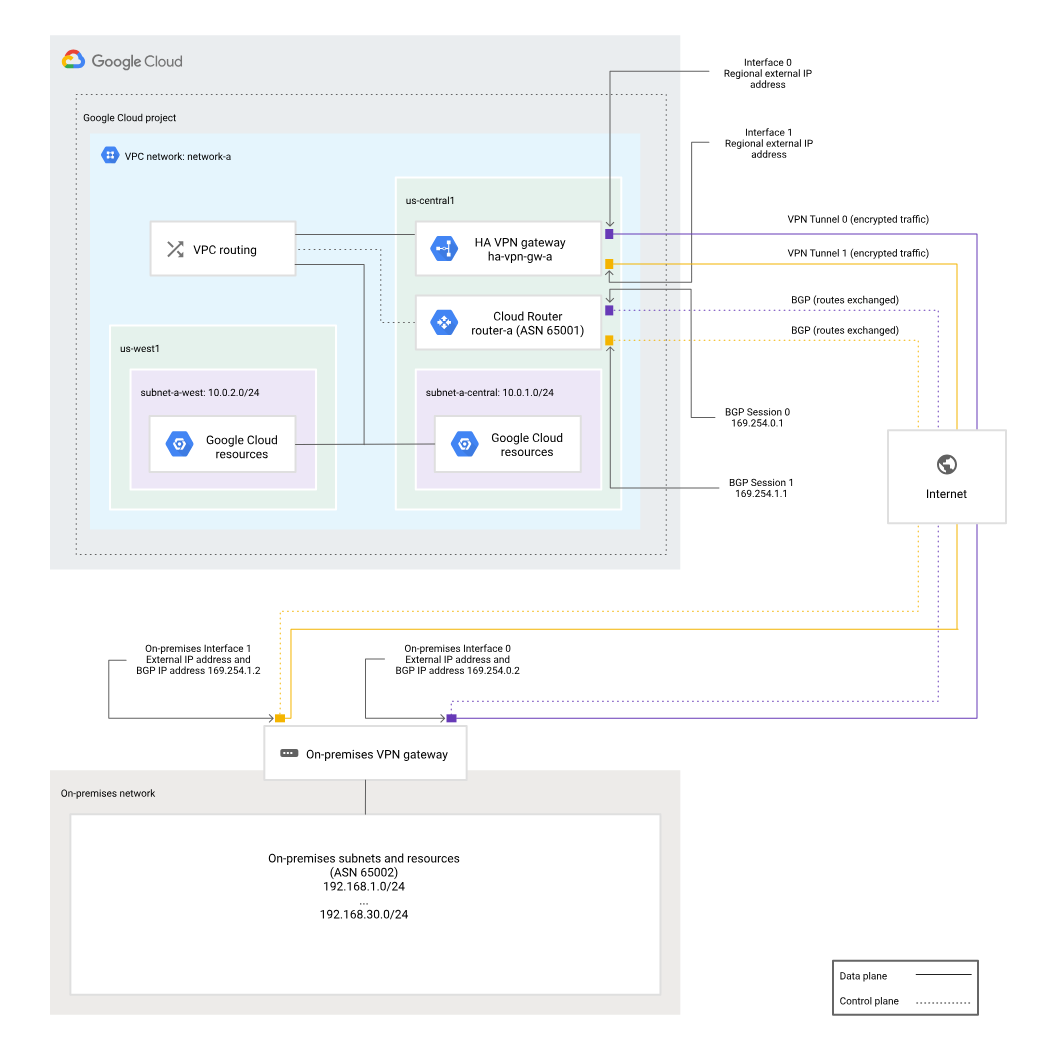

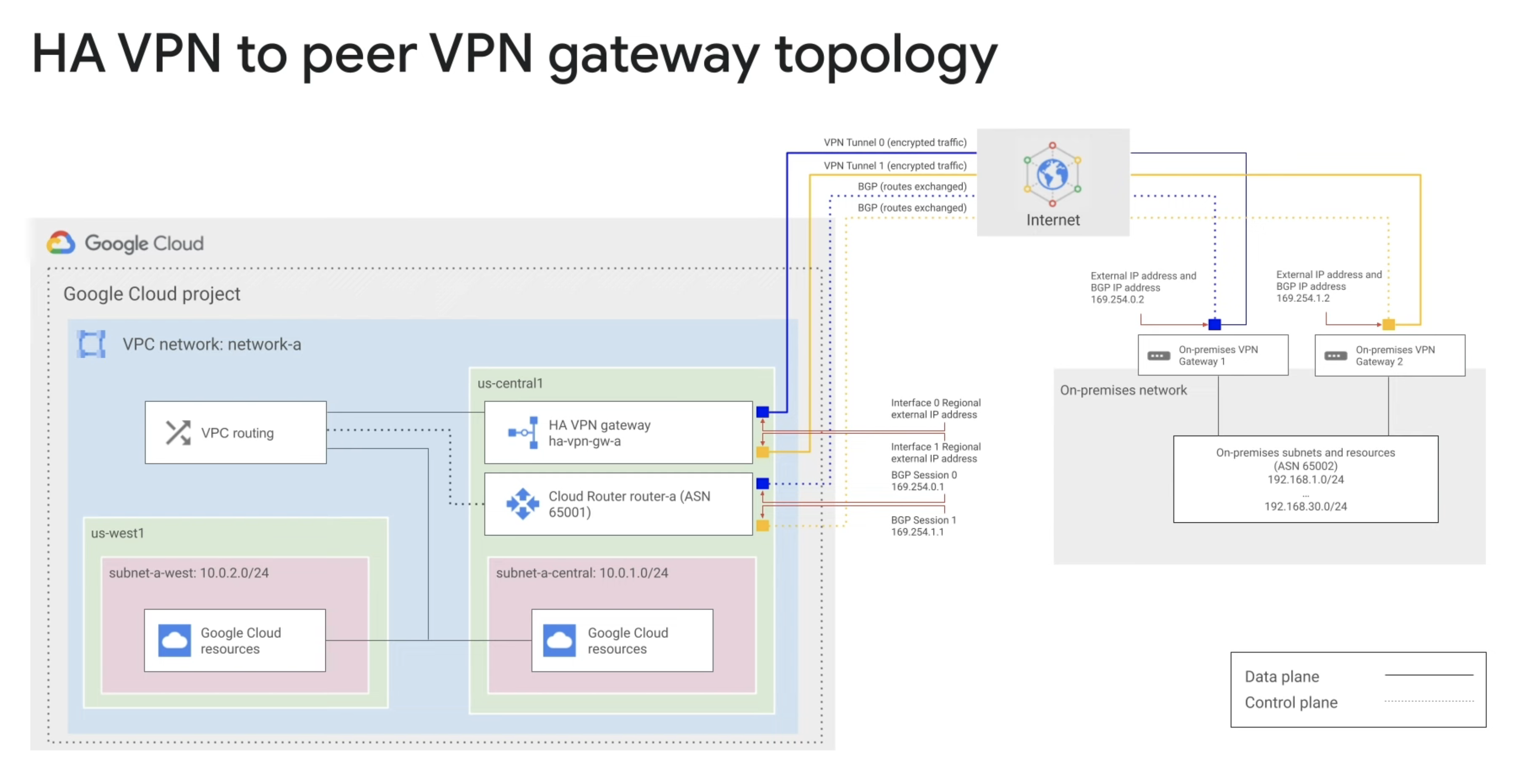

: This topology requires two VPN tunnels from the HA VPN gateway to achieve the high availability SLA. In this configuration, HA VPN has three typical peer gateway configurations: Two separate peer VPN gateways, each with its own IP address. One peer VPN gateway with two separate IP addresses. One peer VPN gateway with one IP address. HA VPN to two peer (on-premises) VPN gateways
HA VPN to one peer (on-premises) VPN gateway with two IP addresses

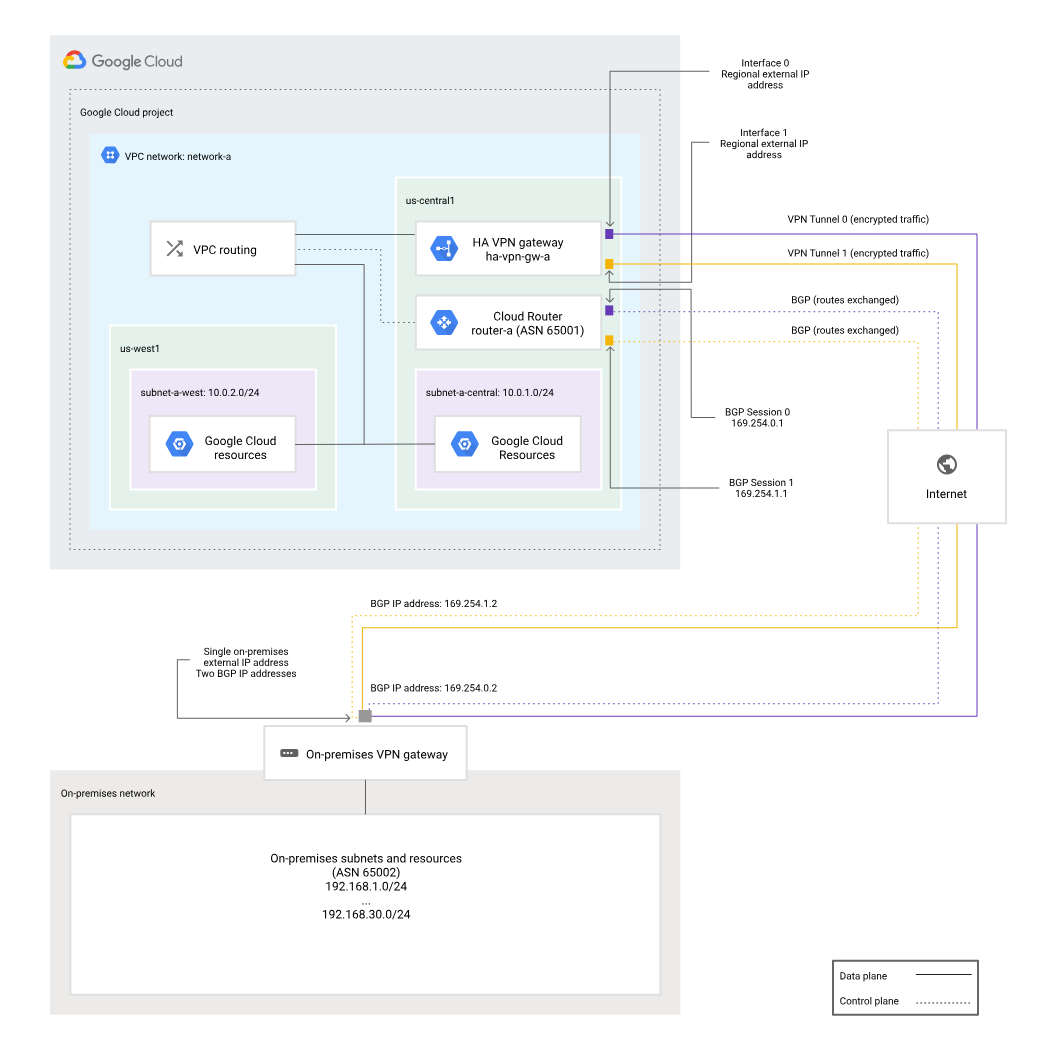

HA VPN to one peer (on-premises) VPN gateway with one IP address

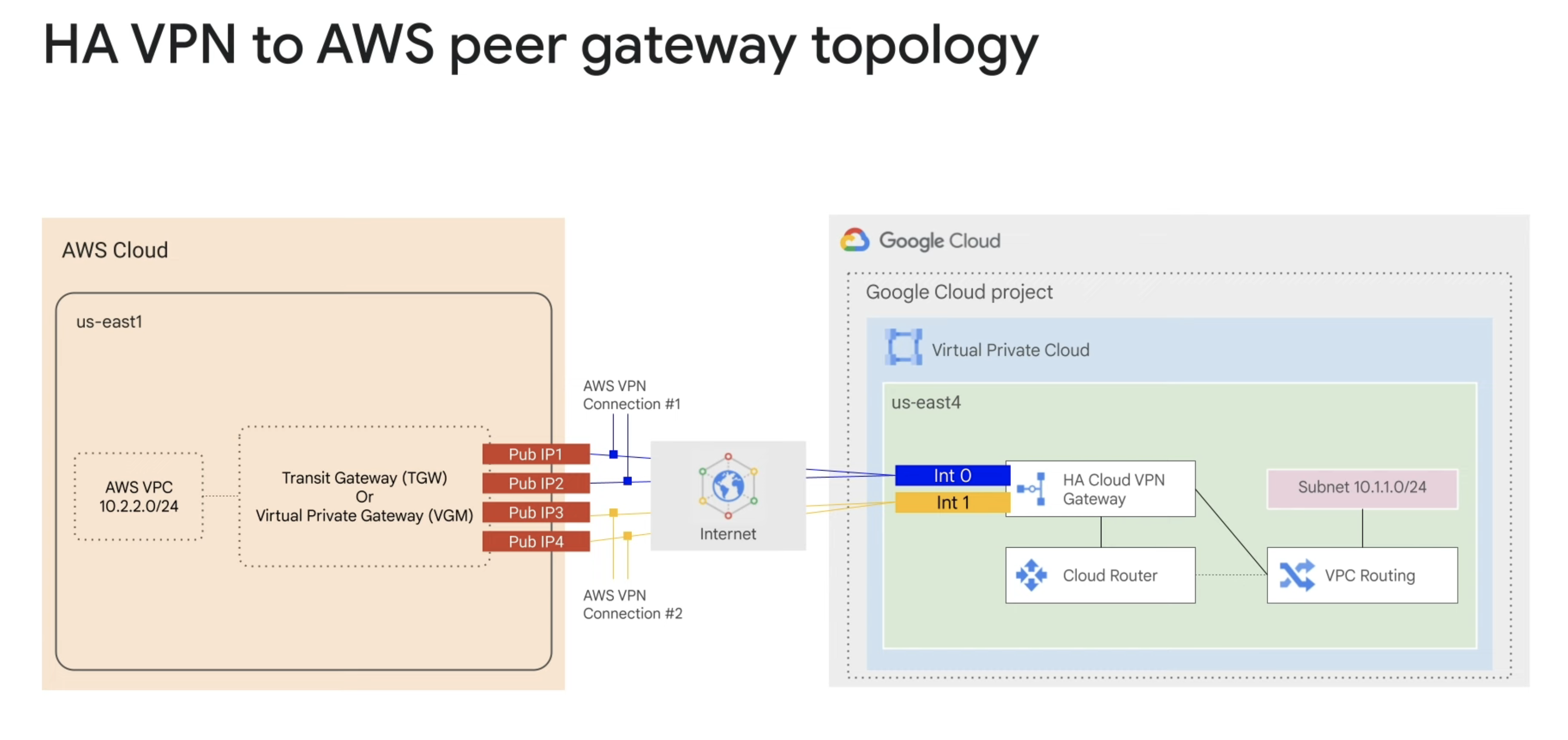

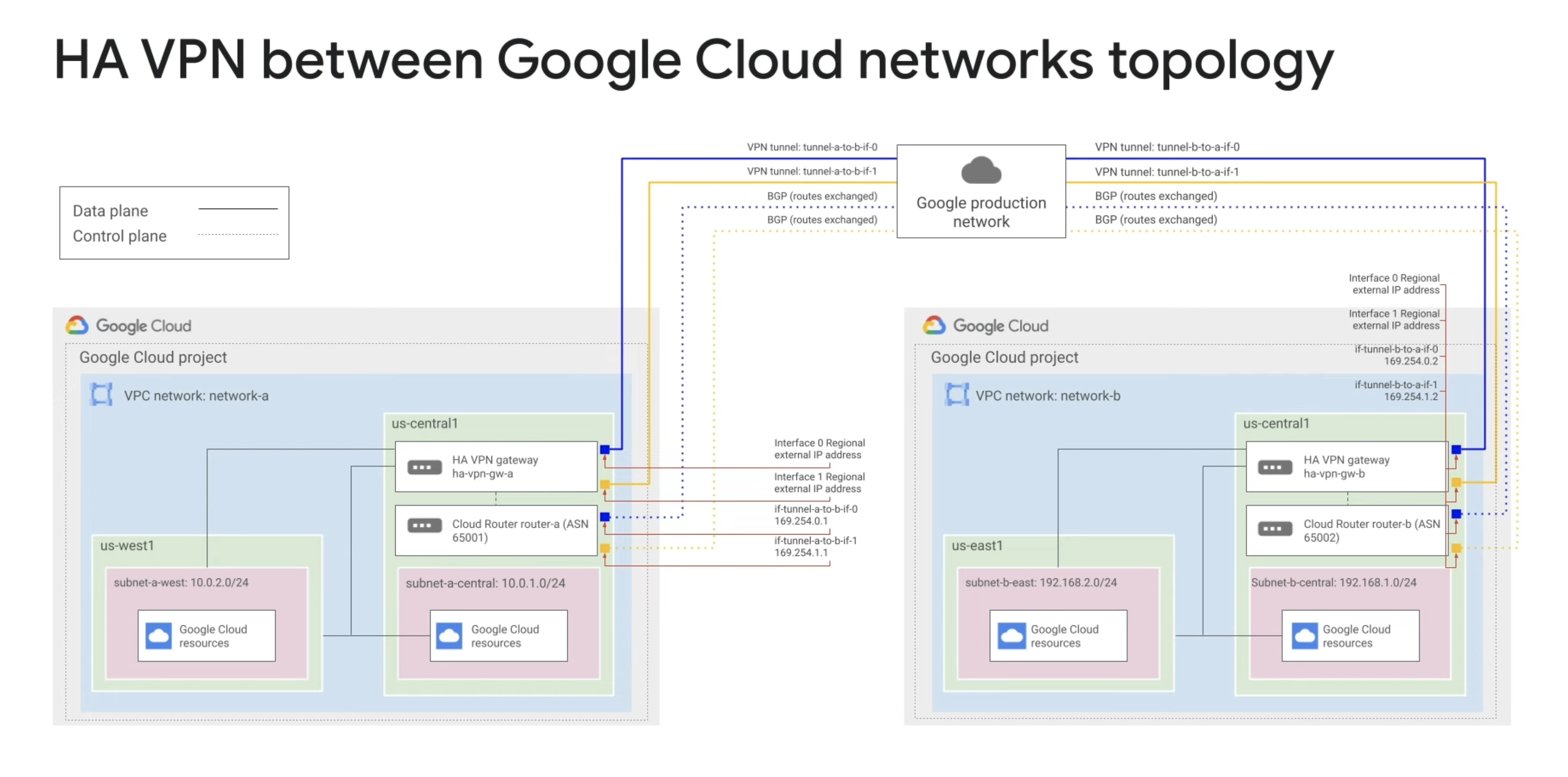

: To connect two Google Cloud VPC networks, you create an HA VPN gateway in each network. The networks can be in the same or different . You receive a different availability SLA for HA VPN gateways deployed in the same region versus those deployed across different regions. For more information, see .

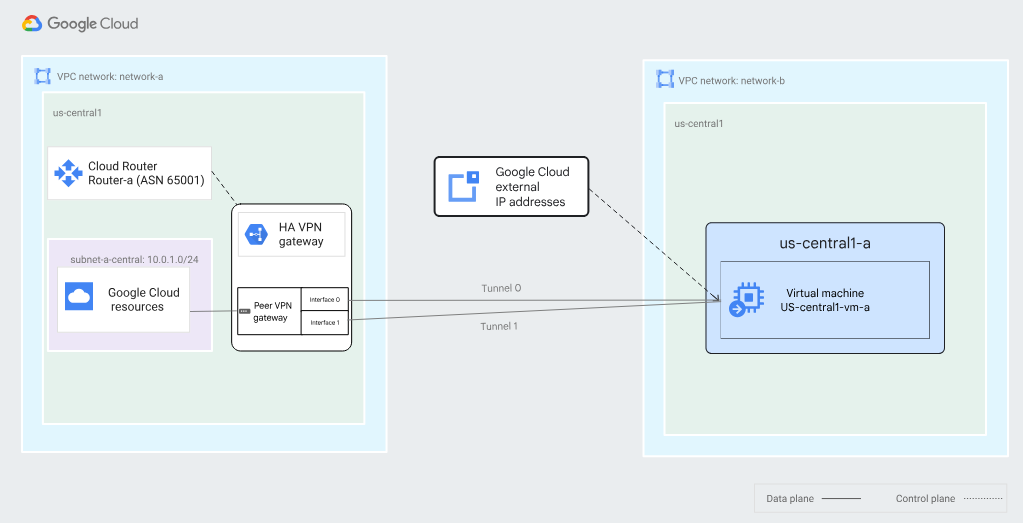

: In this topology, you connect an HA VPN gateway to a Compute Engine virtual machine (VM) instance. Your VM instances can be in same zone or different zones. The availability SLA of the Compute Engine VM instance determines the availability SLA for the VPN connection. A topology that connects an HA VPN gateway to a Compute Engine VM

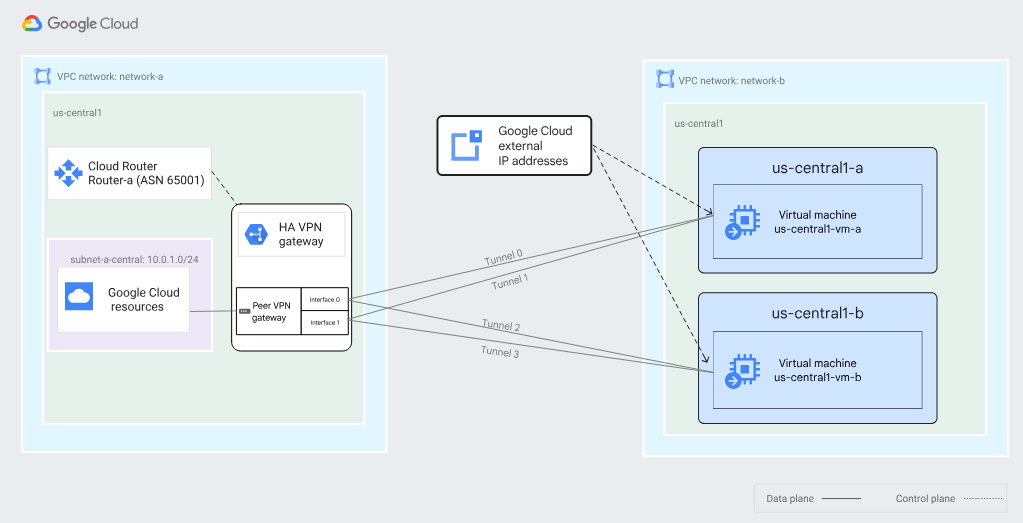

A topology that connects an HA VPN gateway to two Compute Engine VM instances with each VM in a different zone
: In this topology, you create HA VPN tunnels to carry IPsec-encrypted traffic over VLAN attachments of either Dedicated Interconnect or Partner Interconnect. You can reserve regional internal IP address ranges for your HA VPN gateways. Your peer VPN gateway can also have internal IP addresses. For more information and architecture diagrams, see . In Google Cloud, all peer gateway scenarios are represented by a single external peer VPN resource.

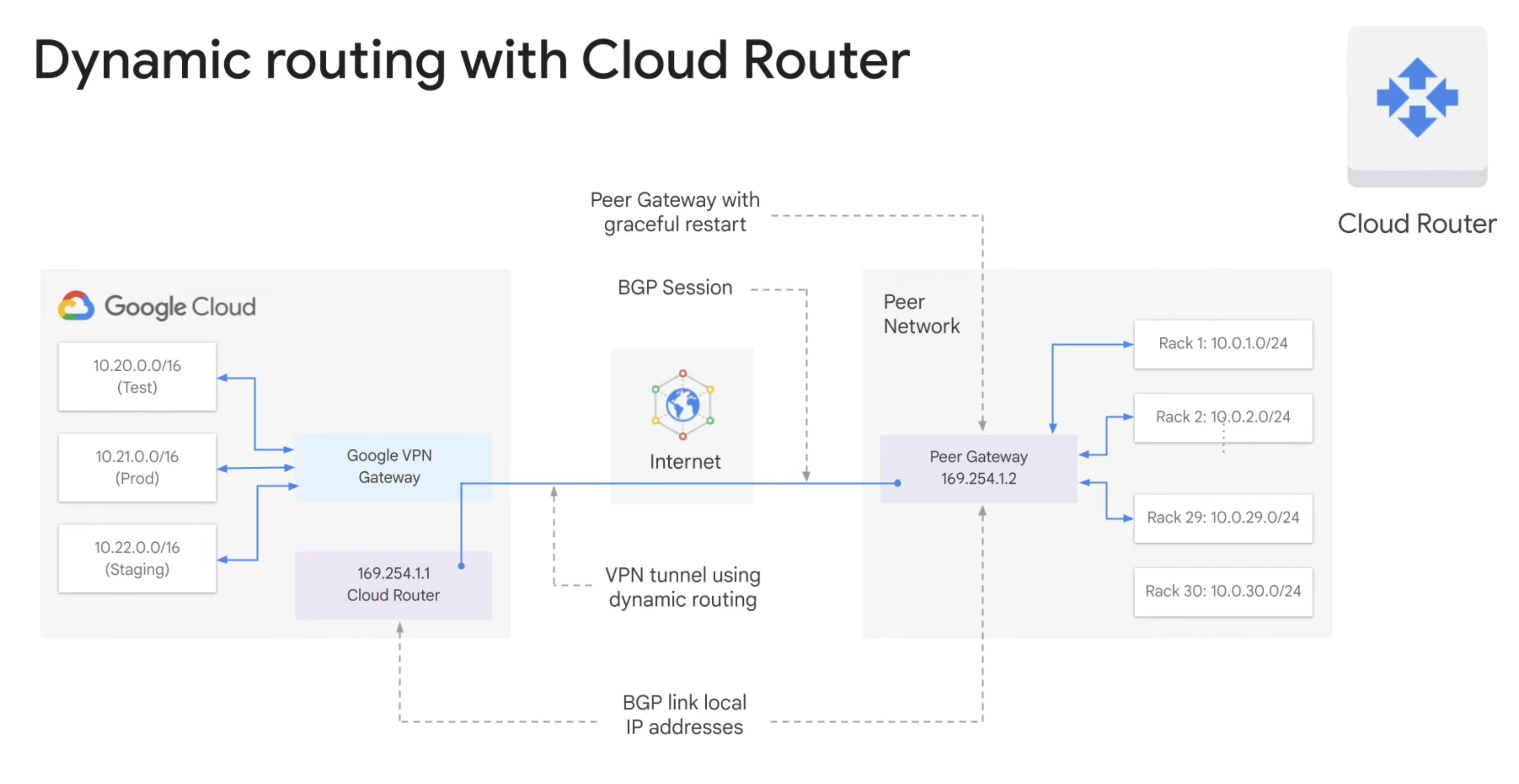

Cloud VPN supports both static and dynamic routes. In order to use dynamic routes, you need to configure Cloud Routers. Cloud Router can manage routes for a Cloud VPN tunnel using Border Gateway Protocol, or BGP. This routing method allows for routes to be updated and exchanged without changing the tunnel configuration.
