MeshLab
Turn Point Cloud (ply) to Full Mesh (obj)
Imported the scanned mesh

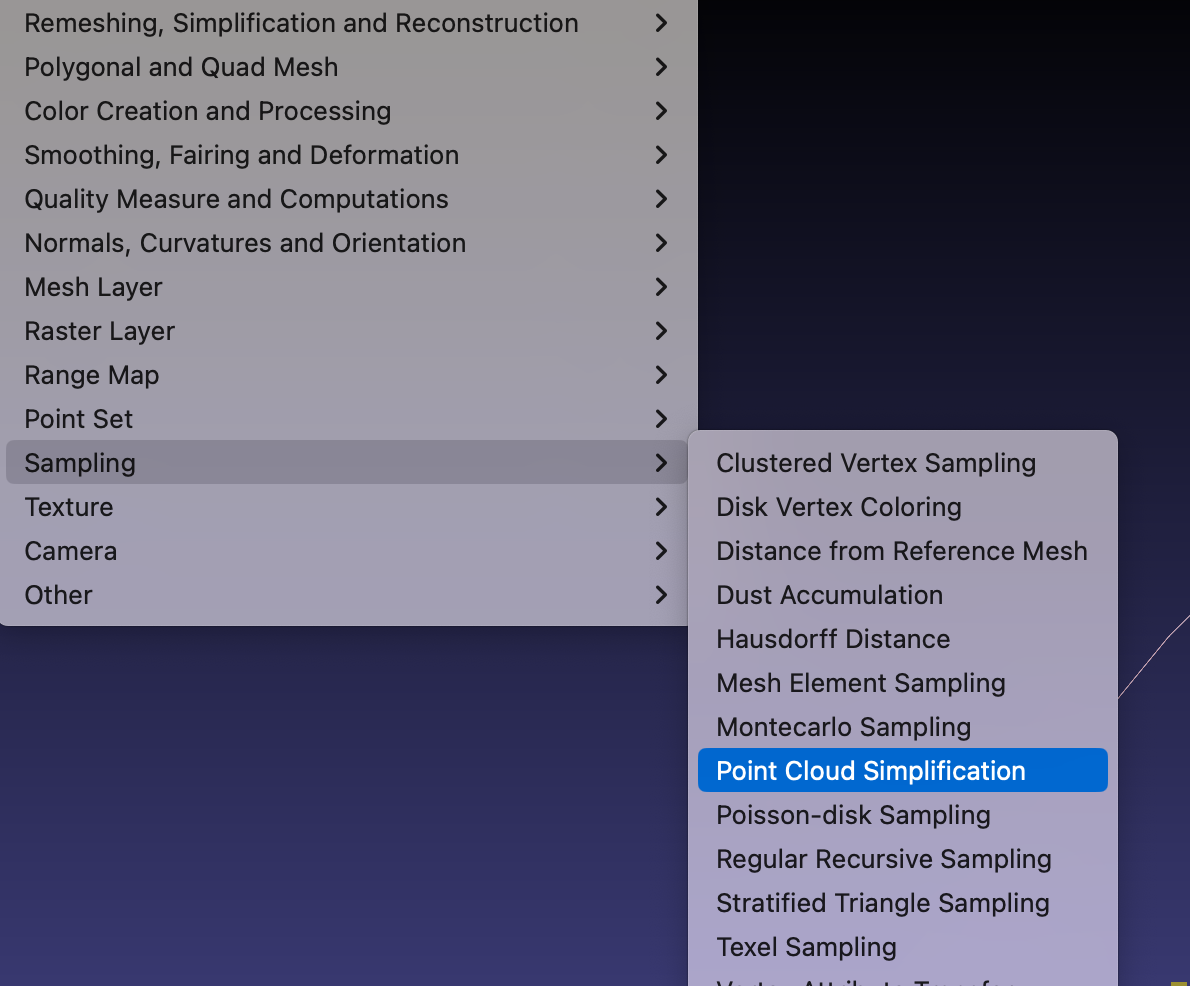

In Filter, choose point cloud simplificaiton
Set the number of samples at least 1 million
On the newly created simplied cloud layer,

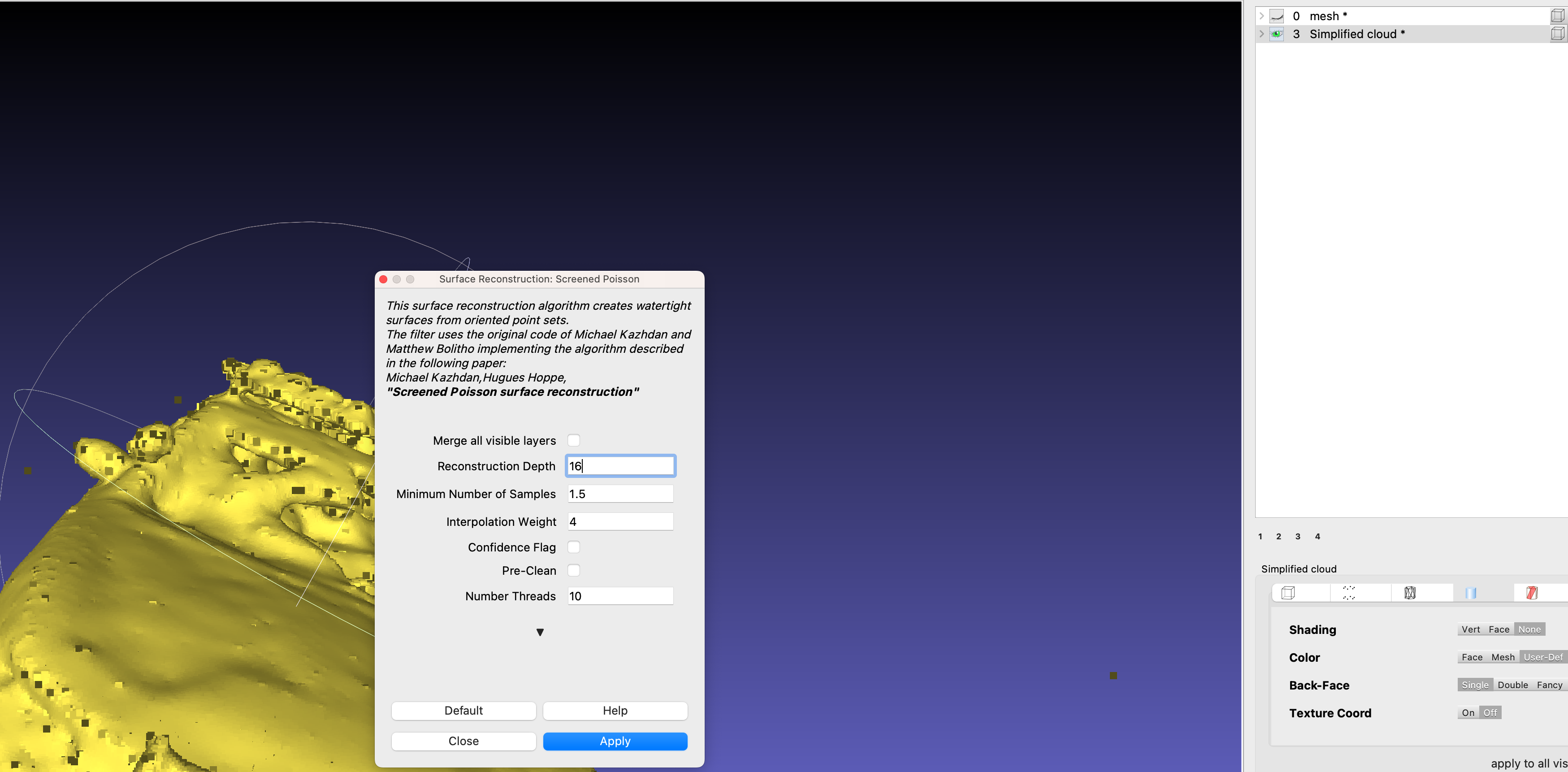

Go to Remeshing, Surface Reconstruction Screened Poisson
increase resonstuction depth from 8 to 16

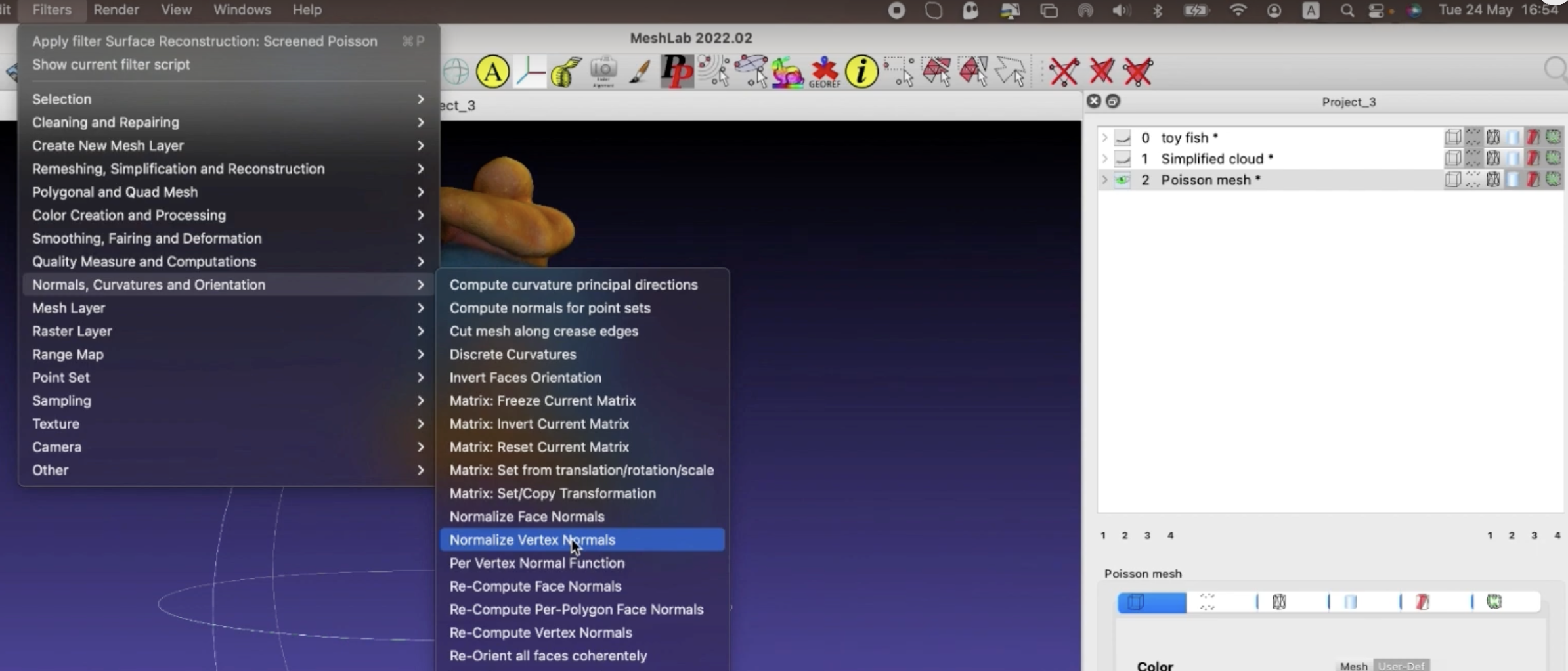

Final step: to Normalize vertix normals

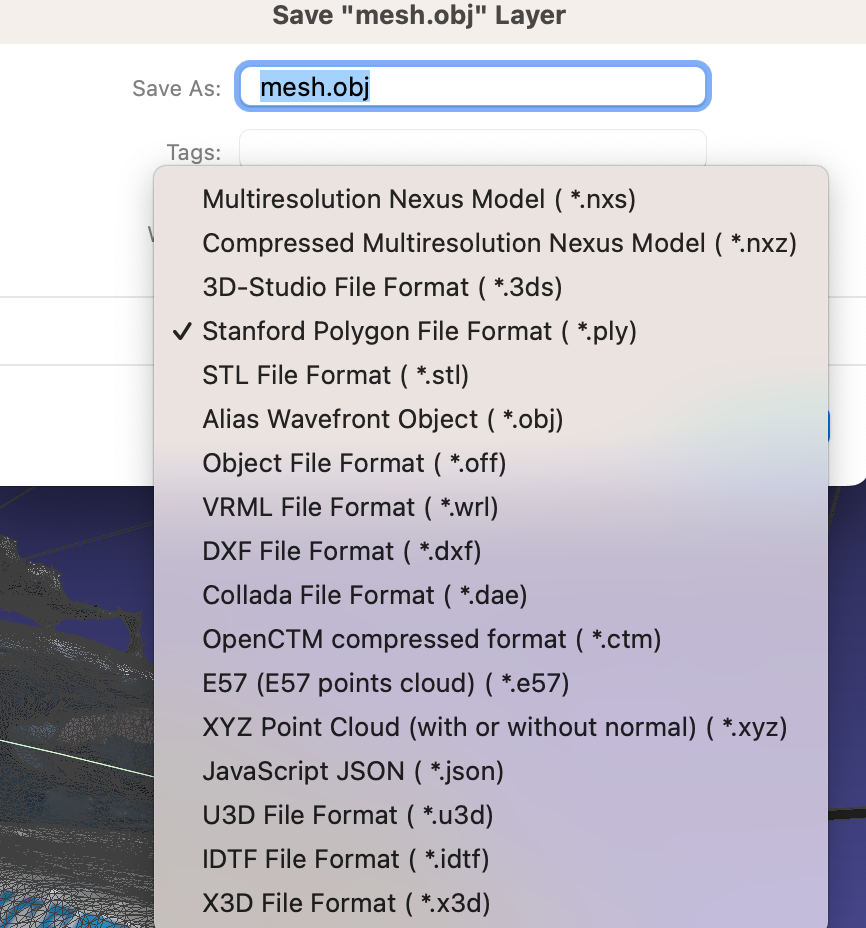

Export Mesh as either one of the format:
