Timer (count down with warning)



Create widgets called TimerWidget

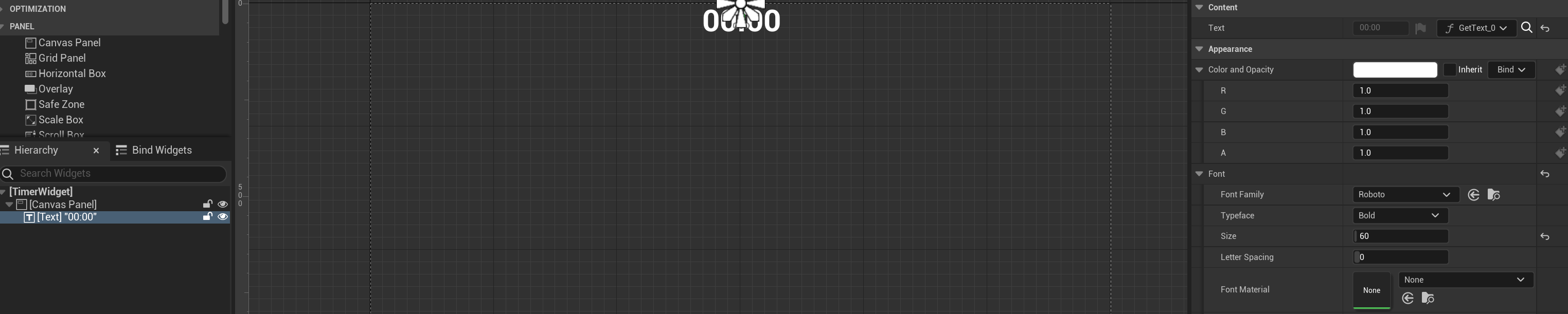

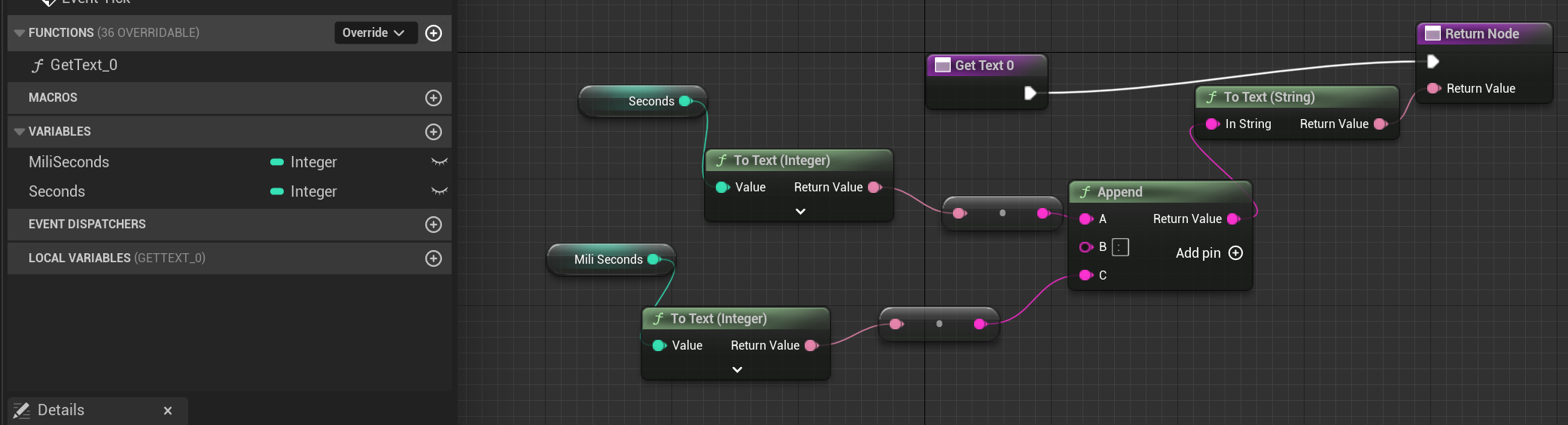

Bind the text
set 2 variables:

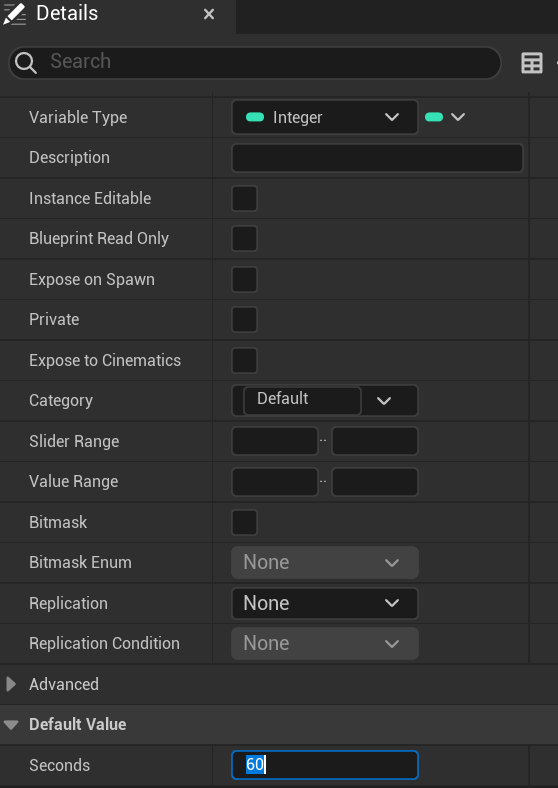

Default value of Second variable to 60, milisecond to 10

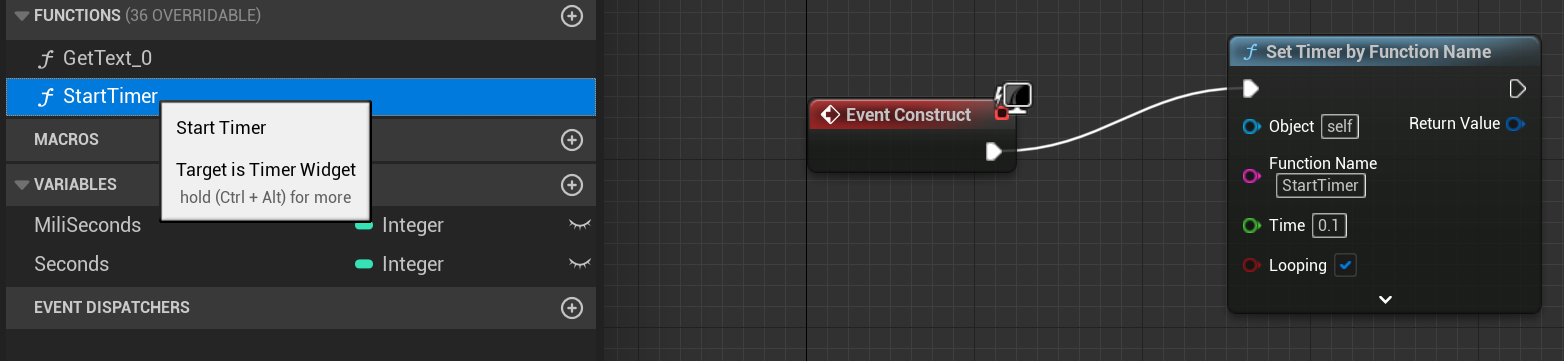

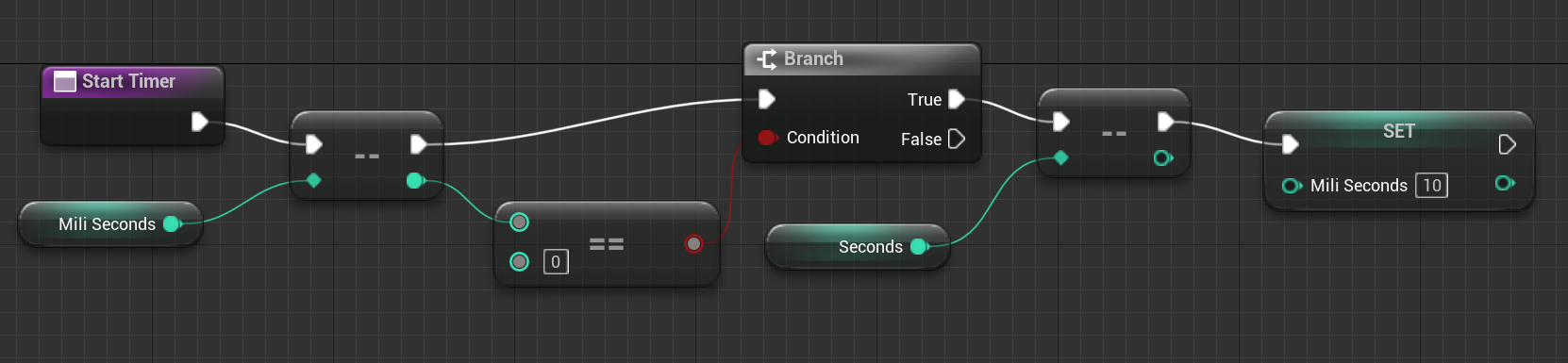

Still in the widget, Go to event graph, create a new function called StarterTimer and:

Go to characater BP:

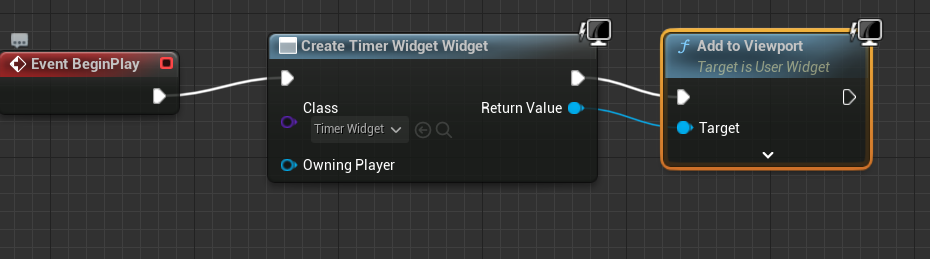

Event begin play node

Add count down warning:


In Widget, add text (render opacity set to 0)

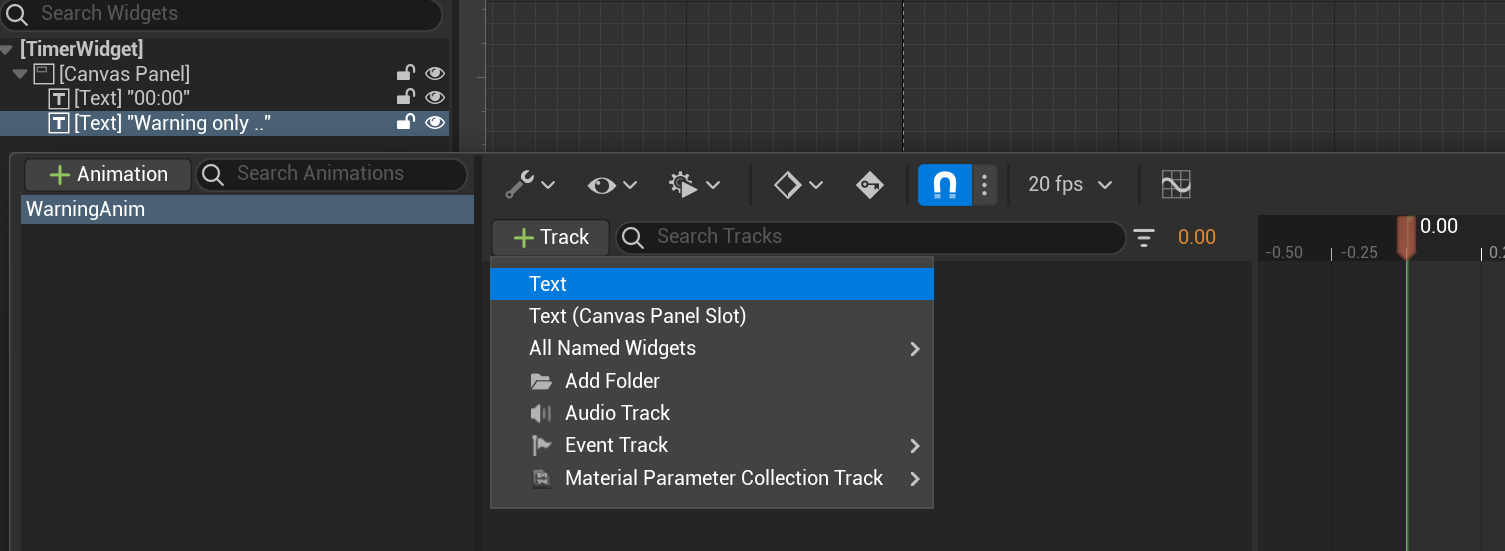

Open animation box (bottom bar), +animation, name as WarningAnim
+Track, Add Text

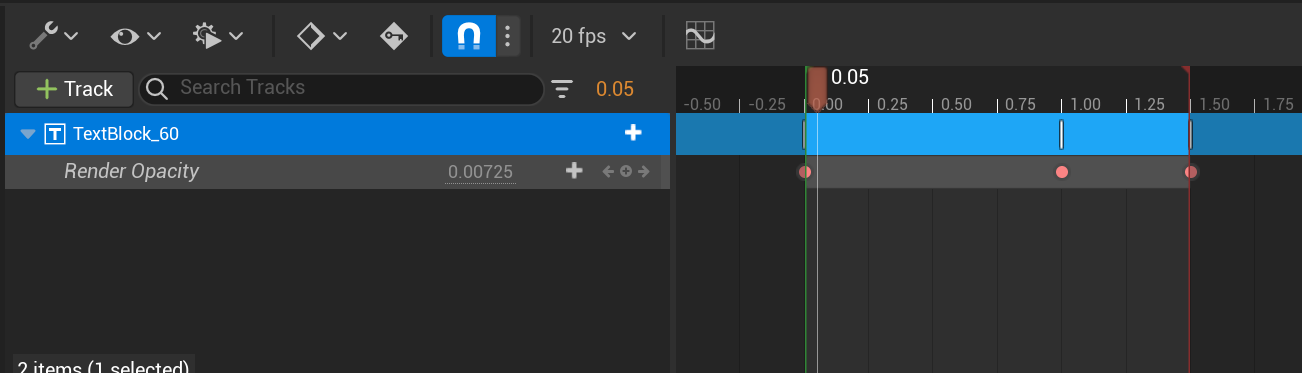

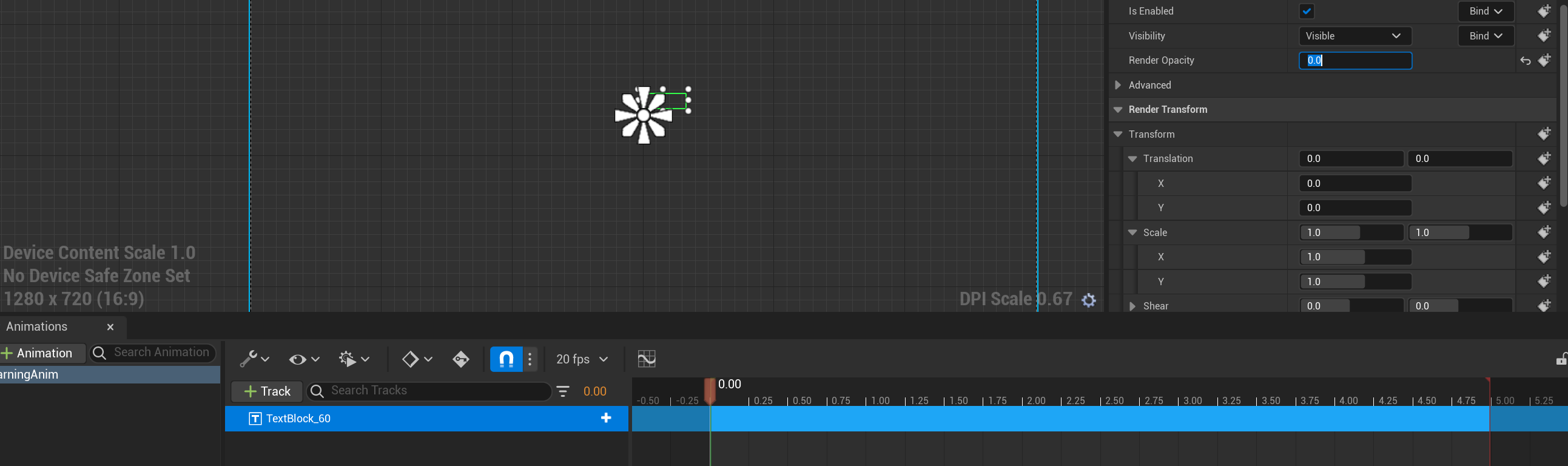

Select the TextBlock in timeline, set render opacity to 0 on timeframe 0s, Add keyframe (right edge icon):
Set opacity to 1 on 1s, and 0 again on 1.5s

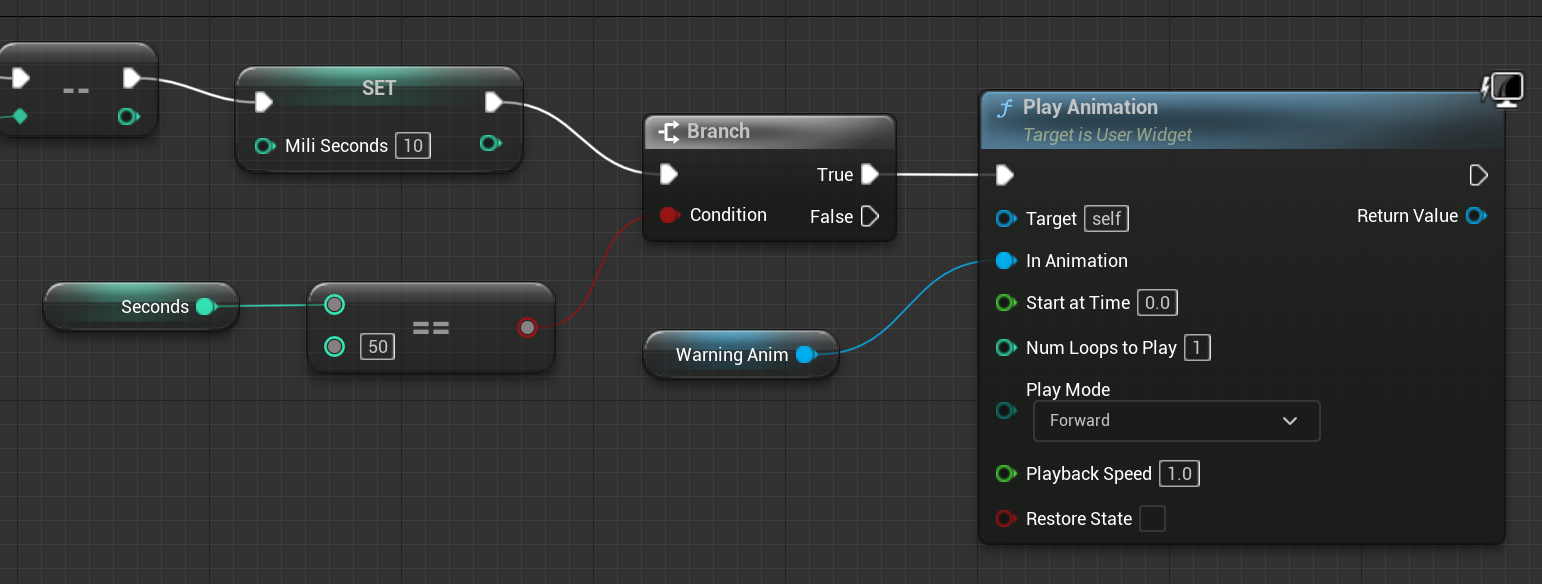

Back to Start Timer function, extend ending graph:
