Da Vinci Resolve:
Chroma Keying
Method 1:

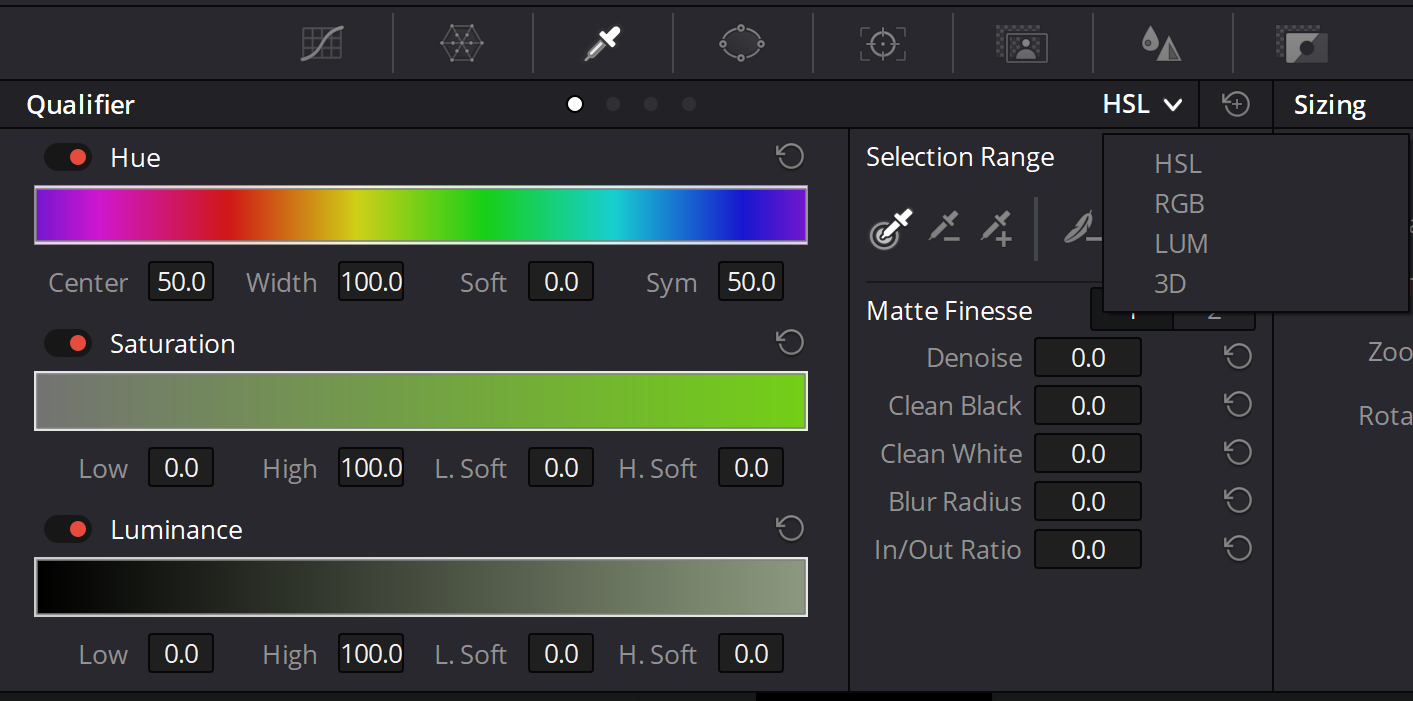

Create a serial node → Qualifier (dropper) → change HSL to 3D

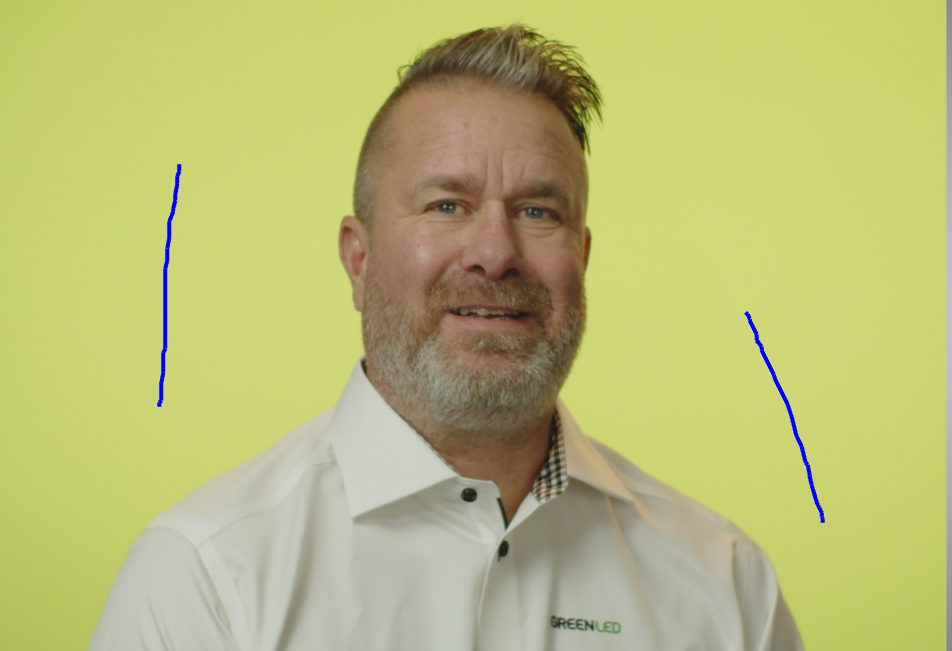

Use the dropper to draw 2 lines aside as reference (will show on Qualifier menu)

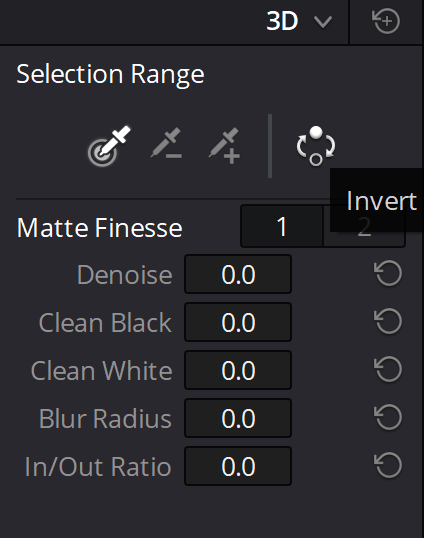

Click Invert button next to Qualifier menu

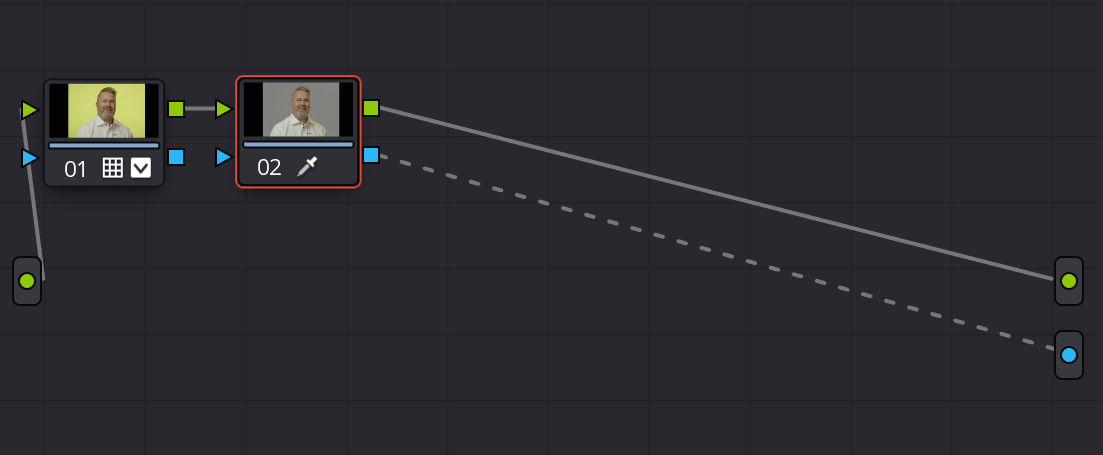

In node blank space → R click → Add Alpha Output → Connect the blue spot to the node output
Tick Despill box at Qualifier menu → Set otehr parameters of the Chromakeying (Denoise, Clean White, Clean Black....)
Method 2:

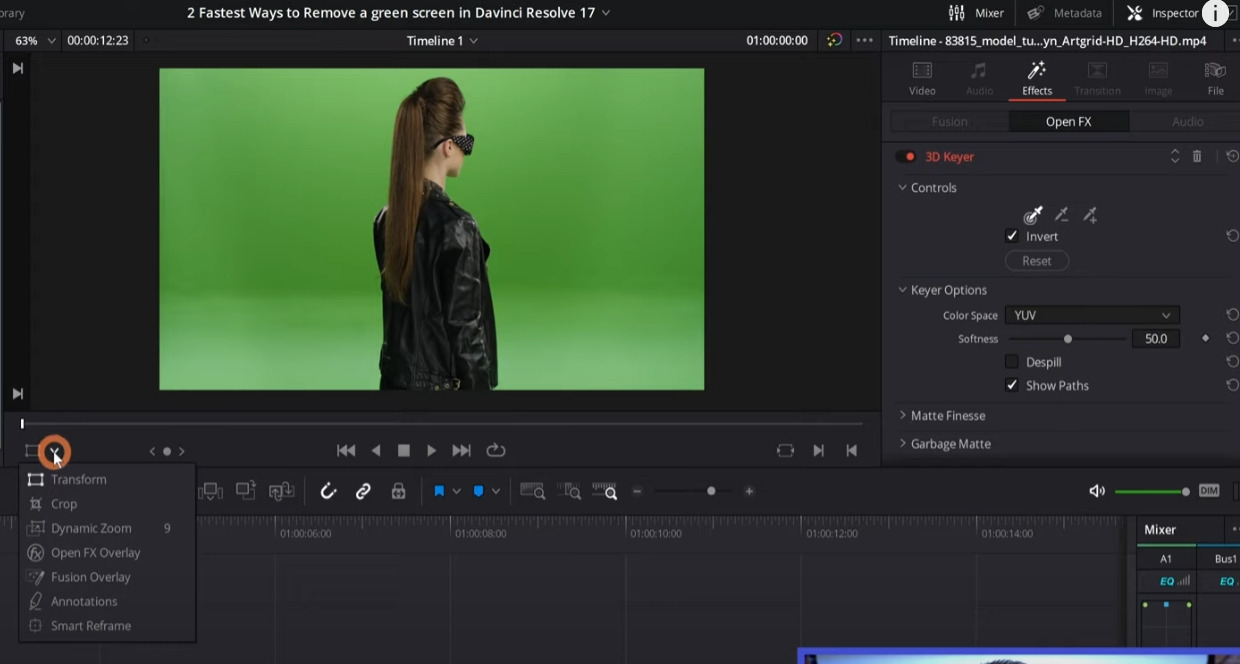

Edit tab → Effects Library → Type 3D Keyer → Drag it to the timeline clip →
In 3D Keyer menu → Effects → Choose Pick Dropper → change Transform to Fusion Overlay
Draw lines with arrow cursor on the scene to remove the green screen
Back to effect menu, go to Output → change Final Composite to Alpha Highlight B&W (it brings up Matte Finesse, adjust the Clean white/black value to make the figure fully white → Tick Despill box
Method 3:
Fusion → Shift+Space bar (open fx effect menu) → Type DeltaKeyer → Add
In Delta Key menu

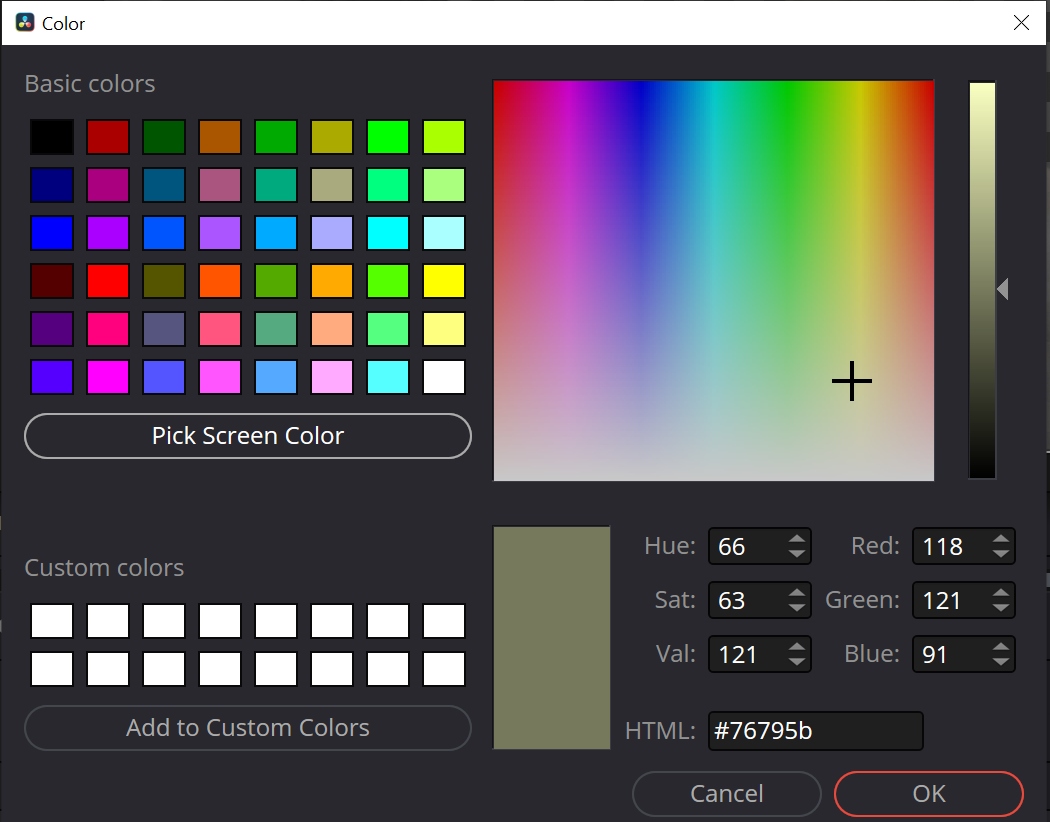

→ Background color (new window pop) → Pick Screen Color → Point the dropper in green screen area on the scene → Ok

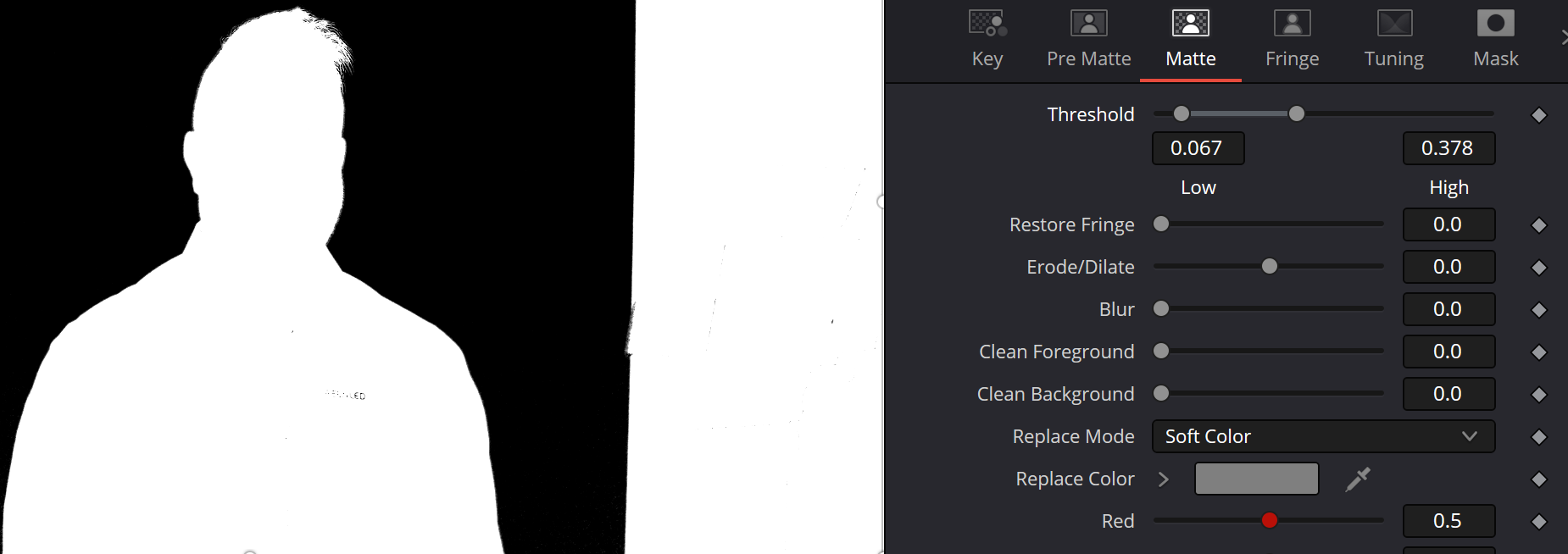

Back to Delta key menu, Matte → View Mode: Matte → Adjust Low and High side of Threshold till the character totally white → Back to Final View in View Mode
