All images correctly portray my intent for the layout and structural design for my Backyard Design.All important structural information is included.Stated dimensions are correct.
Front — 10' or 20' to the face of the garage from sidewalkSides — 5'Rear — 10'Corner Side — 10'3 Stories, or no taller than than the primary structure if it is an attached structureSides — 5'Rear — 5'20'55 percent75 percentPavers, any flatwork or permanent construction cannot encroach easementsFire pits are permitted if structurally sound, permanently constructed and with a maximum diameter of five (5) feet, and no closer than twenty (20) feet from any existing structure. Wood fuel storage is to be no closer than twenty (20) feet to the firepit, and no closer than ten (10) feet from any constructed dwelling.WE BELIEVE THE SETBACK IS FOR WOOD BURNING FIREPITS, NOT THE GAS FIRE TABLE IN THE DESIGNMay be placed in the rear yard only, adjacent to the house or patio and shall not extend laterally past the side wall of the house. The exterior surround shall match the color and finish of the house walls.WE WILL SUBMIT THE DESIGN TO THE HOA WITH THE BELGARD BLOCK KITCHEN (MATCHING EXISTING PAVER COLOR) AND REVISE THE DESIGN IF NECESSARY
Removed Trellis Replaced 6 of the AMP Undercap Lights with Kichler Step Lights on the Retaining WallBelgard Castle Manor Wall Block (Napoli)Belgard Castle Manor Wall Block Caps (Napoli)Granite Countertops (Fantasy Brown - Leathered)Appliances:Twin Eagles 18" Double Tall Trash DrawerCameo 23" SS Outdoor SinkCameo SS Pull-Down FaucetTwin Eagles 18” Single Access DoorTwin Eagles 13" Double DrawersTrue 24” Refrigerator (Glass Door)Twin Eagles 24" Power Burner w/ Heavy Duty GratesTwin Eagles 18" Griddle Plate for Power BurnerTwin Eagles 24" Vinyl Power Burner CoverTwin Eagles 36" Tall Dry StorageTwin Eagles 42" Eagle One Gas Grill w/ Rotisserie & Sear ZoneTwin Eagles 12" Griddle Plate for GrillTwin Eagles 36" Door & Two Drawer ComboTwin Eagles 42" Eagle One Vinyl Grill CoverBelgard Castle Manor Wall Block (Napoli)Belgard Castle Manor Wall Block Caps (Napoli)To match existing pavers: Belgard Appian-Stone (Napoli)60" Regal Rectangle Concrete Gas Fire Pit Table (Chocolate)(6) 1-Gang GFI Outlets (13) Under Cap Lights(7) AMP Undercap Lights on Kitchen (6) Kichler Step Lights on Retaining Wall
Removed Trellis
Replaced 6 of the AMP Undercap Lights with Kichler Step Lights on the Retaining Wall
Trellis is still included the renderings for the HOA, but not included in the project
Design Approval
Below is the design approval for your outdoor design.
We offer this proposal, including all original concepts and designs, with the agreement that you will not share them publicly, on social media, or with outside contractors without the permission of Pratt Guys. We do encourage you to share the site internally with your family and friends and build excitement for your project!
Design Approval Checklist
Refer to this checklist 📋 to make sure your drawings are error-free and designed just the way you want 💯. Please note, that we cannot release your Final Drawings without confirmation that these items are correct.
Design Waivers
Scope of Work Waiver: The design presented is conceptual in nature and does not define the final scope of work. Refer to your approved invoice on Buildertrend for a complete and accurate description of your included scope of work. Features or elements depicted in the design that are not specifically included in the approved invoice are not part of the contracted scope, regardless of their appearance in renderings or drawings.
Color and Selection Waiver: The drawings' materials and colors are for conceptual purposes only and may not represent your final selections. The Material and Color Selection Finalization Form takes priority over any shown materials or colors. Please note that actual colors may vary from what is seen on monitors or when printed.
Landscape Waiver: Any landscaping depicted on renderings is for conceptual purposes only. Landscape plan will verify specific plant species and sizes.
Survey Waiver: The design presented is based on the survey information provided by the client. Tree locations, topography, and other site-specific details are subject to verification and may require adjustments to ensure accuracy in implementation. Any discrepancies in the survey data could impact final design elements.
Special Features Waiver: Depictions of special features such as water and fire features are for conceptual purposes only. The velocity and volume of the water or fire will vary.
Engineering Waiver: Structural elements depicted on renderings are for conceptual purposes only. Engineering takes precedence over the size, location, and products used for structural masonry, wood framing, roofing, floors, etc.
Feasibility Study
(last updated 1-26-26)
Address: 846 Ecliptic Loop Yulee, FL 32097
Neighborhood: Del Webb Wildlight Phase 3, Lot 258
County: Nassau County
Zone Type: PUD
Primary Structure Setbacks:
Max Height for Primary Structures:
Accessory Structure Setbacks:
Max Height for Accessory Structures:
Max Lot Coverage by Buildings:
Max Impervious Surface Ratio:
Easements
Architectural Guidelines
Fire Pits
Outdoor Kitchens

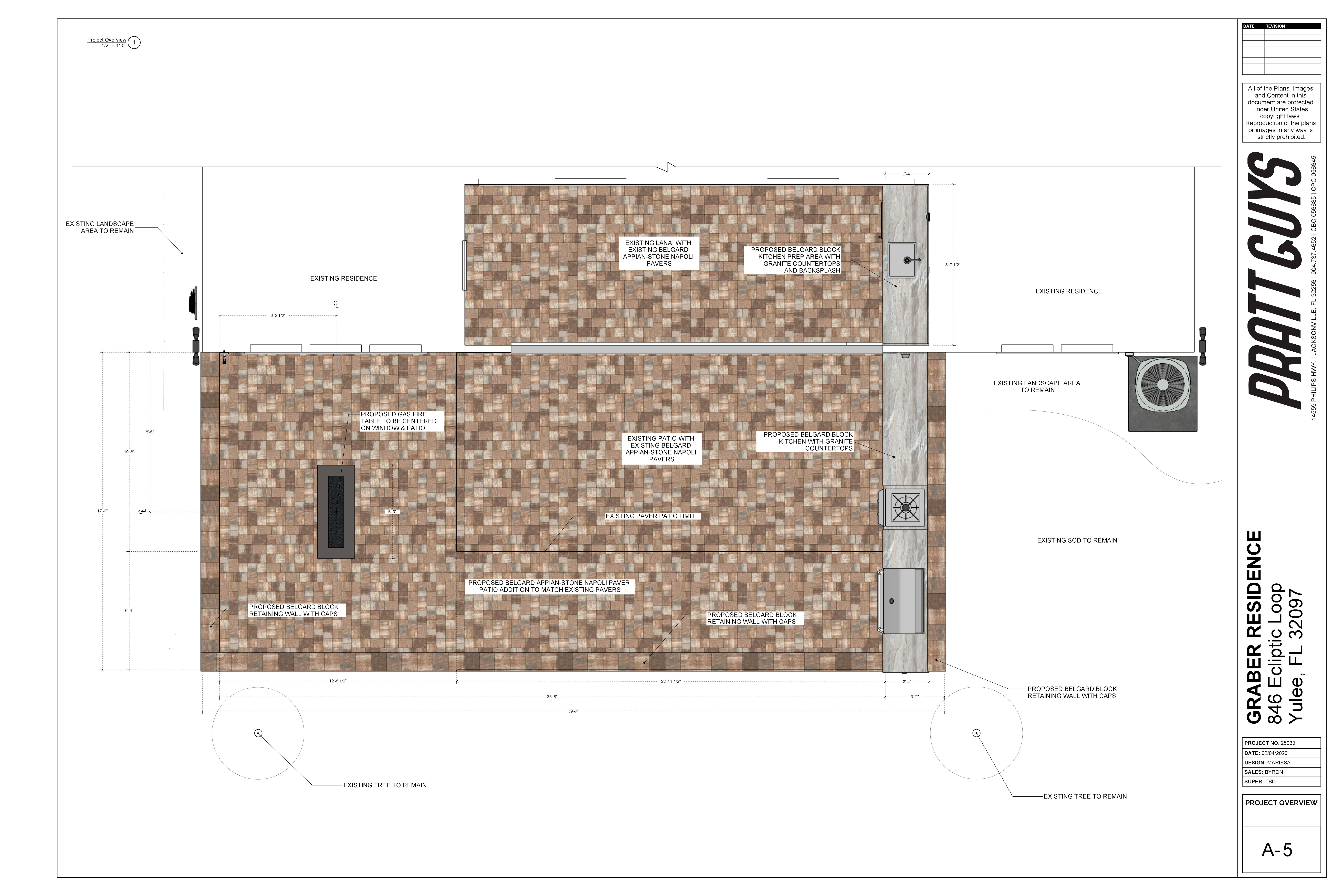

Project Overview
(last updated 2-4-26)
Block Kitchen
Prep Area Appliances
Kitchen Appliances
Retaining Wall
Pavers
Fire Pit (Table)
Electric
Low Voltage Lighting
Kitchen
(last updated 2-4-26)

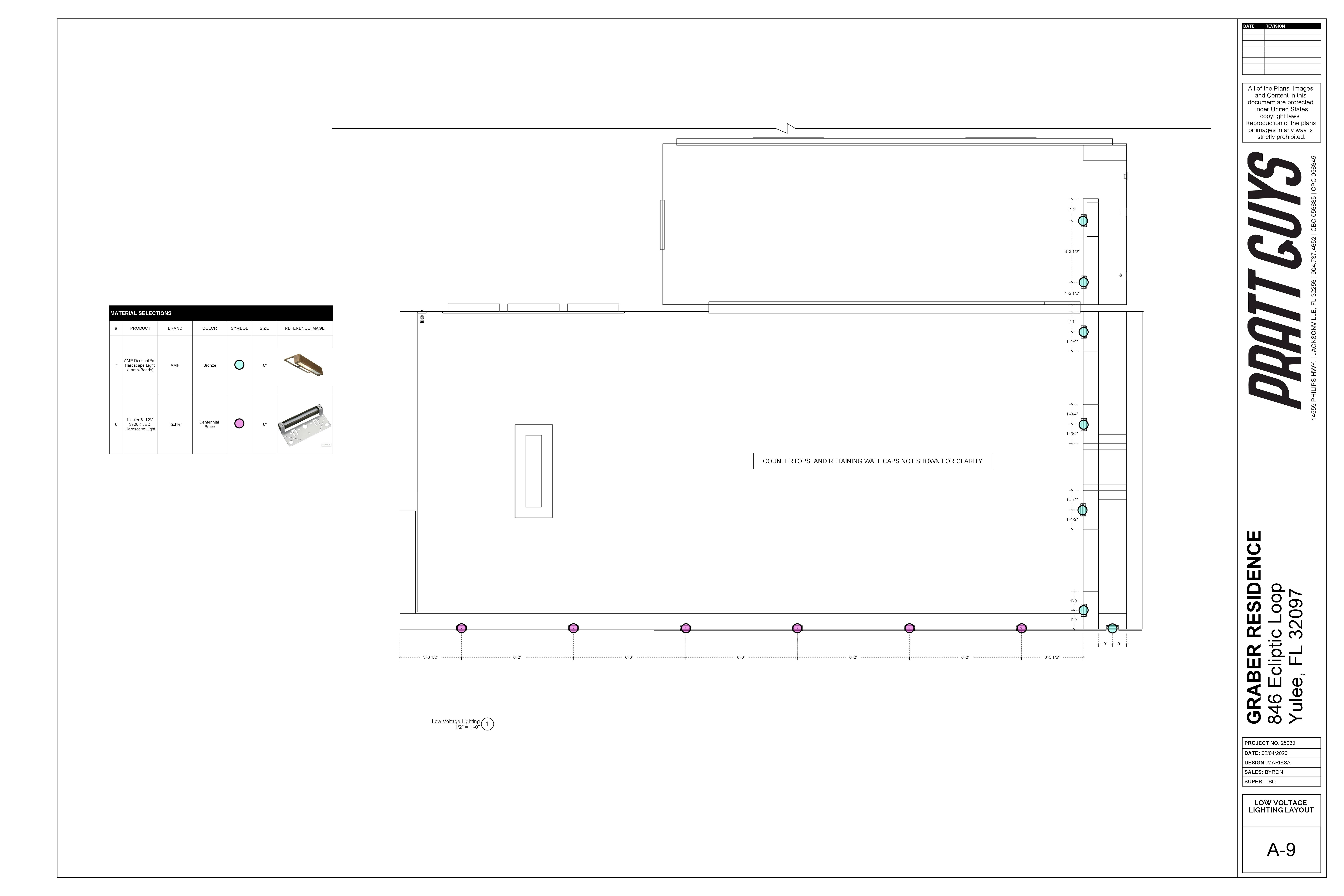

Low Voltage Lighting Layout
(last updated 2-4-26)

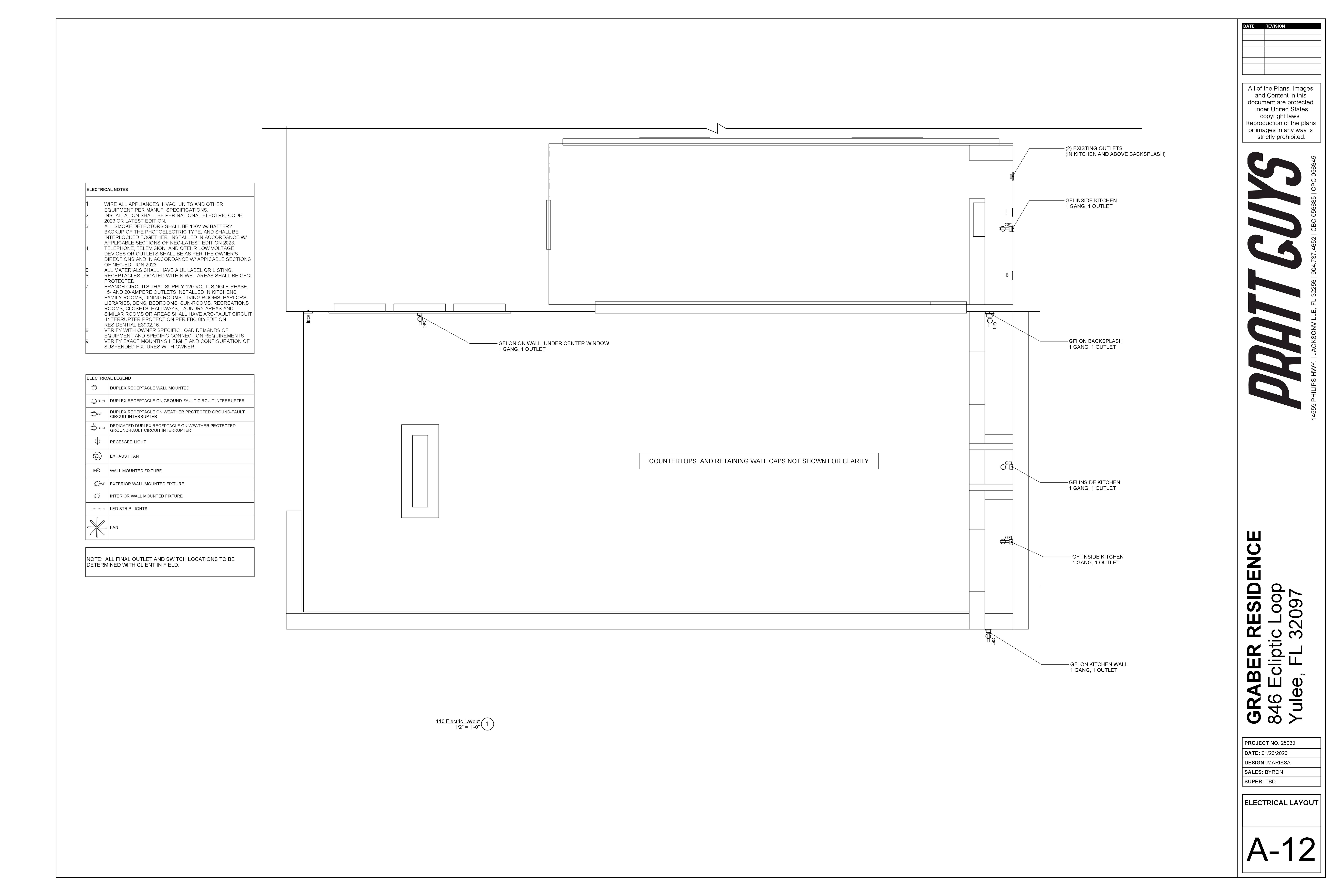

Electrical Layout
(last updated 1-26-26)
Renderings
(last updated 1-26-26)
