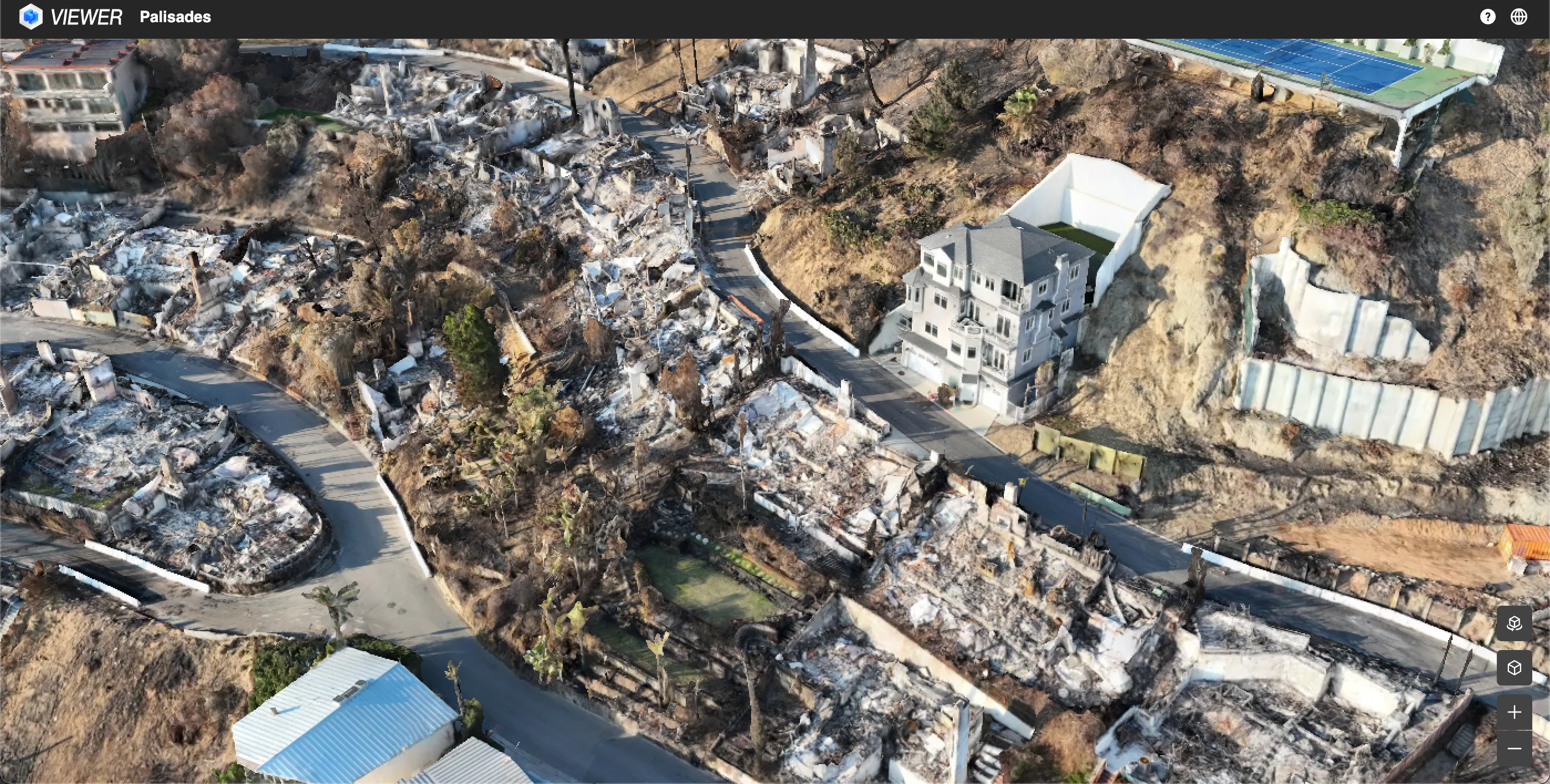

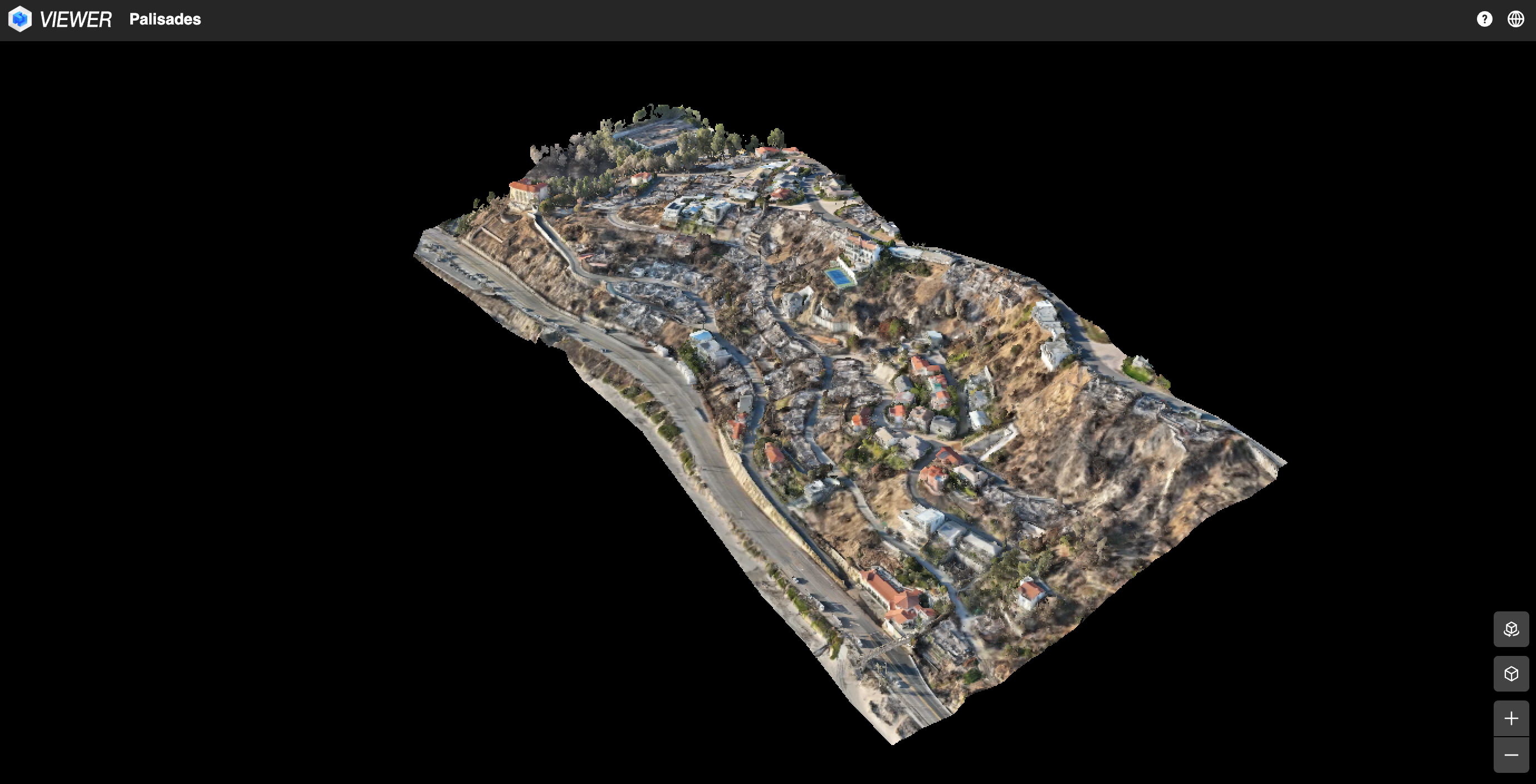

3D Models

Explore

3D Models

Overall Workflow:

1) Preplan Mission

2) Process Data

3) Share

DJI Software Tools Include:

1) Plan in Pilot 2 (RC), Flight Hub 2 (Cloud), and utilize oblique mapping mode.

2) Process In DJI Terra (Local) or DJI Flight Hub (Cloud).

3) Share through DJI Modify if you have processed in DJI Terra. Or share through Flight Hub 2 if processed on FH2.

⁠

Aircraft/Payload:

Drones/payloads without a thermal camera are optimized for mapping like the Mavic 3 Enterprise, and Matrice 4 E. They have a global shutter, larger camera sensors, and faster shutter speed.

You can still complete 3D modeling with the wide visual camera sensor of the drones/payloads without a thermal camera though.

M4 Series:

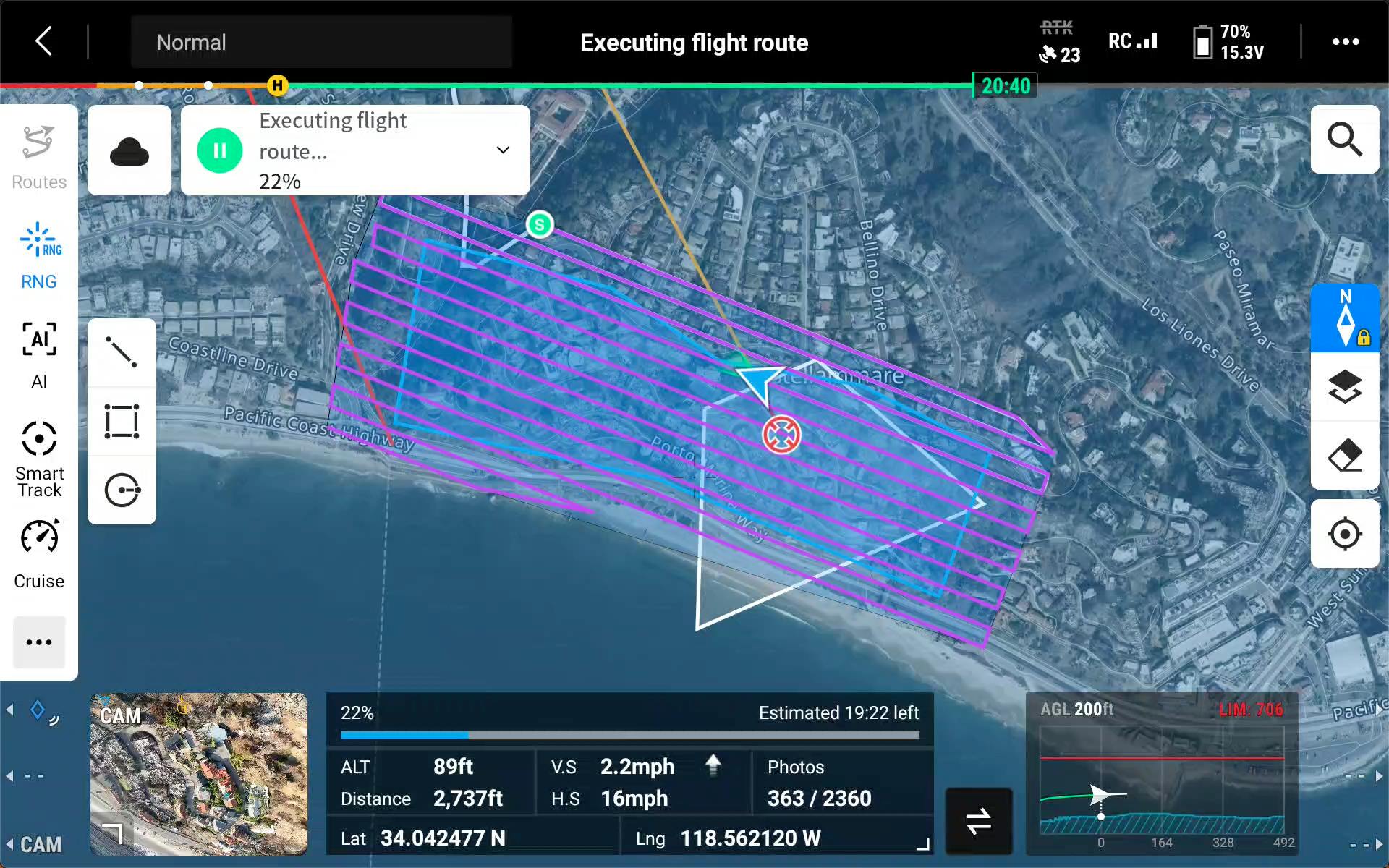

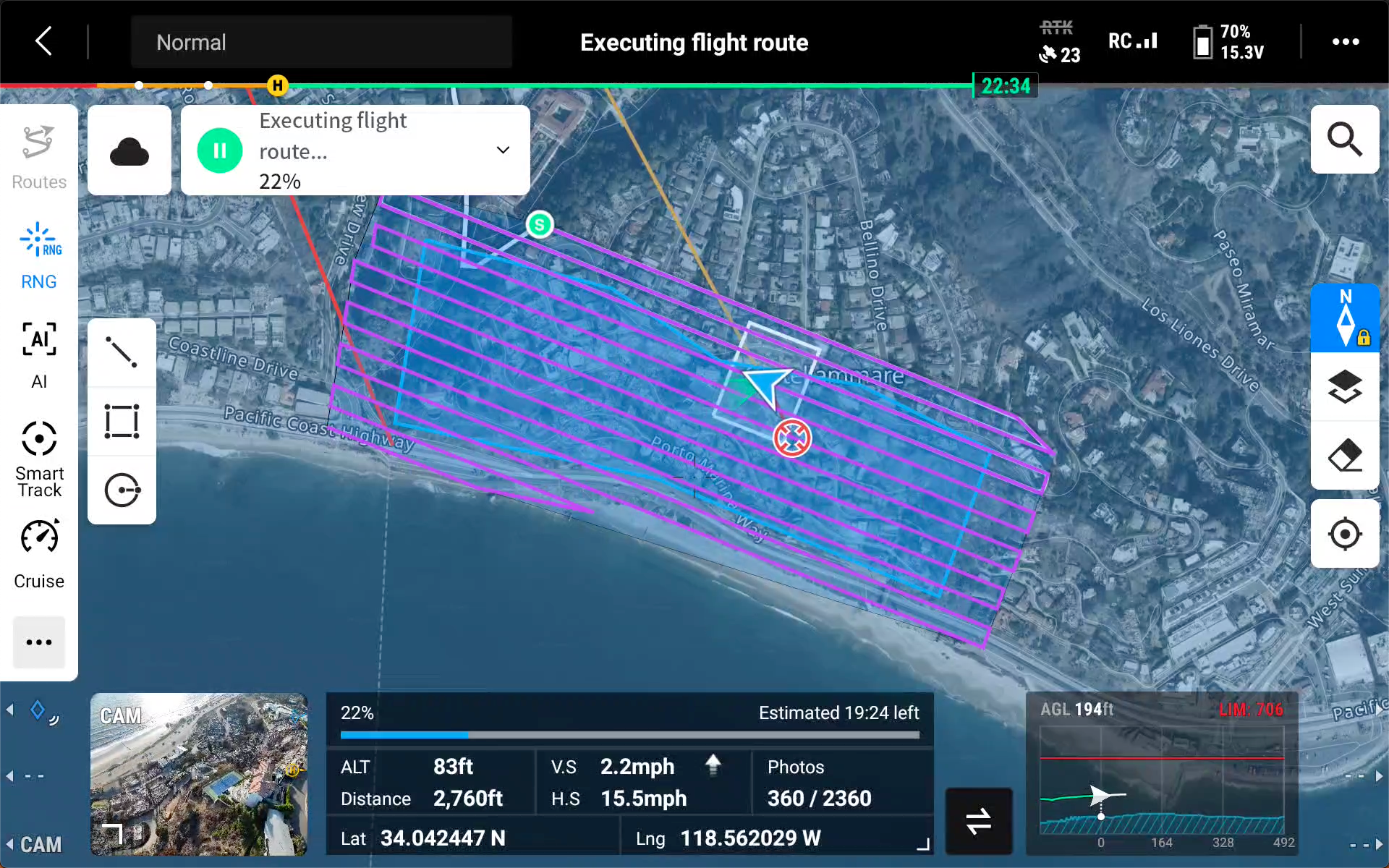

For wider areas the Matrice 4 Series offers 5 directional capture where the gimbal looks in 5 different directions while mapping an area optimizing flight time and data collection:

⁠
