2: Spatial Sheets

The following sheets are used to establish the minimum m² needed per area and activity to achieve an optimal workflow on the kiosk.
However, some furniture items can share the same real-state space on the floor plan. And, as a rule of thumb, we’re considering placing storage space below all counters and working tables.
Some items might actually not be necessary or we might be not takin necessary ones into account; as always please let us know how these sheets could better fit your established or desired workflow.
Source for all minimum standard measurements: Fonseca, X. (2021). Las Medidas De Una Casa. Editorial Terracota.
⁠

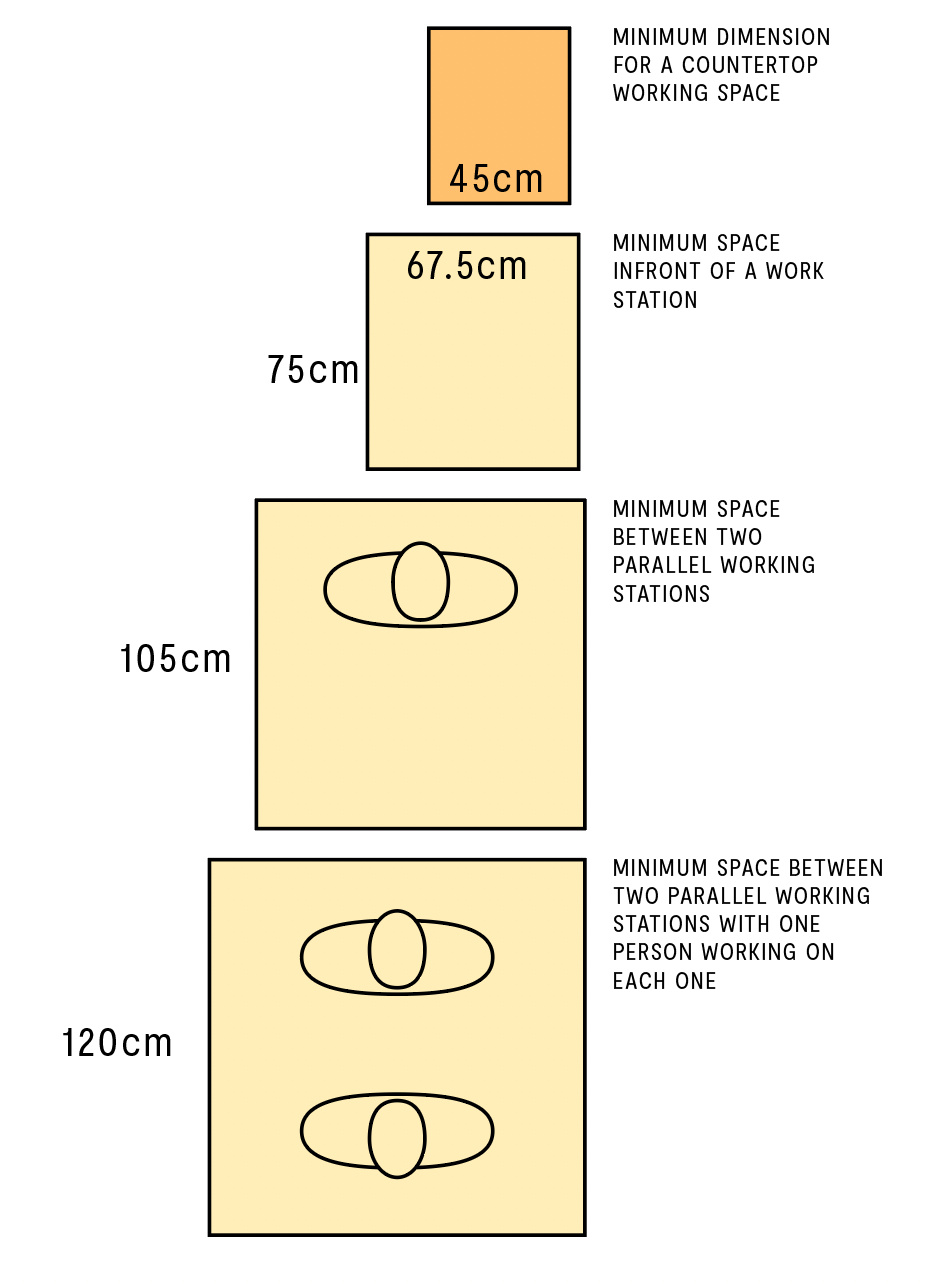

Screen Shot 2022-12-19 at 20.35.56.png
⁠
⁠
⁠

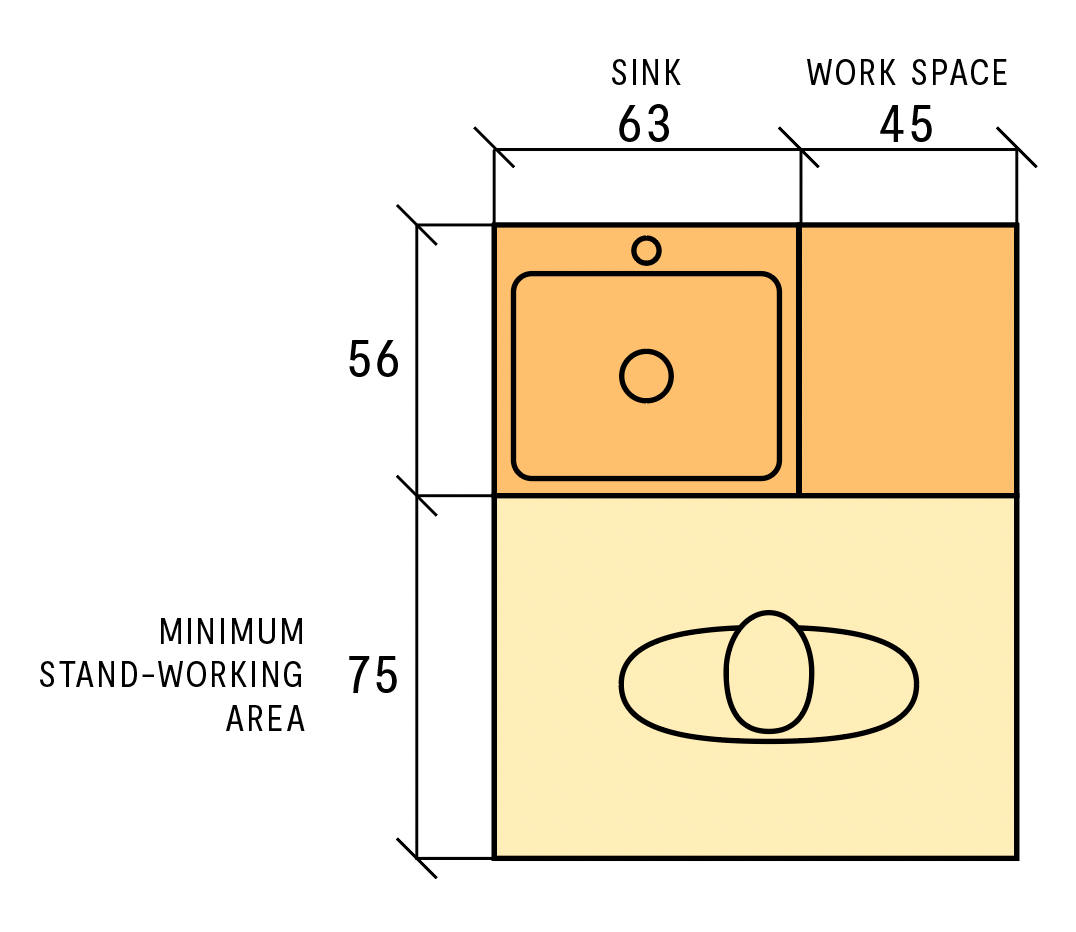

Washing Station
0
1
2
3
4
Furniture item
Size (cmxcm)
Sink
63X56
Dish storage
-
Cleaning supplies Storage
-
Working table
45
There are no rows in this table
⁠

⁠
Screen Shot 2022-12-19 at 19.32.23.png
⁠
⁠
⁠

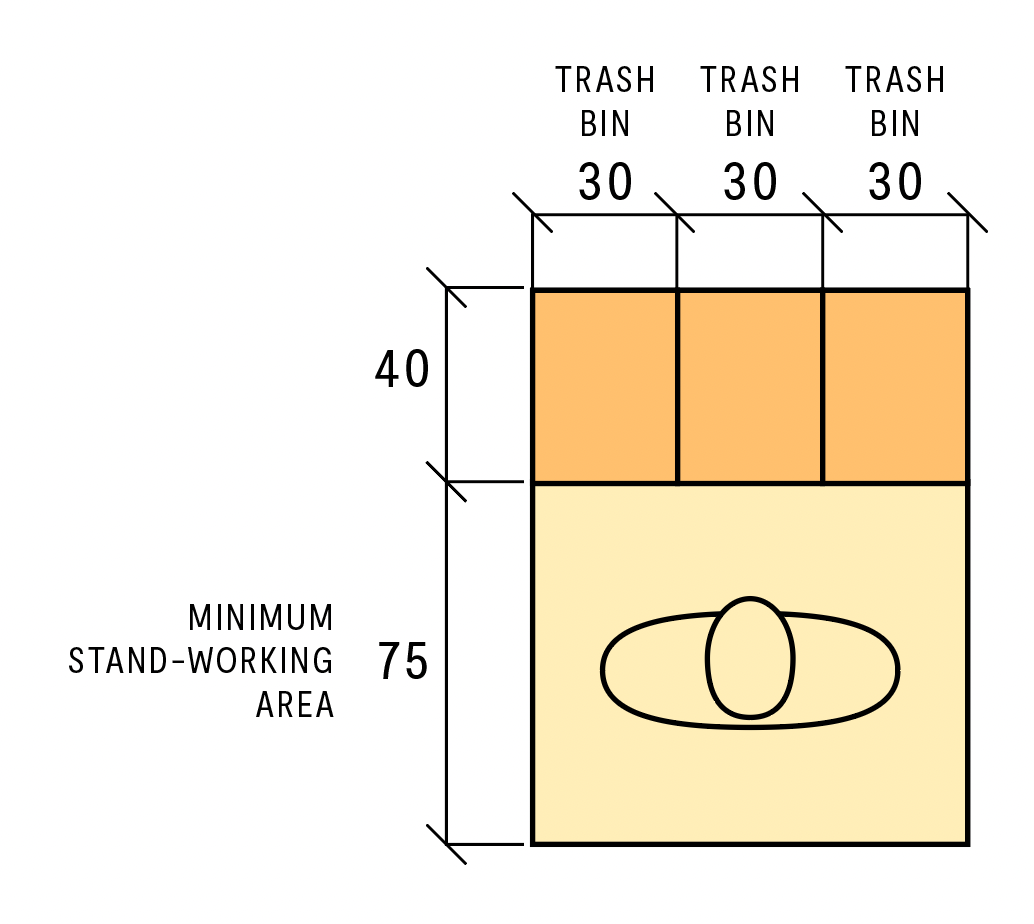

Trash
0
1
2
3
Furniture item
Size (cmxcm)
organic trash
40x30
Inorganic Trash
40x30
reciclable
40x30
There are no rows in this table
⁠
⁠
Screen Shot 2022-12-19 at 19.32.42.png
⁠
⁠
⁠

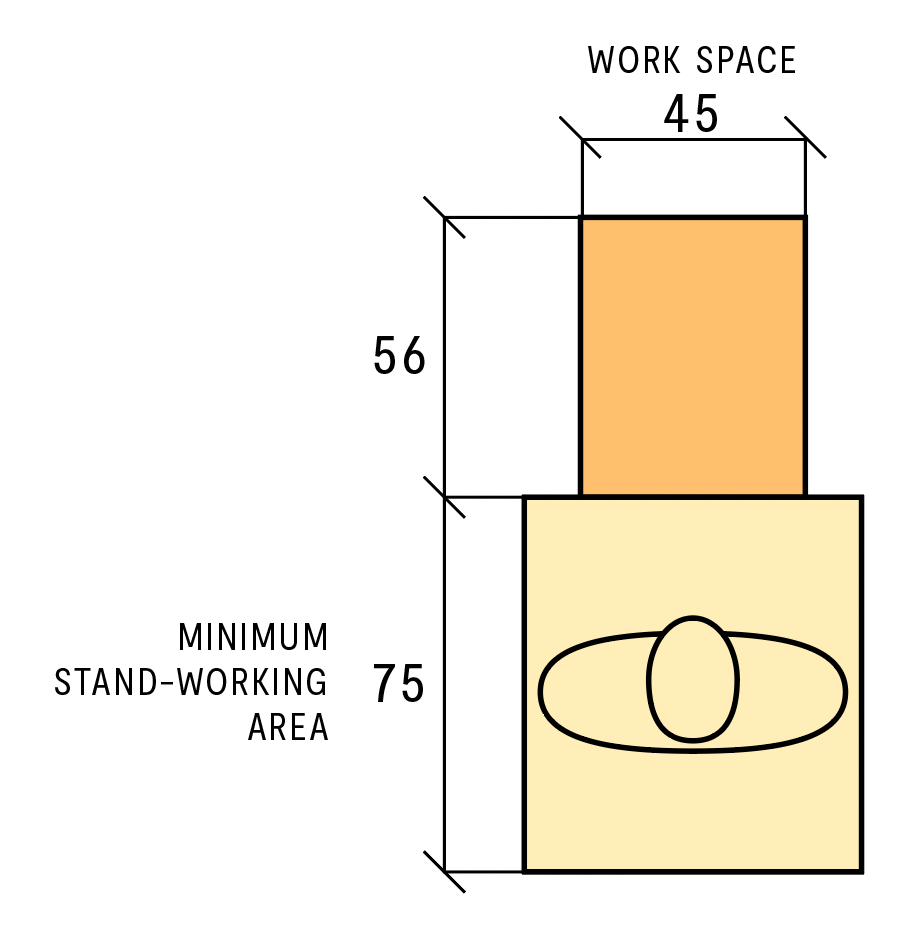

Working Station
0
1
Furniture item
Size (cmxcm)
Table (chopping vegetables, holding stuff)
45x56
There are no rows in this table
⁠
⁠
Screen Shot 2022-12-19 at 20.09.45.png
⁠
⁠
⁠
Fry/Chicken Station
0
1
Furniture item
Size (cmxcm)
Frier
39x88
There are no rows in this table
⁠
Beef Station
0
1
Furniture item
Size (cmxcm)
Grill
85x55
There are no rows in this table
⁠

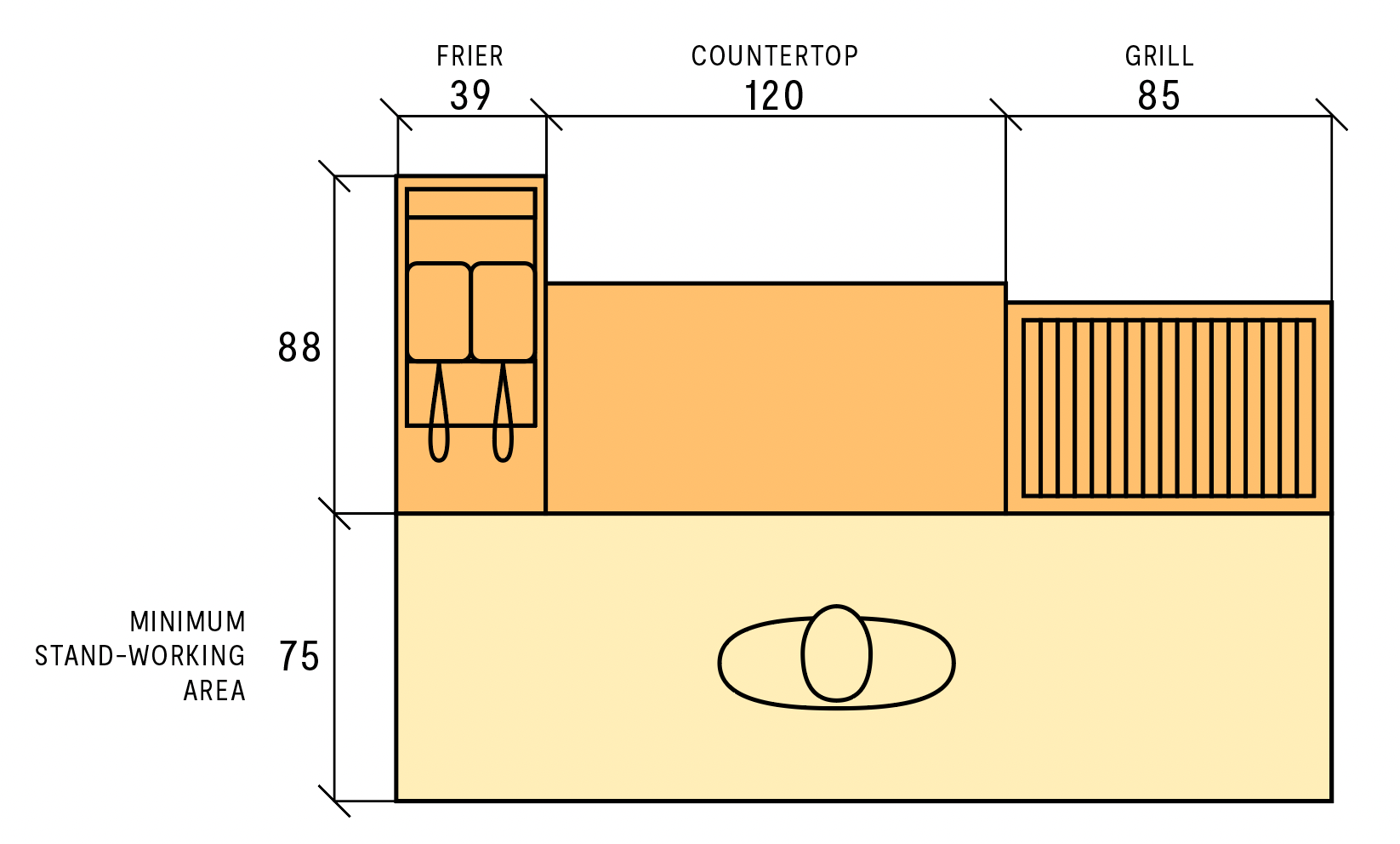

Assembly Line
0
1
Furniture item
Size (cmxcm)
Countertop (Assembling orders)
120x60
There are no rows in this table
⁠
⁠
Screen Shot 2022-12-19 at 20.08.56.png
⁠
⁠
⁠

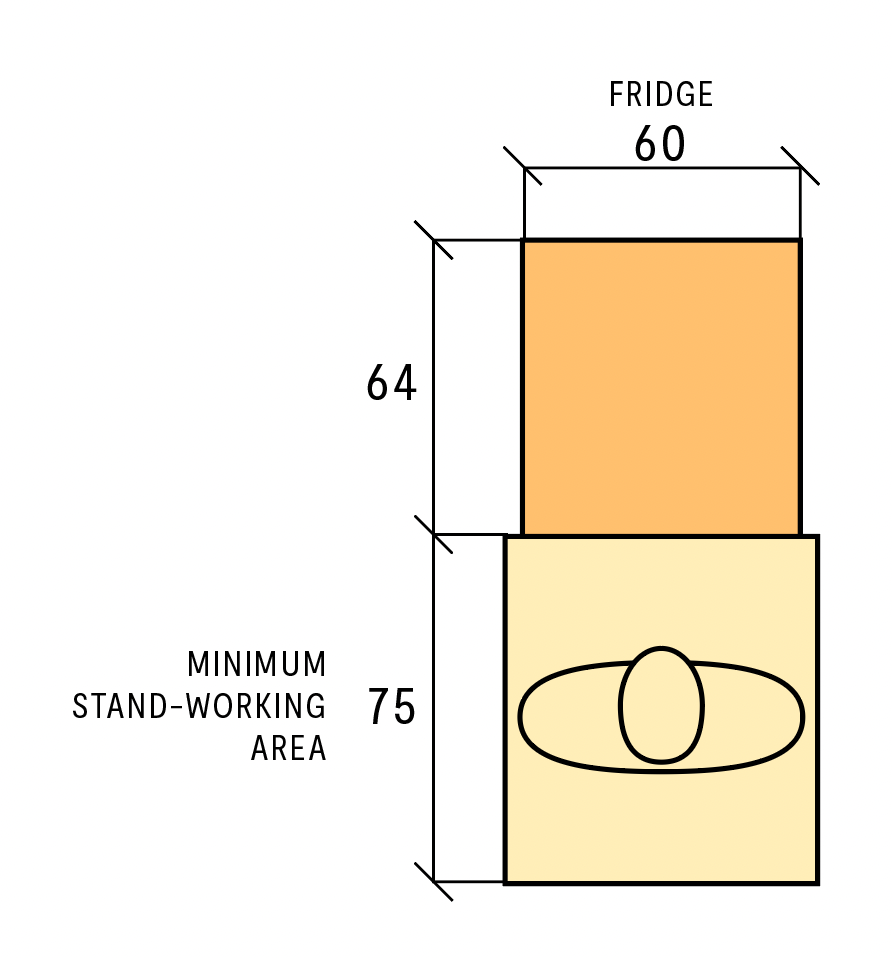

Food Storage
0
1
2
Furniture item
Size (cmxcm)
Fridge
60x64
Pantry
-
There are no rows in this table
⁠

⁠
Screen Shot 2022-12-19 at 20.01.09.png
⁠
⁠
⁠

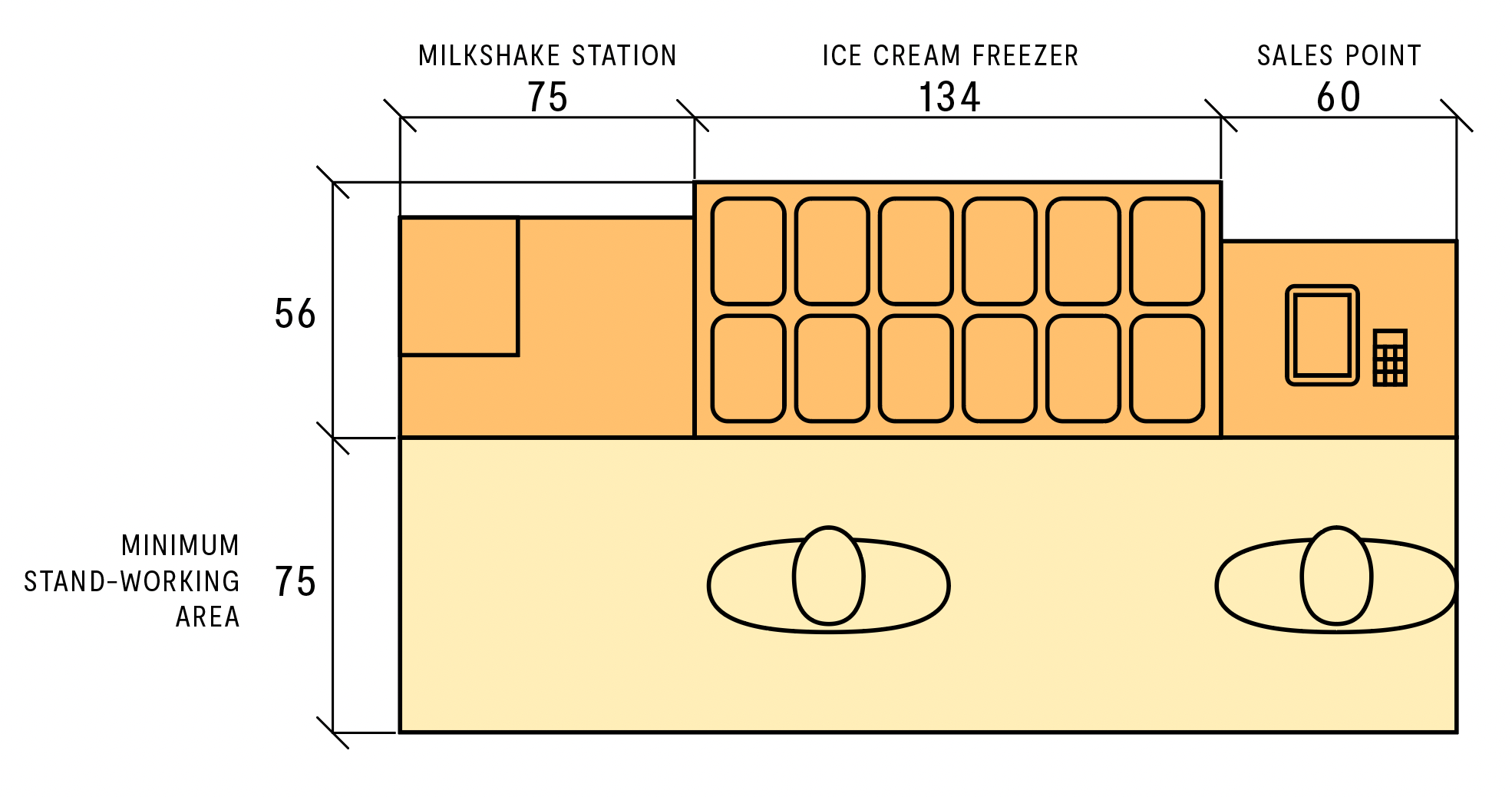

Ice Cream + Cookies
0
1
2
Furniture item
Size (cmxcm)
Ice cream freezer fridge
134X65
Cookies display
-
There are no rows in this table
⁠
Cashier
0
1
2
Furniture item
Size (cmxcm)
iPad or other sales point
-
Cash register
-
There are no rows in this table
⁠
Milkshake station
0
1
2
3
Furniture item
Size (cmxcm)
Milkshake machine
​
Counter space (Assembling cups and such)
​
Vasos y popotes
​
There are no rows in this table
⁠
⁠
Screen Shot 2022-12-19 at 20.14.41.png
⁠
⁠
⁠
Soft Drinks
0
1
Furniture item
Size (cmxcm)
Soft drinks fridge display
90x74
There are no rows in this table
⁠
⁠
Screen Shot 2022-12-19 at 20.19.51.png
⁠
⁠

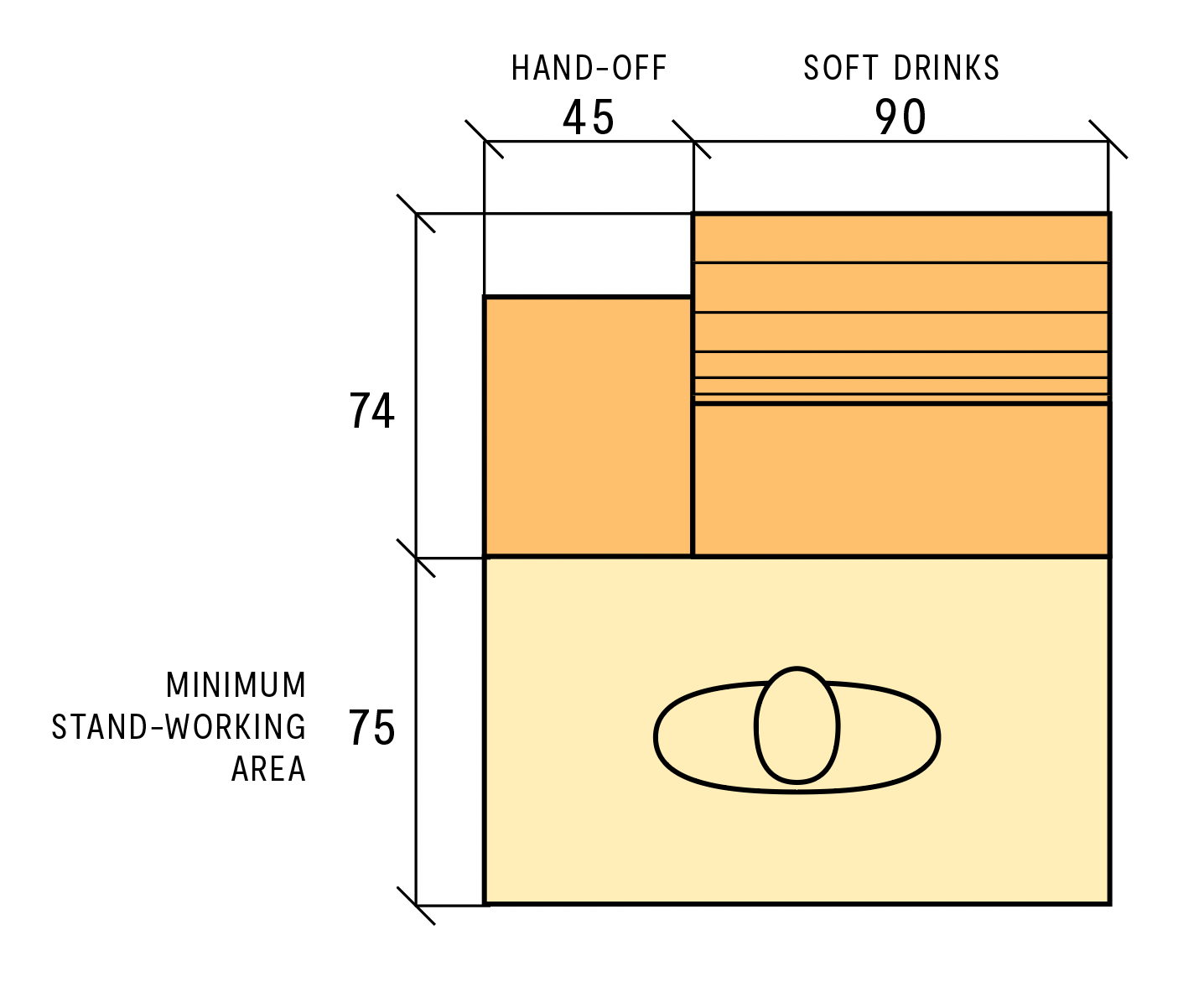

Hand Off
0
Furniture item
Size (cmxcm)
1
Counter space
Adjustable
There are no rows in this table
⁠
⁠
