Breakers
Breakers
Breaker
Endpoints
Search
Breaker
Circuit Amps
Tied To
Endpoints
Endpoint Descriptions
Notes
Remodel Notes
1
A 1
0
A 3
(Surge Protector)

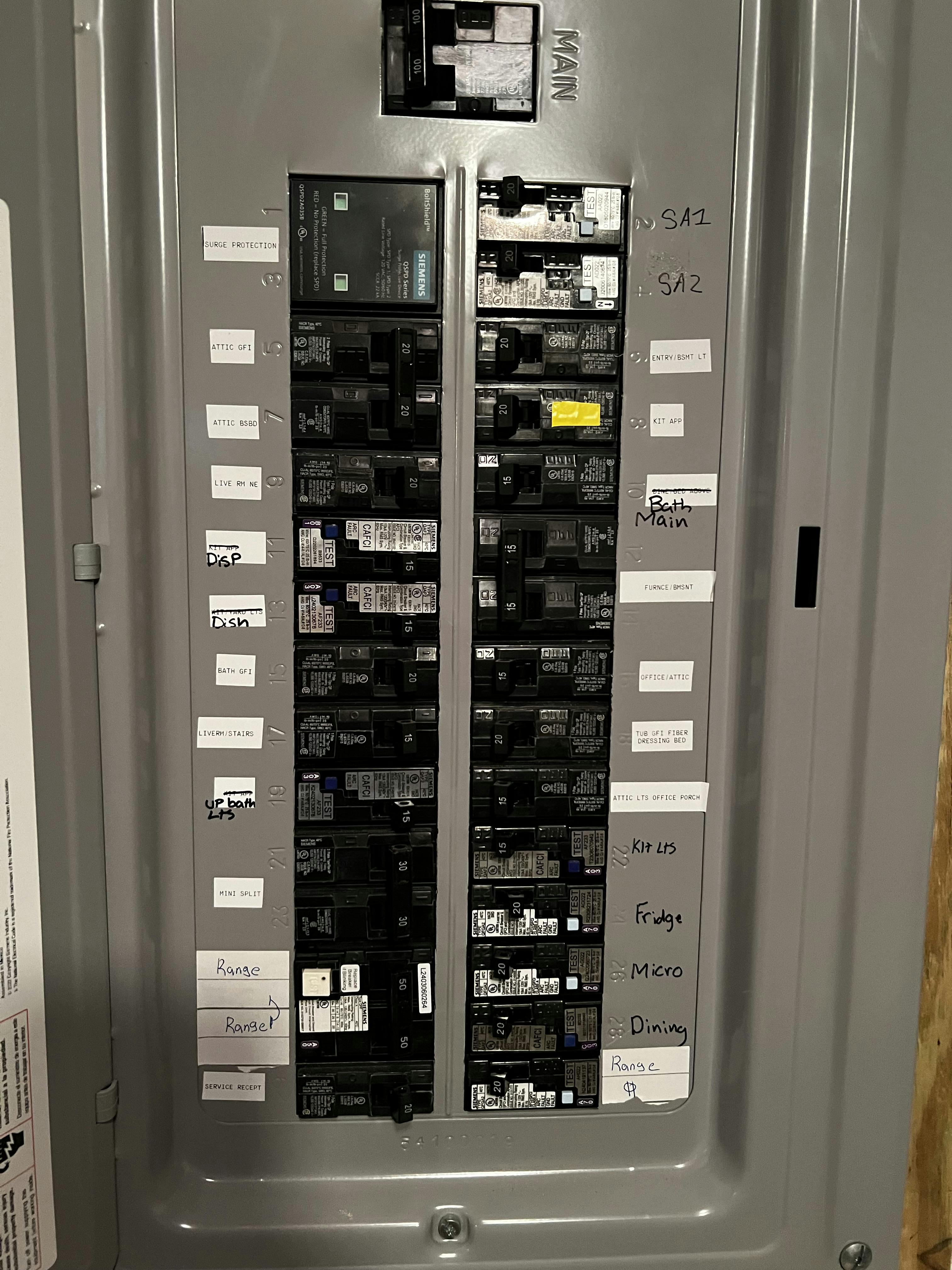

In the breaker box
Surge Protector
2
A 3
0
A 1
Tied to 1
3
A 5
20
A 7
(77)
(82)
(90)
Sink plug, GCFI, Attic north wall under bathroom shelf, Attic in nook near chimney
Attic sink GFI
4
A 7
20
A 5
(70)
Attic south wall (left), alone for baseboard heat
Attic baseboard, why is this tied to A7? Could just go to A5?
5
A 9
15
Le (8)
Living room NE corner south wall
Living room NE corner. Why all alone? Could go to A5?
6
A 11
15
Kg (37)
Ob (30)
Disposal, Back Deck Receptical
Stove, back kitchen, back dining, 2024demo
Disposal
7
A 13
15
Kf (18)
Dishwasher
Kitchen lights, backyard, 2024demo
Dishwashwer
8
A 15
20
(62)
#r113
Bathroom GCFI, Bathroom Toilet
Second floor bathroom GFI, 2024demo
9
A 17
15
Ed (4)
La (5)
Lc (6)
Ld (7)
(48)
Ee
Second floor stairs, Living room south wall, projector, home entertainment, Twinkle lights, Living room west wall, Second floor stair light, Entry Schrank
Living room, stairs
10
A 19
20
(60)
(61)
Kl (16)
Kv (23)
#r112
Bathroom Vanity, Bathroom Fan, Kitchen Plug Mold N (SA2), Kitchen Back Receptical, Bathroom Shower
Kitchen recepticals, 2024demo
Up Bath Lights
11
A 21
30
A 23
(Heat Pump)
Outside, east side of house
Heat pump and mini-splits
12
A 23
30
A 21
13
A 25
50
A 27
Ko (20)
Kitchen Electric Range (220)
Fiber on one of these temporarily, which one?
Range 220
14
A 27
50
A 25
Fiber on one of these temporarily, which one?
Range 220
15
A 29
20
(91)
Service for heat pump
Receptical on west outside house
16
B 2
20
Kk (36)
Kc (12)
Ke (13)
Kitchen Upper Lights, Kitchen Pantry, Kitchen Plug Mold S (SA1)
Dishwasher, Disposal, 2024demo
SA1
17
B 4
20
Tied to 2, 2024demo
SA2
18
B 6
20
Eb (2)
Ec (3)
Oa (31)
Ba (32)
(49)
(50)
(68)
(47)
Lf (Living Room Ceiling)
Entry Light, Entry Receptical, Front Porch Receptical, Basement lights, Entry, Hall light, Alex south wall, Alex west wall, Dressing east wall, behind closet, Living Room Ceiling
Entry, basement lights, living room ceiling, Alex computer
19
B 8
20
Kr (21)
Ks (22)
Powder Room GCFI, Powder Room Toilet
Microwave, Toaster, Refridgerator, 2024demo
20
B 10
15
(56)
(57)
(58)
Guest wall light (left), Guest east wall, Guest wall light (right)
Dining room, bedroom above, 2024demo
Main Bath
21
B 12
15
B 14
Tied to 14
22
B 14
15
B 12
(Furnace)
Furnace
Furnace
23
B 16
15
(64)
(78)
Office west wall (right), Mac & router, Attic west wall near shelf in nook
Office router and Eric computer, Attic west
24
B 18
20
(Fiber Box)
(40)
(41)
(42)
(51)
(52)
(53)
(54)
(55)
(71)
(72)
(83)
(84)
(85)
(86)
(87)
(88)
(89)
Basement fiber box, Dressing SE south wall, Dressing SW south wall, Dressing shelf light, Alex room light, Alex east wall, Guest room light, Guest by entry door, Guest by radiator, Attic south wall (right), Attic below SW shelves, Attic east side of tub, GCFI, Attic north wall below shelf east of tub, Attic under shelf at Mary bedside, Attic east wall at Eric bedside, Attic east wall inside SE shelf, Attic in floor by SE shelf, Attic east wall below SE shelf
Attic tub GFI, fiber, dressing room, bedroom, 2024demo
25
B 20
15
(46)
(43)
(63)
(65)
(66)
(67)
(73)
(74)
(75)
(76)
(79)
(80)
(81)
Dressing room light, Attic stair light, Office west wall (left), Lamps, Office overhead, Back porch (right), Back porch (left), Attic alcove above stairs, Attic fan, Attic stair light, Sink light, Bath light, Bath fan, Attic north wall inside bathroom shelf
Attic switches, office overhead, back porch, 2024demo
26
B 22
15
Dd (10)
Kx (24)
Kw (25)
Ka (27)
Kj (28)
Kz (29)
Kb (33)
Ku (34)
Dc
Ki
Kt
Dining Chandelier, Backyard Light, Kitchen Entry Light, Kitchen Ceiling Lights, Kitchen Under Lights, Kitchen Peninsula Light, Kitchen Pendant Light, Powder Room Light, Dining Ceiling, Kitchen Sink Lights, Powder Room Fan
Kitchen Lights
27
B 24
20
Kd (15)
Refrigerator
Broken
Fridge
28
B 26
20
Km
Microwave Hood
Microwave
29
B 28
20
Da (9)
De (11)
Db
Dining SE, Dining NW, Dining SW
Dining
30
B 30
20
Kn (35)
Kitchen Gas Range (110)
Range 110
