Overview
This lab introduces students to a set of essential measurement and assembly tools used in aviation maintenance: digital calipers, digital multimeters, crimping tools, and torque wrenches. Through hands-on exercises, you will learn how to measure dimensions with precision, test electrical continuity, create reliable wire connections, and properly torque fasteners. Each activity emphasizes accuracy, safety, and good technique, helping you build a foundation in tool use that is critical for quality control, system reliability, and professional practice.
Assignment
Caliper

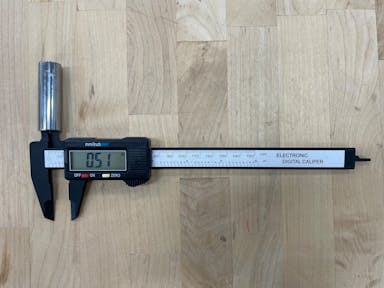

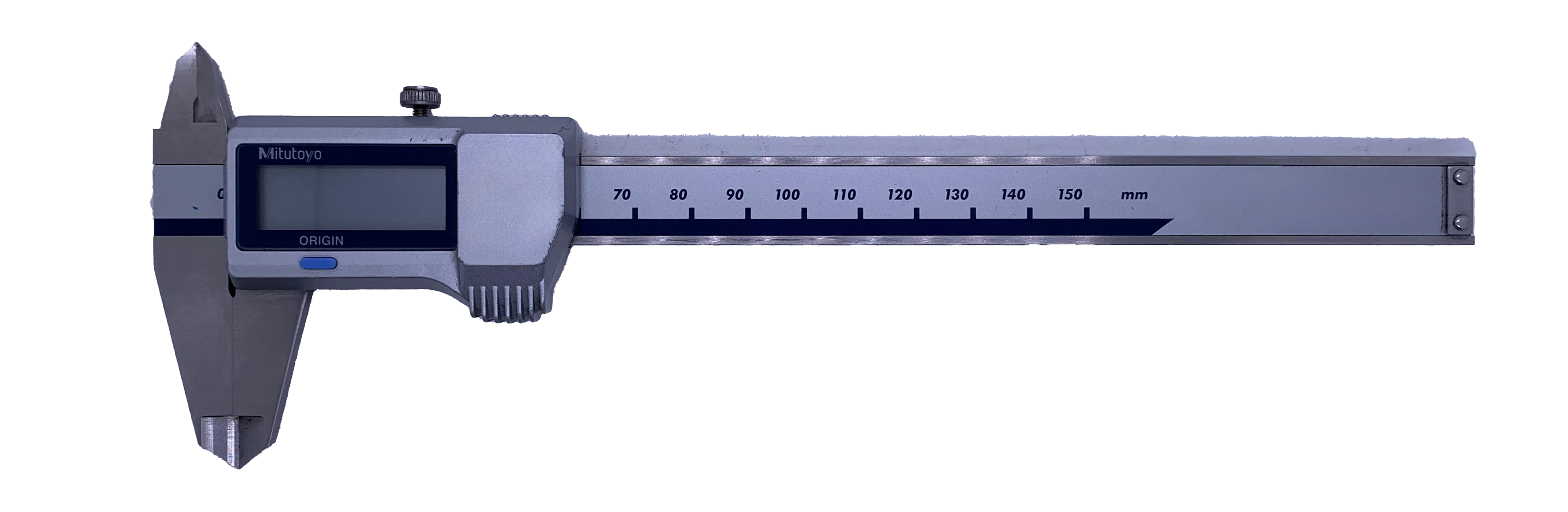

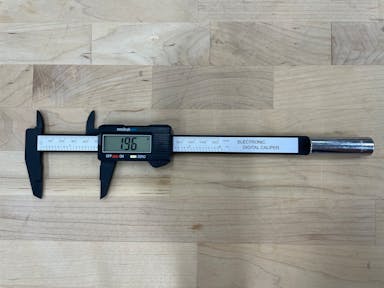

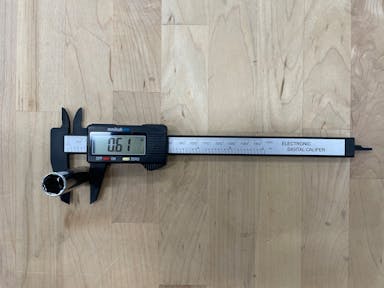

Figure 1: Digital Caliper
Introduction to Using Calipers
Digital Calipers are precision instruments that measure internal, external, and depth dimensions. They provide quick, accurate digital readouts, making them essential for ensuring proper fit, design accuracy, and quality control. This lab will cover how to read measurements and tips for practical use.
Equipment
Collect the following equipment
Making Measurements
In this section, you will measure the outer diameter, inner diameter, and depth of a socket.
Measurements Table 2
Item
Item Dimension
Measurement (in)
Measurement (mm)
Notes
3
Outer Diameter
0.61in
15.7
Open
Inner Diameter
0.53in
13.5mm
Open
Depth
0.59
15mm
Open
Questions
Answer the following questions about calipers. Use any resource (AI, Wikipedia, etc.).
[ ]
[ ]
Digital Multimeter (DMM)

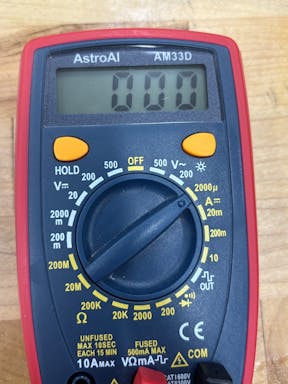

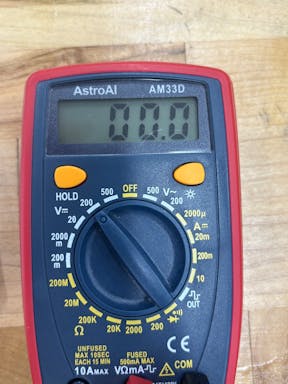

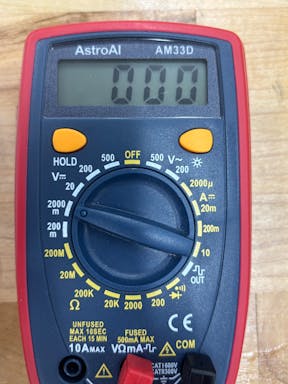

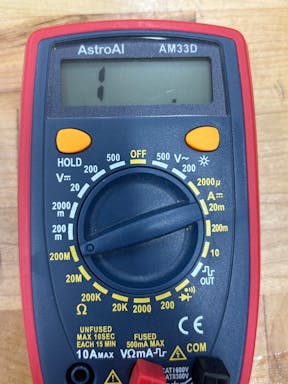

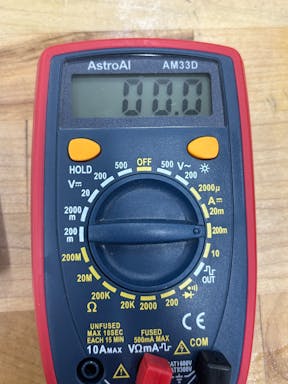

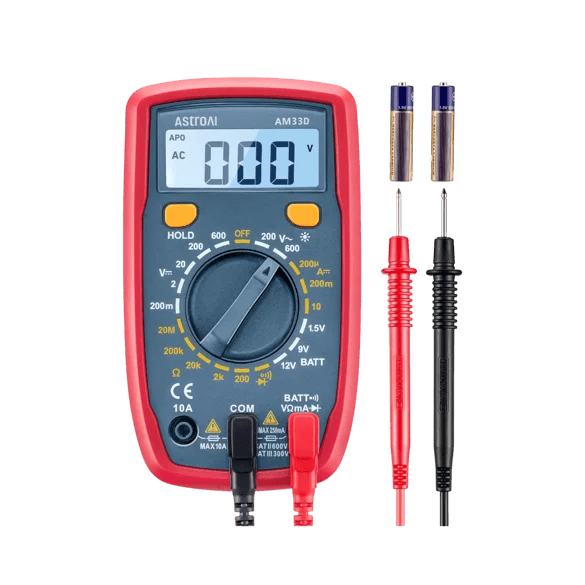

Figure 2: Digital Multimeter
Introduction to Multimeters

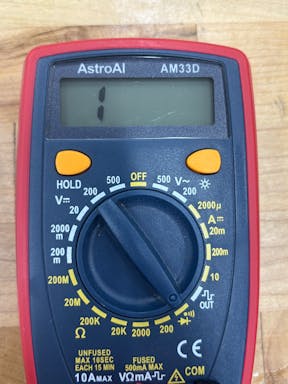

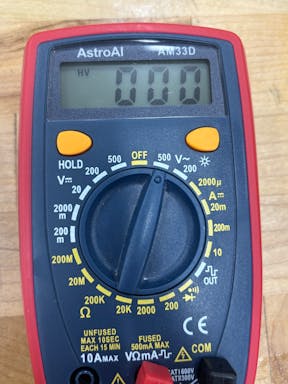

Digital Multimeters (AstroAI AM33D) are handheld instruments used to measure voltage, current, resistance, and check continuity or diodes. They provide a digital readout and require the user to select the correct range before measuring, making them reliable tools for basic electrical testing.
Equipment
Collect the following equipment
DMM Settings
In this section, you will learn about the different measurement settings available on a DMM, what it measures, and the range and limits.
Setting Name
What it Measures
Range/Limit
Volts AC
500 Volts AC
Amps DC
2000 Microamps
Amps DC
200 Miliamps
Diodes and Continuity
Diodes and Continuity
Ohm resistance
200 Megaohm resistance
Volts DC
2000 Milivolt DC
Volts DC
200 Volts DC
There are no rows in this table
Making Measurements
Now it’s time to put the DMM to use by using the continuity settings to learn the pinout of a DA-15 connector. D-subminiature or D-sub connectors are commonly used connectors in the digital signal world, and we will be working with the same connector used in the Believer wing section. Follow the steps below:
DA-15 Pinout Table 2
DA-15
Connector Name
Pin Number
1
DC positive
2
DC positive
3
Elevator, rudder, Aileron
2
4
Aileron
1
5
Rudder
1
6
Elevator
1
7
DC negative
8
DC negative
9
DC positive
10
DC positive
11
Aileron
3
12
Rudder
3
13
Elevator
3
14
DC negative
15
DC negative
There are no rows in this table
Questions
Answer the following questions about DMMs. Use any resource (AI, Wikipedia, etc.).
DMM Ports 2
Port Name
The common port (COM) serves as a ground or a neutral point for the DMM
Column 3
COM
Open
The common port (COM) serves as a ground or a neutral point for the DMM
VΩmA⎍
Open
This port is for measuring resistance, volts, small currents, and milliamps
10A_MAX_
Open
This port is used for measuring large currents up to 10amps. You must switch the red lead to the different port because the port is fused for protection
There are no rows in this table
Crimping

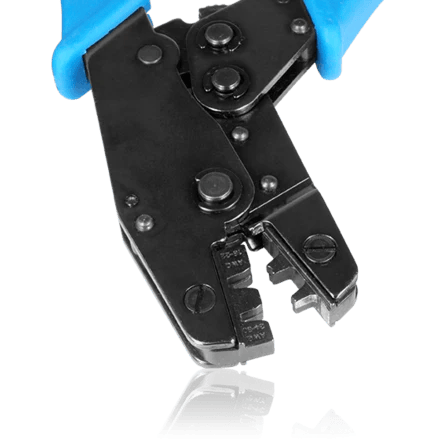

Figure 4: Wire crimper
Introduction to Crimping
Crimp Tools are used to join wires to connectors by compressing (or “crimping”) a metal sleeve around the wire. This creates a secure mechanical and electrical connection without the need for soldering.
Making Crimps
Follow the steps below to remanufacture a servo cable.
Crimp Analysis Table 2
Wire Gauge
Connector Type
Crimp Tool Slot Setting

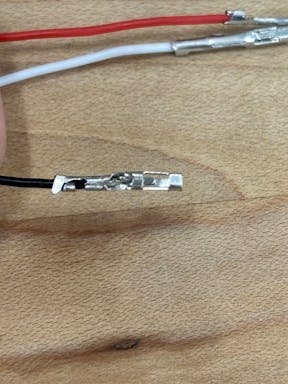

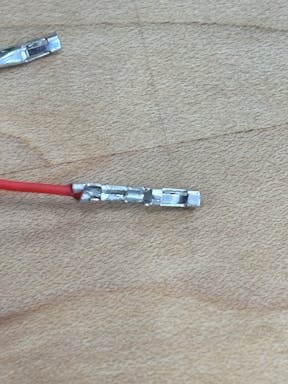

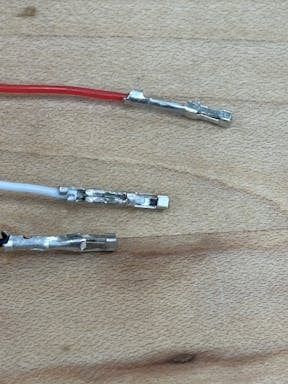

Image of Crimp
Inspection
Reflection of Crimp
3
3
3
Open
Open
Open
Questions
[ ]
Torquing

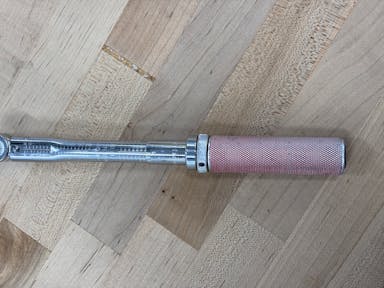

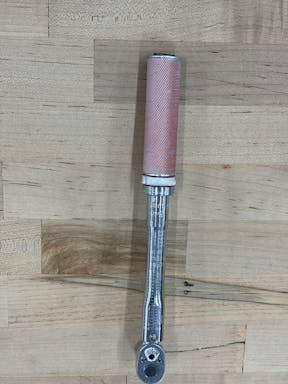

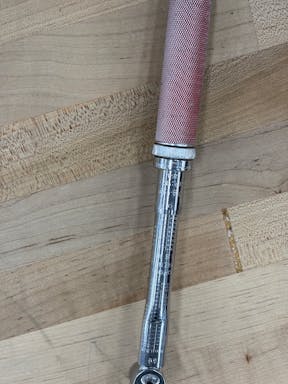

Torque Wrenches are precision tools used to apply a specific amount of torque to a fastener, such as a bolt or nut. They ensure that parts are tightened enough to hold securely without being over-tightened, which can damage components.
Table Assembly
In this section, we will assemble a lab table. Follow the steps below.
Torque Table 2
Bolt Head Size
Specified Torque Value (LB IN)
Student Torque Setting
Instructor Sign-off
3
40
64
111
Questions
[ ]
[ ]
