I ABOUT US

⁠

JT Precision manufactures machines including Loom Beam, Warper Beam, etc., which are essential in all manufacturing processes. Aluminum alloy processing has input code for pre-processing.

JT Precision is maximizing exports to major markets around the world such as Vietnam, Indonesia, Japan, Bangladesh, Uzbekistan, etc., while promoting development into an industrial machinery manufacturer with advanced technology advancement and high sales capacity.

I IMAGES

⁠

I OUR PRODUCTS

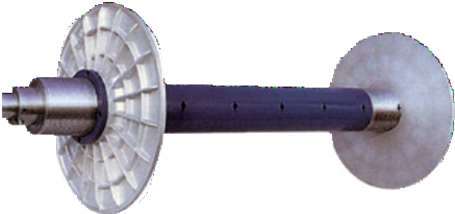

I. WARPE’R S BEAM

⁠

MODEL TYPE

LENGTH (mm)

WIDTH (mm)

DIAMETER (Ø)

BARREL(Ø)

MATERIAL

TSUDAKOMA warper beam

2300

1780

800

214

BEAM BARREL : ALUMINIUM (A6061-T6) (STPG)

TSUDAKOMA warper beam

2300

1780

920(1000)

300(315)

BEAM BARREL : ALUMINIUM (A6061-T6) (STPG)

KAWAMOTO warper beam

2100

1627

660 800 920

214 300

BEAM BARREL : ALUMINIUM (A6061-T6) (STPG)

KAWAMOTO warper beam

2300

1827

660 800 920

214 300

BEAM BARREL : ALUMINIUM (A6061-T6) (STPG)

KAWAMOTO warper beam

2400

1927

1000

(315)

BENNINGER warper beam

2070

1800

800 1000

315

BEAM BARREL : STPG

There are no rows in this table

⁠

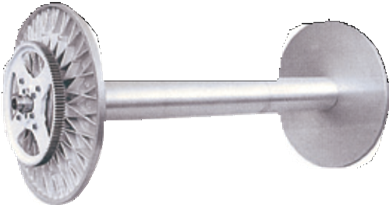

II. TSUDAKOMA WATER/AIR JET LOOM BEAM

⁠

TYPE

DIA.

MATERIAL

170W

2049

1700

800

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

190W

2249

1900

914

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

210W

2449

2100

(1000)

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

230W

2649

2300

(1050)

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

There are no rows in this table

⁠

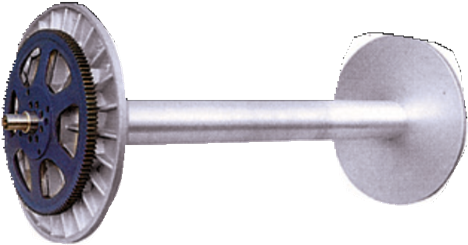

III. PICANOL AIR JET / RAPIER LOOM BEAM

⁠

MODEL TYPE

LENGTH (mm)

WIDTH (mm)

DIAMETER (Ø)

BARREL(Ø)

MATERIAL

DELTA-OMNI AIR JET

T190

2265

1985

805 914 1000 1100

177 (214)

BEAM BARREL : ALUMINIUM(A6061-T6) STPG 200A

DELTA-OMNI AIR JET

T220

2565

2285

805 914 1000 1100

177 (214)

BEAM BARREL : ALUMINIUM(A6061-T6) STPG 200A

DELTA-OMNI AIR JET

T250

2865

2585 1920

805 914 1000 1100

177 (214)

BEAM BARREL : ALUMINIUM(A6061-T6) STPG 200A

GTM-A RAPIER 1

T190

2424

2585 1920

805 914 1000 1100

177 (214)

BEAM BARREL : ALUMINIUM(A6061-T6) STPG 200A

GTM-A RAPIER 1

T220

2724

2220

805 914 1000 1100

177 (214)

BEAM BARREL : ALUMINIUM(A6061-T6) STPG 200A

GTM-A RAPIER 1

T240

2924

2520

805 914 1000 1100

177 (214)

BEAM BARREL : ALUMINIUM(A6061-T6) STPG 200A

There are no rows in this table

⁠

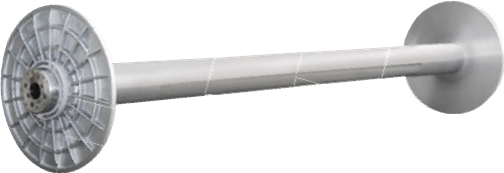

IV. TOYOTA Air Jet Loom Beams

⁠

TYPE

DIA.

MATERIAL

170W

2130

1700

800

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

190W

2330

1900

900

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

210W

2530

2100

1000

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

230W

2730

2300

177 (214)

Beam Barrel : Al. Alloy (A6061-T6)

There are no rows in this table

⁠

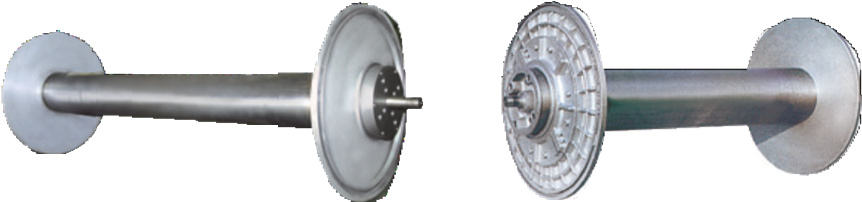

V. PICANOL DOUBLE BEAM(SMIT, SOMET, SULZER)

⁠

MODEL TYPE

LH / left(mm)

RH / right (mm)

DIAMETER (Ø)

BARREL(Ø)

MATERIAL Материал

280T

1740

800 814 940 1.000

214

BEAM BARREL : STPG 200A

340T

2040

800 814 940 1.000

214

BEAM BARREL : STPG 200A

360T

2140

800 814 940 1.000

214

BEAM BARREL : STPG 200A

There are no rows in this table

⁠

VI. SMIT(FAST) BEAM

⁠

Тип модели MODEL TYPE

DIMENSION / РАЗМЕРЫ

DIMENSION / РАЗМЕРЫ 2

DIMENSION / РАЗМЕРЫ 3

REMARK Примечание

MODEL TYPE

LENGTH (mm)

DIAMETER (Ø)

BARREL(Ø)

MATERIAL Материал

1900

2048

800 940 1,000

214

BEAM BARREL : STPG 200A

2000

2148

800 940 1,000

214

BEAM BARREL : STPG 200A

2200

2348

800 940 1,000

214

BEAM BARREL : STPG 200A

2600

2748

800 940 1,000

214

BEAM BARREL : STPG 200A

2900

3148

800 940 1,000

214

BEAM BARREL : STPG 200A

3600

3948

800 940 1,000

214

BEAM BARREL : STPG 200A

There are no rows in this table

⁠
