Zeus Regulator Harness Pinout

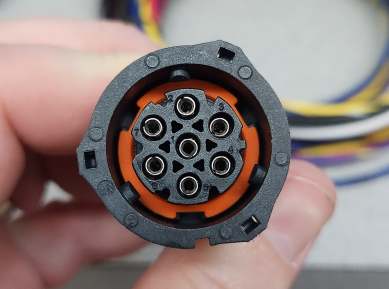

Alternator Harness Connector
Pin #
Function
Color
1
ALT GND
Yellow w/Black
2
ALT FIELD (F)
Blue w/Black
3
ALT V+ (A/B)
Re w/Black
4
ALT TEMP (+)
Black
5
ALT TEMP (-)
Black w/White
6
ALT TACH (T/W)
White
7
INPUT 2
Purple w/White
There are no rows in this table

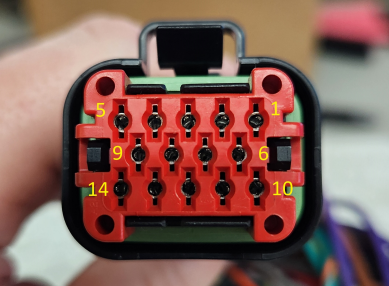

Battery / Control Harness Connector
Pin #
Function
Color
1
BATT TEMP (-)
Black w/White
2
BATT V- SENSE
Green w/Yellow
3
OUTPUT 1
Purple w/Light Purple
4
BATT V+
Red
5
BATT GND
Yellow
6
ALT SHUNT (-)
Green w/Orange
7
ALT SHUNT (+)
Green w/Blue
8
BATT TEMP (+)
Black w/White
9
ENABLE (ATC)
Gray
10
BATT V+ SENSE
Orange
11
BATT SHUNT (-)
White w/Orange
12
BATT SHUNT (+)
White w/Blue
13
INPUT 1
Purple
14
IGNITION
Brown
There are no rows in this table
