Zeus Configuration Guide
This guide is intended to assist in saving, sharing and loading a configuration onto an ARCO Zeus regulator from a mobile device. If you need further assistance with these instructions, please contact ARCO at support@arcomarine.com.
Saving the Configuration to your mobile device

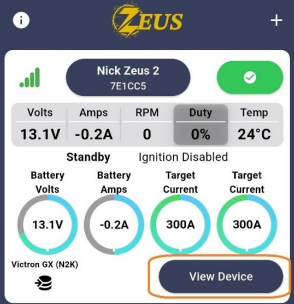

1.) Open the ARCO Zeus mobile app and let nearby devices be discovered. Once found and displayed, select “View Device” for the regulator you want to save the configuration of.

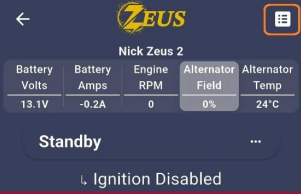

2.) Select the “Live Settings” page icon.

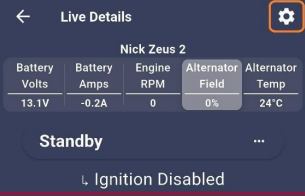

3.) Select the “Settings” page icon.
4.) A dialog box will appear before entering the Settings section. Select “I Understand” to enter the Settings.

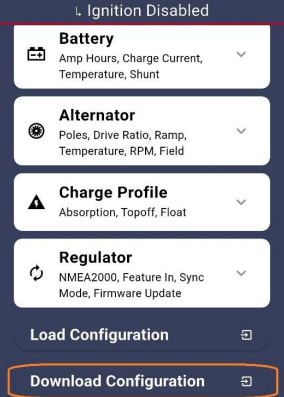

5.) Once in the “Settings” section, scroll to the bottom until you see “Download Configuration”. Select this option to download the current configuration from your regulator and save it to your mobile device.
6.) From the menu that appears, select the name of the regulator that you want to download the configuration from. If you have multiple regulators, or there are other regulators in your proximity, you will see their names here so be sure to select your device.
7.) The configuration has now been downloaded and saved to your mobile device. You can select the “Share” option to send now, or “Dismiss” to go back to the app as normal.
Share the Configuration with others

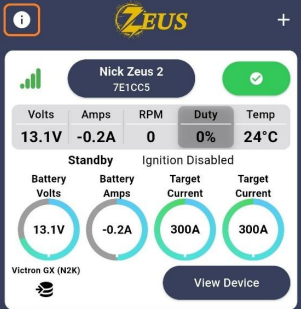

1.) In the ARCO Zeus mobile app, select the “I” (information) icon in the top left corner.

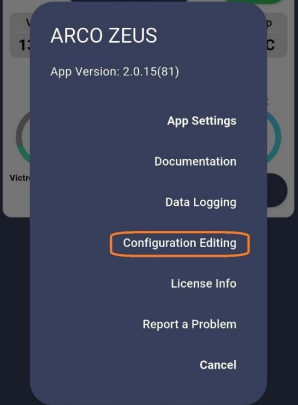

2.) From the menu, select “Configuration Editing”.

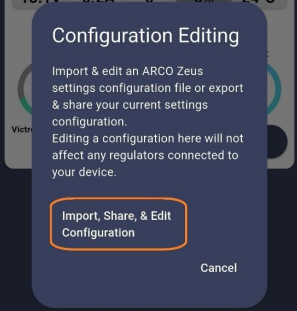

3.) Select “Import, Share, & Edit Configuration”.

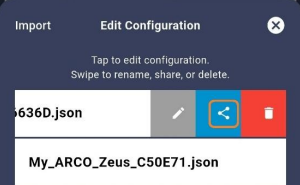

4.) Find the name of the configuration that you want to share, and swipe left.
The options to edit, share or delete are then presented. Select the blue “Share” icon to send the configuration to someone via email, text or other available options.
