Garage Lights
Garage is 56’ x 21’ = 1176 sqft
Lights: 4’ LED surface mount shop lights
5520 Lumens per fixture
48 W per fixture
5000 K color temperature

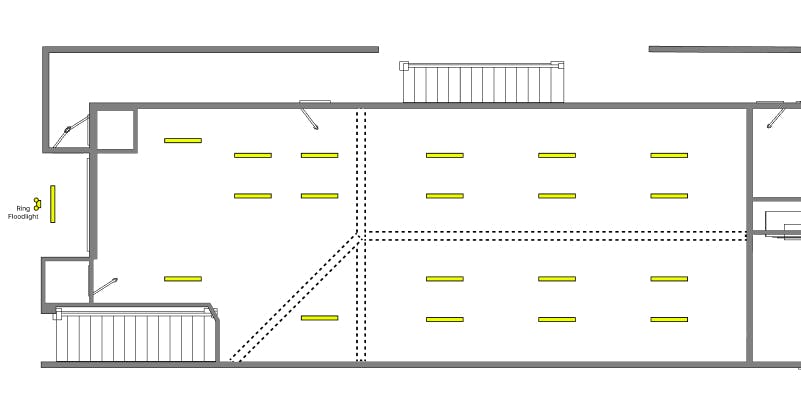

19 lights on a single circuit, motion switched inside the garage
1 light on its own motion switch outside the garage under the overhang
Inside the garage
19 lights * 5520 lumens/light = 104880 lumens total
89 lumens/sqft inside the garage
Ring Floodlight above garage arch on building exterior
