Electrical Circuits & Points

40A Kitchen
32A Hall + Living Room + Single Bedroom
32A Double Bedroom + Bathroom + Office
32A Cooker
16A TV Wall
6A Lighting + Doorbell
6A Boiler
Points
Not synced yet
Row
Room
Type
Qty
Notes
1
Kitchen
Kitchen
50A DP Cooker Switch
1
2
Kitchen
Kitchen
Dual Cooker Connection Unit
1
3
Kitchen
Kitchen
Grid Switch
2
MW, FF
4
Kitchen
Kitchen
Connection Unit
1
Boiler
5
Kitchen
Kitchen
Power Socket
8
CH, DW, MW, FF, Boiler Cupboard + 3 Worktop
6
Kitchen
Kitchen
Central Light
1
7
Kitchen
Kitchen
Light Switch
2
1G Central, 2G Downlights
8
Kitchen
Kitchen
Downlighter Junction Box
2
9
TV Wall
TV Wall
Power Socket
3
10
TV Wall
TV Wall
Cable Entry/Exit
1
11
Hall
Hall
Central Light
1
12
Hall
Hall
PIR Switch
1
13
Hall
Hall
Power Socket
3
14
Hall
Hall
Extractor Fan
1
15
Living Room
Living Room
Central Light
1
16
Living Room
Living Room
Light Switch
1
17
Living Room
Living Room
Power Socket
7
18
Living Room
Living Room
Cable Entry/Exit
3
19
Single Bedroom
Single Bedroom
Central Light
1
20
Single Bedroom
Single Bedroom
Light Switch
1
21
Single Bedroom
Single Bedroom
Power Socket
4
22
Single Bedroom
Single Bedroom
Cable Entry/Exit
1
23
Double Bedroom
Double Bedroom
Central Light
1
24
Double Bedroom
Double Bedroom
Light Switch
1
25
Double Bedroom
Double Bedroom
Cable Entry/Exit
1
26
Double Bedroom
Double Bedroom
Power Socket
6
27
Double Bedroom
Double Bedroom
Power Socket EU
1
28
Double Bedroom
Double Bedroom
Reading Light
2
29
Office
Office
Central Light
1
30
Office
Office
Light Switch
1
31
Office
Office
Power Socket
4
32
Office
Office
Cable Entry/Exit
1
33
Bathroom
Bathroom
Central Light
1
34
Bathroom
Bathroom
Light Switch
1
35
Bathroom
Bathroom
LED Strip
1
36
Bathroom
Bathroom
Mirror Light
1
37
Bathroom
Bathroom
Shaver Socket
1
38
Bathroom
Bathroom
Extractor Fan
1
39
Bathroom
Bathroom
Magnetic Lock
2
There are no rows in this table

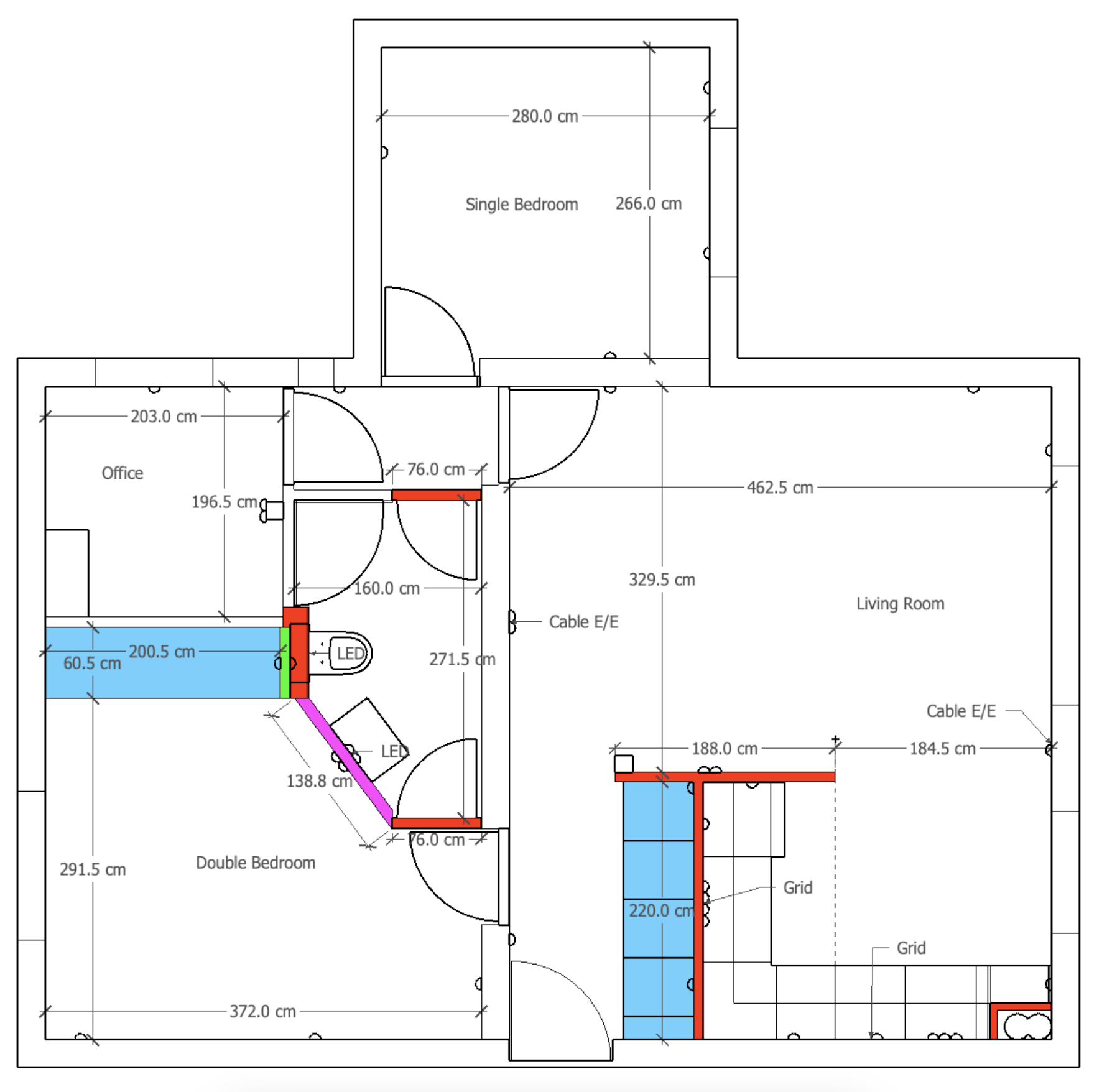

Proposed Plan.png
Stud walls are coloured.

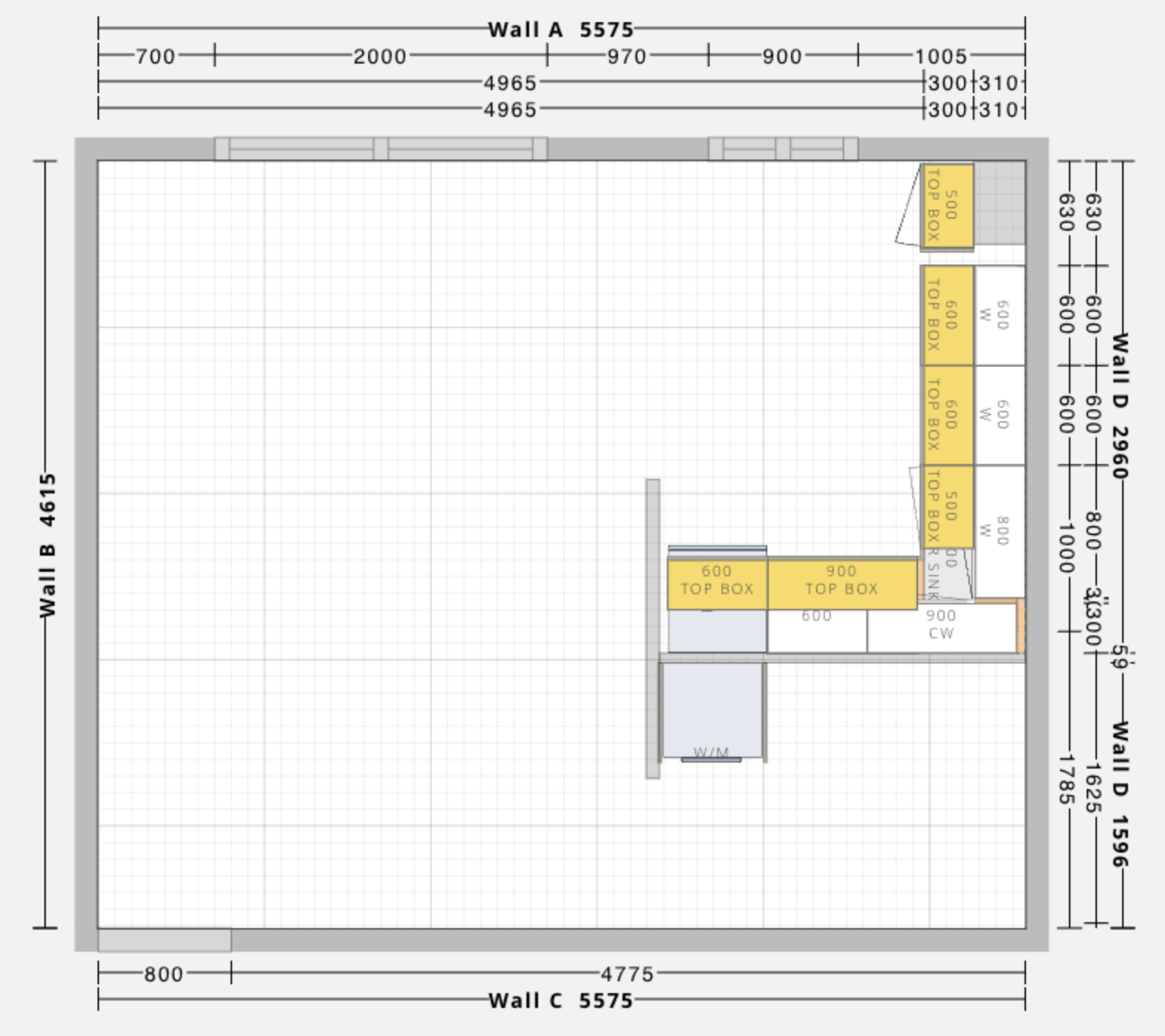

Kitchen Plan.png
Kitchen Render.png

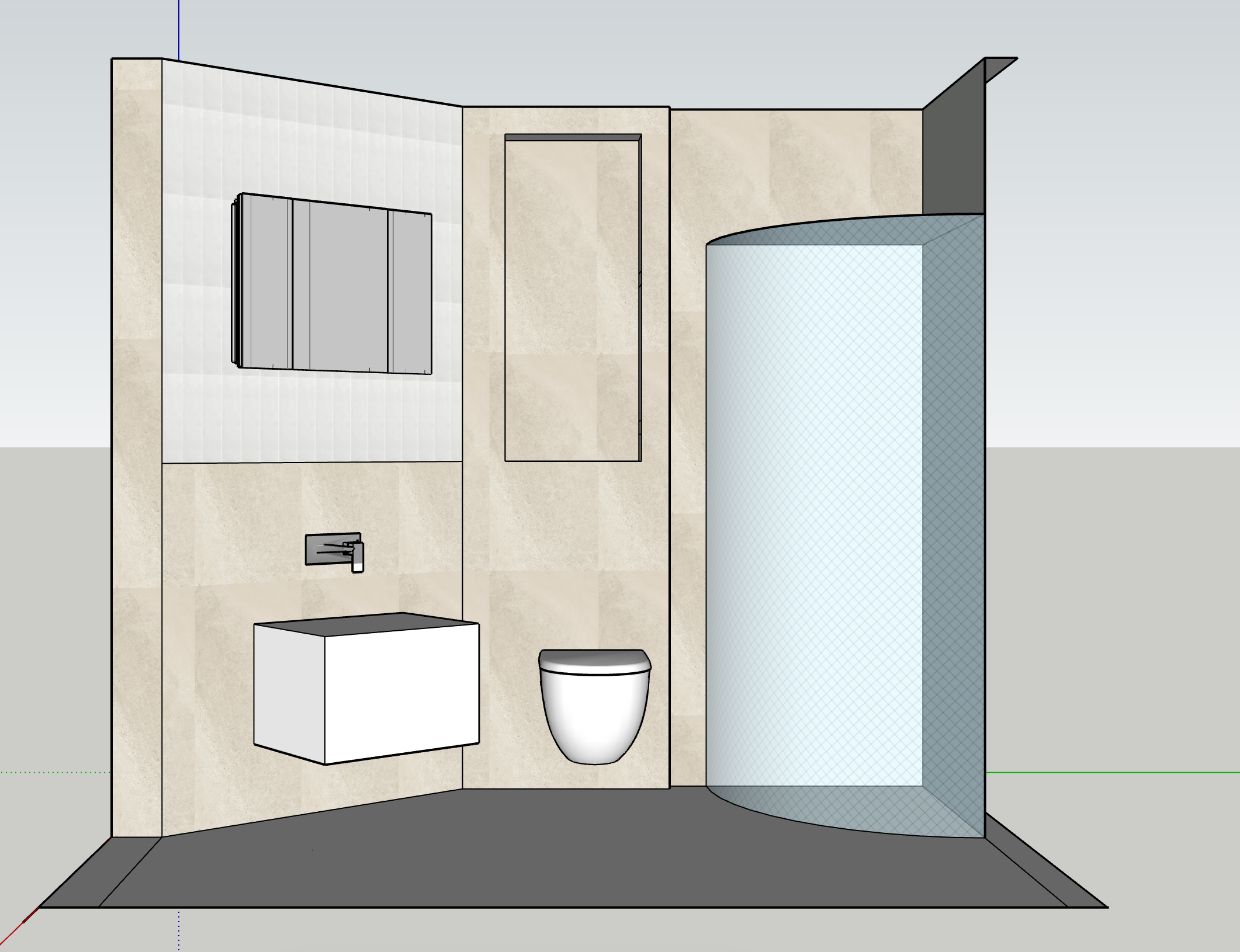

Bathroom Render.png
