Gearson / Home Improvement

The top header should be 11.5 inches to be seamless with the builkhead.

Adjust the shelf layout.

Use plywood for base and header.

5.5inch base and 11.5 inch header

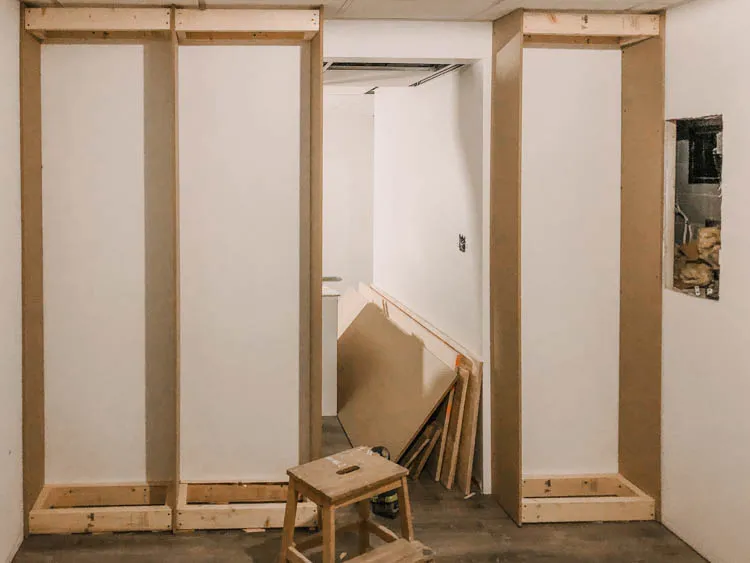

We have to have a spacer between the wall and the base cabinet See Photo

⁠

If MDF or Wood for Shelving Top

If MDF or Wood for Shelving Top

Material

MDF

Paint-Grade Plywood

Top Surface

$70–75

$95

Edge Trim

$12–20

Supplies

$35–45

Total

$117–140

$142–160

There are no rows in this table

⁠

Deep Research

Deep Research

Done

Topic

Notes

Date

Added by

Create a workback plan for next year’s event

Tue, Jan 25

Share & discuss customer stories

Tue, Feb 22

Vote on top customer stories to amplify

Tue, Mar 1

There are no rows in this table

⁠

All Tasks...

⁠

Tasks

Tasks

Task

Description

Status

Hang 2 Bathroom pictures

Fix Kitchen Pulls

Snake Toilets

Fix Dining Room Table

Hang Coat Hooks

Adjust interior doors that dont close

Fix Exterior door with weatherproofing and jamb

Fix support post and make floors even.

Test with round marble ball to see how back it is

Repair Drywall in Master Bedroom

Run Landscaping Lights

Hauling Garage Junk

Fix stairs... never finished last time.

There are no rows in this table

⁠

We need to buy these in Home Depot...

Shelving Materials / Purchase List

Shelving Materials  / Purchase List

Task

Text

How Many to Buy

Status

Buy MDF or Plywood Back Panel Sheet

Dont have drywall visible.

Buy 1x2 Face Frame for the front and Edge Molding.

The shelves dont go all the way up to a wall they are boxed in with a 1x2 edge molding. See photos below

Buy plywood or other material to build a box for the base and the header. 5inches each

I will select molding style for the base and header.

Wood Filler and wood glue to attach 1x2 face frames

Buy 1x2 MDF strips to use as face frames around the vertical and horizontal edges (I will Explain)

Use scribe molding to fill in any side gaps between the shelves and the walls if uneven gaps.

Dont forget to close the vent under the base cabinets

Can we move the outlet to the outside of the left side of the base cabinet??

There are no rows in this table

⁠

Shelving Instructions...

We have 59inches from top of quartz to bottom.

Cabinet Spacing

Each cabinet is 1x12 (8ft in length)

Link⁠

⁠

15 inch space for 1st cabinet (1 inch for the board)

12 inch seperation for 2nd cabinet (1 inch for the board)

12 inch seperation for 3rd cabinet (1 inch for board)

12 inch seperation for 4th cabinet (1 inch for board)

Total Space : 55 inches

Now we built a 5 inch header box on the top with plywood and cover with molding to make it seamless

Lets make sure I pick th molding Dont buy it without me... I may do flat/square molding on the top and bottom to match

⁠

Plywood or MDF back Panel Sheet

We need to use a 1/4 inch pluwood or MDF sheet for the back. We should not see the wall

⁠

Face Frame & shelf Edges... and Scribe Molding

Use plywood to build a 5 inch base and a 5 inch header. Then cover with flat MDF molding I will pick.

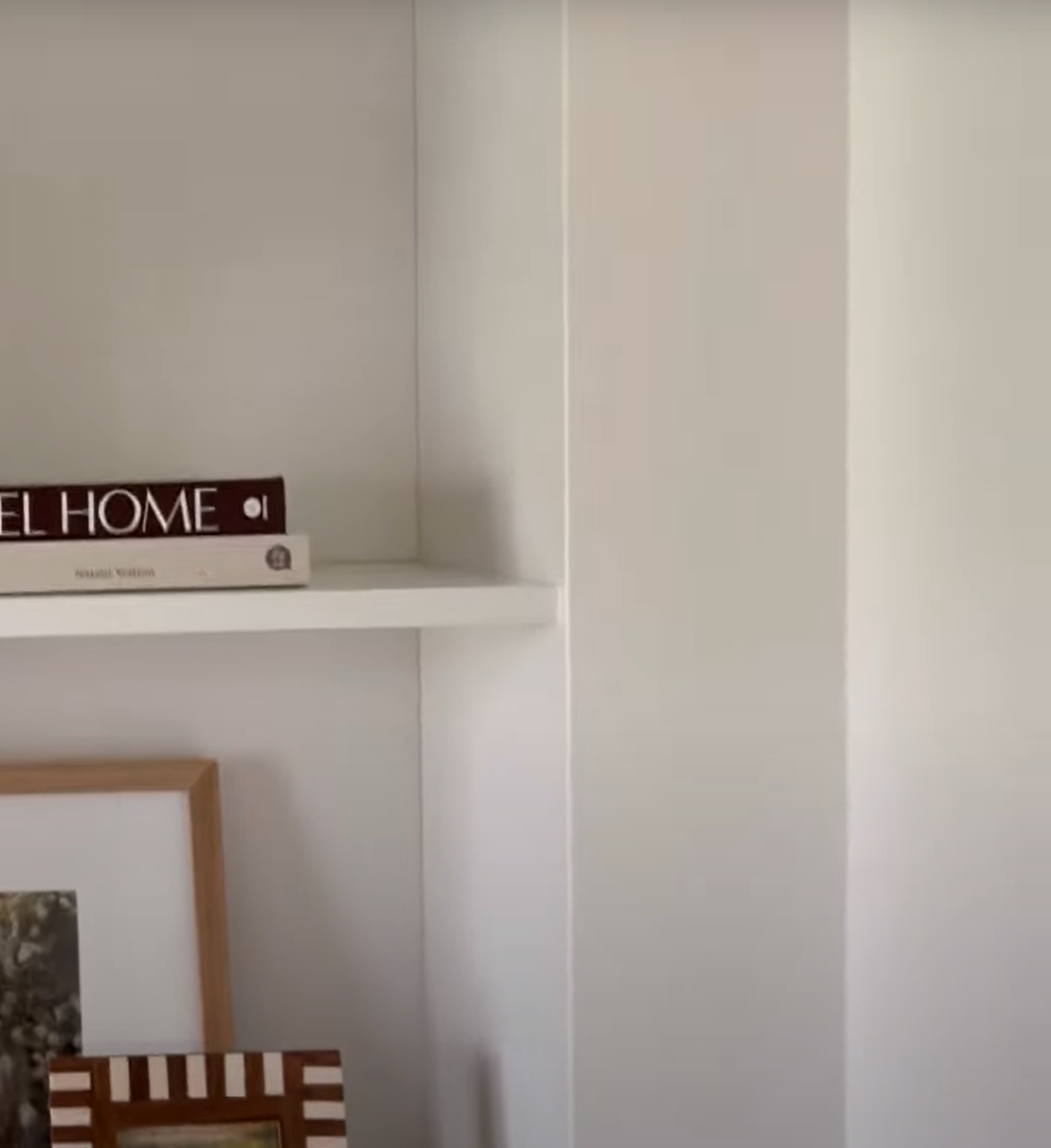

Use scribe molding to fill in any side gaps between the shelves and the walls if uneven gaps.

We will need 1x2 MDF trim for your shelf faces and edges. Line them up so the shelf has a flush, flat surface- let the overhang be at the top of the shelf below.

⁠

Here is the article.⁠

⁠

Build 5inch base and 5 inch header

⁠

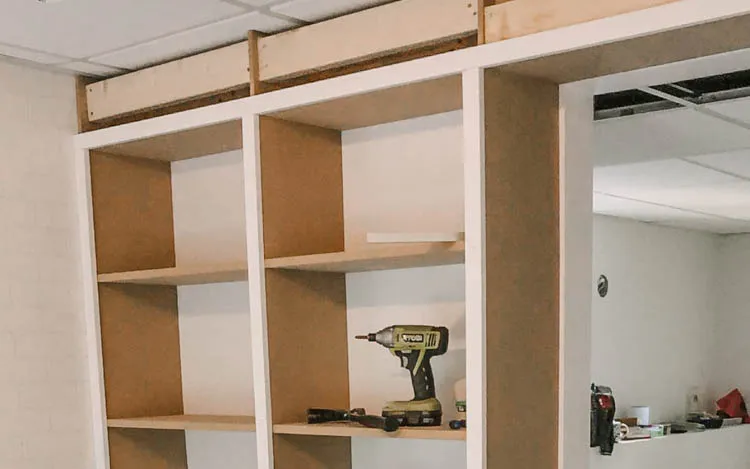

1x2 MDF Face Fame and side edges. We need to use these face frames around all of the edges

⁠

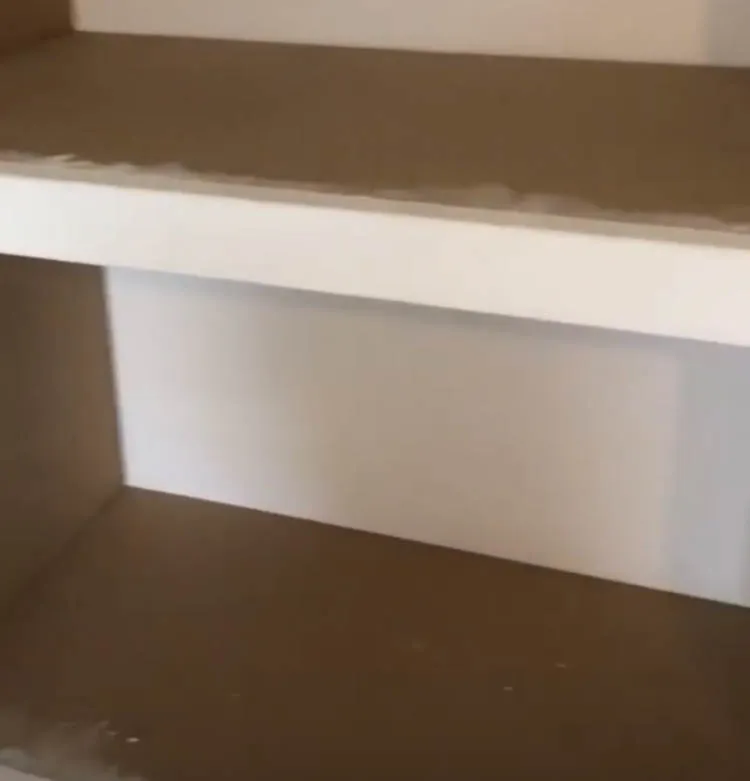

Make sure the face trim is flush and level with the shelf its attached two. Since its 2 inches, it will overhang by an inch over the top of the lower cabiner. The top one has to be level.

⁠

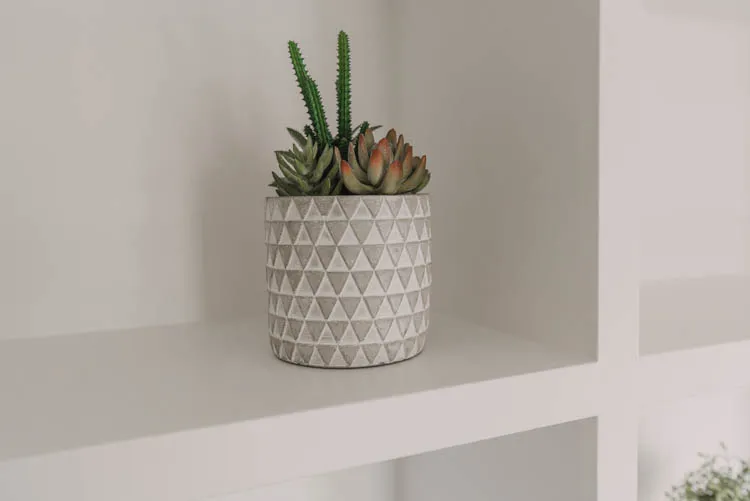

It should look like this.... perfectly level and flush with the cabinet with the overhang below.

If you’re filling mitred corners like on the baseboard around the cased opening- use wood fill here, it’s much more durable. Always caulk before you paint- it will hold up so much better! Caulk collects dust and doesn’t wipe away as easy as dust on painted surface.

⁠

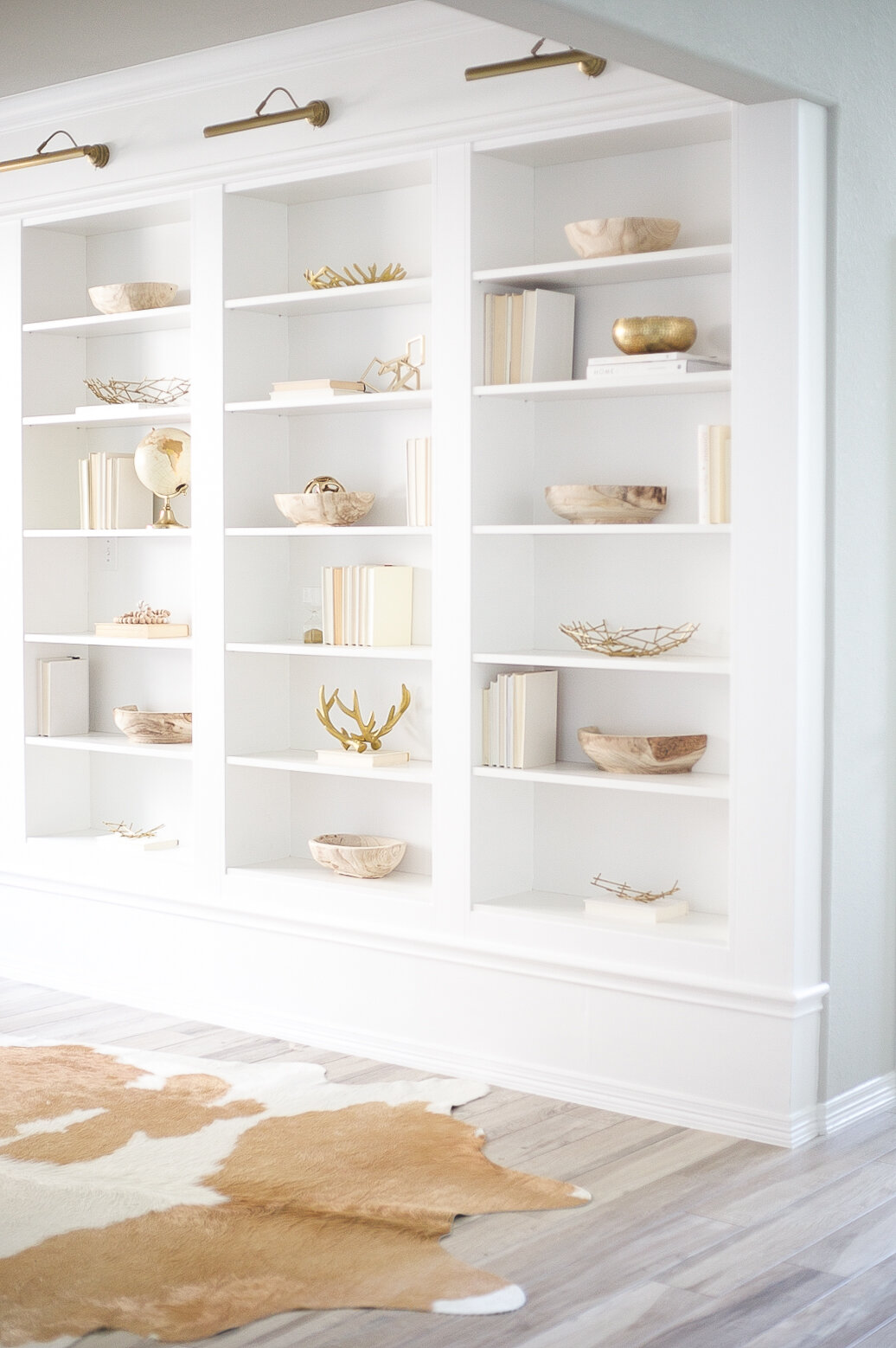

Look at this molding and trim on the top and Bottom...

⁠

We have to have a space between the wall and the cabinet

⁠

Links for Boris for Design...

Website on styling shelves

Open link

⁠
